374200: Description96 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER; Categorysemiconductor Other integrated circuit (IC); File Size75KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet View All

374200 Overview

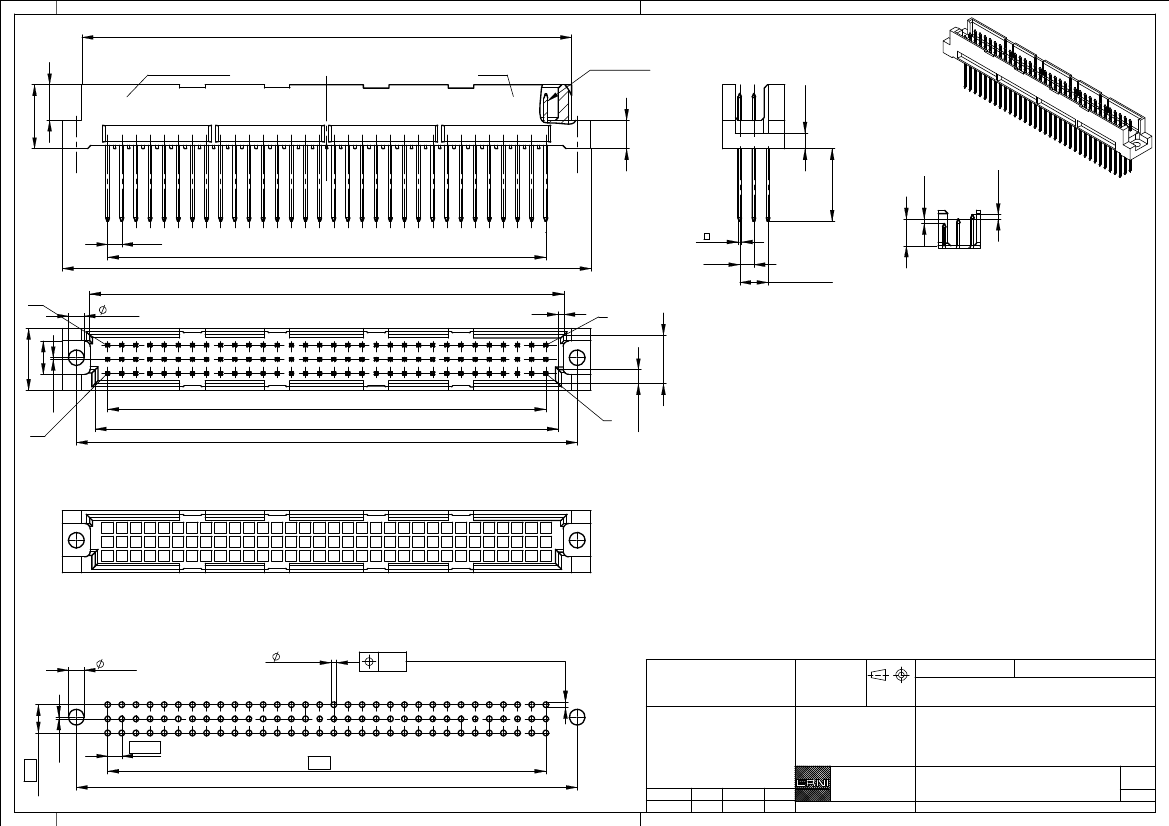

96 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER

Preview

Download Datasheet

View All

-0,2

Anforderungsstufe

class

max.11,6

6,4

-0,1

RC 1

Datum

date

ERNI

Stecklänge

mating length

2,9

-0,3

5,2

-0,1

a b c

Stecklänge /

mating length

±0,2

0,8

±0,1

0,8

±0,1

XXXXXXX

L S E

78,74

max.95

a32

85,2

2,8

+0,1

+0,2

2,54

2x2,54=5,08

4,8

2,54

0,6

+0,2

E =

early mate, late break

/ voreilend

S = standard

L =

late mate, early break

/ nacheilend

max.11,1

8,7

+0,1

0,3

c32

83,2

±0,1

+0,4

2,5

-0,2

31x2,54=78,74

Lötanschluß 0,6x0,6mm /

Solder Terminal 0,6x0,6mm

Isolierwerkstoff

/ housing material : PBT GF 30

Bauart 4 / t

ype 4

Anforderungsstufe 1= 500 Steckzyklen

/ performance class 1 = 500 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Bestückungsplan /

contact layout

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S

Bedruckung siehe Zeichnung 294905

Marking see drawing 294905

Leiterplatten-Lochbild /

PCB drillhole pattern

2,8

+0,1

±0,1

0,05

alle Löcher

Proprietary notice pursuant to ISO 16016 to be observed.

all holes

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

2x 2,54 =5,08

0,3

2,54

31x 2,54 =78,74

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

09.02.2010

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste R 96 Löt

Male Connector R 96 Solder

www.ERNI.com

Class

374200

STVR
