374203 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 374203

Preview

374203: Description64 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER; CategoryThe connector The connector; File Size64KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

374203 Overview

64 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER

374203 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.437 inch
subject depth	0.457 inch
body length	3.74 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9452 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,C
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.512 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
Base Number Matches	1

Preview

Download Datasheet

View All

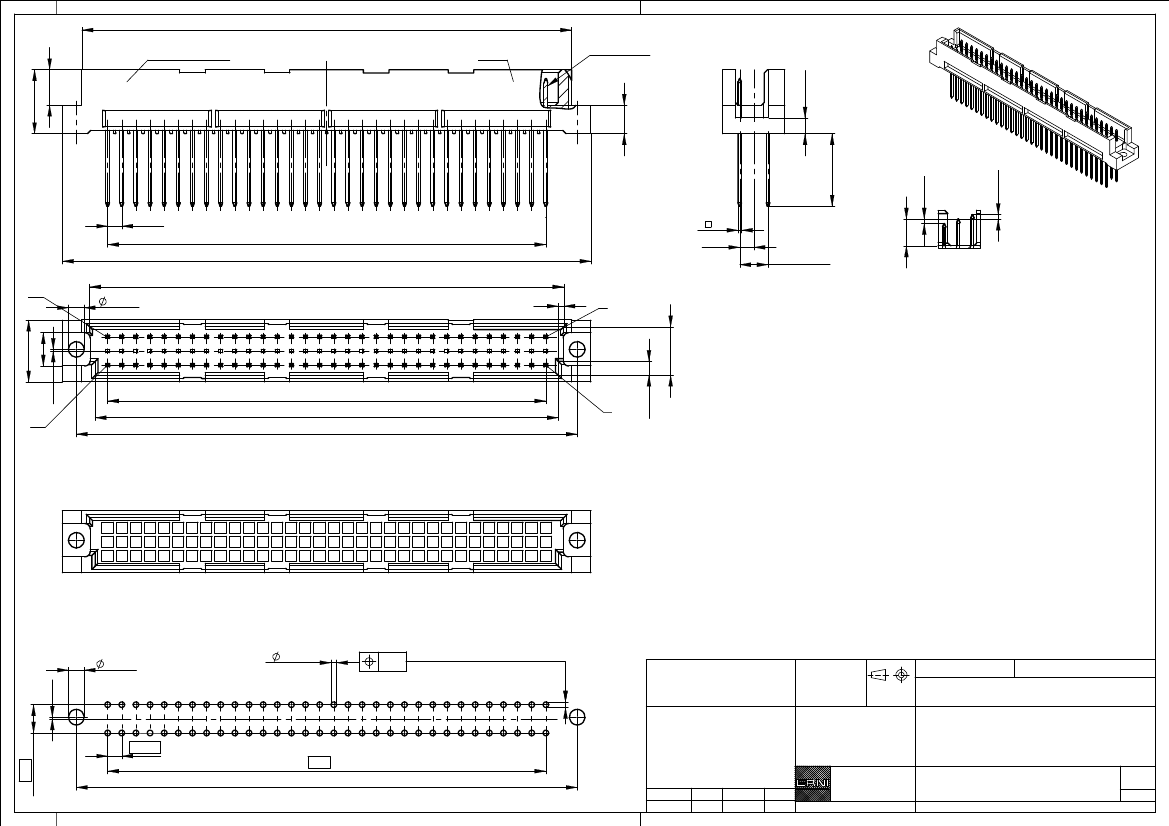

88

-0,2

Anforderungsstufe

class

Datum

date

ERNI

Stecklänge

mating length

2,9

-0,3

5,2

-0,1

a b c

13

±0,2

Stecklänge /

mating length

0,8

±0,1

0,8

±0,1

max.11,6

6,4

-0,1

2,54

2x2,54=5,08

max.95

a32

85,2

2,8

+0,1

+0,2

4,8

78,74

+0,2

max.11,1

6

0,3

2,5

-0,2

8,7

+0,1

c32

Bestückungsplan /

contact layout

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S

a

b

c

Leiterplatten-Lochbild /

PCB drillhole pattern

2,8

0,3

+0,1

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

2x 2,54 =5,08

RC 1

2,54

31x2,54=78,74

83,2

+0,4

XXXXXXX

L S E

0,6

E =

early mate, late break

/ voreilend

S = standard

L =

late mate, early break

/ nacheilend

1

a1

c1

Lötanschluß 0,6x0,6mm /

90

±0,1

Solder Terminal 0,6x0,6mm

Isolierwerkstoff

/ housing material : PBT GF 30

Bauart 4 / t

ype 4

Anforderungsstufe 1 = 500 Steckzyklen

/ performance class 1 = 500 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Bedruckung siehe Zeichnung 294905

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Marking see drawing 294905

1

±0,1

0,05

alle Löcher

all holes

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

2,54

31x 2,54 =78,74

90

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

B

Index

08.02.2010

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste R 64 Löt

Male Connector R 64 Solder

www.ERNI.com

Class

374203

STVR

I

A3
