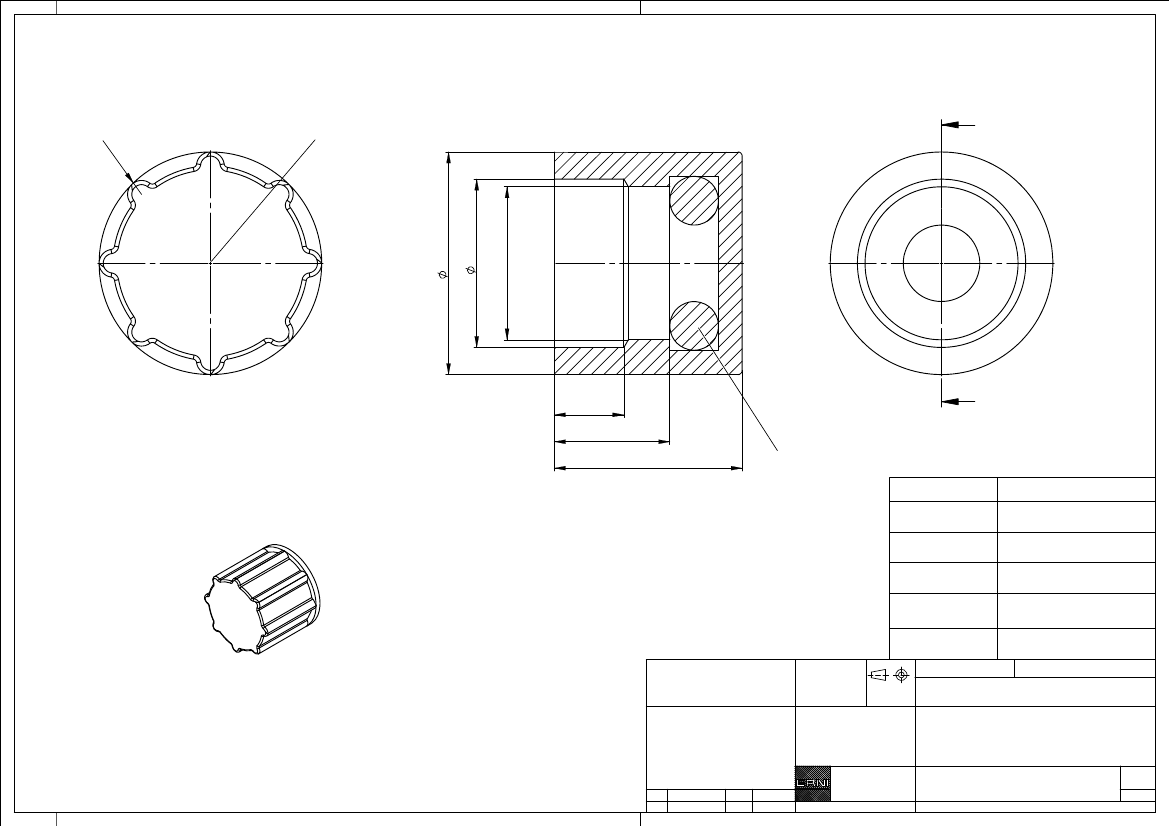

SCHNITT A-A
A
Anspritzpunkt
injection point
R1
+0,2
M 12 x 1
16
12,1
A
5
8,3
13,5
Dichtung
sealing
Funktion/
Functionality
Material/
material
Farbe/color
Dichtung montiert
sealing assemled
VPE 100 Stk im Beutel
pack unit 100 pcs. im plastic bag
Dichtung/
sealing
Temeraturbeteich
operating
temperature
Schutzart/
protection degree
Tolerances
All Dimensions
in mm
Kappe für M12 Stiftstecker/
cap for M12 male connectors
PE-HD
gelb / yellow
NBR schwarz/
NBR black
-40° bis +80°
IP54
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
Information:
Scale
5:1
All rights reserved.
Only for Information.
To ensure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
a
Index
19.05.2010
Date
Designation
Subject to modification without
prior notice.
Drawing will not be updated.
Protective Cap M12 x 1
for M12 Male
www.ERNI.com
Class
374342
MRDBGR
I
A3
