374380 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 374380

374380: Description160 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER; CategoryThe connector The connector; File Size230KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

374380 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	374380	-	-	View	Buy Now

374380 Overview

160 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER

374380 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.618 inch
subject depth	0.949 inch
body length	3.701 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.695 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	374380
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B,C,D,E
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	160

Preview

Download Datasheet

View All

-0,2

e32

2,54

+0,1

+0,2

4x2,54=10,16

a32

2,54

31x2,54=78,74

88,9

0,7

0,3

-0,4

15,7

-0,2

13,6

-0,1

24,1

4x2,54=10,16

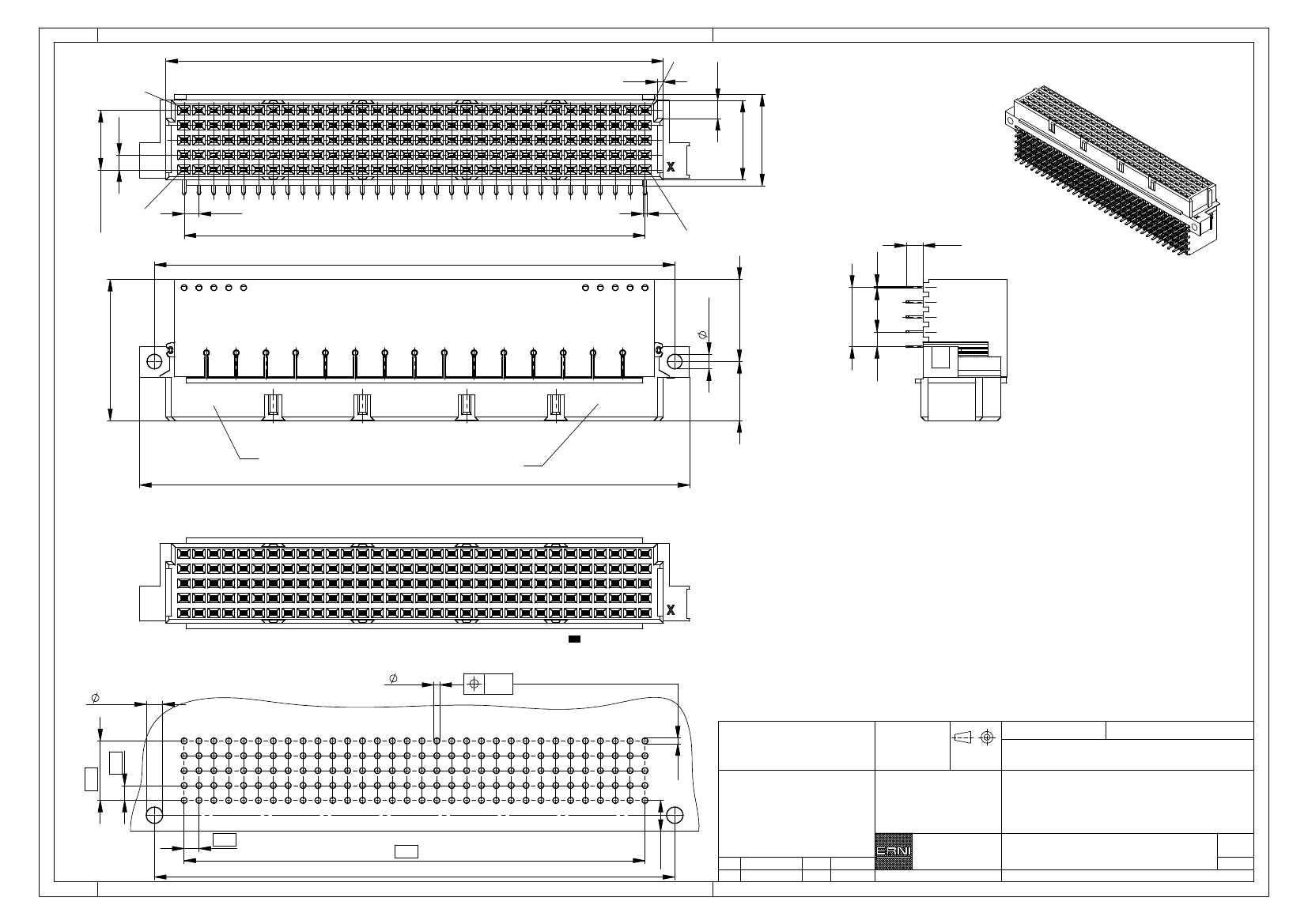

Tauchlötanschluß 0,7x0,3mm /

solder terminal 0,7x0,3mm

Bauart 7 /

type 7

Anforderungsstufe 2 = 400 Steckzyklen /

performance class 2 = 400 mating cycles

Fehlende Maße und Angaben gemäß IEC 60 603-2 / DIN EN 60 603-2

+0,1

max.14,6

2,5

Anforderungsstufe /

Datum / date

-0,2

class

Bestückungsplan /

contact layout

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

bestückt /

assemble

10,2

-0,2

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Leiterplatten-Lochbild /

PCB drillhole pattern

2,8

+0,1

±0,1

0,05

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

Proprietary notice pursuant to ISO 16016 to be observed.

2,54

4x 2,54 =10,16

2,54

5,3

±0,1

2,54

31x 2,54 =78,74

88,9

XXXXXXX

ERNI

RC 2

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

09.12.2013

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Federleiste TE160 Löt

Fem.Connector TE160 Solder

www.ERNI.com

Class

374380

STVTE
