3DC1515
SMD 3D Coil 15x15x4mm
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas. Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
info@grupopremo.com
Web
http://www.grupopremo.com

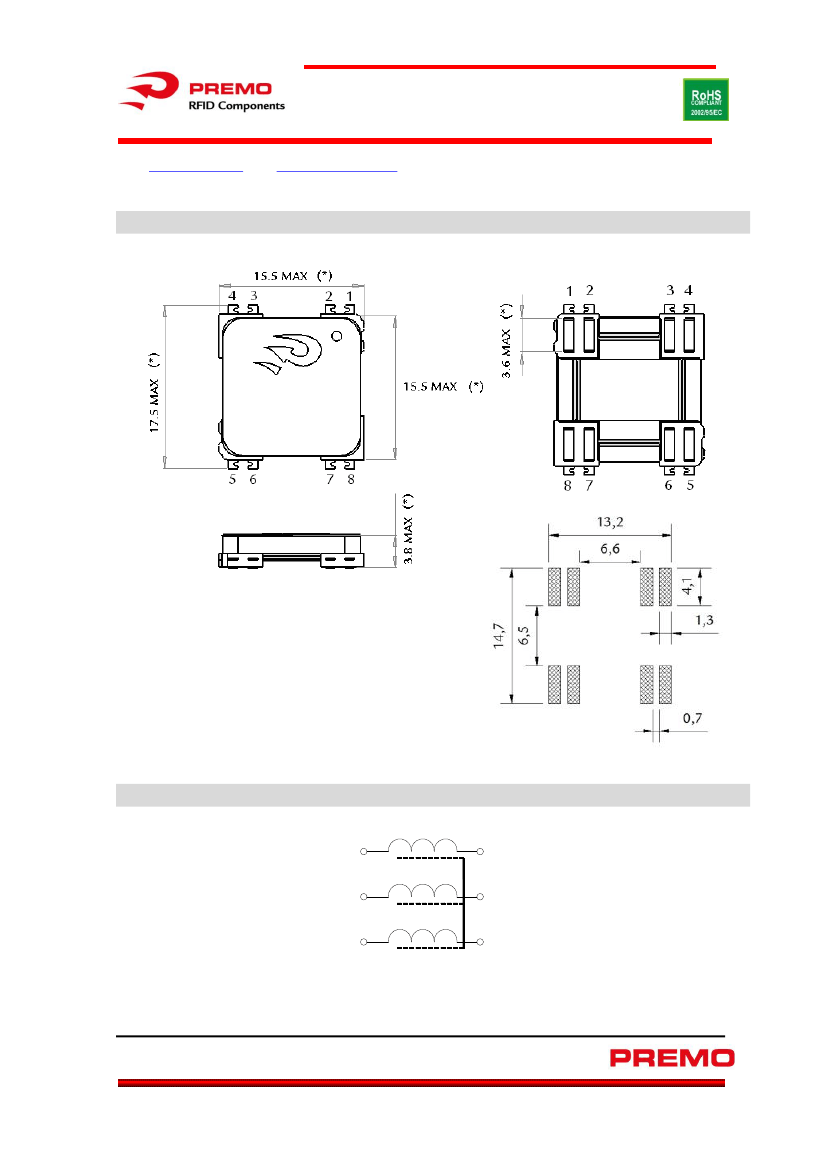

1. Dimensions and Pad Layout
All Dimensions in mm
Pins Coplanarity 0.15mm
General Tolerances ±0.1mm
2. Schematic Diagram
Wx
3
Wy
7
5
Wz
1
8
4
Pins 2 and 6 not connected
1
Three Axes Transponder Inductors
All rights reserved. Share, use or communication of the contents of this document not permitted without written authorisation.
3DC1515
SMD 3D Coil 15x15x4mm
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas. Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
info@grupopremo.com
Web
http://www.grupopremo.com

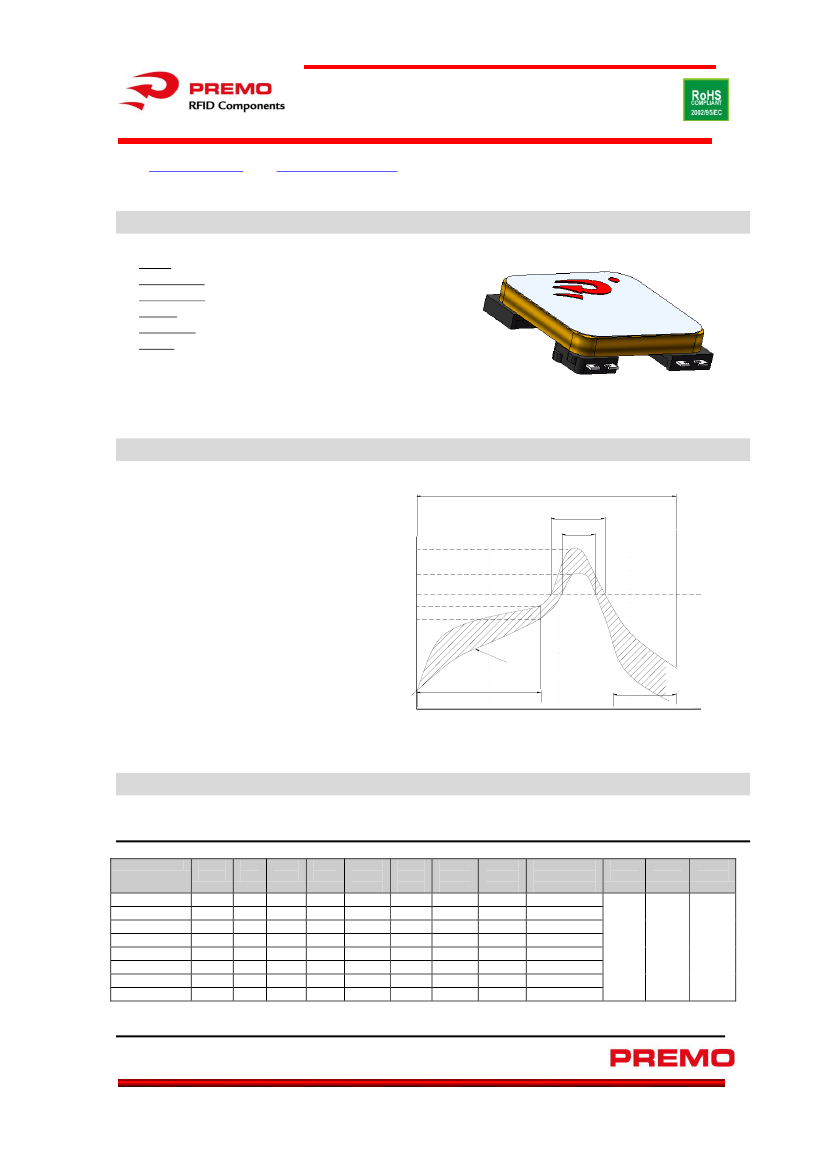

3. Materials
Core:
SMD Base:
Leadframe:
Wires:
Adhesive:
Label:
Ferrite Core
LCP
CuSn6 / Cu / Sn
Enamelled and Selfbonding copper wire
Epoxy-based adhesives
Acrylate
Remark : Products comply with RoHS requirements
4. General Specifications and Recommended Reflow Profile
max 360 sec
90 sec
Typical Operating Frequency 125KHz
ºC
300
275
210
200
180
140
30 sec
Storage Temperature -40 ºC
→
+85 ºC
Operating Temperature -40 ºC
→
+85 ºC
100
2-4ºC/ sec
preheating 60 - 120 sec
cooling zone
Lead Free Reflow Profile
0
100
190 200
280 300
360
400 (sec)
5. Electrical Characteristics
3DC1515
Code
Lx,y,z
(mH)
Qx,y
Min
Freq
(KHz)
Cres
(pF)
SRFx,y
(KHz)
Min
SRFz
(KHz)
Min
DCRx,y
(Ohm)
Max
DCRz
(Ohm)
Max
Sensitivity x,y,z
(mV/App/m)
Min
Length
(mm)
Width
(mm)
Height
(mm)
3DC15-0247J
3DC15-0258J
3DC15-0345J
3DC15-0405J
3DC15-0477J
3DC15-0491J
3DC15-0720J
3DC15-1000J
2.47
2.58
3.45
4.05
4.77
4.91
7.20
10.00
23
23
27
27
28
27
30
25
125
125
125
125
125
125
125
125
656
628
470
400
340
330
225
162
500
500
450
400
380
350
330
250
1000
800
800
800
800
750
700
550
75
75
85
98
100
105
120
165
75
75
100
98
136
140
172
258
55
57
67
72
85
85
95
105
15.5
17.5
3.8
2
Three Axes Transponder Inductors
All rights reserved. Share, use or communication of the contents of this document not permitted without written authorisation.
3DC1515
SMD 3D Coil 15x15x4mm
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas. Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
info@grupopremo.com
Web
http://www.grupopremo.com

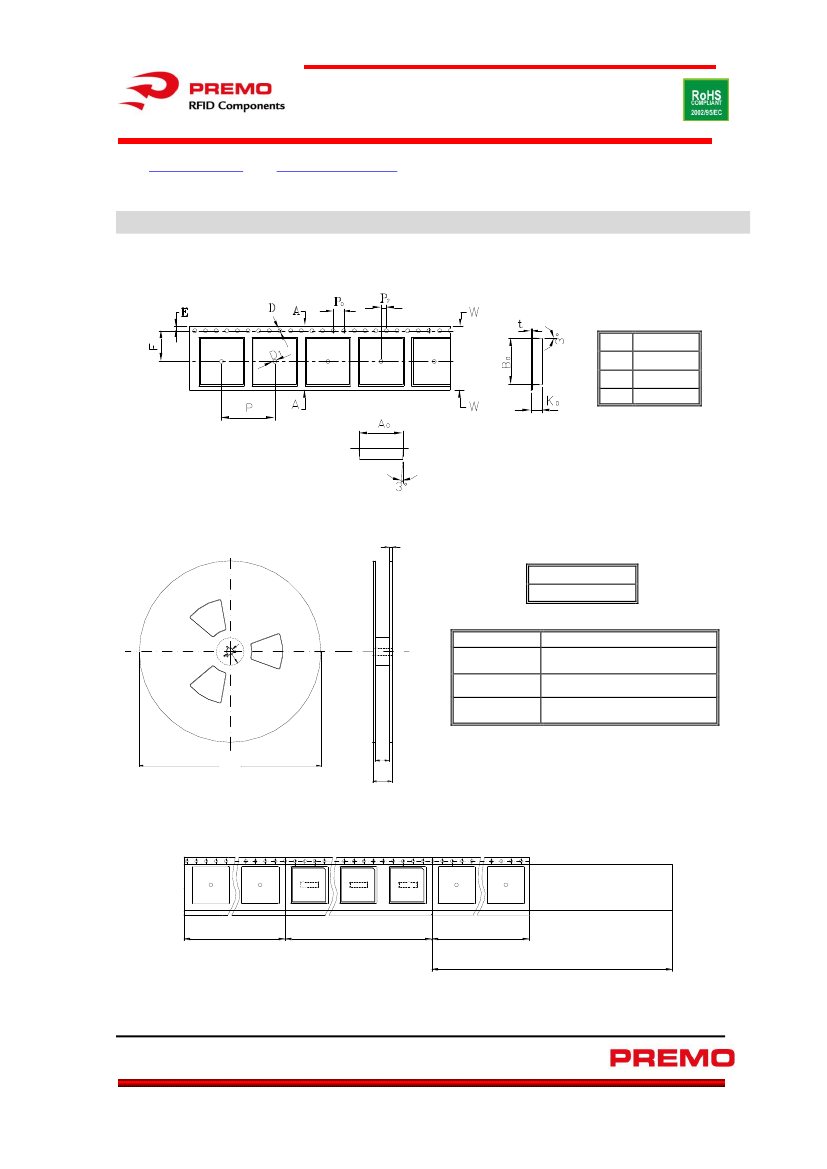

7. Packaging Information
TAPING SPECIFICATION (According to EIA481)
Ao
Bo
Ko
W
16.2mm
17.3mm
4.2mm
24mm
REEL
2± 0.5
PARTS PER REEL
330 mmФ
600
1
3±
0.
5
MATERIAL LIST
ITEM
Reel
Carrier tape
Cover tape
MATERIAL
Shock-Proof Polystyrol
PC Brown Colour 0.3mm
Polyester
330± 2
max 30.4
50
N
MI
min 24.4
TAPING
170min
600pcs
170 min
LEADER 400 mm
3
Three Axes Transponder Inductors
All rights reserved. Share, use or communication of the contents of this document not permitted without written authorisation.
3DC1515
SMD 3D Coil 15x15x4mm
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas. Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
info@grupopremo.com
Web
http://www.grupopremo.com
8. Labelling
PART LABELLING
PACKAGE LABELLING
PART NUMBER
WW/YY
9. Reliability Tests
This part is according to AEC-Q200 Revision C.
Edition
1
Revision Date
18/03/09
4
Three Axes Transponder Inductors
All rights reserved. Share, use or communication of the contents of this document not permitted without written authorisation.
