W-E8107-2B#01: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Male, 0.098 inch Pitch, Crimp Terminal, Beige Insulator, Plug, LEAD FREE; CategoryThe connector The connector; File Size226KB，1 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric Compare View All

W-E8107-2B#01 Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, 0.098 inch Pitch, Crimp Terminal, Beige Insulator, Plug, LEAD FREE

W-E8107-2B#01 Parametric

Parameter Name	Attribute value
Objectid	1547295840
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	COMPATIBLE CONTACT: W-T1873-11#01
body width	0.343 inch
subject depth	0.646 inch
body length	0.776 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	800VAC V
Filter function	NO
IEC compliance	NO
Minimum insulation diameter	0.067 inch
Insulation resistance	1000000000 Ω
Insulator color	BEIGE
insulator material	POLYAMIDE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	LP
Plug contact pitch	0.098 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
reliability	COMMERCIAL
Terminal length
Termination type	CRIMP
Total number of contacts	7
UL Flammability Code	94V-0
Maximum wire diameter	22 AWG
Minimum wire diameter	30 AWG

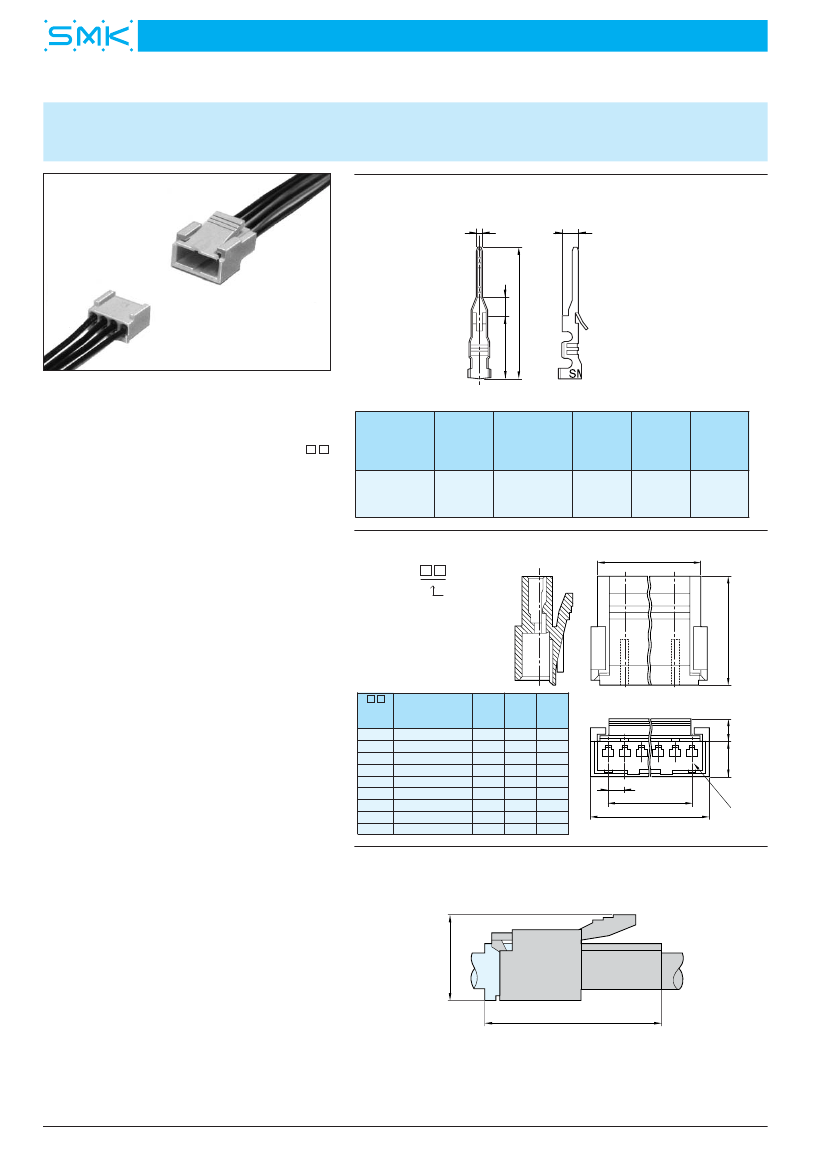

Preview

Download Datasheet

View All

Board to Wire Connectors

Series, In-Line Type 2.5mm Pitch

●

Plug

●

Terminal

0.64

1.72

■

Features

1. A compact design with an overall length of only

16.6mm.

2. Available range from 2P to 14P; the sockets

apply to for the LP connector (W-A32

Series).

3. A locking structure is utilized for the socket and

plug housing to ensure connection and prevent

improper plug insertion.

Part No.

図番

Applicable

Electrical Wire

Electrical

Sheath Dia.

Wire Size

電線被覆外径

適合電線範囲

(mm)

（AWG)

22∼30

φ1.7max.

Material

材質

Plating

表面処理

No. of

Terminal/

Reel

個数／

リール

8,000

6.3

1.9

13.2

W-T1873-11#01F

Cu Alloy

銅合金

Sn (Reflow

Treatment)

すずめっき

（リフロー処理）

■

Specification

1. Rating : 3A, 50V AC

2. Contact Resistance : 20mΩ max., initially

3. Insulation Resistance : 1000MΩ min. at 500V DC

4. Withstanding Voltage : AC 800V (for one minute)

5. Operating Temperature Range : –25˚C to +85˚C

●

Housing

W- E81

-2B#01

No. of Pins

■

Material and Plating

●

Housing : Thermoplastic Resin, Beige, 94V-0

Terminal : Cu Alloy, Sn Plating (Reflow Treatment)

(3.5)

2.5 (Pitch)

Pin No.1

■ 特長

1. プラグと½ケットの結合全長は16.6mmです。

2. 極数は2∼14P、½ケットはLPコネクタ

（W-A32□□シリーズ）に適合します。

3. プラグと½ケットはロック機構付きで、確実な

ロックと誤挿入を防止します。

No. of

Pins

Part No.

W-E8103-2B#01

W-E8104-2B#01

W-E8105-2B#01

W-E8106-2B#01

W-E8107-2B#01

W-E8108-2B#01

W-E8109-2B#01

W-E8110-2B#01

W-E8114-2B#01

5.0

7.5

10.0

12.5

15.0

17.5

20.0

22.5

32.5

7.7

10.2

12.7

15.2

17.7

20.2

22.7

25.2

35.2

9.7

12.2

14.7

17.4

19.7

22.2

24.7

27.2

37.2

■ 仕様

1. 定格電圧電流

2. 接触抵抗

3. 絶縁抵抗

4. 耐電圧

5. ½用温度範囲

：AC 50V 3A

：初期20mΩ以下

：DC 500V 1000MΩ 以上

：AC 800V（1分間）

：−25℃∼＋85℃

■

Mating Diagram

嵌合図

●

ハウジング：熱可塑性樹脂ベージュ 94V-0

ターミナル：銅合金すずめっき

（リフロー処理）

(8.7)

■ 材質・表面処理

16.6

5.2

(16.4)

W-E8107-2B#01 Related Products

	W-E8107-2B#01	W-E8106-2B#01	W-E8104-2B#01	W-E8110-2B#01	W-E8103-2B#01
Description	Board Connector, 7 Contact(s), 1 Row(s), Male, 0.098 inch Pitch, Crimp Terminal, Beige Insulator, Plug, LEAD FREE	Board Connector, 6 Contact(s), 1 Row(s), Male, 0.098 inch Pitch, Crimp Terminal, Beige Insulator, Plug, LEAD FREE	Board Connector, 4 Contact(s), 1 Row(s), Male, 0.098 inch Pitch, Crimp Terminal, Beige Insulator, Plug, LEAD FREE	Board Connector, 10 Contact(s), 1 Row(s), Male, 0.098 inch Pitch, Crimp Terminal, Beige Insulator, Plug, LEAD FREE	Board Connector, 3 Contact(s), 1 Row(s), Male, 0.098 inch Pitch, Crimp Terminal, Beige Insulator, Plug, LEAD FREE
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	COMPATIBLE CONTACT: W-T1873-11#01	COMPATIBLE CONTACT: W-T1873-11#01	COMPATIBLE CONTACT: W-T1873-11#01	COMPATIBLE CONTACT: W-T1873-11#01	COMPATIBLE CONTACT: W-T1873-11#01
body width	0.343 inch	0.343 inch	0.343 inch	0.343 inch	0.343 inch
subject depth	0.646 inch	0.646 inch	0.646 inch	0.646 inch	0.646 inch
body length	0.776 inch	0.685 inch	0.481 inch	1.071 inch	0.382 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN	TIN	TIN	TIN	TIN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO
Dielectric withstand voltage	800VAC V	800VAC V	800VAC V	800VAC V	800VAC V
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
Minimum insulation diameter	0.067 inch	0.067 inch	0.067 inch	0.067 inch	0.067 inch
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
JESD-609 code	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	LP	LP	LP	LP	LP
Plug contact pitch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A	3 A	3 A	3 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	7	6	4	10	3
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Maximum wire diameter	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG
Minimum wire diameter	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG
Objectid	1547295840	-	1547295837	1547295843	1547295836
