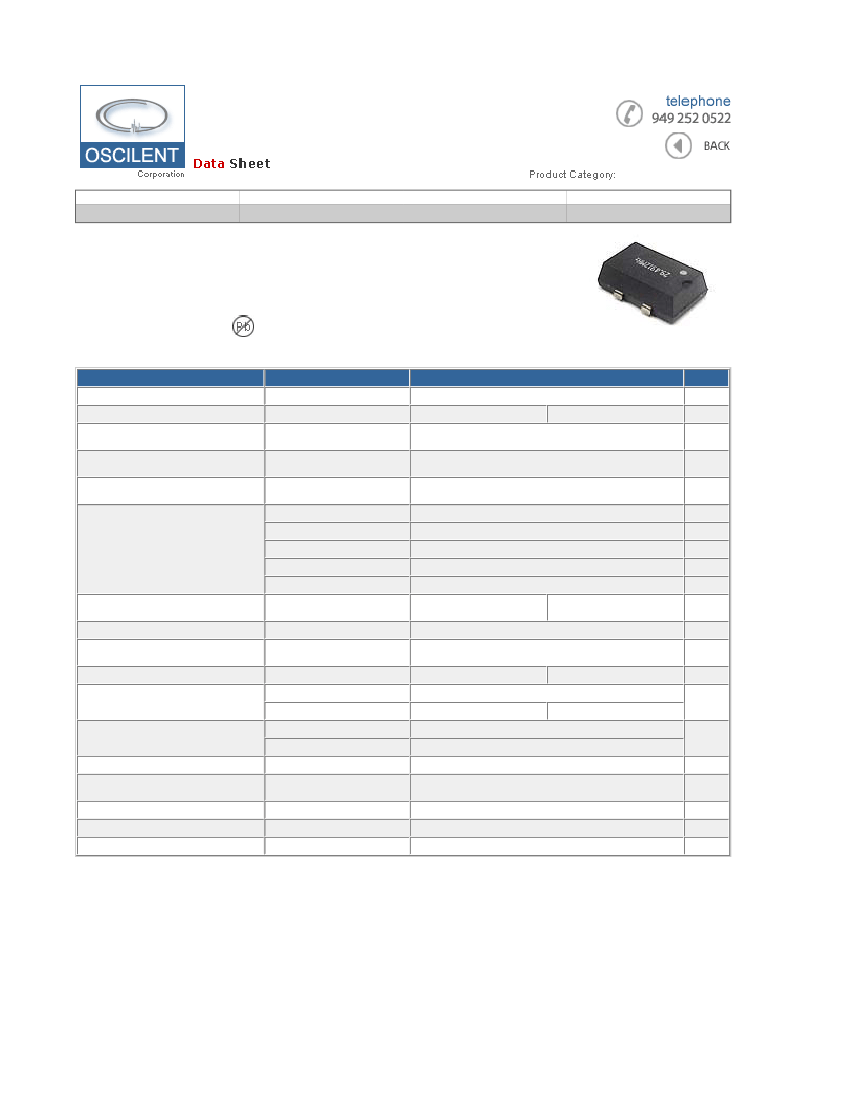

Oscilent Corporation | 567 Series VCXO - Voltage Control Crystal Oscillator
Page 1 of 2
VCXO Surface Mount
Series Number
Package
Description
Last Modified
567
FEATURES
- Wide voltage control range
- Wave form symmetry of 40/60%
- HCMOS / TTL output
J-Lead Plastic
HCMOS / TTL Output
Jan. 01 2007
- Industry standard J-Lead Plastic Package
- RoHs / Lead Free compliant
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Output Logic
Input Voltage (VDD)
Frequency Range (f
O
)
Operating Temperature (T
OPR
)
Storage Temperature (T
STG
)
Overall Frequency Stability
CONDITIONS
-
-
-
-
-
-
(a) Frequency Tolerance
(b) Temperature Stability
(c) Input Voltage Stability
(d) Load Stability
Input Current (I
DD
)
Aging
Rise Time (T
R
) & Fall Time (TF)
Pin 1 Control Voltage Range
Output Voltage High "1" VOH
Output Voltage Low "0" VOL
Duty Cycle
Start-Up Time (T
S
)
Jitter
Linearity
Absolute Pull Range (APR)
-
@ 25°C
-
-
TTL Load
HCMOS Load
TTL Load
HCMOS Load
-
-
-
-
-
2.7 min.
0.4 max.
0.5 max.
50 ±10 (Std.) / 50 ±5 (Option)
6 max.
±25 max.
±20 (Std.)
±50, ±100, ±150 min.
CHARACTERISTICS
HCMOS / TTL Output
3.3 ±10%
1.544 ~ 32.000
0 ~ +70 (Std.) / -40 ~ 85 (Option)
-55 ~ +125
±50, ±100 max.
Inclusive of Overall Stability
Inclusive of Overall Stability (Operating Temperature)
Inclusive of Overall Stability (VDD ±10%)
Inclusive of Overall Stability (RL ±5%)
10 ~ 35 max.
±5 max.
8 max. (0.4V to 2.4V w/TTL , 20% to 80% /HCMOS)
1.65 ±1.35
2.4 min.
VDD - 0.5 min.
2.5 ±2.0
15 ~ 50 max.
5.0 ±10%
UNITS
-
VDC
MHz
°C
°C
PPM
-
-
-
-
mA
PPM/Y
nS
V
VDC
VDC
%
mS
ps
%
PPM
Oscilent Corporation | 567 Series VCXO - Voltage Control Crystal Oscillator
Page 2 of 2
PIN CONNECTIONS
#1
#2
#3
#4
Voltage Control
Ground
Output
VDD
PART NUMBER GUIDE
Series
Number
Frequency
Voltage Supply
Option
Frequency
Operating Temp.
Tolerance &
(°C)
Stability (max.)
Duty Cycle
Absolute
Pulling Range
Linearity
567
Oscilent
VCXO
- 25.0 M
-3
E
N
-T
Blank*=
50±10%
T = 50±5%
P1
P1 = 50PPM
P2 = 100PPM
P3 = 150PPM
20
20 = 20%
Enter your desired 5 = 5VDC
3 = 3.3VDC
frequency
e.g.
25.0M for 25.000
MHz
D = ±100 PPM Blank* = 0~+70
E = ±50 PPM N = -40~+85
NOTE:
- Deviations on all parameters available. Please consult Oscilent for details.
DEFINITIONS:
- Click on the characteristic names above for definitions of that particular characteristic.
*STANDARDS:
- "Blank" part number selections indicate standard variables for that particular characteristic.
PACKAGING:
- Standard tube packaging, add
-TR
for Tape/Reel. Click
here
for tape/reel specifications
