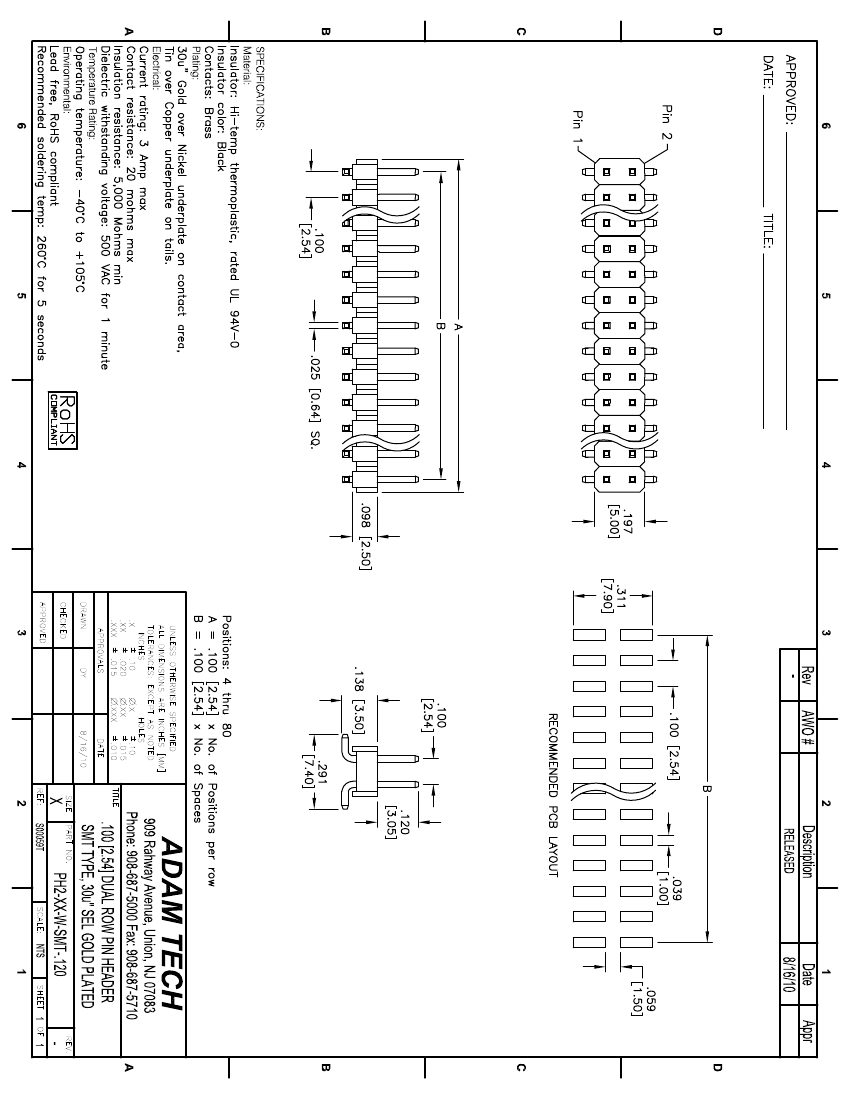

Preview

PH2-28-W-SMT-.120: DescriptionBoard Connector, 28 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size80KB，1 Pages; ManufacturerAdam Tech; Environmental Compliance

Download Datasheet Parametric Compare View All

PH2-28-W-SMT-.120 Overview

Board Connector, 28 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

PH2-28-W-SMT-.120 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1159639701
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPIANT
body width	0.197 inch
subject depth	0.138 inch
body length	1.4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
Manufacturer's serial number	PH2-XX-W-SMT-.120
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.699 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	28

Preview

Download Datasheet

View All

PH2-28-W-SMT-.120 Related Products

	PH2-28-W-SMT-.120	PH2-32-W-SMT-.120	PH2-52-W-SMT-.120	PH2-70-W-SMT-.120	PH2-40-W-SMT-.120	PH2-30-W-SMT-.120
Description	Board Connector, 28 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	Board Connector, 32 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	Board Connector, 52 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	Board Connector, 70 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	compli	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ROHS COMPIANT	ROHS COMPIANT	ROHS COMPIANT	ROHS COMPIANT	ROHS COMPIANT	ROHS COMPIANT
body width	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch
subject depth	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
body length	1.4 inch	1.6 inch	2.6 inch	3.5 inch	2 inch	1.5 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
JESD-609 code	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	PH2-XX-W-SMT-.120	PH2-XX-W-SMT-.120	PH2-XX-W-SMT-.120	PH2-XX-W-SMT-.120	PH2-XX-W-SMT-.120	PH2-XX-W-SMT-.120
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.699 mm	4.699 mm	4.699 mm	4.699 mm	4.699 mm	4.699 mm
Plating thickness	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	28	32	52	70	40	30
