1960 MHz SAW Filter
Applications
•
•
•
For filtering in DPD path
For ultra wideband applications
Wireless infrastructure
Product Features
•
•
•
•
•
•
•
•
•
•
Usable bandwidth 160 MHz
Low Loss
High attenuation,
Excellent power handling
Single-ended operation
Matching required for operation at 50
Small Size: 3.00 x 3.00 x 1.22 mm
Ceramic Surface Mount Package (SMP)
Hermetically sealed
Pb
RoHS
compliant,
Pb-free

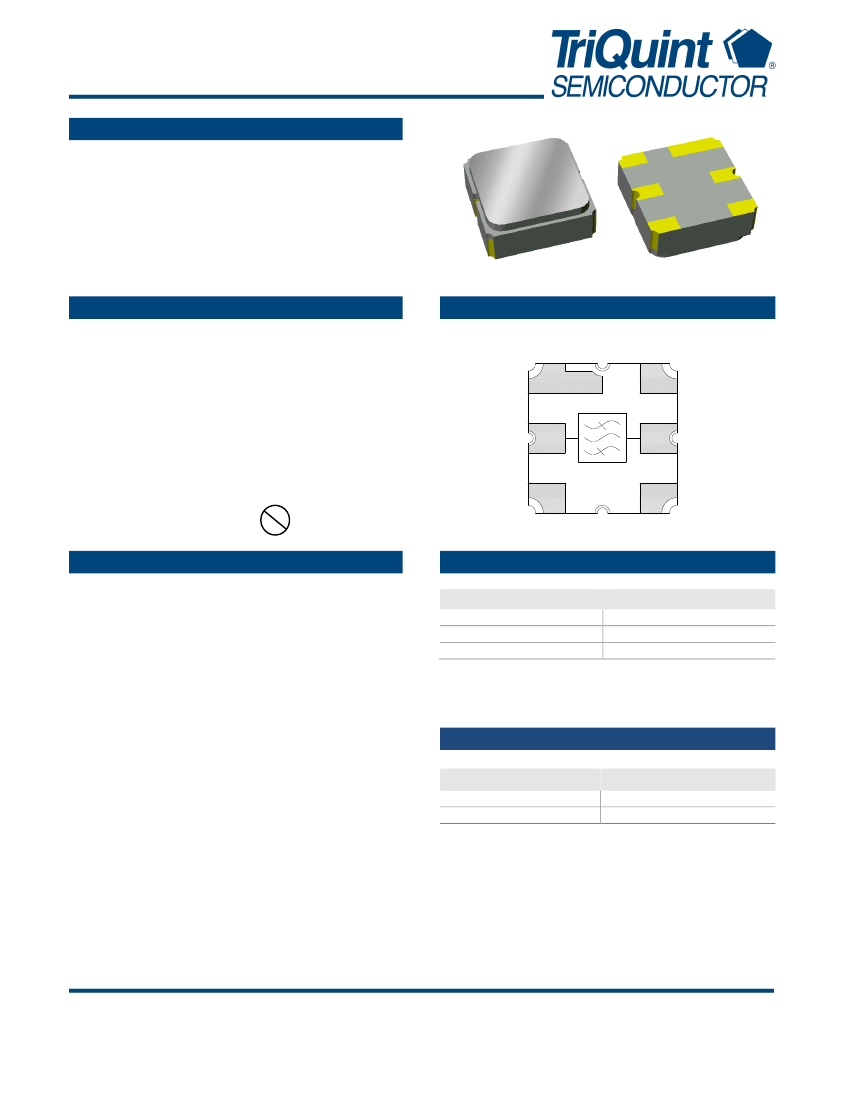

Functional Block Diagram
Top view
Gnd
1
6
Gnd
Input
2
5
Output
Gnd
3
4
Gnd
General Description
857145 is a RF filter for wireless infrastructure
applications. This filter was specifically designed for
filtering in the digital pre-distortion path in Base Station
applications. This filter is designed in a 3x3mm hermetic
package and is part of our wide portfolio of RF filters in
the same package.
Low insertion loss, coupled with high attenuation and
excellent power handling, makes this filter a natural choice
for our customers Downlink RF filtering needs.
Pin Configuration
Pin # SE
2
5
1,3,4,6
Description
Input
Output
Case Ground
Ordering Information
Part No.
857145
857145-EVB
Description
packaged part
evaluation board
Standard T/R size = 5000 units/reel.
Data Sheet: Rev B 10/03/12
© 2012 TriQuint Semiconductor, Inc.
- 1 of 6 -
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
857145
1960 MHz SAW Filter
Specifications
Electrical Specifications
(1)
Specified Temperature Range:
(2)
-40 to +85 ºC
Parameter
(3)
Center Frequency
Maximum Insertion Loss
Amplitude Variation
(5)
Phase Ripple
(5)
Group Delay Variation
(5)
Absolute Delay
EVM
IIP3
(6)
Temperature Drift
(7)
Input/Output VSWR
Relative Attenuation
(8)
Conditions
1930 – 1990 MHz
1930 – 1990 MHz
1930 – 1990 MHz (Over any 5 MHz span)
1880 – 2040 MHz
1930 – 1990 MHz
1930 – 1990 MHz (Over any 5 MHz span)
1880 – 2040 MHz
1930 – 1990 MHz
1880 – 2040 MHz
Average over 1930 – 1990 MHz
1930 – 1990 MHz (Over any 3.84 MHz
span)
Tones 5 MHz separated, power > 5dBm per
tone
1930 – 1990 MHz
1930 – 1990 MHz
10 – 704 MHz
704 – 1561 MHz
1561 – 1622 MHz
1622 – 1790 MHz
2170 – 4000 MHz
4000 – 6000 MHz
Single-ended
Min
-
-
-
-
-
-
-
-
-
-
-
-
44
-
-
45
25
25
25
25
20
-
Typical
(4)
1960
3.0
0.7
0.3
1.5
2.6
1.7
21
2.8
6.2
4
0.8
52
0.22
1.5
53
29
29
29
28
25
50
Max
-
4.0
1.1
0.6
2.5
6
3
36
6
12
10
1.5
-
0.3
2.0:1
-
-
-
-
-
-
-
Units
MHz
dB
dB p-p
dB p-p
dB p-p
deg p-p
deg p-p
deg p-p
ns p-p
ns p-p
ns
%
dBm
-
dB
-
dB
dB
dB
dB
dB
dB
Ω
Source/Load Impedance
(9)
Notes:
1.
All specifications are based on the TriQuint schematic shown on page 3.
2.
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature.
3.
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances.
4.
Typical values are based on average measurements at room temperature.
5.
Variation is defined as the total peak to peak variation over the defined frequency range.
6.
To be measured only during engineering development.
7.
Temperature Drift specification is defined on Page 3 and is guaranteed by design and won’t be measured in production
8.
Relative to maximum insertion loss at center frequency.
9.
This is the optimum impedance in order to achieve the performance shown.
Absolute Maximum Ratings
Parameter
Operable Temperature
Storage Temperature
Input Power
Rating
-40 to +85
o
C
-40 to +85
o
C
+22 dBm (max) CW for 24 hours at +55°C
Operation of this device outside the parameter ranges given above may cause permanent damage.
Data Sheet: Rev B 10/03/12
© 2012 TriQuint Semiconductor, Inc.
- 2 of 6 -
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
857145
1960 MHz SAW Filter
Temperature Drift Specification
Temperature Drift Equations:
Temperature Drift Terms Defined:
- Transmission power in dB measured at +25 degrees C.
- Transmission power in dB measured at +85 degrees C.
- Transmission power in dB measured at -40 degrees C.
vs
Temperature Drift - Greater of

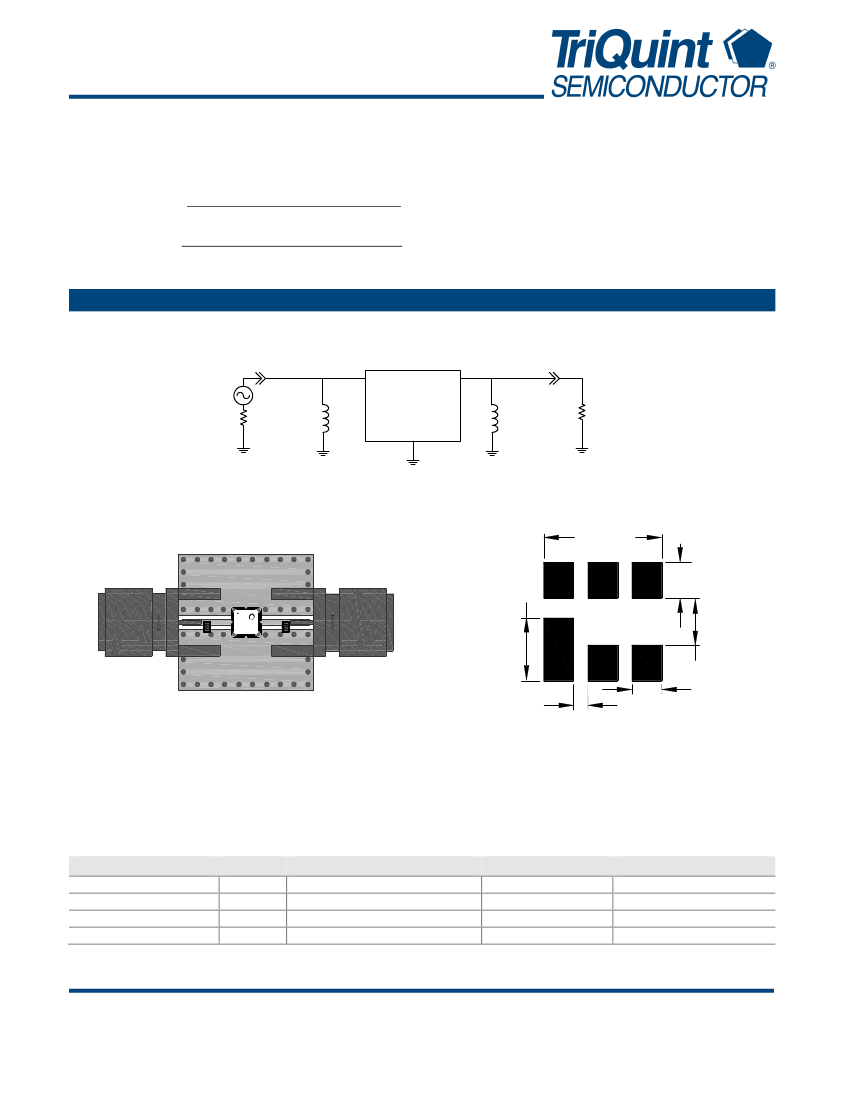

Reference Design
Schematic
2
5
50Ω
Ω
4.3nH
1,3,4,6
4.3nH
50
Ω
Single-ended
Input
50Ω
Ω
50
Ω
Single-ended
Output
PC Board
Mounting Configuration
3.20 SQ
.96
1.70
JJJY M
KE
L1
L2
960700
1.27
.81
.38
Notes:
Top, middle & bottom layers: 1 oz copper
Substrates: FR4 dielectric, .031” thick
Finish plating: Nickel: 3-8µm thick, Gold: .03-.2µm thick
Hole plating: Copper min .0008µm thick
Notes:
1.
All dimensions are in millimeters.
2.
This footprint represents a recommendation only.
Bill of Material
Reference Desg.
L1
L2
SMA
PCB
Value
4.3nH
4.3nH
N/A
N/A
Description
Coil Wire-wound, 0402, 5%
Coil Wire-wound, 0402, 5%
SMA connector
3-layer
Manufacturer
MuRata
MuRata
Radiall USA Inc.
multiple
Part Number
LQW15AN4N3D00
LQW15AN4N3D00
9602-1111-018
960700
Data Sheet: Rev B 10/03/12
© 2012 TriQuint Semiconductor, Inc.
- 3 of 6 -
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
857145
1960 MHz SAW Filter

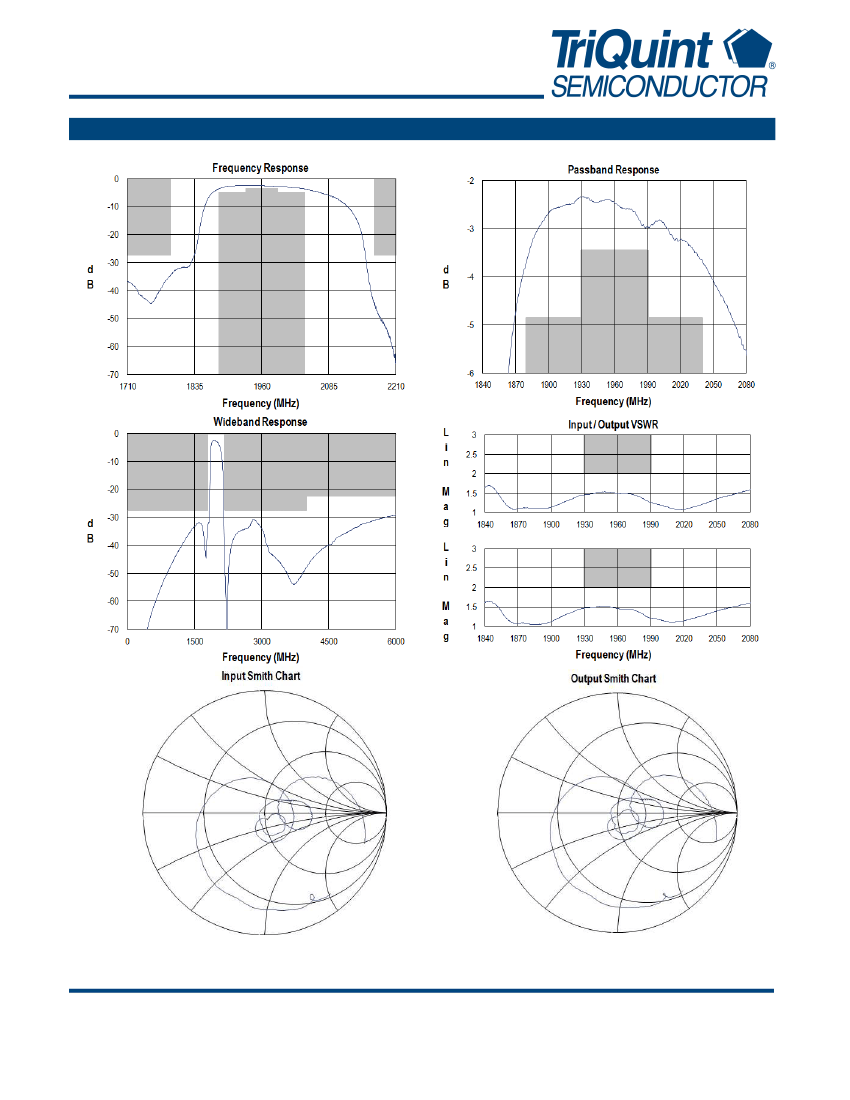

Typical Performance
(at room temperature)
Data Sheet: Rev B 10/03/12
© 2012 TriQuint Semiconductor, Inc.
- 4 of 6 -
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
857145
1960 MHz SAW Filter

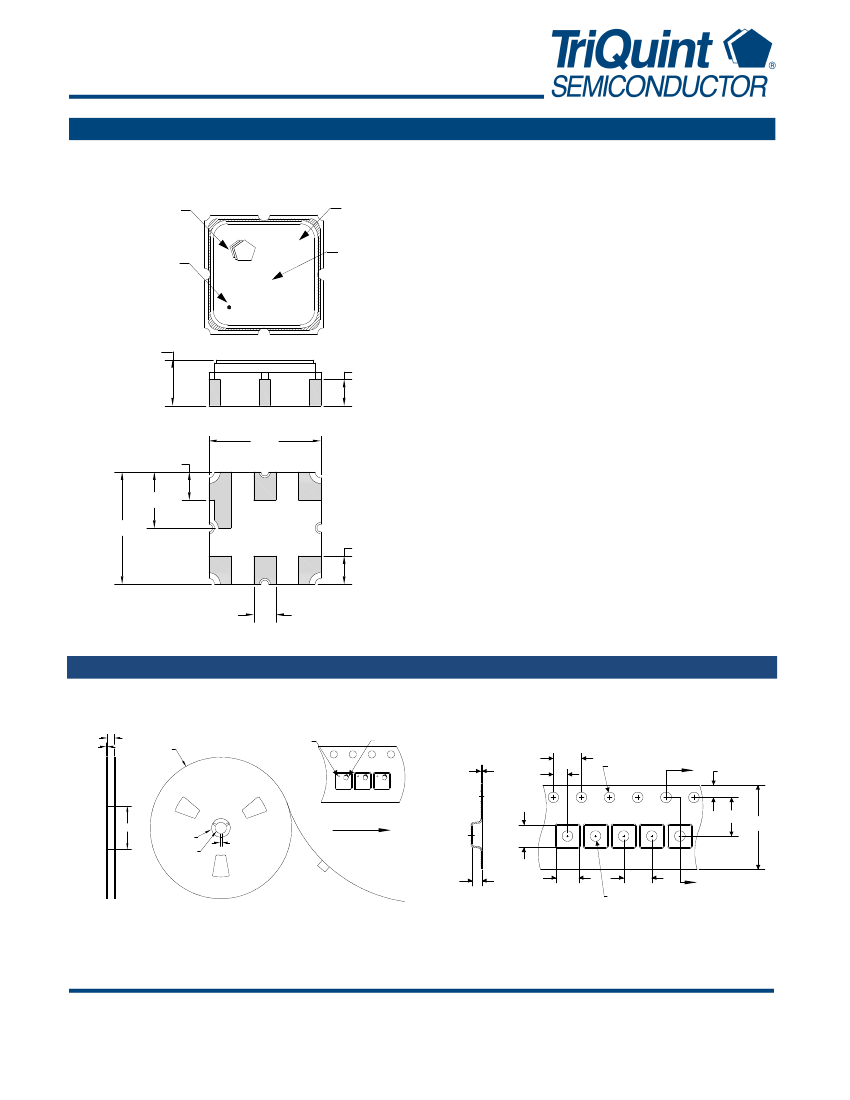

Mechanical Information
Package Information, Dimensions and Marking
TriQuint
logo
Marking
code
Package Style: SMP-12A
Dimensions: 3.00 x 3.00 x 1.22 mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm, over a 2-6µm
Ni
plating
All dimensions shown are nominal in millimeters
All tolerances are ±0.15mm except overall length and width
±0.10mm
The date code consists of day of the current year (Julian,
3 digits), Y = last digit of the year, and M = manufacturing
site code
ID dot
KE
JJJY M
Date code
1.22 NOM.
1.32 MAX.
0.69
3.00
0.75
1.50
3.00
0.75
0.60
Tape and Reel Information
Standard T/R size = 5000 units/reel. All dimensions are in millimeters
12.8
Ø330
ID dot
TriQuint
logo
2.7
Section A-A
4.0
0.21
2.0
Ø1.5
A
1.75
5.5
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
3.25
12.0
1.4 3.25
4.0
Ø1.5
A
