PP78AW2UF+/-5%160V datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> PP78AW2UF+/-5%160V

PP78AW2UF+/-5%160V: DescriptionFilm Capacitor, Polypropylene, 160V, 5% +Tol, 5% -Tol, 2uF, Through Hole Mount, AXIAL LEADED; CategoryPassive components capacitor; File Size139KB，1 Pages; ManufacturerEXXELIA Group; Environmental Compliance

Download Datasheet Parametric View All

PP78AW2UF+/-5%160V Overview

Film Capacitor, Polypropylene, 160V, 5% +Tol, 5% -Tol, 2uF, Through Hole Mount, AXIAL LEADED

PP78AW2UF+/-5%160V Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8241806044
package instruction	,
Reach Compliance Code	compliant
capacitance	2 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
positive tolerance	5%
Rated (AC) voltage (URac)	100 V
Rated (DC) voltage (URdc)	160 V
surface mount	NO
Terminal shape	WIRE

Preview

Download Datasheet

View All

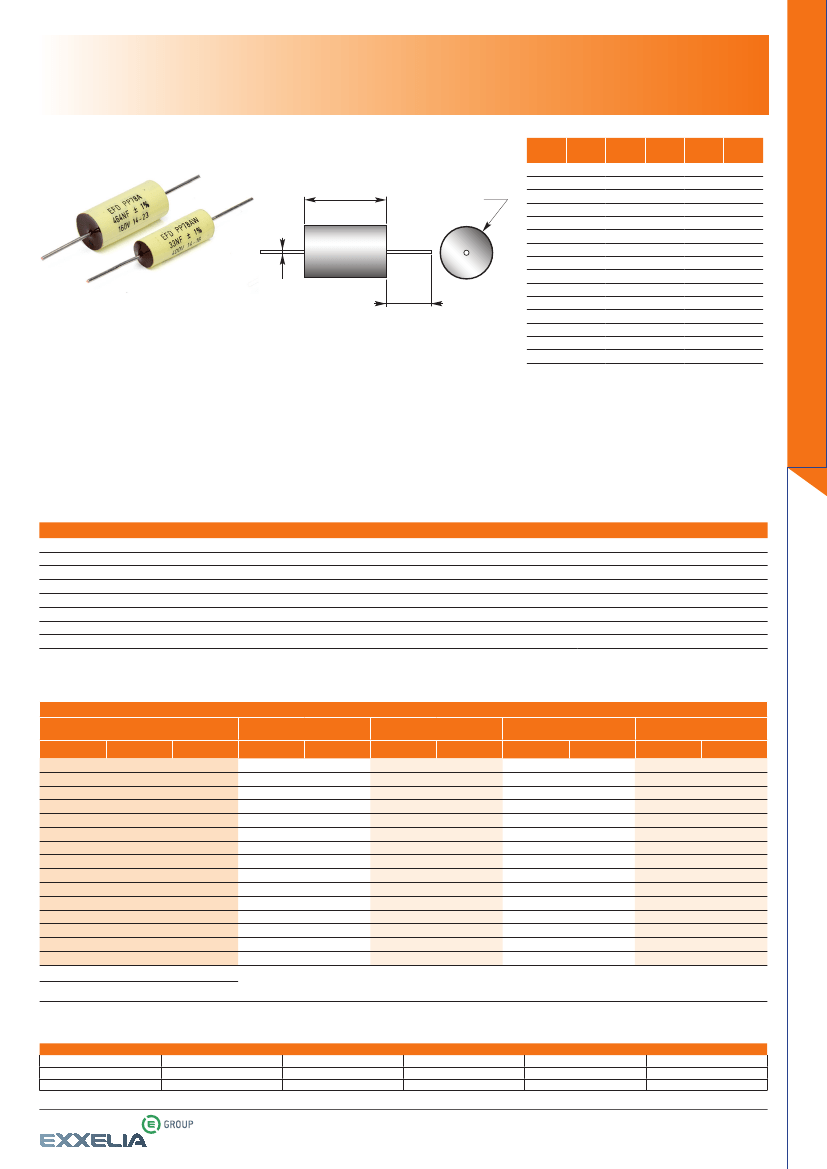

METALLIZED POLYPROPYLENE CAPACITORS

CONDENSATEURS POLYPROPYLÈNE MÉTALLISÉ

PP 78 A

RoHS = W

Axial leads

Model PPM 2

to UTE C 93 156 standard

Sorties axiales

Modèle PPM 2

de la norme UTE C 93 156

DIELECTRIC

Metallized polypropylene

TECHNOLOGY

Self-healing,

non-inductive

Polyester wrapped

Epoxy resin sealed

OPTION

Flame retardant (UL)

MARKING

model

capacitance

tolerance

rated voltage

date-code

DIÉLECTRIQUE

Polypropylène métallisé

TECHNOLOGIE

Autocicatrisable,

non inductif

Enrobé polyester

Obturé résine époxy

OPTION :

Auto-extinguible (UL)

MARQUAGE

modèle

capacité

tolérance

tension nominale

date-code

ELECTRICAL CHARACTERISTICS

Climatic category

Performance class

Stability class

Tg at 1 kHz

Insulation resistance

Test voltage

Speciﬁed frequency for I

* I

: Permissible RMS current in amperes

for C

0,33 μF

for C

0,33 μF

55/085/56

10.10

-4

100000 M

30000 M

1,6 U

30 kHz

pour C

0,33 μF

pour C

0,33 μF

CARACTÉRISTIQUES ÉLECTRIQUES

Catégorie climatique

Classe de performance

Classe de stabilité

Tg à 1 kHz

Résistance d’isolement

Tension d’essai

Fréquence spéciﬁée pour I

CAPACITANCE VALUES AND RATED VOLTAGE (D.C.)

Dimensions (mm)

14,5

27,5

32,5

max

6,25

7,5

8,75

11,25

12,5

17,5

max

Tolerances on dimensions

Tolérances dimensionnelles

0,6

0,8

+10%

- 0,05

160 V

100 V

min

8450 pF

22000 pF

43000 pF

76800 pF

0,137 μF

0,22 μF

0,324 μF

0,475 μF

0,649 μF

0,931 μF

1,24 μF

1,58 μF

μF

3,09 μF

4,32 μF

max

21500 pF

42200 pF

75000 pF

0,133 μF

0,215 μF

0,316 μF

0,464 μF

0,634 μF

0,909 μF

1,21 μF

1,54 μF

1,96 μF

3,01 μF

4,22 μF

5,62 μF

min

250 V

160 V

max

8250 pF

17800 pF

31600 pF

62000 pF

91000 pF

0,147 μF

0,215 μF

0,274 μF

0,402 μF

0,536 μF

0,698 μF

0,866 μF

1,33 μF

1,78 μF

2,55 μF

min

4300 pF

8450 pF

18000 pF

32400 pF

63400 pF

93100 pF

0,15 μF

0,22 μF

0,28 μF

0,412 μF

0,549 μF

0,715 μF

0,887 μF

1,37 μF

1,8 μF

400 V

200 V

2400 pF

4300 pF

9310 pF

18000 pF

32400 pF

52300 pF

76800 pF

0,113 μF

0,154 μF

0,226 μF

0,3 μF

0,39 μF

0,499 μF

0,768 μF

1,1 μF

VALEURS DE CAPACITÉ ET DE TENSION (U

)

630 V

250 V

max

min

1000 pF

2400 pF

5230 pF

10200 pF

20000 pF

32400 pF

47500 pF

76800 pF

0,102 μF

0,15 μF

0,2 μF

0,255 μF

0,324 μF

0,499 μF

0,698 μF

max

2370 pF

5110 pF

10000 pF

19600 pF

31600 pF

47000 pF

75000 pF

0,1 μF

0,147 μF

0,196 μF

0,249 μF

0,316 μF

0,487 μF

0,681 μF

0,931 μF

4220 pF

9100 pF

17800 pF

31600 pF

51100 pF

75000 pF

0,11 μF

0,15 μF

0,221 μF

0,294 μF

0,383 μF

0,487 μF

0,75 μF

1,07 μF

1,43 μF

± 20% - ± 10% - ± 5% - ± 2% - ±1%

Capacitance tolerances /

Tolérances sur capacité

HOW TO ORDER

Model

PP78 A

Modèle

UL :

Flame retardant

–

UL :

Auto-extinguible

W :

RoHS

–

W :

RoHS

Capacitance

1 μF

Capacité

EXEMPLE DE CODIFICATION À LA COMMANDE

Capa. tolerance

Rated voltage (V

)

± 5%

400 V

Tolérance sur capacité

Tension nominale (V

)

www.exxelia.com - info@exxelia.com

Tel : + 33 (0)1 49 23 10 00

Page revised -

Version

04/15

POLYPROPYLENE

CAPACITORS

160 V

250 V

(mm)

0,12/0,16

0,1

14,5

0,16

0,1/0,12

14,5

6,2

0,2/0,32 0,12/0,32

14,5

7,5

0,32/0,4 0,32/0,5

7,5

0,4/0,5 0,32/0,5

8,7

0,5/0,8 0,5/0,63

0,8/1 0,63/0,8

27,5

8,7

0,5/0,8

0,5

27,5

0,8/1

0,5/0,8

27,5

11,2

1/1,25 0,8/1,25

27,5

12,5

1,25/1,6 1,25/1,6

32,5

12,5

1,6/2

32,5

2/3,15

2/2,5

32,5

17,5

3,15/4 2,5/3,15

32,5

4/6,3

3,15/4

* I

: Permissible RMS current in amperes

400 V

0,1/0,12

0,12/0,16

0,16/0,2

0,2/0,32

0,32/0,4

0,4/0,5

0,5/0,63

0,32/0,4

0,4/0,8

0,8/1

1/1,5

1,25/1,6

1,6/2,5

2,5/3,15

3,15/4

630 V

0,08/0,1

0,1

0,12/0,16

0,16/0,25

0,2/0,32

0,32/0,4

0,4/0,8

0,32/0,4

0,4/0,63

0,63/1

1/1,25

1/1,6

1,6/2

2/3,15

3,15/4
