FemtoClock
®
NG Octal
Universal Frequency Translator
8T49N285
DATA SHEET
General Description
The 8T49N285 has a fractional-feedback PLL that can be used as a
jitter attenuator or frequency translator. It is equipped with six integer
and two fractional output dividers, allowing the generation of up to 8
different output frequencies, ranging from 8kHz to 1GHz. Three of
these frequencies are completely independent of each other and the
inputs. The other five are related frequencies. The eight outputs may
select among LVPECL, LVDS, HCSL or LVCMOS output levels.
This functionality makes it ideal to be used in any frequency
translation application, including 1G, 10G, 40G and 100G
Synchronous Ethernet, OTN, and SONET/SDH, including ITU-T
G.709 (2009) FEC rates. The device may also behave as a frequency
synthesizer.
The 8T49N285 accepts up to two differential or single-ended input
clocks and a crystal input. The PLL can lock to either input clock, but
both input clocks must be related in frequency.
The device supports hitless reference switching between input
clocks. The device monitors both input clocks for Loss of Signal
(LOS). It generates an alarm when an input clock failure is detected.
Automatic and manual hitless reference switching options are
supported. LOS behavior can be set to support gapped or un-gapped
clocks.
The 8T49N285 supports holdover with an initial accuracy of ±50ppB
from the point where the loss of all applicable input reference(s) has
been detected. It maintains a historical average operating point that
may be returned to in holdover at a limited phase slope.
The device places no constraints on input to output frequency
conversion, supporting all FEC rates, including the new revision of
ITU-T Recommendation G.709 (2009), most with 0ppm conversion
error.
The PLL has a register-selectable loop bandwidth from 1.4Hz to
360Hz.
Each output supports individual phase delay settings to allow
output-output alignment.
The device supports Output Enable inputs and Lock, Holdover and
LOS status outputs.
The device is programmable through an I
2
C interface. It also
supports I
2
C master capability to allow the register configuration to
be read from an external EEPROM.
Features
•
•
•
•
•
Supports SDH/SONET and Synchronous Ethernet clocks
including all FEC rate conversions
<0.3ps RMS typical jitter (including spurs),12kHz to 20MHz
Operating modes: locked to input signal, holdover and free-run
Initial holdover accuracy of ±50ppb
Accepts two LVPECL, LVDS, LVHSTL, HCSL or LVCMOS
input clocks
•
Accepts frequencies ranging from 8kHz up to 875MHz
•
Auto and manual input clock selection with hitless switching
•
Clock input monitoring, including support for gapped clocks
•
•
•
Phase-Slope Limiting and Fully Hitless Switching options to
control output phase transients
Operates from a 10MHz to 40MHz fundamental-mode crystal
Generates 8 LVPECL/LVDS/HCSL or 16 LVCMOS output clocks
•
Output frequencies ranging from 8kHz up to 1.0GHz (diff)
•
Output frequencies ranging from 8kHz to 250MHz (LVCMOS)
•
Four General Purpose I/O pins with optional support for status &
control:
•
Four Output Enable control inputs may be mapped to any of the
eight outputs
•
Lock, Holdover & Loss-of-Signal status outputs
•
•
•
•
•
•
Open-drain Interrupt pin
Nine programmable PLL loop bandwidth settings from 1.4Hz to
360Hz.
•
Optional Fast Lock function
Programmable output phase delays in steps as small as 16ps
Register programmable through I
2
C or via external I
2
C EEPROM
Bypass clock paths for system tests
Power supply modes
V
CC
/ V
CCA
/ V
CCO
3.3V / 3.3V / 3.3V
3.3V / 3.3V / 2.5V
3.3V / 3.3V / 1.8V (LVCMOS)
2.5V / 2.5V / 3.3V
2.5V / 2.5V / 2.5V
2.5V / 2.5V / 1.8V (LVCMOS)
-40°C to 85°C ambient operating temperature
Package: 56QFN, lead-free RoHs (6)
Applications
• OTN or SONET / SDH equipment Line cards (up to OC-192, and
supporting FEC ratios)
• OTN de-mapping (Gapped Clock and DCO mode)
• Gigabit and Terabit IP switches / routers including support of
Synchronous Ethernet
• SyncE (G.8262) applications
• Wireless base station baseband
• Data communications
• 100G Ethernet
•
•
8T49N285 REVISION 3 06/29/15
1
©2015 Integrated Device Technology, Inc.

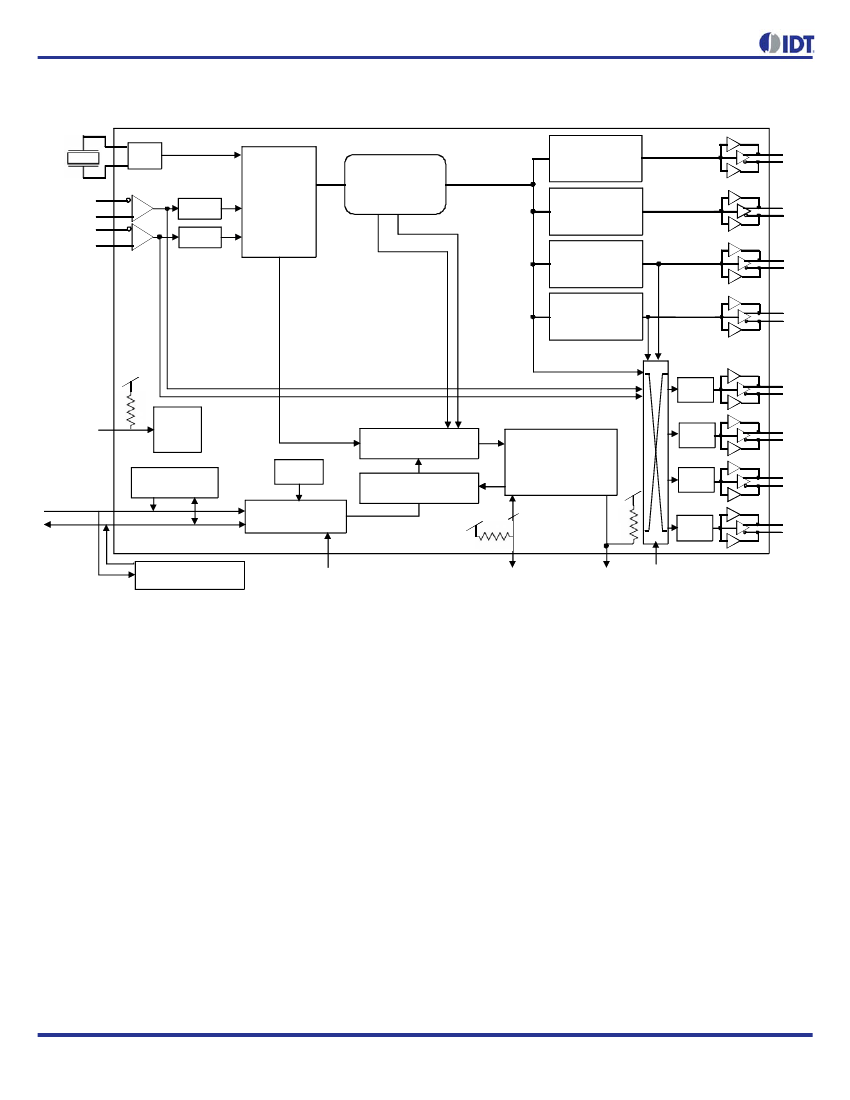

8T49N285 DATA SHEET
Pin Description and Pin Characteristic Tables
Table 1. Pin Descriptions
1
Number
3
4
5
12
13
7
8
9
10
48, 47
44, 43
27, 28
23, 24
40, 39
37, 36
34, 33
31, 30
46
Name
OSCI
OSCO
S_A0
SDATA
SCLK
CLK0
nCLK0
CLK1
nCLK1
Q0, nQ0
Q1, nQ1
Q2, nQ2
Q3, nQ3
Q4, nQ4
Q5, nQ5
Q6, nQ6
Q7, nQ7
nRST
I
O
I
I/O
I/O
I
I
I
I
O
O
O
O
O
O
O
O
I
Pulldown
Pullup
Pullup
Pulldown
Pullup /
Pulldown
Pulldown
Pullup /
Pulldown
Universal
Universal
Universal
Universal
Universal
Universal
Universal
Universal
Pullup
Open-drain
with pullup
Pullup
Pulldown
Type
Description
Crystal Input. Accepts a 10MHz-40MHz reference from a clock oscillator or
a 12pF fundamental mode, parallel-resonant crystal.
Crystal Output. This pin should be connected to a crystal. If an oscillator is
connected to OSCI, then this pin must be left unconnected.
I
2
C lower address bit A0.
I
2
C interface bi-directional Data.
I
2
C interface bi-directional Clock.
Non-inverting differential clock input.
Inverting differential clock input. V
CC
/2 when left floating (set by the internal
pullup and pulldown resistors.)
Non-inverting differential clock input.
Inverting differential clock input. V
CC
/2 when left floating (set by the internal
pullup and pulldown resistors.)
Output Clock 0. Please refer to the
“Output Drivers”
section for more details.
Output Clock 1. Please refer to the
“Output Drivers”
section for more details.
Output Clock 2. Please refer to the
“Output Drivers”
section for more details.
Output Clock 3. Please refer to the
“Output Drivers”
section for more details.
Output Clock 4. Please refer to the
“Output Drivers”
section for more details.
Output Clock 5. Please refer to the
“Output Drivers”
section for more details.
Output Clock 6. Please refer to the
“Output Drivers”
section for more details.
Output Clock 7. Please refer to the
“Output Drivers”
section for more details.
Master Reset input. LVTTL / LVCMOS interface levels.
0 = All registers and state machines are reset to their default values
1 = Device runs normally
Interrupt output.
General-purpose input-outputs. LVTTL / LVCMOS Input levels Open-drain
output.Pulled-up with 5.1k resistor to V
CC.
Bypass Selection. Allow input references to bypass the PLL.
LVTTL / LVCMOS interface levels
Negative supply voltage. All V
EE
pins and ePad must be connected before
any positive supply voltage is applied.
Core and digital functions supply voltage.
Core and digital functions supply voltage.
Analog functions supply voltage for core analog functions.
Analog functions supply voltage for analog functions associated with PLL.
High-speed output supply voltage for output pair Q0, nQ0.
High-speed output supply voltage for output pair Q1, nQ1.
High-speed output supply voltage for output pair Q2, nQ2.
High-speed output supply voltage for output pair Q3, nQ3.
High-speed output supply voltage for output pair Q4, nQ4.
4
REVISION 3 06/29/15
50
29, 42, 21, 25
54
6, ePad
11
17
2, 14, 15, 16,
20
1, 51, 55, 56
49
45
26
22
41
nINT
GPIO[3:0]
PLL_BYP
V
EE
V
CC
V
CC
V
CCA
V
CCA
V
CCO0
V
CCO1
V
CCO2
V
CCO3
V
CCO4
O
I/O
I
Power
Power
Power
Power
Power
Power
Power
Power
Power
Power
FEMTOCLOCK
®
NG OCTAL UNIVERSAL FREQUENCY TRANSLATOR
