RB04DBP8450: DescriptionFixed Resistor, Thin Film, 0.0625W, 845ohm, 50V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP, LEAD FREE; CategoryPassive components The resistor; File Size307KB，9 Pages; ManufacturerTA-I Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

RB04DBP8450 Overview

Fixed Resistor, Thin Film, 0.0625W, 845ohm, 50V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP, LEAD FREE

RB04DBP8450 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2141066694
package instruction	CHIP, LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Chip
JESD-609 code	e3
Manufacturer's serial number	RB
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.35 mm
Package length	1 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	0.5 mm
method of packing	BULK CASSETTE
Rated power dissipation(P)	0.0625 W
Rated temperature	70 °C
resistance	845 Ω
Resistor type	FIXED RESISTOR
series	RB04(BCD TOL)
size code	0402
surface mount	YES
technology	THIN FILM
Temperature Coefficient	25 ppm/°C
Terminal surface	Matte Tin (Sn) - reflowed over Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	0.5%
Operating Voltage	50 V

Preview

Download Datasheet

View All

Document No

TRB-040S001A

2007/12/11

1/9

Thin Film Chip Resistors

( RB series Standard )

Issued date

page

1. Scope :

This specification applies for the RB series of thin film chip resistors made by TA-I.

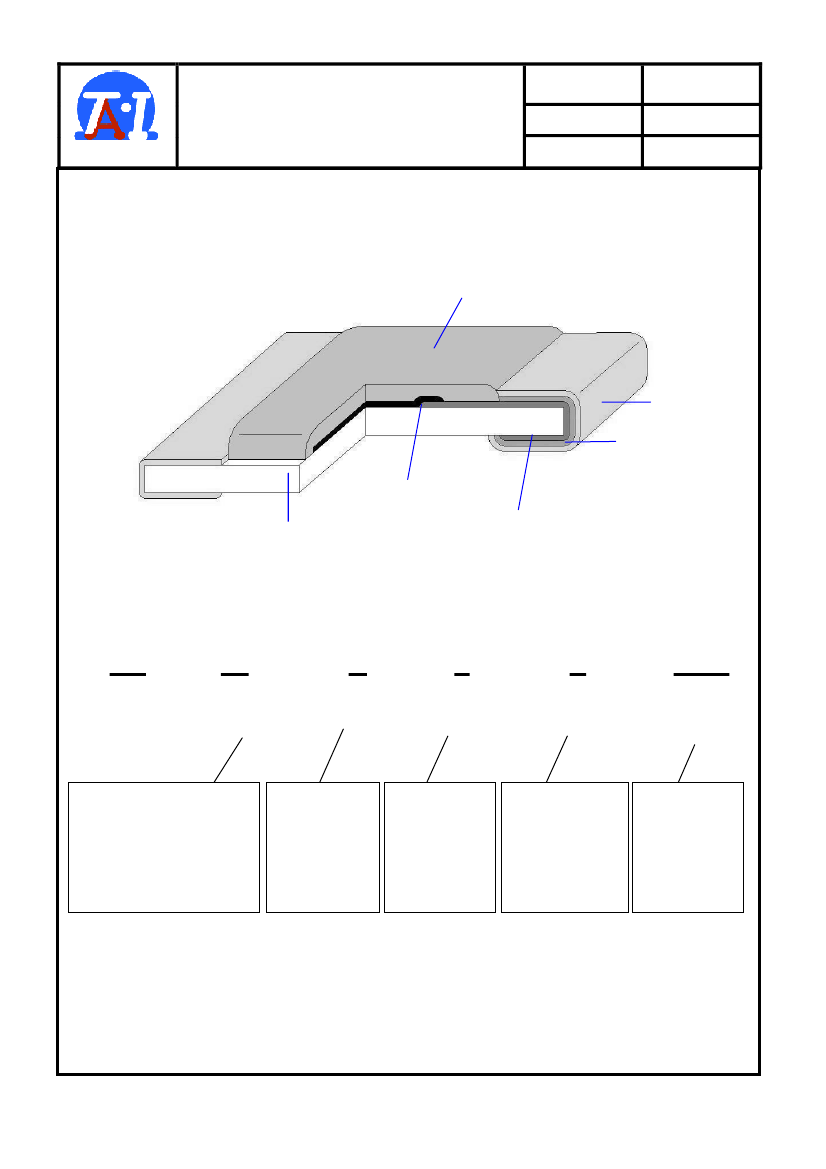

2. Construction:

Over Coat

Sn Plating

Ni Plating

Resistive Element

Ceramic Substrate

Inner electrode

3. Type Designation:

Product Code

RB : Thin Film

Size

Power Rating

Tolerance

Packaging

TCR

1001

Nominal

Resistance

04-0402(1005) 1/16W

B-

±0.10%

C-

±0.25%

D-

±0.50%

F-

±1.00%

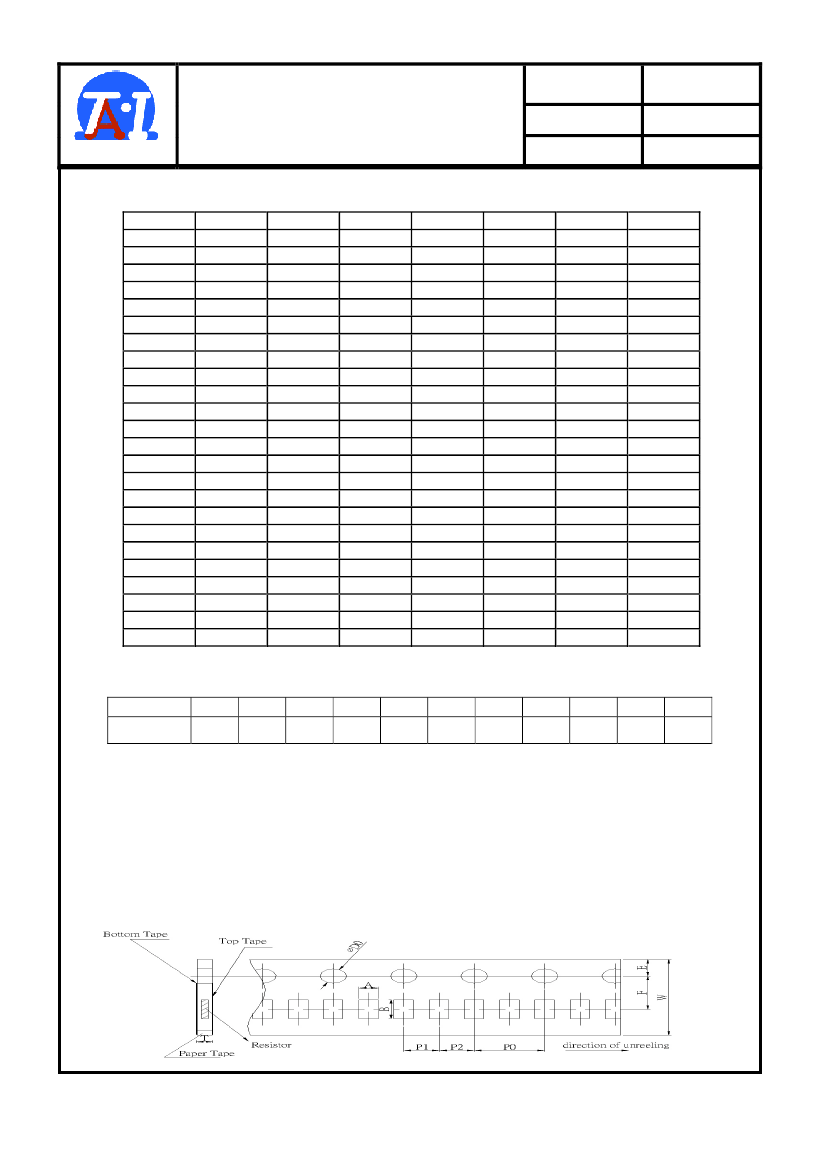

T- Paper

Tape

B- Bulk

Cassette

J-

±5

ppm

±10

ppm

M-

±15

ppm

P-

±25

ppm

S-

±50

ppm

e.g.,

1001=1kΩ

TA-I TECHNOLOGY CO., LTD
