AD6C311
1 Form A
400V / 10
Ω
MOSFET Output Solid State Relay
Description
The AD6C311 is a bi-directional, single-pole, single-throw,
normally open multipurpose solid state relay. It is designed
to replace electromechanical relays in general purpose
switching applications. The relay consists of an integrated
circuit that drives two rugged source-to-source
enhancement type DMOS transistors – optically coupled to
a light emitting diode.
The AD6C311 comes standard in a miniature 6 pin DIP
package making it ideal for high-density board applications.
Features
Low Input Control Current (2.5mA TYP)
200mA Maximum Continuous Load Current
Low On Resistance (10 TYP)
High Isolation Voltage (3.75kV
RMS
, 5kV
RMS
-H Option)
Long Life / High Reliability
RoHS / Pb-Free / REACH Compliant
Agency Approvals
Applications
Meter Reading Systems
Multiplexers
Data Acquisition
Medical Equipment
Battery Monitoring
Home / Safety Security Systems
UL/C-UL:
VDE:
File # E201932
File # 40035191 (EN 60747-5-2)
Absolute Maximum Ratings
The values indicated are absolute stress ratings. Functional
operation of the device is not implied at these or any
conditions in excess of those defined in electrical
characteristics section of this document. Exposure to
absolute Maximum Ratings may cause permanent damage
to the device and may adversely affect reliability.
Storage Temperature …………………………..-55 to +125°C
Operating Temperature …………………………-40 to +85°C
Continuous Input Current ………………………………..50mA
Transient Input Current ………………….……………..500mA
Reverse Input Control Voltage …………..…………………6V
Input Power Dissipation …………………………………40mW
Output Power Dissipation ……………………………..800mW
Solder Temperature – Wave (10sec)……………….….260°C
Solder Temperature – IR Reflow (10sec)….…………..260°C
Schematic Diagram
(+) Input
1
6
-/+ Load
(-) Input
2
5
DC Connection
Ordering Information
Part Number
Do Not Use
3
4
-/+ Load
Description
6 pin DIP, (50/Tube)
5kV
RMS
Viso, 6 pin DIP, (50/Tube)
6 pin SMD, (50/Tube)
5kV
RMS
, 6 pin SMD, (50/Tube)
6 pin SMD, Tape and Reel (1000/Reel)
5kV
RMS
, 6 pin SMD, Tape and Reel (1000/Reel)
AD6C311
AD6C311
AD6C311-H
AD6C311-S
AD6C311-HS
AD6C311-STR
AD6C311-HSTR
NOTE: Suffixes listed above are not included in marking on
device for part number identification
© 2012 Solid State Optronics
•
San José, CA
www.ssousa.com
•
+1.408.293.4600
Page 1 of 8
AD6C311/H/S/TR
Rev 2.00 (09/19/2012)
001529

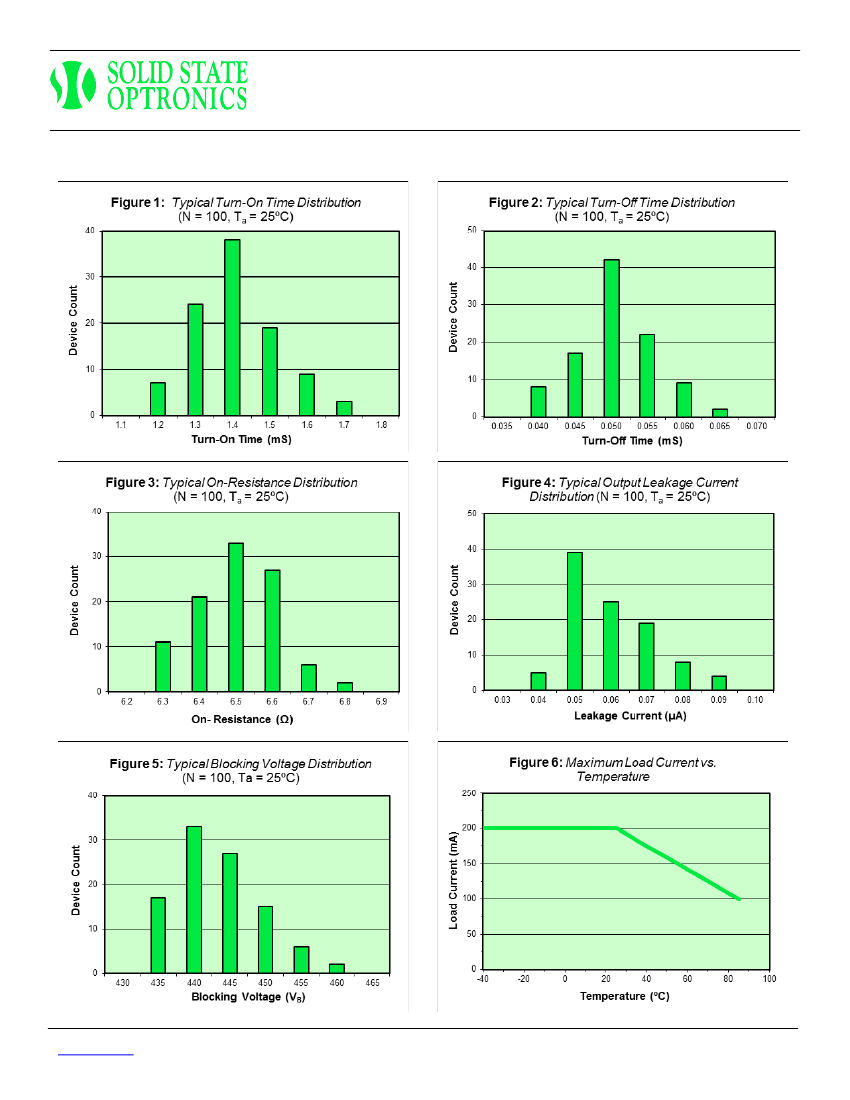

AD6C311
1 Form A
400V / 10
Ω
MOSFET Output Solid State Relay
AD6C311 Solder Temperature Profile Recommendations
(1)
Infrared Reflow:
Refer to the following figure as an example of an optimal temperature profile for single occurrence infrared reflow.
Soldering process should not exceed temperature or time limits expressed herein. Surface temperature of device
package should not exceed 250ºC:
G
F
D
E
H
B
A
C
Figure 1
Process
Step
A
B
C
D
E
F
G
H
Description
Preheat Start Temperature (ºC)
Preheat Finish Temperature (ºC)
Preheat Time (s)
Melting Temperature (ºC)
Time above Melting Temperature (s)
Peak Temperature, at Terminal (ºC)
Dwell Time at Peak Temperature (s)
Cool-down (ºC/s)
150ºC
180ºC
90 - 120s
230ºC
30s
260ºC
10s
<6ºC/s
Parameter
(2)
Wave Solder:
Maximum Temperature:
Maximum Time:
Pre-heating:
Single Occurrence
260ºC (at terminal)
10s
100 - 150ºC (30 - 90s)
(3)
Hand Solder:
Maximum Temperature:
Maximum Time:
Single Occurrence
350ºC
3s
(at tip of soldering iron)

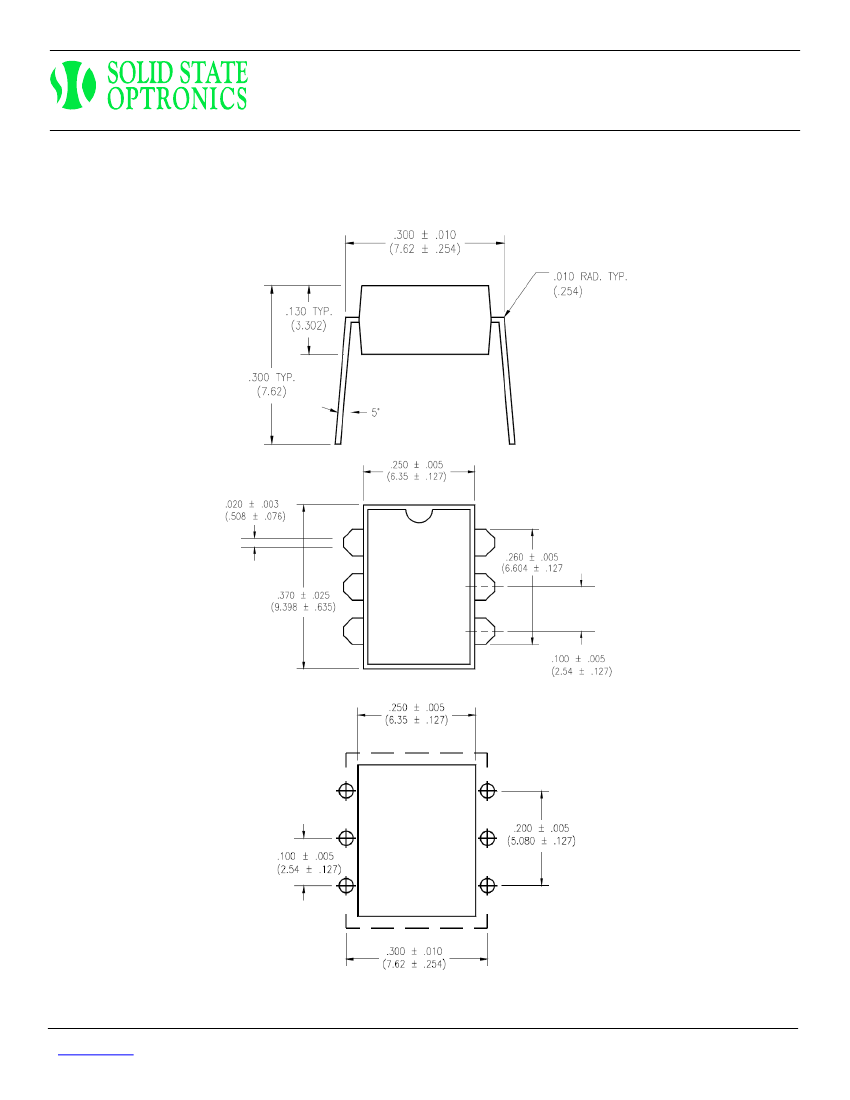

© 2012 Solid State Optronics
•
San José, CA
www.ssousa.com
•
+1.408.293.4600
Page 4 of 8
AD6C311/H/S/TR
Rev 2.00 (09/19/2012)
001529
