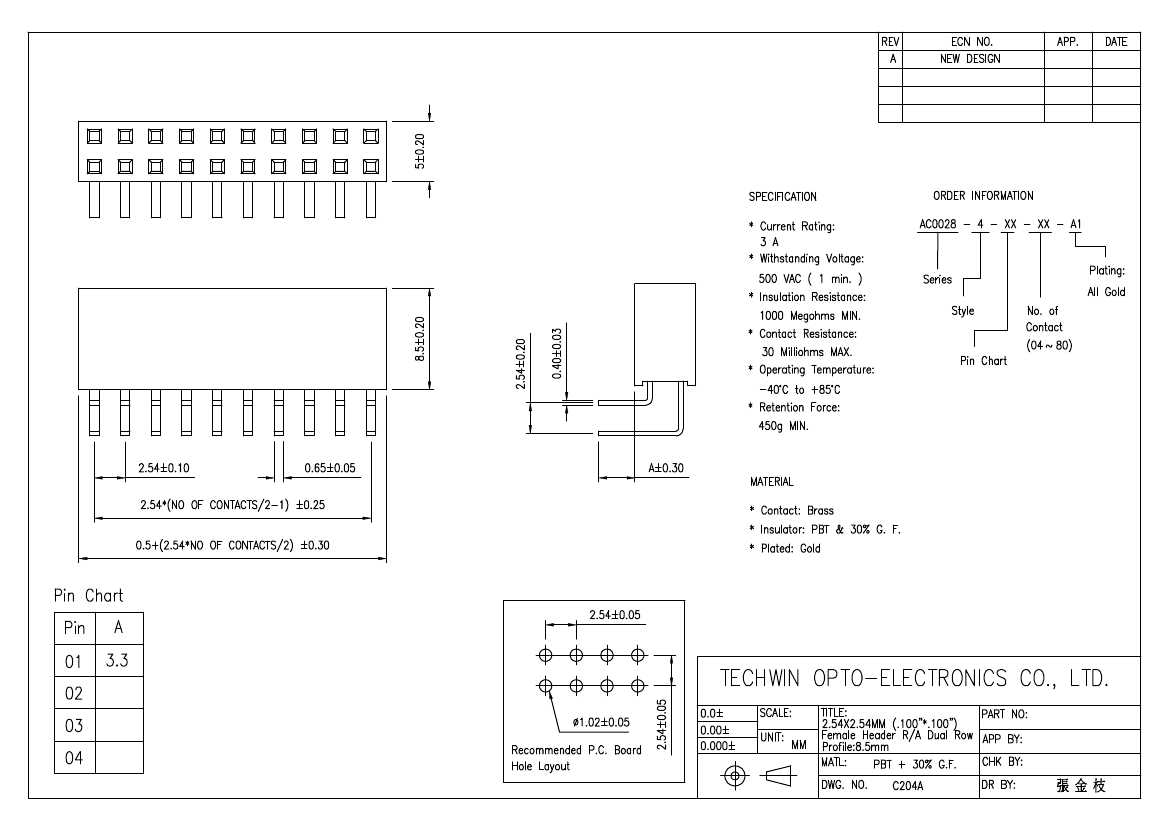

AC0028-4-01-26-A1

Description
Board Connector, 26 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug
CategoryThe connector    The connector
File Size39KB,1 Pages
ManufacturerTechwin Opto-Electronics Co., Ltd.
Download Datasheet Parametric View All

AC0028-4-01-26-A1 Overview

Board Connector, 26 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug

AC0028-4-01-26-A1 Parametric

Parameter NameAttribute value
Objectid304085124
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.197 inch
body length1.32 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedGOLD
Contact point genderFEMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance1000000000 Ω
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberAC0028
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.13 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts26
