Mini ITX MB supports Intel
®
4th Gen. Core™ i7/i5/i3/
Pentium
®
Processor with
2DVI/ DP/ 2LAN/ 4COM/
Audio
Features :
LGA1150 Intel
®
4th Gen. Core™
Equipped with Intel
®
H81/Q87
Chipset
Memory support two DDR3 SO-DIMM
sockets 1333/1600 up to 16 GB
Support two DVI and Display Port
Support Dual Gigabit LAN
Support SATA RAID 0, 1, 5
Expansion Slots for one PCIe(16x)
Support USB 3.0
BM-0942
i7/i5/i3 and Pentium
®
Processor
Protech Systems Co., Ltd.
No. 24, Lane 365, Yang Goang Street, Nei Hu
District Taipei 114, Taiwan
TEL: +886-2-8751-1111 FAX: +886-2-8751-1199
E-mail: sales@protech.com.tw
http://www.protech.com.tw
Protech Technologies Inc.
950 Fee Ana St, Suite B Placentia, CA 92870
TEL: +1-714- 996-7200 FAX: +1-714- 996-7300
Sales: sales@protech-usa.net
http://www.protech-usa.net
Protech Japan Co., Ltd.
OSK Bldg, 6F, 6-25-14, Minami-ohi Shinagawa-ku,
Tokyo, 140-0013
TEL: +81-3-5753-8411 FAX: +81-3-3763-9282
E-mail: sam@protech-j.com
http://www.protech-j.com

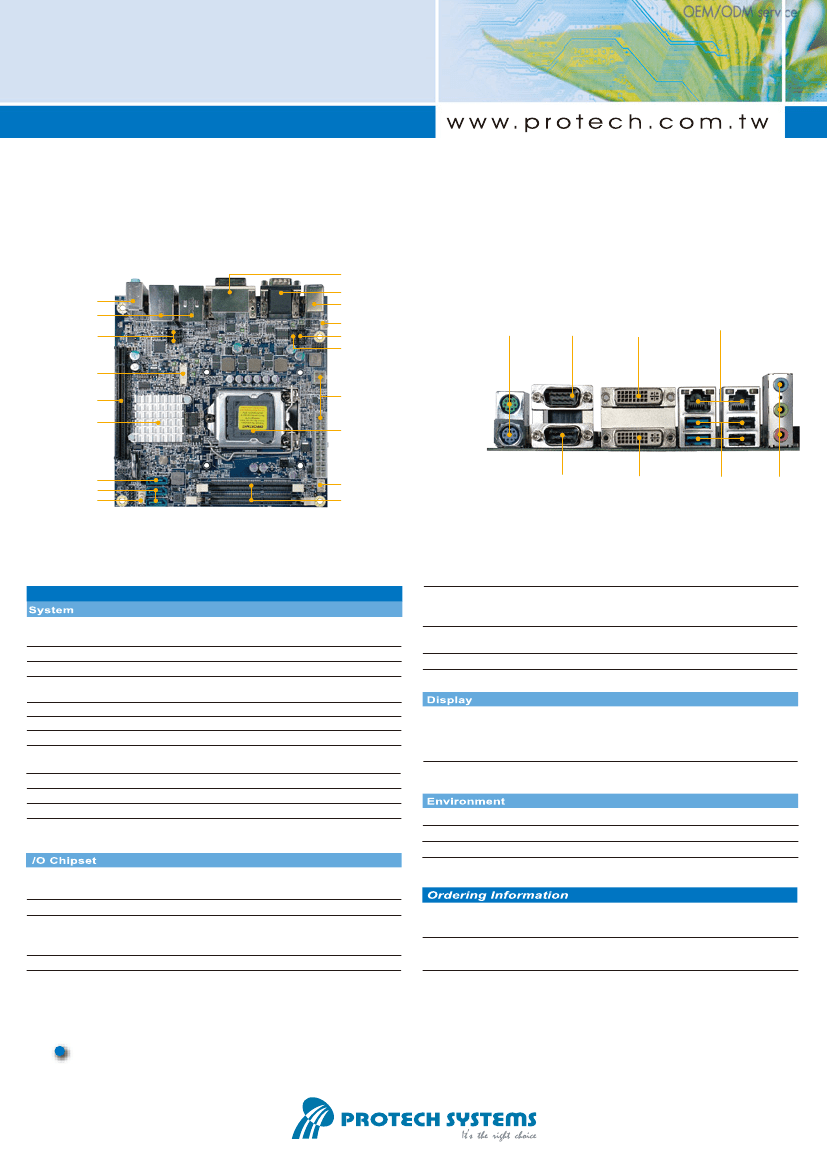

BM-0942
Audio Jack
LAN & USB Ports
USB Connector
Mini ITX MB supports Intel
®
4th Gen. Core™ i7/i5/i3/ Pentium
®
Processor with 2DVI/ DP/ 2LAN/ 4COM/ Audio
DVI Port
COM Ports
PS/2 KB & MS Jack
System Fan Connector
COM 4
COM 3
PS/2 Keyboard/
Mouse Connector COM 2
DVI-D
RJ-45 10/100/1000
LAN Connector
Display Port
PCIe(16x)
Intel
®
H81/Q87
Power Connector
Intel
®
4th Gen. Core™
i5/i7
SATA II/SATA III
SATA III
System Fan
Connector
CPU FAN
DDR3 SO-DIMM
COM 1
DVI-I
USB
Connector
Audio
Connector
Specifications
LAN
CPU Support
CPU Frequency
Chipset
DRAM
BIOS
Watchdog
Power Supply
Power Consumption
Dimension
Certificate
OS Support
Intel
®
4th Gen. Core™ i7/i5/i3 and Pentium
®
processor
3.3~3.9GHz
Intel
®
PCH H81/Q87
2 x 204-pin DDR3 SO-DIMM, support dual-channel
DDR3 1333/1600 GHz (system max. 16GB)
AMI BIOS
1~255 secs Watchdog timer selectable
Support ATX Power
+5V:1.3A; +12V:2.35A; +3.3V:0.6A; +5VSB:0.14A
(CPU: i7 4770S 3.1GHz)
170mm x 170mm (6.69" x 6.69")
CE/ FCC
Windows 8, Windows 7
Operation Temp.
Storage Temp.
Humidity
SATA Interface
Expansion BUS
Serial Port
Keyboard/Mouse
2 x SATA III (6.0Gb/s), 1 x SATA II (3.0Gb/s),
(Raid 0,1,5)
1 x PCIe(16x)
4 x COM port,
COM 1/3/4 for RS-232, COM 2 for RS-232/422/485
COM1/2 support 5V/12V
PS/2 Connector, with mini DIN connector
BM-0942RA-00P
Graphics
Audio
USB
LAN 1: Intel
®
i217LM/V (10/100/1000 Mbps)
LAN 2: Intel
®
i210-AT (10/100/1000 Mbps)
Support Wake-on-LAN with ATX power
High Definition Audio; Realtek ALC888S with MIC /
Line-In / Line-Out
6 x USB 2.0 + 2 x USB 3.0
Built-in processor, share system memory
Support 1 x DVI-I
1 x DVI-D
1 x Display port
*Discrete graphic card is necessary for display if the chosen CPU doesn't have integrated graphics support.
0° ~ 60° C ( 32° ~ 140° F )
- 40° ~ 85° C ( - 40° ~ 185° F )
Operation humidity 5 ~ 90% (non-condensing)
*All information contained in this document is subject to change without prior notice. Please log on www.protech.com.tw to acquire latest information.
Mini ITX MB with Intel
®
i7/i5/i3 Processor(LGA1150)+H81,
DDR3/2DVI/2LAN/4COM
Mini ITX MB with Intel
®
i7/i5/i3 Processor(LGA1150)+Q87,
DDR3/2DVI/2LAN/4COM
BM-0942RA-01P
All of trademarks and brand names are the property of their owners. Trademark "Protech" is the property of Protech Systems Co., Ltd.
All information contained in this document is subject to change without any prior notice. This catalog is copyrighted in Feb. 2014.
