BTW63-600R

Description
FAST TURN-OFF THYRISTORS
File Size130KB,5 Pages
ManufacturerNew Jersey Semiconductor
Websitehttp://www.njsemi.com
Download Datasheet Compare View All

BTW63-600R Overview

FAST TURN-OFF THYRISTORS

oauc£i,
Una.
20 STERN AVE.
SPRINGFIELD, NEW JERSEY 07081
U.S.A.
TELEPHONE: (973) 376-2922
(212) 227-6005
FAX: (973) 376-8960
BTW63 SERES
FAST TURN-OFF THYRISTORS
Glass passivated, asymmetrical, fast turn-off, forward blocking thyristors (ASCR) in TO-48 envelopes,
suitable for operation in fast power inverters. For reverse-blocking operation use with a series diode,
for reverse-conducting operation use with an anti-parallel diode.

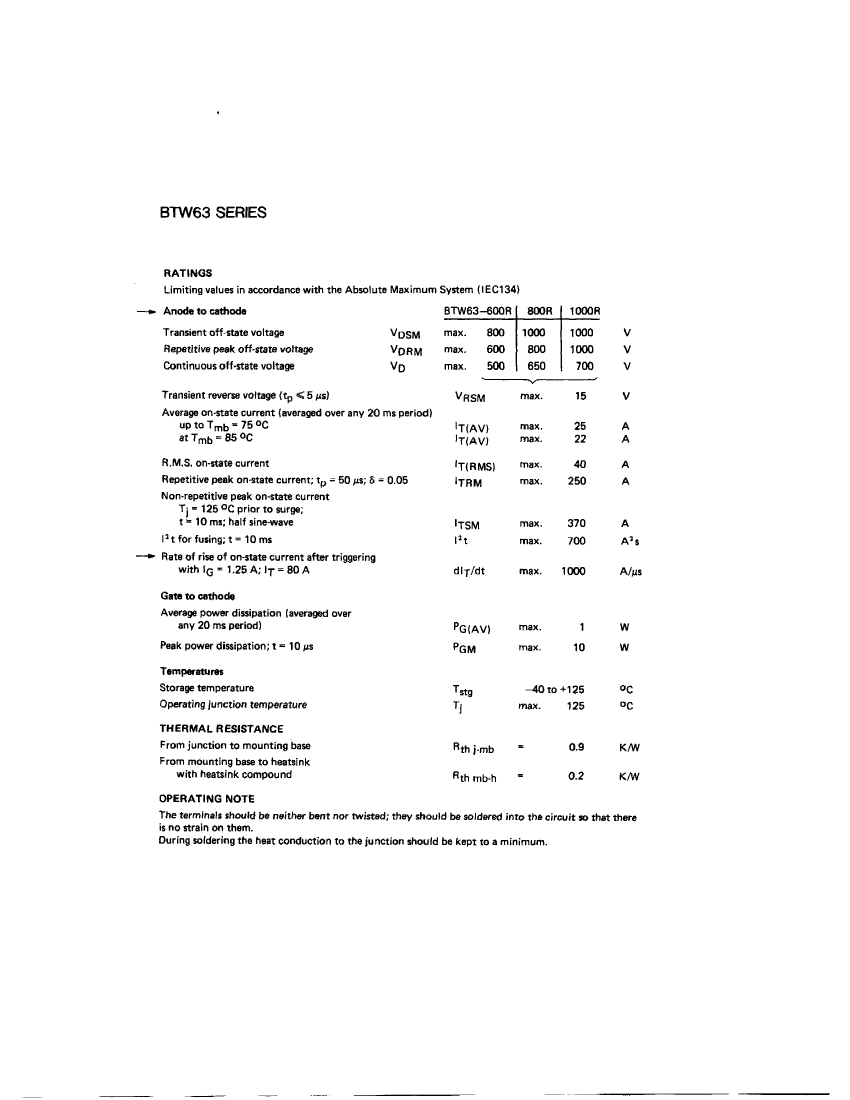

QUICK REFERENCE DATA
BTW63-600R
Repetitive peak off-state voltage

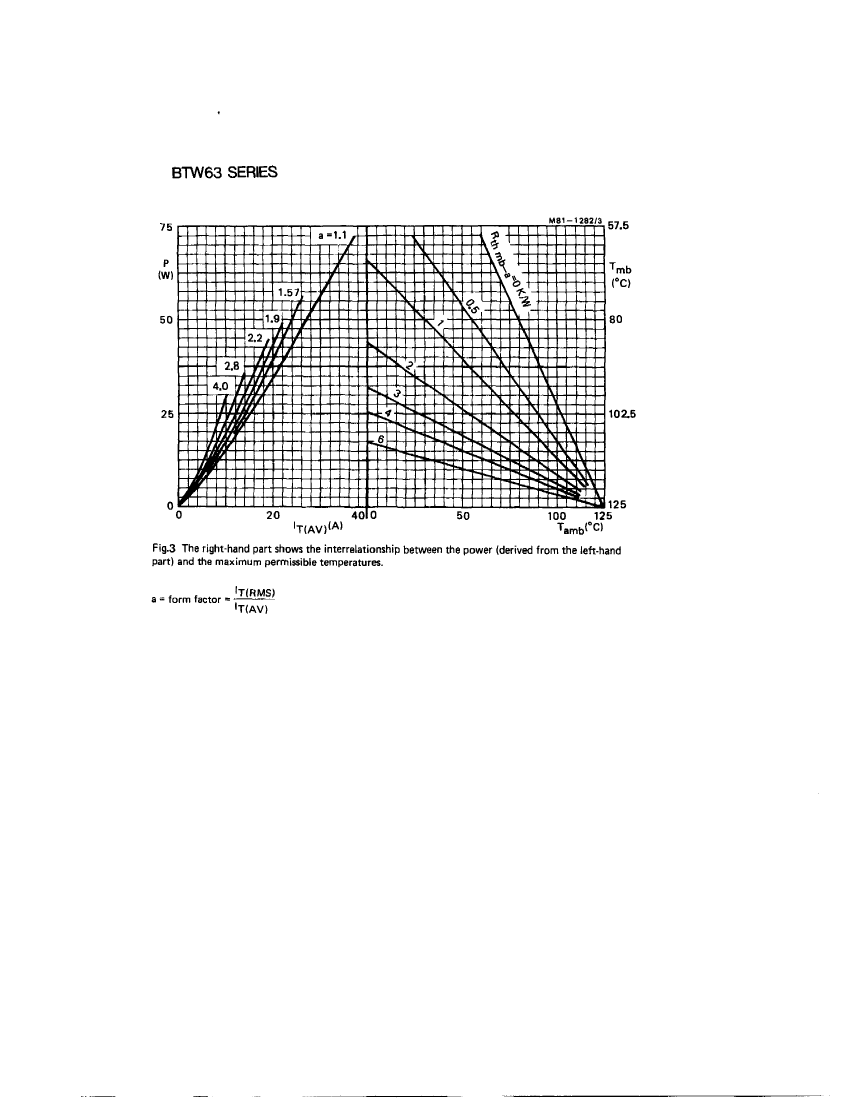

Average on-state current
Repetitive peak on-state current

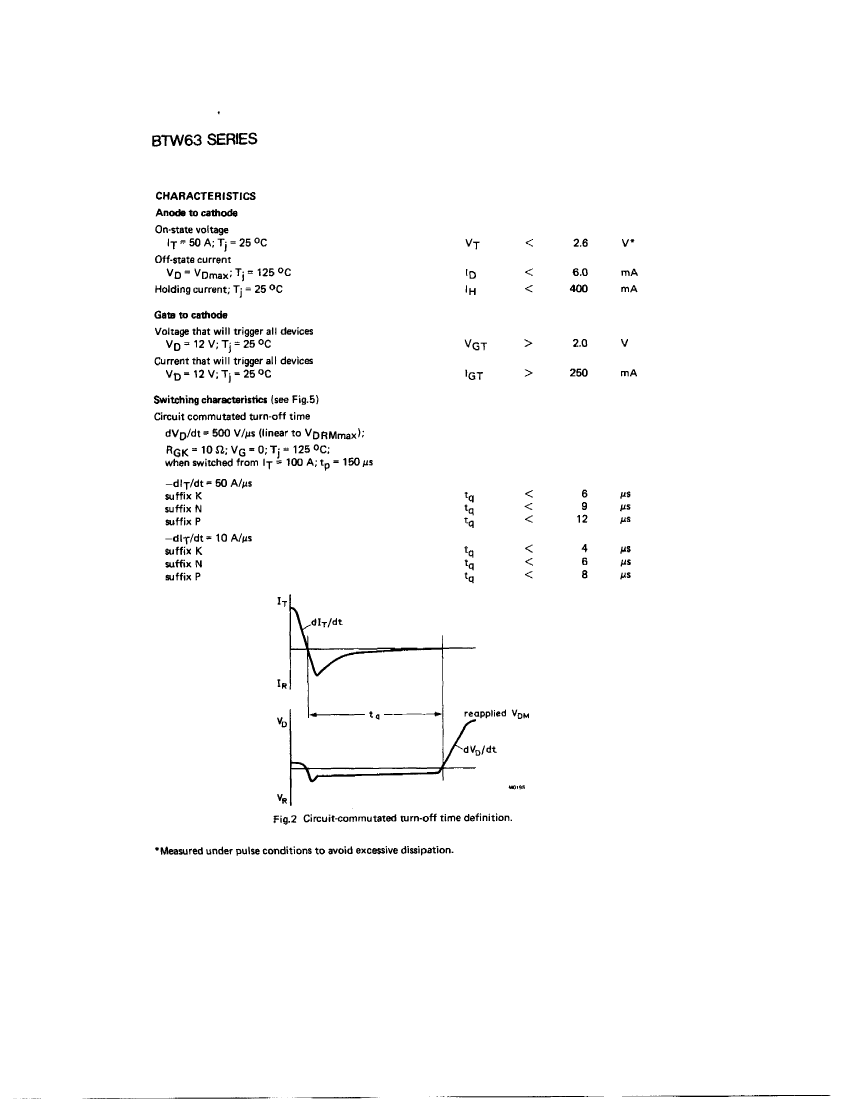

Circuit-commutated turn-off time
800R
1000R
VDRM
'T(AV)
ma
*-
max.
max.
600
800
25
250
1000
A
A
ITRM
tq
tq
suffix K
suffix N
suffix P

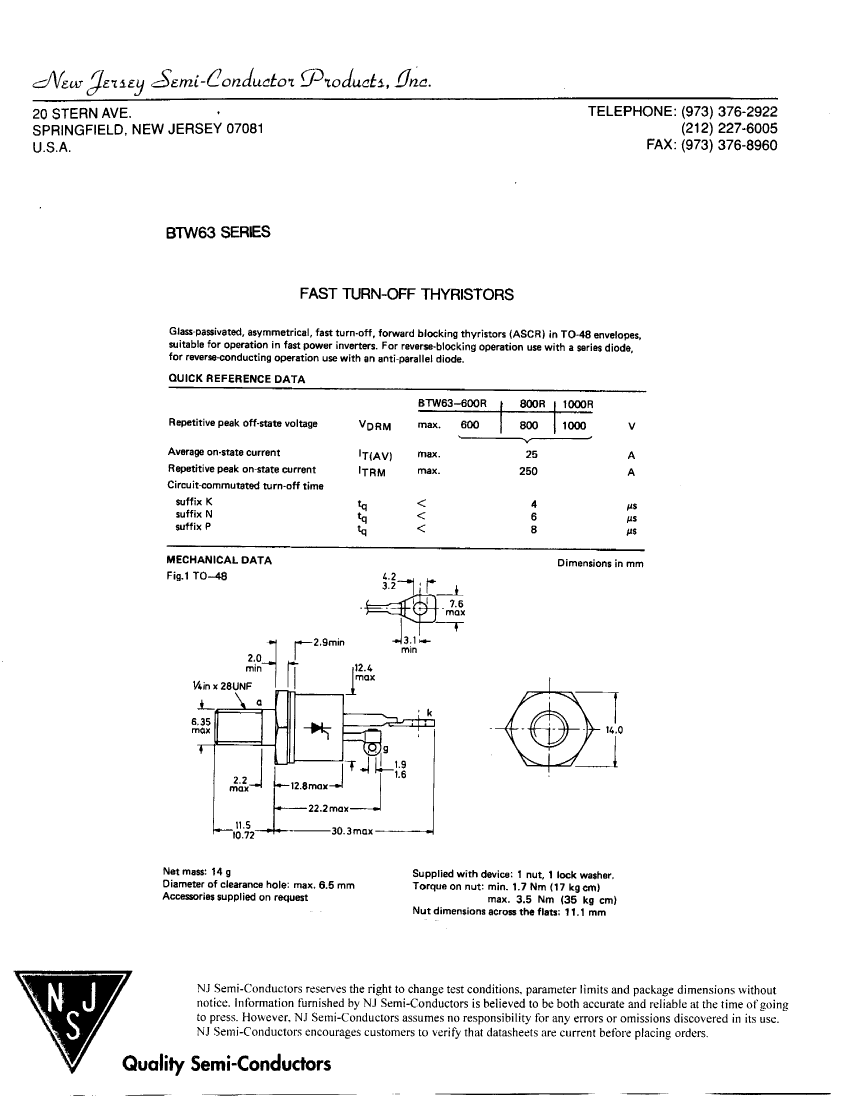

MECHANICAL DATA
Fig.1 TO-48
<
<
4
6
8
fiS
MS
IK
Dimensions in mm
14.0
Net mass: 14 g
Diameter of clearance hole: max. 6.5 mm
Accessories supplied on request
Supplied with device: 1 nut, 1 lock washer.
Torque on nut: min. 1.7 Nm (17 kg cm)
max.
3.5 Nm (35 kg cm)
Nut dimensions across the flats: 11.1 mm
NJ Semi-Conductors reserves the right to change test conditions, parameter limits and package dimensions without
notice. Information furnished by NJ Semi-Conductors is believed to be both accurate and reliable at the time of going
to press. However, NJ Semi-Conductors assumes no responsibility for any errors or omissions discovered in its use.
NJ Semi-Conductors encourages customers to verify that datasheets are current before placing orders.
Quality Semi-Conductors
