RBW2ABLKGILFF2: DescriptionRocker Switch, DPST, Off-on, Quick Connect Terminal, Rocker Actuator, Panel Mount,; CategoryMechanical and electronic products switch; File Size265KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric View All

RBW2ABLKGILFF2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RBW2ABLKGILFF2	-	-	View	Buy Now

RBW2ABLKGILFF2 Overview

Rocker Switch, DPST, Off-on, Quick Connect Terminal, Rocker Actuator, Panel Mount,

RBW2ABLKGILFF2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8092415742
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator color	GREEN
Actuator length	0.346 inch
Actuator type	ROCKER
body width	22.098 mm
Body color	BLACK
body height	19.304 mm
Body length or diameter	27.9908 mm
Contact (AC) maximum rated power R load	0.3HP@125VAC
Contact (AC) maximum rated R load	16A@125VAC
Maximum contact current (AC)	16 A
Contact function	OFF-ON
Contact resistance	0.03 mΩ
Maximum contact voltage (AC)	125 V
Dielectric withstand voltage	1000VAC V
Electrical life	50000 Cycle(s)
illumination	LAMP
Insulation resistance	500000000 Ω
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
surface mount	NO
switch function	DPST
Switch type	ROCKER SWITCH
Terminal length	0.394 inch
Termination type	QUICK CONNECT

Preview

Download Datasheet

View All

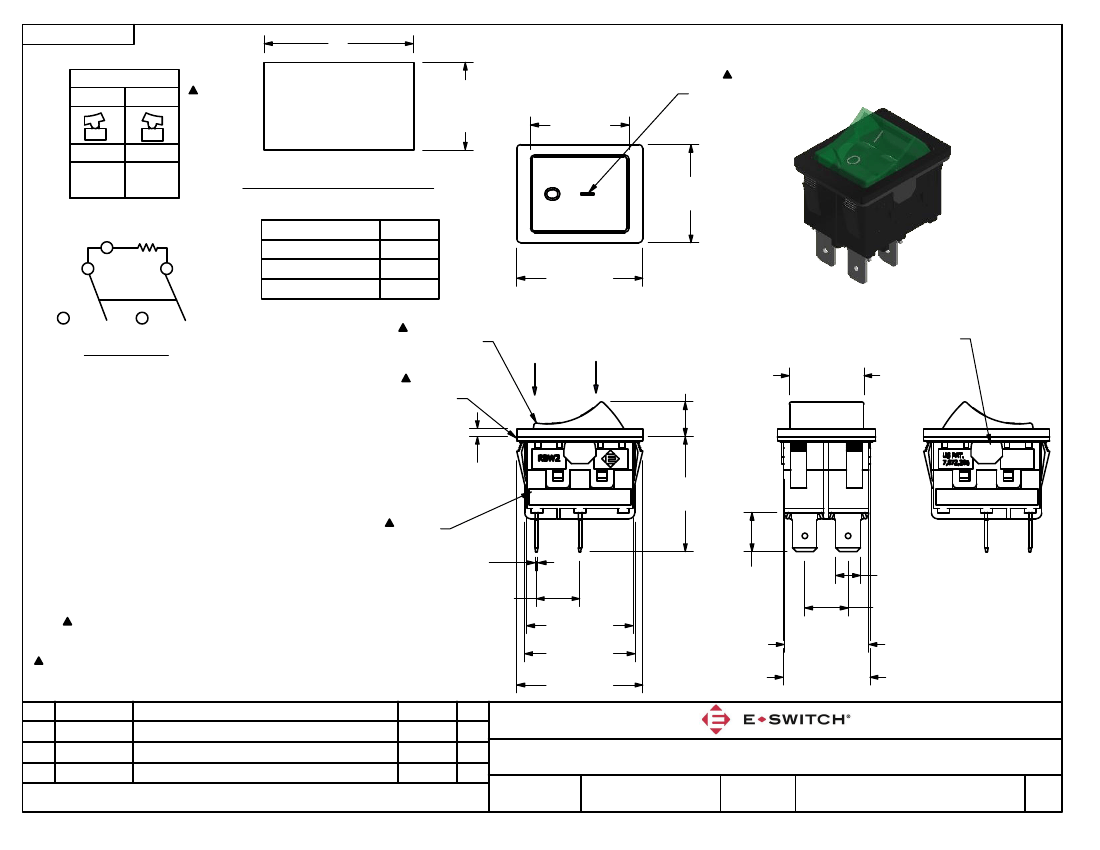

SHEET 1 OF 1

SWITCH FUNCTION

POS. 1

POS. 2

X

[

.878

RECOMMENDED PANEL MOUNTING

22.30

+.10

- .00

+.004

- .000

in

]

MARKING COLOR

WHITE

25.00

[.984 in]

OFF

OPEN

ON

2-1, 5-4

25.00

[.984 in]

PANEL THICKNESS

L

X

29.9/30.0

30.3/30.4

30.7/30.8

32.00

[1.260 in]

1.2-1.8

5

1.8-2.4

2.4-3.0

2

1

4

CIRCUIT: SPDT

FUNCTIONS

GREEN FULL

ILLUMINATED

ROCKER

RUBBER GASKET

(Y000100)

POS

1

POS

2

8.80

.50

[.346

.020

in]

19.00

[.748 in]

RUBBER PLUG

BOTH SIDES

NOTES:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X= 0.4

X.XX= 0.25

3. TERM. NOS. FOR REF. ONLY

4. RATING: CUL: 16(16)A 125VAC 5E4 T85

1/3HP 125VAC IP66

5. MECHANICAL LIFE: 50,000 CYCLES

6. CONTACT RESISTANCE: <30 MILLI-OHMS INITIAL

7. DIELECTRIC STRENGTH: 1000V AC 1MIN

8. DENOTES CRITICAL PARAMETER.

9. INSULATION RESISTANCE: 500M OHMS AT 500VDC

10. OPERATING TEMP: -20 C to 85 C

11. LAMP: 250VAC NEON

12. RATING: IP66

REV

C

2.00

[.079 in]

BLACK

HOUSING

.80

[.031 in]

11.00

[.433 in]

27.00

[1.063 in]

28.00

[1.102 in]

32.00

[1.260 in]

DATE

02/03/22

29.3

[1.154 in]

4

5

10.00

[.394 in]

5

2

6.30

[.248 in]

11.00

[.433 in]

2

1

21.50

[.846 in]

22.10

[.870 in]

OBJECT ID

ECO NO

ECO-100715

DESCRIPTION

REMOVE VDE/ENEC RATING AND LOGO

BY

JS

000028978

TITLE

SCALE

RBW2ABLKGILFF2

DATE

DR

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY TO

E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

2:1

8/4/2011

BGL

Y100012

C
