1700 & 1750 Toggle Switches 16A 250Vac Single and Double Pole

Preview

Download Datasheet

View All

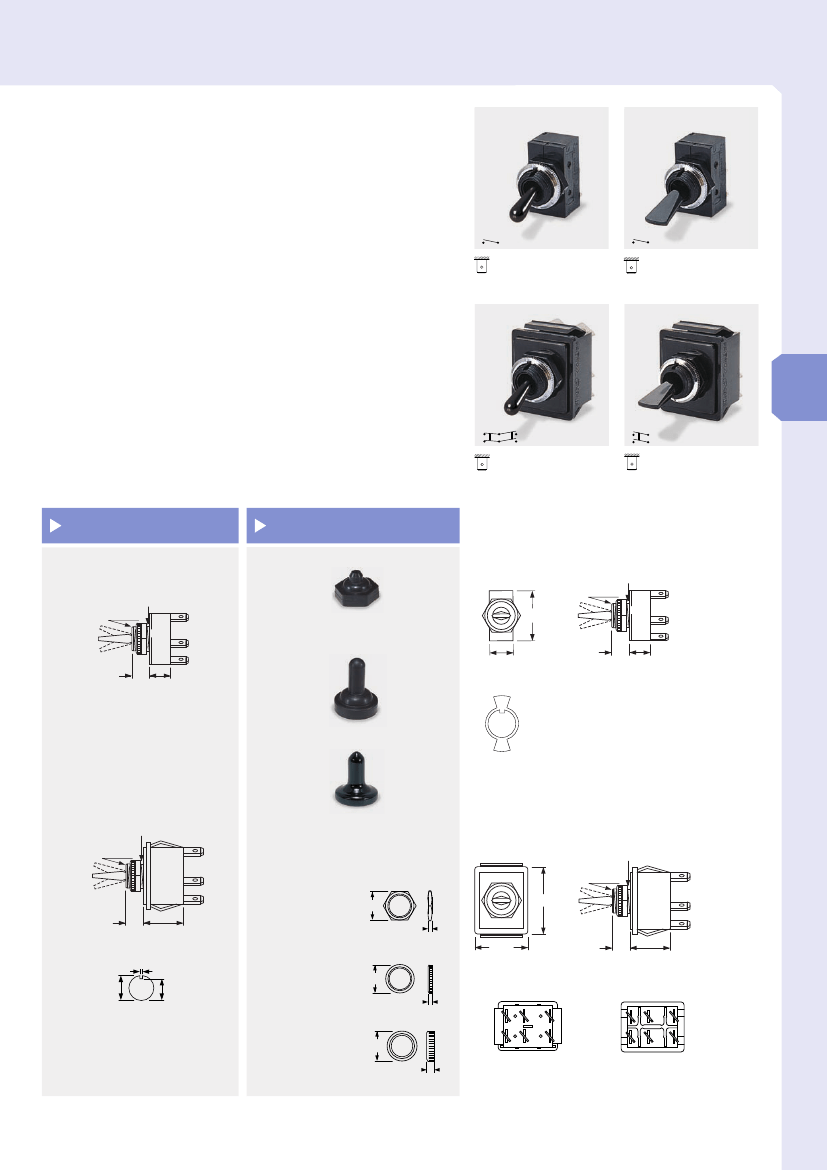

1700 & 1750 Toggle Switches

16A 250Vac Single and Double Pole

Nylon toggle switches

Ratings up to 20A,

250V ac

Single and double

pole

Wide choice of

terminals

Choice of circuit

options including 3

position

Flat & round actuator

options

Approvals and specifications

16(4)A 250Vac T85

UL 20A 250Vac Non Ind (Single pole)

UL 16A 250Vac Non Ind (Double pole)

UL CSA (2 pos types) 250Vac 1hp, 125Vac 1/2hp

UL CSA (3 pos types) 250Vac 1/2hp, 125Vac 1/4hp

CSA 16A 250Vac Non Ind

UL 85˚C, file E45221, CSA file LR10990

UL and CSA N/A on momentary types

Selective “A, B, C” and “OFF, A, A+B” circuits at 5 amp also available.

3mm contact gap except where marked µ.

Technical data on pages 4 & 5.

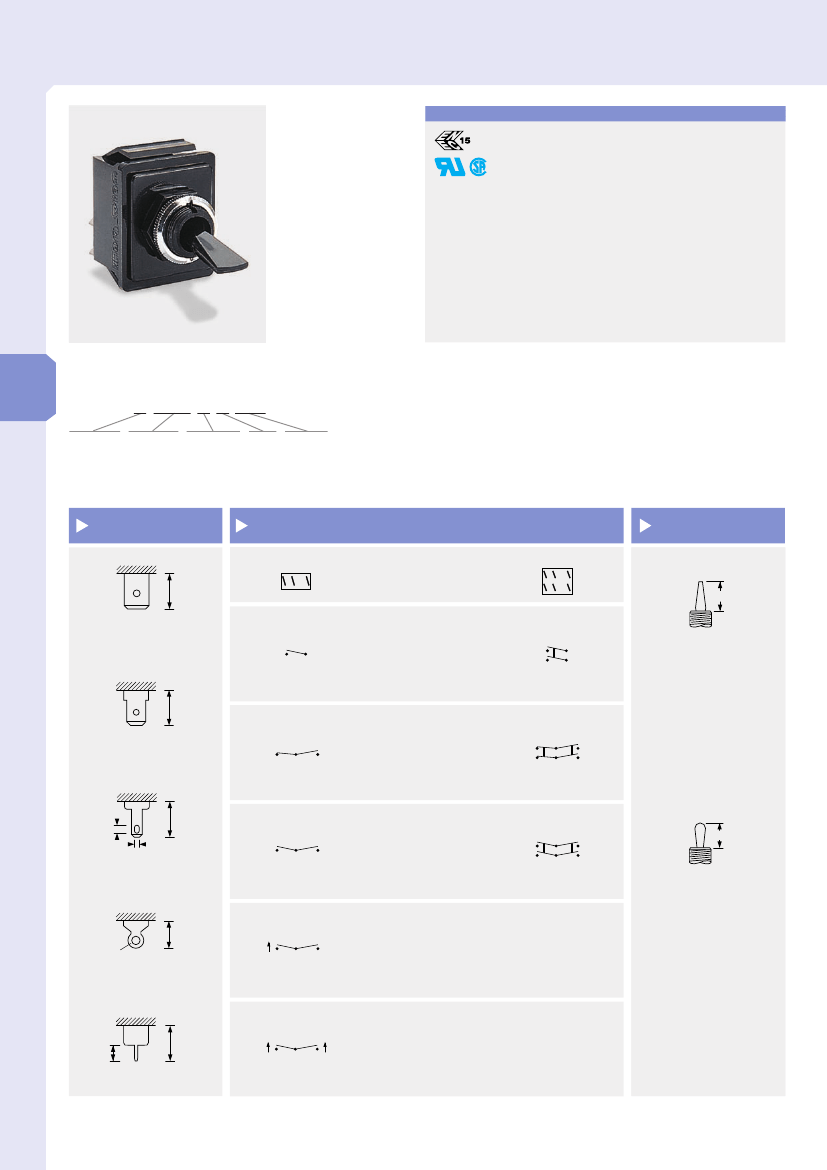

toggle

switches

C 1750 H O - - -

TERMINAL FUNCTION ACTUATOR BODY OPTIONS

TERMINAL

9.1

FUNCTION

Single pole

1 2

ACTUATOR

Double pole

16.4

6.3 x 0.8

1700

ON - OFF

1750

9.1

1710

4.8 x 0.8

ON - ON

1760

9.1

2.0

1.2

17.5

1720

ON - OFF - ON

1770

13.8

2.8 x 0.8

7.0

Ø2.1

1721

ON - OFF -ON

(momentary 1 side)

Solder

9.1

4.0

1722

ON - OFF - ON

(momentary 2 sides)

The switch is on between centre

terminals (2 & 5) and

the terminals over which the lever

is positioned.

PCB 0.8 Sq
