RIAN16LTEB1301CEFC

Description
Array/Network Resistor, Isolated, Thin Film, 0.8W, 1300ohm, 100V, 0.25% +/-Tol, -25,25ppm/Cel, 3915,
CategoryPassive components    The resistor
File Size124KB,2 Pages
ManufacturerKOA
Download Datasheet Parametric View All

RIAN16LTEB1301CEFC Overview

Array/Network Resistor, Isolated, Thin Film, 0.8W, 1300ohm, 100V, 0.25% +/-Tol, -25,25ppm/Cel, 3915,

RIAN16LTEB1301CEFC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid734983330
Reach Compliance Codenot_compliant
ECCN codeEAR99
structureRectangular
JESD-609 codee0
Network TypeIsolated
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package height1.6 mm
Package length9.91 mm
Package shapeRECTANGULAR PACKAGE
Package formSMT
Package width3.81 mm
method of packingTR, 13 Inch
Rated power dissipation(P)0.8 W
resistance1300 Ω
Resistor typeARRAY/NETWORK RESISTOR
seriesR(X)A
size code3915
technologyTHIN FILM
Temperature Coefficient-25,25 ppm/°C
Terminal surfaceTin/Lead (Sn/Pb)
Tolerance0.25%
Operating Voltage100 V

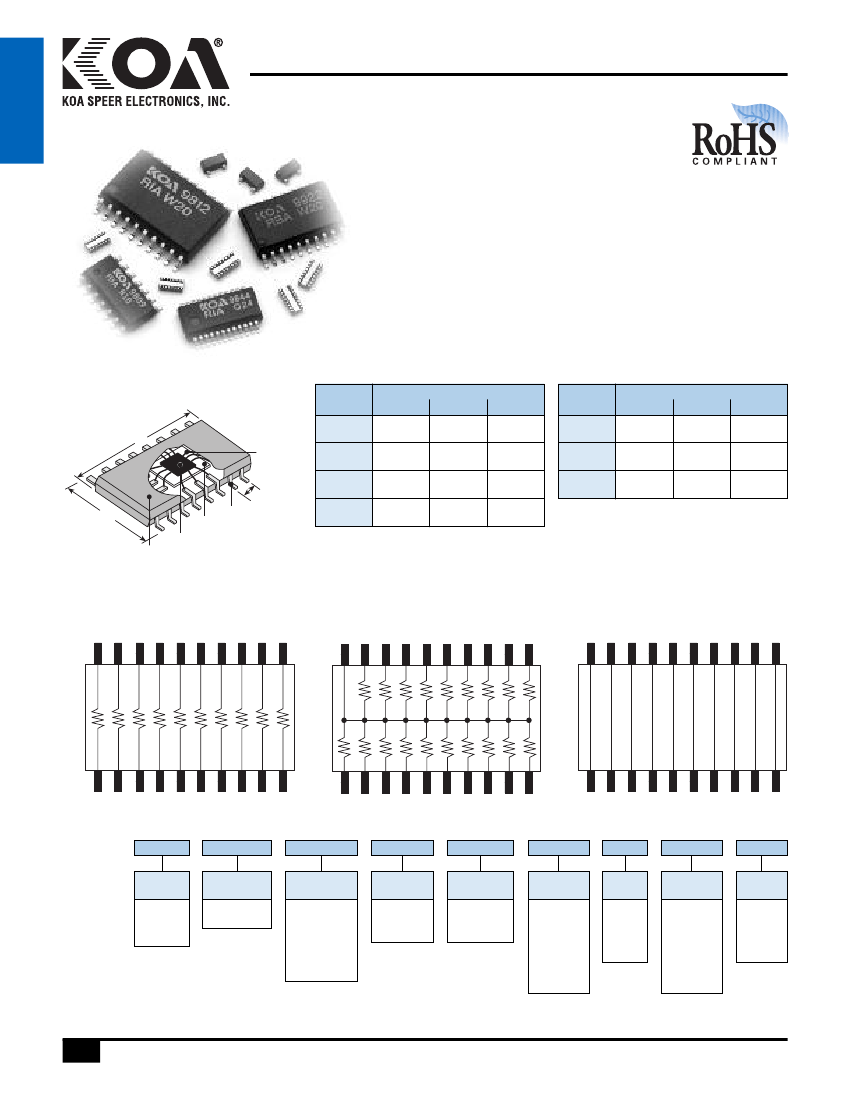

RIAN16LTEB1301CEFC Preview

isolated resistor networks
R(X)A
EU
resistors
features
Thin film on silicon
Electrical and mechanical stability
High integration
Products with lead-free terminations meet EU RoHS
and China RoHS requirements
applications
Series termination
Pull-up/pull-down
Current limiting
Size
Code
Q16
Bonding
Wire
p
W
Die
Pad
Si
Wafer
Molded
Resin
Lead
Q20
Q24
Q28
Dimensions
inches
(mm)
L
W
p
.193
.236
.025
(4.90)
(5.99)
(0.635)
.341
.236
.025
(8.66)
(5.99)
(0.635)
.341
(8.66)
.39
(9.9)
.236
(5.99)
.236
(5.99)
.025
(0.635)
.025
(0.635)
Size
Code
N08
N14
N16
Dimensions
inches
(mm)
L
W
p
.190
(4.83)
.341
(8.66)
.390
(9.91)
.236
(5.99)
.236
(5.99)
.236
(5.99)
.050
(1.27)
.050
(1.27)
.050
(1.27)
dimensions and
construction
L
circuit schematic
RIA
n
RBA
n
RZA
n
1
1
1
ordering information
New Part #
RIA
Type
RIA
RBA
RZA*
* Example of New Part #
for RZA: RZAQ20TTEB
Q20
Package
Symbol
Reference
above table
T
Termination
Material
T: Sn
(Other
termination
styles available,
contact factory
for options)
TEB
Packaging
TEB: 13"
embossed
plastic
1002
Nominal
Resistance
B,C,D,F:
4 digits
G,J: 3 digits
B
Absolute
Tolerance
B: ±0.1%
C: ±0.25%
D: ±0.5%
F: ±1%
G: ±2%
J: ±5%
n= number of pins (16, 20 or 24)
H
T.C.R.
T: ±10
E: ±25
C: ±50
H: ±100
B
Relative
Res. Toler.
A: ±0.05%
B: ±0.1%
C: ±0.25%
D: ±0.5%
F: ±1%
G: ±2%
T
T.C.R.
Tracking
Y: ±05
T: ±10
E: ±25
C: ±50
For further information on packaging, please refer to Appendix A.
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
11/19/09
86
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
isolated resistor networks
applications and ratings
Part
Designation
T.C.R.
(ppm/°C)
Resistance
Range
Resistance
Tolerance
Relative
Resistance
Tolerance
Tracking
T.C.R.
(ppm/°C)
Storage
Temperature
Range
Operating
Temperature
Range**
RIA, RBA
±10,±25,±50,±100*
10Ω - 1MΩ
±20% ~ ±0.1%
B:±0.1%,C:±0.25%,
D:±0.5%,F:±1%, ±5,±10,±25,±50
G:±2%
-65°C to +150°C -55°C to +125°C
*For special tolerance and T.C.R. requests, please contact KOA Engineering
** For custom Operating Temperature Range -55°C to +155°C, please contact factory.
electrical characteristics
Package
Package Symbol
Power Rating
Resistance
10Ω ~ 1kΩ
Range
1.1kΩ
Max. Working Voltage
Rated Voltage
Rated Ambient Temp.
QSOP
Q16
0.8W
Q20
1.0W
Q24
N16
Q28
N08
1.0W
1.0W
0.4W
0.8W
Power rating 200mW/resistor element *2
Power rating 50mW/resistor element *2
100V
Rated power x nominal resistance value, rated voltage should not exceed max. working voltage
+70°C
SOIC
N14
0.6W
*2 Above rating is based on the thermal resistance using multi-layer circuit board (EIA/JESD51). For mounting on a mono-layer board,
power derating shall be needed. Total power consumption of all elements should not exceed the package power rating.
resistance ranges
Product
Code
Number
of Pins
T.C.R.
T: ±10
E: ±25
C: ±50
H: ±100
T: ±10
E: ±25
C: ±50
H: ±100
E: ±25
C: ±50
H: ±100
Resistance Range (Ω) (E24) and Resistance Tolerance
B: ±0.1%
C: ±0.25%
D: ±0.05%
F: ±1%
G: ±2%, J: ±5%
510 ~ 100k
510 ~ 510K
51 ~ 1M
30 ~ 1M
10 ~ 1M
51 ~ 1M
510 ~ 100k
510 ~ 100k
100 ~ 200K
51 ~ 200k
10 ~ 200k
30 ~ 200k
51 ~ 200k
100 ~ 100k
—–
51 ~ 200K
—–
30 ~ 200K
10 ~ 200K
8, 14, 16
RIA
20, 24
RBA
8, 14, 16,
20, 24
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
11/19/09
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
87
resistors
R(X)A
