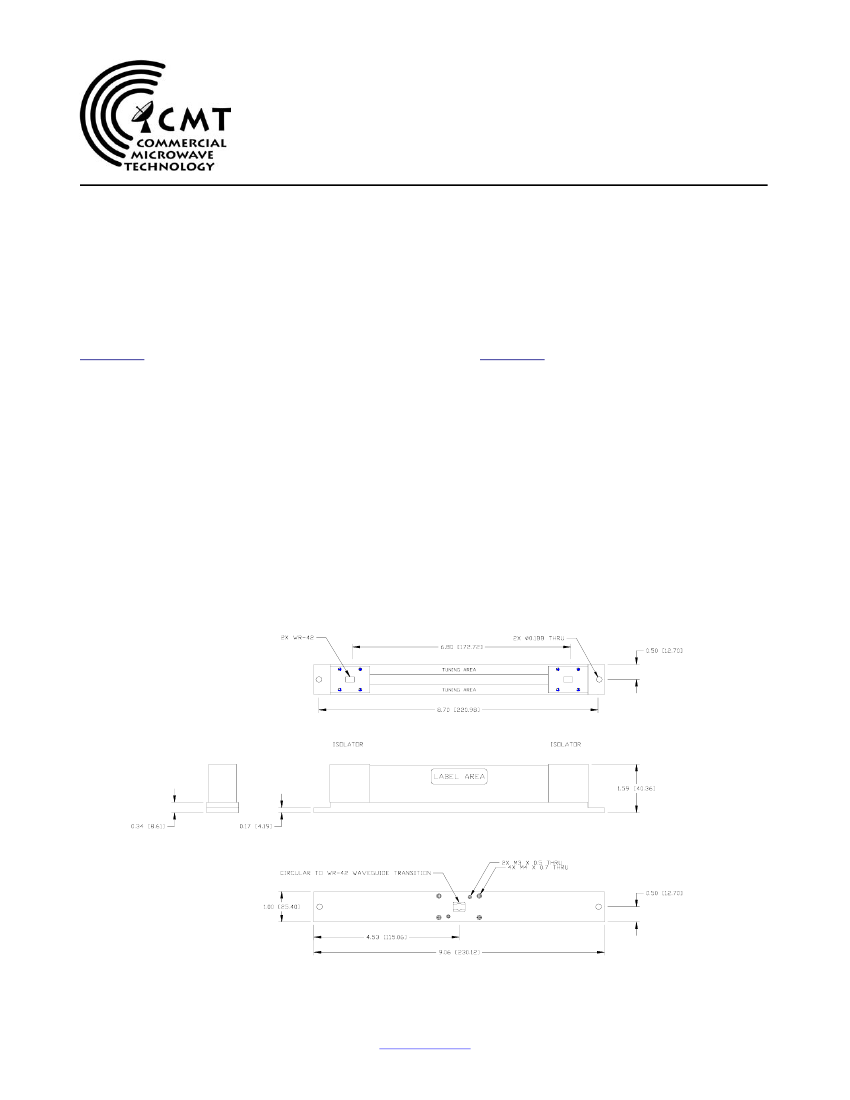

CMWD124
Point to Point Radio Duplexer
The CMWD124 is configurable so that either channel can be designated the Transmit or Receive. Please
contact CMT with your specific requirement.
Channel 1
Passband:
21980 - 22420 MHz
Insertion Loss:
2.0 dB max.
Loss Flatness:
1.0 dB max.
Return Loss:
18.0 dB min.
Rejection:
30 MHz – Fo – 1500 MHz
50 dB min
Fo+1500MHz – 30000 MHz
65 dB min.
30000 MHz – 66000 MHz
45 dB min.
Isolation Ch. to Ch.:
50 dB min.
Waveguide:
Ant – Circular, RX – WR, TX - WR
Operation Temp:
0° to +60°C
Storage Temp:
-40° to +85°C
Channel 2
Passband:
22580 – 23020 MHz
Insertion Loss:
2.0 dB max.
Loss Flatness:
1.0 dB max.
Return Loss:
18.0 dB min.
Rejection:
30 MHz – Fo – 1500 MHz
50 dB min.
Fo+1500MHz – 30000 MHz
65 dB min.
30000 MHz to 66000 MHz
45 dB min.
Isolation Ch. to Ch.:
50 dB min.
Commercial Microwave Technology, Inc.
11335 Sunrise Gold Circle, Rancho Cordova, CA 95742
Phone: 916-631-4363
•
Fax: 916-631-4364
www.cmtfilters.com
