BTB08-400B datasheet, PDF - EEWORLD Datasheet

BTB08-400B: DescriptionTRIACS; CategoryAnalog mixed-signal IC Trigger device; File Size191KB，4 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

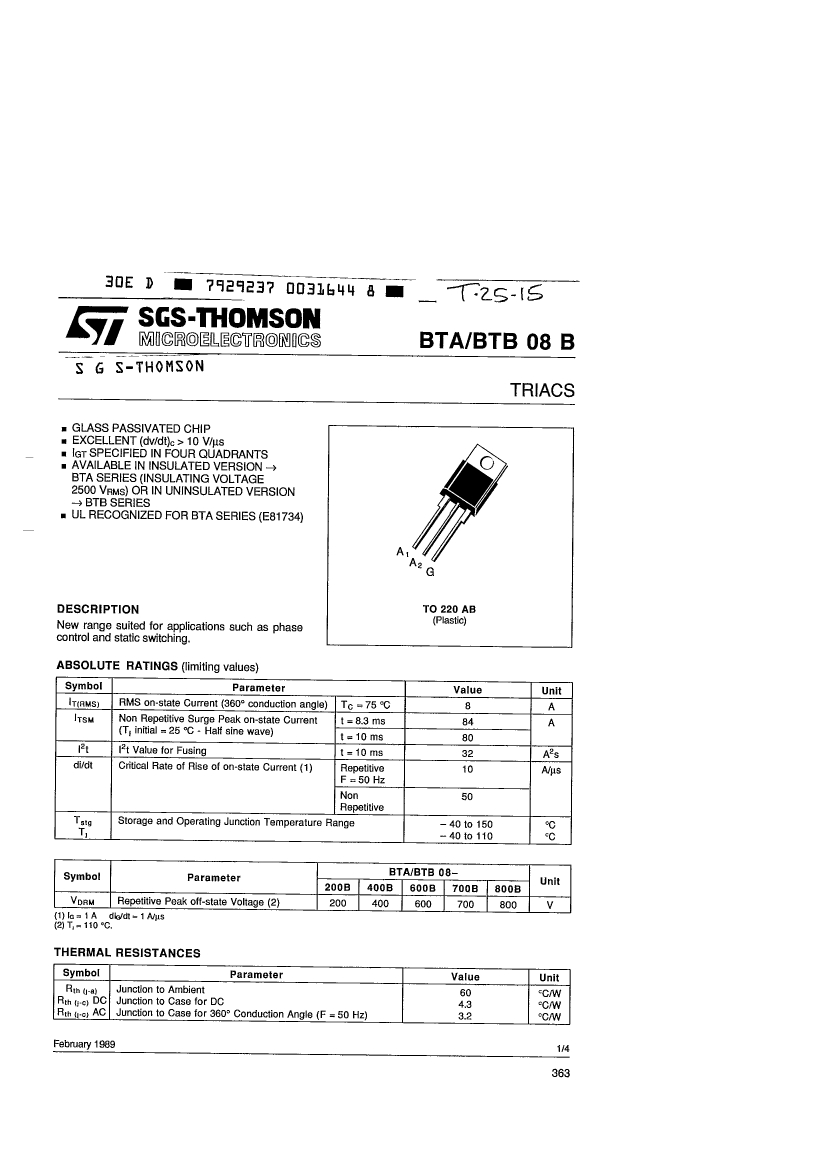

BTB08-400B Overview

TRIACS

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	STMicroelectronics
Parts packaging code	TO-220AB
package instruction	PLASTIC, TO-220AB, 3 PIN
Contacts	3
Reach Compliance Code	_compli
Configuration	SINGLE

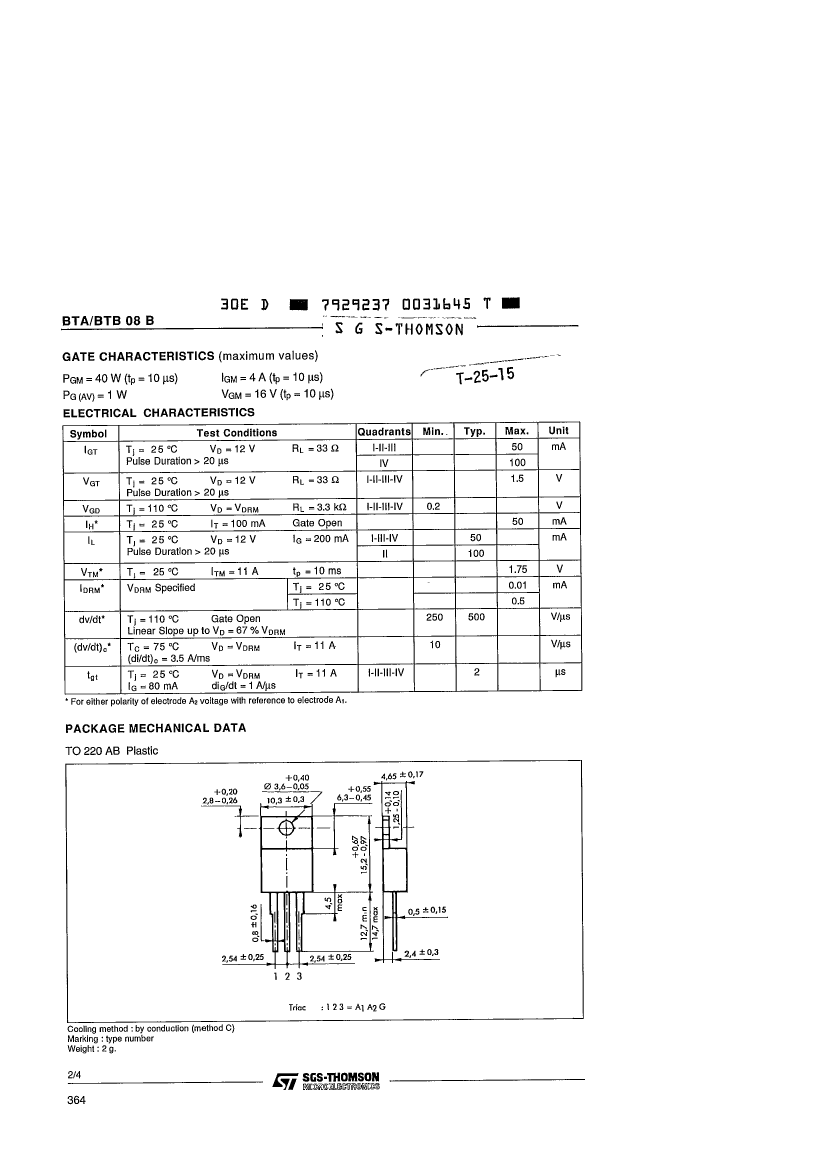

Critical rise rate of commutation voltage - minimum value	10 V/us
Critical rise rate of minimum off-state voltage	100 V/us
Maximum DC gate trigger current	50 mA
Maximum DC gate trigger voltage	2.5 V
Maximum holding current	50 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e3
Maximum leakage current	0.5 mA
Number of components	1
Number of terminals	3
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified

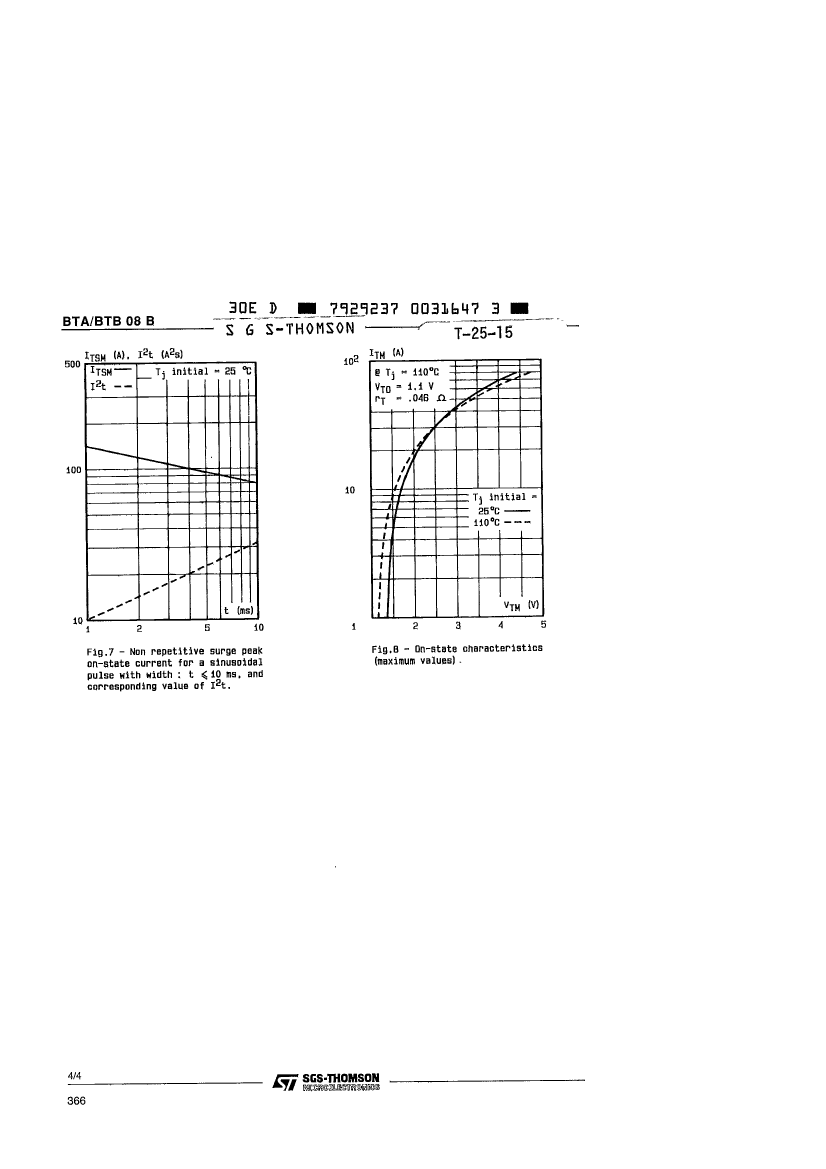

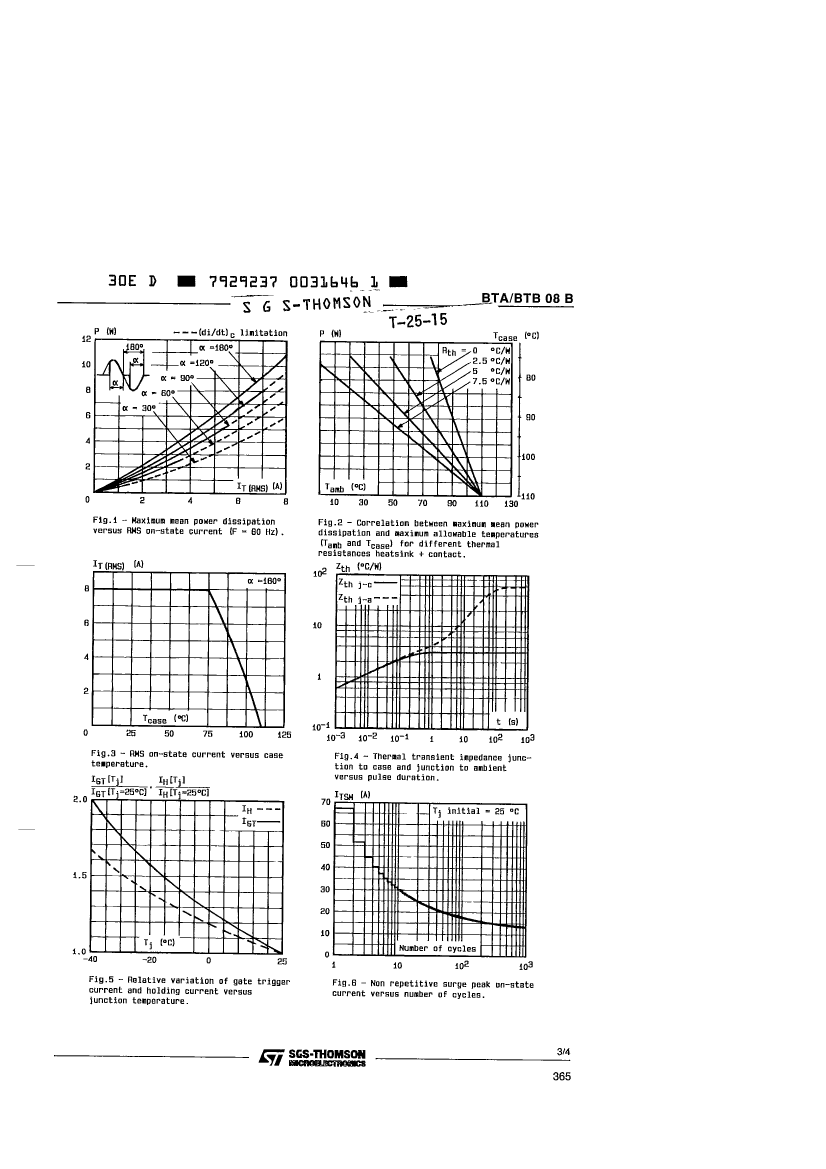

Maximum rms on-state current	8 A
Off-state repetitive peak voltage	400 V
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC

	BTB08-400B	BTA08-200B	BTA08-400B	BTA08-700B	BTA08B	BTB08-200B	BTB08-700B	BTB08B
Description	TRIACS	TRIACS	TRIACS	TRIACS	TRIACS	TRIACS	TRIACS	TRIACS
Is it Rohs certified?	conform to	incompatible	conform to	conform to	-	incompatible	conform to	-
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	-	STMicroelectronics	STMicroelectronics	-
Reach Compliance Code	_compli	_compli	_compli	_compli	-	_compli	_compli	-
Critical rise rate of commutation voltage - minimum value	10 V/us	10 V/us	10 V/us	10 V/us	-	10 V/us	10 V/us	-
Critical rise rate of minimum off-state voltage	100 V/us	100 V/us	100 V/us	100 V/us	-	100 V/us	100 V/us	-
Maximum DC gate trigger current	50 mA	50 mA	50 mA	50 mA	-	50 mA	50 mA	-
Maximum DC gate trigger voltage	2.5 V	2.5 V	2.5 V	2.5 V	-	2.5 V	2.5 V	-
Maximum holding current	50 mA	50 mA	50 mA	50 mA	-	50 mA	50 mA	-
JESD-609 code	e3	e0	e3	e3	-	e0	e3	-
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA	0.5 mA	-	0.5 mA	0.5 mA	-
Maximum operating temperature	110 °C	110 °C	110 °C	110 °C	-	110 °C	125 °C	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C	-
Maximum rms on-state current	8 A	6 A	8 A	8 A	-	8 A	8 A	-
Off-state repetitive peak voltage	400 V	200 V	400 V	700 V	-	200 V	700 V	-
surface mount	NO	NO	NO	NO	-	NO	NO	-
Terminal surface	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Matte Tin (Sn)	-	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	-
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC	TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	-	TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	-
