EEFSD0E221ER datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> EEFSD0E221ER

EEFSD0E221ER: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 6.3 V, 180 uF, SURFACE MOUNT; CategoryPassive components capacitor; File Size187KB，5 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

EEFSD0E221ER Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 6.3 V, 180 uF, SURFACE MOUNT

EEFSD0E221ER Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	220 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (SOLID POLYMER)
ESR	7 mΩ
high	2.8 mm
JESD-609 code	e3
leakage current	0.055 mA
length	7.3 mm
Manufacturer's serial number	SD
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	2.5 V
ripple current	3500 mA
series	EEFSD-ER
size code	2917
surface mount	YES
Delta tangent	0.1
Terminal surface	Tin (Sn)
Terminal shape	WRAPAROUND
width	4.3 mm

Preview

Download Datasheet

View All

SP-Cap/ Polymer Aluminum Capacitors

Surface Mount Type

Series:

Features

Super Low-ESR( 5 to 9mΩ)

Country of Origin

Lower ESR and Higher Capacitance

at the same case size as conventional products.

Japan

Excellent Noise-absorbent Characteristics

Singapore

High Ripple Current

RoHS directive compliant

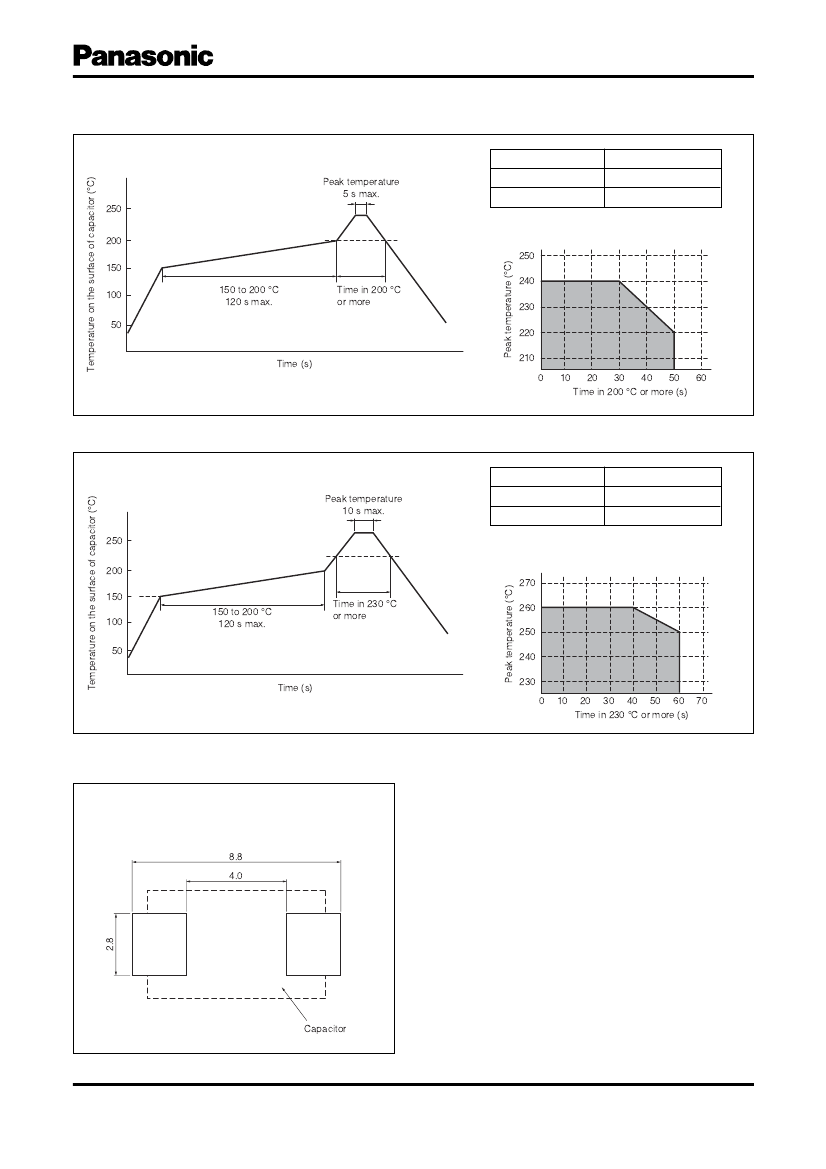

Reflow 260 C and 240 C. Please see specific P/N details.

Specification

Series & Size Code

Category Temp.Range

Rated W.V.Range

Nominal Cap.Range

Capacitance Tolerance

DC Leakage Current

-40 to +105°C

2 to 6.3V.DC

56 to 220µF

68 to

470µF

120 to 390µF

±20 %

Reflow 240°C: I

0.06 CV 2minutes(2 to 4V.DC)

0.04CV 2minutes(6.3V.DC)

Reflow 260°C: I

0.1CV 2minutes

180 to 560µF

tan

Surge Voltage

Endurance

0.06(120Hz/ +20°C)

0.10(120Hz/ +20°C)

Rated Working Voltage

1.25 (15 to 35°C)

After applying rated working voltage for 1000 hours at 105±2°C, and then being stabilized at +20°C,

capacitor shall meet the following limits.

Capacitance change

±10% of initial measured value

Initial specified value

DC leakage current

Initial specified value

After storing for 500 hours at 60°C,90%

2, 2.5V.DC

4 V.DC

Capacitance change

+70, -20%

+60, -20%

of initial measurd value

tan

Moisture resistance

6.3V.DC

+50, -20%

tan

DC leakage current

200% of initial specified value

Initial specified value

Marking

Cap.

Polarity bar(Positive)

Dimensions in mm(not to scale)

W.V. code

Series &

Size Code

L±0.2

7.3

W1±0.2 W2±0.1

4.3

2.4

4.3

2.4

4.3

2.4

4.3

2.4

1.8±0.1

1.9±0.2

2.8±0.2

4.2±0.1

Design, and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase

and / or use. Should a safety concern arise regarding this product,please be sure to contact us immediately.

Mar.2006



EE18



(mm)

P±0.3

1.3
