BL109-23S-TU: DescriptionCard Edge Connector, 23 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Solder Kinked Leads Terminal, Beige Insulator; CategoryThe connector The connector; File Size434KB，1 Pages; ManufacturerWise Power Tech Co., Ltd.

Download Datasheet Parametric View All

BL109-23S-TU Overview

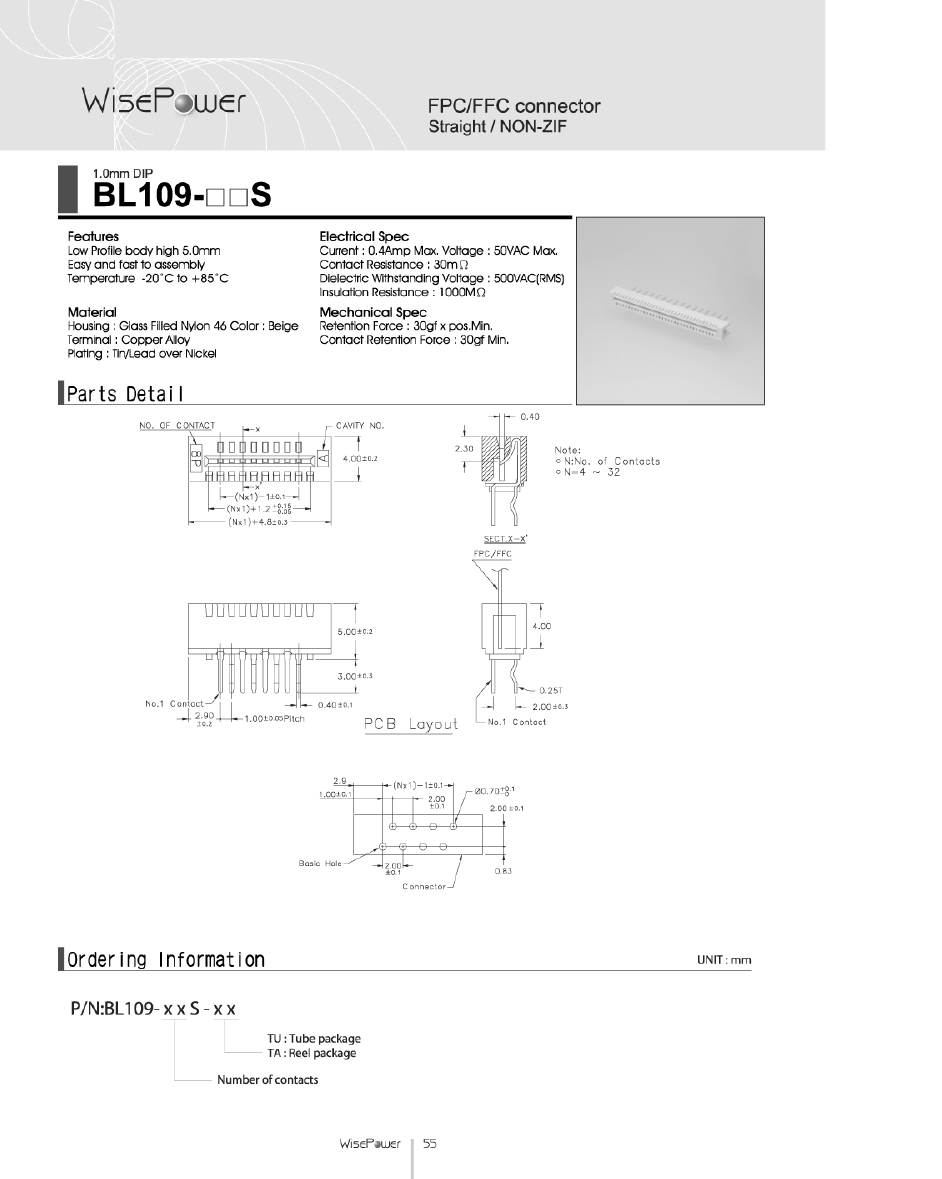

Card Edge Connector, 23 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Solder Kinked Leads Terminal, Beige Insulator

Parameter Name	Attribute value
Objectid	303956303
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TUBE PACKAGE
body width	0.157 inch
subject depth	0.197 inch
body length	1.094 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-PB ON NI
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BEIGE
insulator material	GLASS FILLED NYLON
Plug contact pitch	0.039 inch
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.0066 mm
Rated current (signal)	0.4 A
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	23
