World's smallest & lightest
0.5mm pitch, 0.9mm above the board, Flexible Printed Circuit & Flexible Flat Cable Connectors
FH19 & FH19S Series
FH19 Series – FPC, FFC thickness: 0.2±0.03mm
Actuator color: Dark brown
FH19S Series – FPC, FFC thickness: 0.3±0.03mm
Actuator color: Black
s
Features

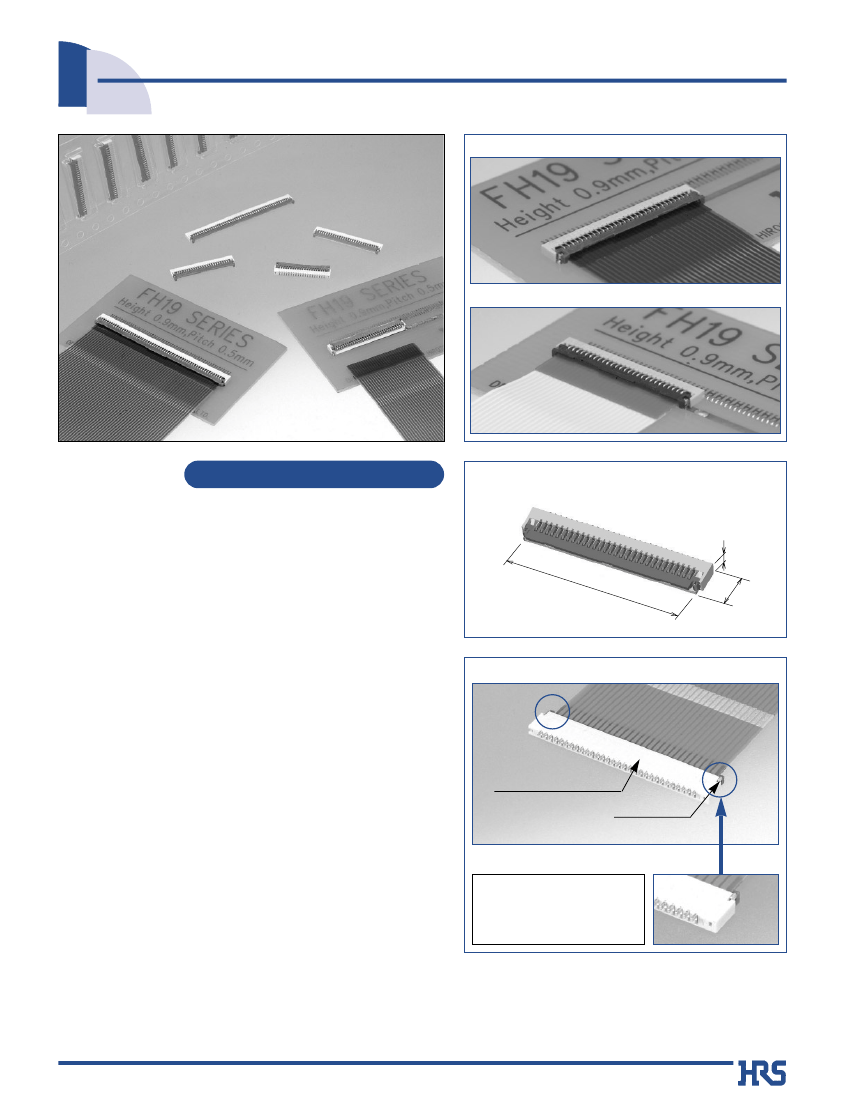

World's smallest & lightest
q
0.9mm Height incorporates the Flip-Lock System
(30pos. Type)
1. Low-profile 0.5mm pitch FPC, FFC Connectors
Miniaturization of portable equipment and personal mobile
devices has created increased demand for a low profile,
high density, and high reliability connectors.
*The
design of this connector has been made thinner and
smaller, with a height of 0.9mm and width of 3mm.
0.9mm
17m
m
m
[As of August 2002, this is the smallest connector of this
type available on the market !]
*PCB
footprint: Reduced approximately 48% (as compared with
Hirose Electric's 0.5mm pitch FH12 Series connectors)
*Connector
weight: Reduced approximately 78% (as compared
with Hirose Electric's 0.5mm pitch FH12 Series connectors)
q
Enclosed construction
FPC FFC
FPC FFC
FPC •••••FFC
FPC FFC
FPC FFC
2. Conductive traces on the PCB can be designed to
run under the connector
All bottom surface of the connector is solid, without any
exposure of the contact.
3. Proven Flip-Lock Actuator System assures
easy and reliable operation
Rotating actuator permits easy insertion and reliable
connection with the FPC & FFC.
Tactile sensation confirms complete mechanical locking of
the actuator and the electrical connection.
Enclosed construction
(No exposed contacts.)
Metal fittings
(Leadless)
4. Accepts 0.2mm & 0.3mm thick FPC, FFC
Accepts 0.2mm & 0.3mm thick FPC, FFC, easy inserted in
the connector.
The connector will also terminate successfully with 0.2mm
thick Flat Flexible Cable (FFC).
q
Metal Fittings (Leadless Type)
Absence of protrusions from
the connector helps in design
of miniaturized devices.
5. Designed for placement with automatic equipment
Packaged in embossed tape, on reel.
One reel contains 5,000 pieces.
s
Applications
Notebook PC’s, PDA’s, digital cameras and other
compact devices requiring interconnections of the
main circuit board with the LCD, plasma display
(PDP), HDD or other devices.
3m
25
sProduct
Specifications
Current rating 0.5 A DC
Rating
Voltage rating 50 V AC
Recommended
FPC, FFC
FH19 Series
FH19S Series
Operating temperature range
-55ç to +80ç (Note 1)
Operating humidity range
Relative humidity 90% max. (No condensation)
Storage temperature range
-10ç to +50ç (Note 2)
Storage humidity range
Relative humidity 90% max.
Thickness: = 0.2
±
0.03mm Gold or tin-lead plated (Note 3)
Thickness: = 0.3
±
0.03mm Gold or tin-lead plated (Note 3)
Item
1. Insulation resistance
2. Withstanding voltage
3. Contact resistance
4. Durability
(insertion/ withdrawal)
5. Vibration
Specification
500 M ohms min.
No flashover or insulation breakdown
100 m ohms max.
*Including
FPC/FFC conductor resistance
Contact resistance: 100 m ohms max.
No damage, cracks, or parts dislocation.
No electrical discontinuity of 1
µ
s or more.
Contact resistance: 100 m ohms max.
No damage, cracks, or parts dislocation.
No electrical discontinuity of 1
µ
s. min.
Contact resistance: 100 m ohms max.
No damage, cracks, or parts dislocation.
Contact resistance: 100 m ohms max.
Insulation resistance: 100 M ohms min.
No damage, cracks, or parts dislocation.
Contact resistance: 100 m ohms max.
Insulation resistance: 100 M ohms min.
No damage, cracks, or parts dislocation.
100 V DC
150 V AC/1 minute
1 mA
20 cycles
Conditions
Frequency: 10 to 55 Hz, single amplitude of
0.75mm, 2 hours in each of the 3 directions
Acceleration of 981 m/s
2
, 6 ms duration, sine half-
wave waveform, 3 cycles in each of the 3 axis.
96 hours at temperature of 40ç and humidity of
90 to 95%
6. Shock
7. Humidity
(Steady state)
8. Temperature cycle
9. Resistance to
soldering heat
Temperature: -40ç
/
+15ç to +35ç
/
+85ç
/
+15ç to +35ç
Time: 30
/
2 to 3
/
30
/
2 to 3(Minutes)
5 cycles
Reflow: At the recommended temperature profile
No deformation of components affecting performance.
Manual soldering: 350ç±5ç for 5 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term “storage” refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non- conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: When FPC is gold plated, the connector contacts should be also gold plated: Select the (05) , (45) , (48) specification.
sMaterials
Part
Insulator
Contacts
Metal fittings
Material
LCP
PPS/LCP
Phosphor bronze
Phosphor bronze
Finish
Color: Beige
Color: Dark brown (FH19 Series)
Color: Black (FH19S Series)
Gold or Tin-lead plated (Note 3)
Pure tin reflow plated
Remarks
UL94V-0
-------
-------
sOrdering
information
FH19
1
1
Series name :
2
Blank :
S
:
FH19
S - 30S - 0.5 SH (48)
2
3
4
4
Contact pitch :
5
Terminal type
SH: SMT horizontal mounting type
5
6
0.5mm
FPC,FFC thickness : 0.2mm
FPC,FFC thickness : 0.3mm
4 to 50
3
No. of contacts :
6
Material and plating specifications :
Actuator material
Reel material
FH19
FH19S
FH19S
Contact: Gold plated
Contact: Tin-lead plated
Contact: Gold plated
Contact: Gold plated
PPS
Paper
(05)
(51)
(05)
(51)
(05)
(51)
PPS
Plastic
------
------
(45)
(46)
------
------
LCP
Plastic
(48)
(49)
------
------
(48)
(49)
4 to 10 pos. Contact: Tin-lead plated
11 to 50 pos. Contact: Tin-lead plated
26
BConnector
Operating Instructions, Precautions and Recommendations

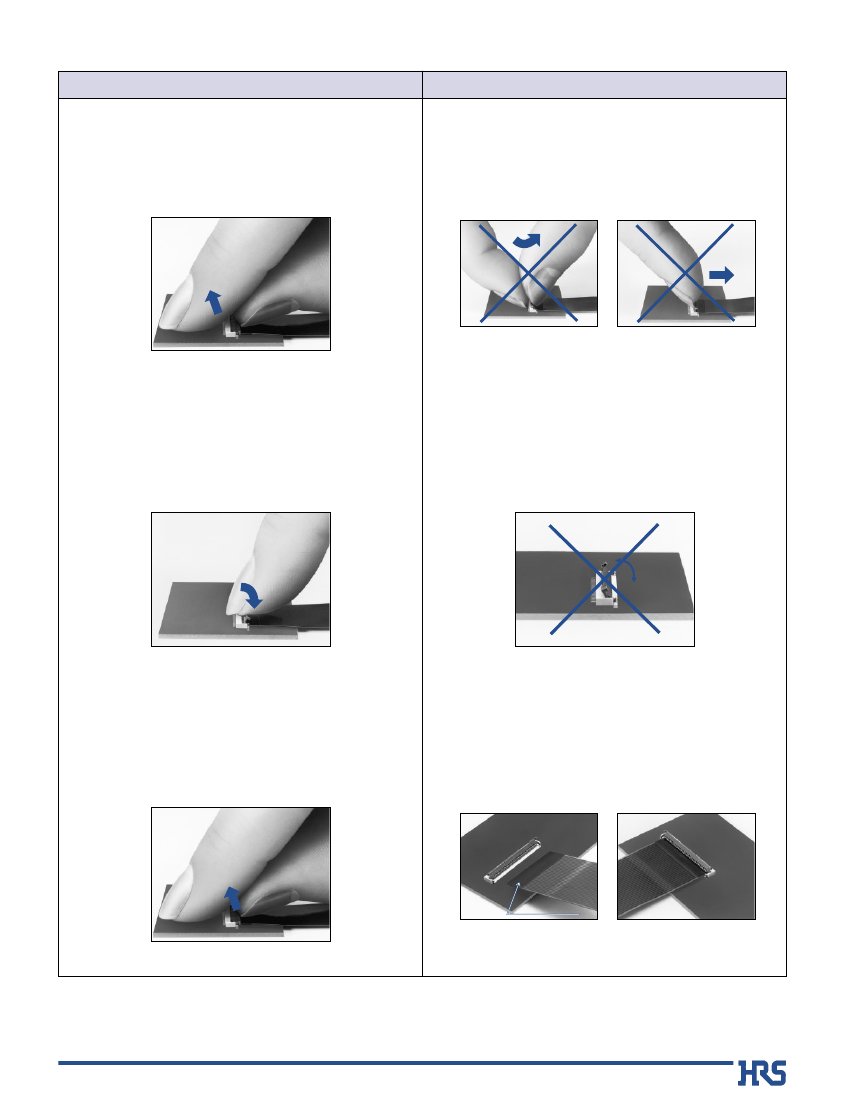

Operation
Precautions
1) Do not apply excessive force or use any type of
tool to operate the actuator.
1. FPC/FFC Termination procedure.
Connector installed on the board.
1) Lift up the actuator. Use thumb or index finger.
2) Rotate down the actuator until firmly closed.
It is critical that the inserted FPC/FFC is not moved
and remains fully inserted. Should the FPC/FFC be
moved, open the actuator and repeat the process,
starting with Step 1 above.
2)
The connector will assure reliable performance
when the actuator is open to 130° maximum (see
fig.1) Do not exceed this angle, as this may cause
permanent damage to the connector.
2. FPC/FFC Removal
1) Lift up the actuator.
2) Carefully remove the FPC/FFC.
3) Assure that the FPC/FFC is fully inserted parallel
to mounting surface, with the exposed conductive
traces facing down.
FPC conductor surface
(Bottom side)
27
sConnector
Dimension
[FH19 Series]
A
B
G
0.5
∞Number of contacts
0.15 G
(0.15)
3
0.5
Polarizing mark indicator
Number of contacts indicator
(2.1)
0
1.3
(0.15)
(C: FPC insertion area dimension)
D
2
1
0.15MAX
2.15
E
0.9 (Including contact terminal leads)
(1)
(0.5)
2.5
0
0.15MAX
1
2
Notes 1 The coplanarity of each terminal lead and metal fitting is within 0.1
2 The contact terminal lead position indicates the dimension from the E surface, the bottom surface of the insulator body.
3 The connector is supplied in embossed tape packaging. For details see the Packaging Specifications.
4 Any discoloration of the plastic compound will NOT AFFECT form, fit or function of the connector.
Unit: mm
Part Number
FH19-4S-0.5SH(49)
FH19-6S-0.5SH(49)
FH19-7S-0.5SH(49)
FH19-8S-0.5SH(51)
FH19-9S-0.5SH(49)
FH19-10S-0.5SH(49)
FH19-12S-0.5SH(49)
FH19-13S-0.5SH(49)
FH19-15S-0.5SH(49)
FH19-17S-0.5SH(51)
FH19-20S-0.5SH(49)
FH19-21S-0.5SH(51)
FH19-24S-0.5SH(49)
FH19-27S-0.5SH(49)
FH19-30S-0.5SH(49)
FH19-40S-0.5SH(49)
FH19-50S-0.5SH(51)
CL No.
586-1009-8-49
586-1013-5-49
586-1017-6-49
586-1012-2-51
586-1006-0-49
586-1016-3-49
586-1018-9-49
586-1001-6-49
586-1004-4-49
586-1007-2-51
586-1002-9-49
586-1015-0-51
586-1011-0-49
586-1000-3-49
586-1003-1-49
586-1008-5-49
586-1005-7-51
Number of Contacts
4
6
7
8
9
10
12
13
15
17
20
21
24
27
30
40
50
A
04.0
05.0
05.5
06.0
06.5
07.0
08.0
08.5
09.5
10.5
12.0
12.5
14.0
15.5
17.0
22.0
27.0
B
01.5
02.5
03.0
03.5
04.0
04.5
05.5
06.0
07.0
08.0
09.5
10.0
11.5
13.0
14.5
19.5
24.5
C
02.57
03.57
04.07
04.57
05.07
05.57
06.57
07.07
08.07
09.07
10.57
11.07
12.57
14.07
15.57
20.57
25.57
D
03.35
04.35
04.85
05.35
05.85
06.35
07.35
07.85
08.85
09.85
11.35
11.85
13.35
14.85
16.35
21.35
26.35
Note1: Embossed tape reel packaging (5,000 pieces/reel) .
Order by number of reels.
Note2: Select the (05) or (48) plating code for gold plating.
