F1A thru F7A
Surface Mount Glass Passivated Standard Rectifier
Reverse Voltage 50~1000V Forward Current 1A
Features
•
•
•
•
•
•
•
•
Glass passivated Standard Rectifiers
Very low profile - typical height of 1.0 mm
Low forward voltage drop
g
p
Low leakage current
Moisture sensitivity: level 1, per J-STD-020
AEC-Q101 qualified
High temperature soldering guaranteed: 260℃/10
seconds
Halogen-free according to IEC 61249-2-21 definition
eSGA
(SOD‐123FL)
Typical Applications
For use of general purpose rectification in lighting, cellular phone, portable device,
power supplies and other consumer applications.
Maximum Ratings
Parameter
(TA = 25 °C unless otherwise noted)
Symbol
VRRM
VRMS
VDC
IF(AV)
IFSM
TJ, TSTG
F1A
50
35
50
F2A
100
70
100
F3A
200
140
200
F4A
400
280
400
1.0
40
- 55 to + 150
F5A
600
420
600
F6A
800
560
800
F7A
1000
700
1000
Unit
V
V
V
A
A
°C
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current at TL
(See Fig.1)
Peak forward surge current 8.3 ms single half sine-
wave superimposed on rated load
Operating junction and storage temperature range
Electrical Characteristics
Parameter
Test Conditions
Maximum instantaneous forward
1A
voltage
Maximum DC reverse current at
rated DC blocking voltage
Typical reverse recovery time
Typical junction capacitance
Typical thermal resistance
1)
TA=25℃
TA=125℃
I
F
=0.5A,I
R
=1.0A,
I
rr
=0.25A
4.0 V, 1 MHz
(TA = 25 °C unless otherwise noted)
Symbol
V
F
I
R
t
rr
C
J
R
θJA
R
θJC
R
θJM
F1A
F2A
F3A
F4A
1.0
5
50
1.8
6
63
22
2
℃/W
F5A
F6A
F7A
Unit
Volts
µA
uS
pF
juntion to ambient
juntion to case
juntion to mount
Note:1),The thermal resistance from junction to ambient,case or mount,mounted on P.C.B with 5×5mm copper pads,2 OZ,FR4 PCB
www.goodark.com
1/4
2013.12-Rev.A
F1A thru F7A
Surface Mount Glass Passivated Standard Rectifier
Reverse Voltage 50~1000V Forward Current 1A
Ratings and Characteristics Curves
(TA = 25℃ unless otherwise noted)

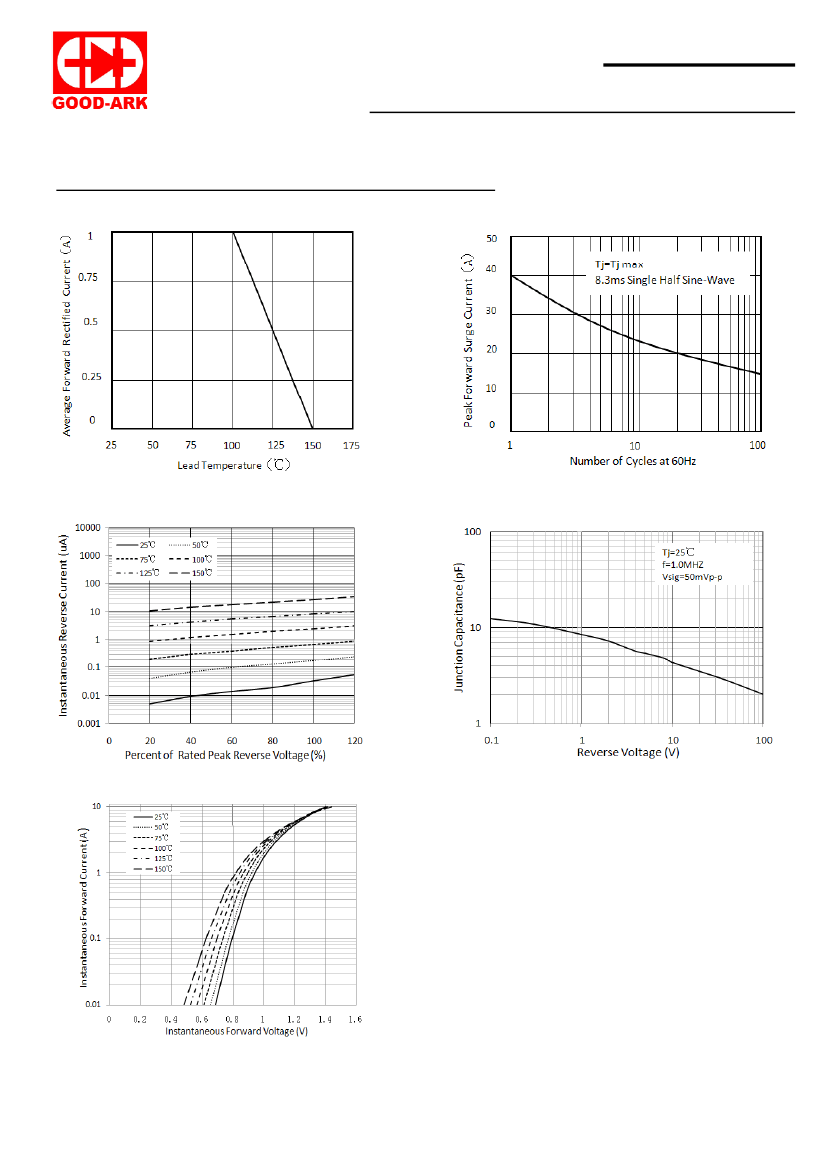

Figure 1.Forward Current Derating Curve
Figure 2.Maximum Non‐Repetitive
Peak Forward Surge Current
Figure 3. Typical Reverse Characteristics
Figure 4. Typical Junction Capacitance
Figure 5. Typical Instantaneous Forward Characteristics
www.goodark.com
2/4
2013.12-Rev.A

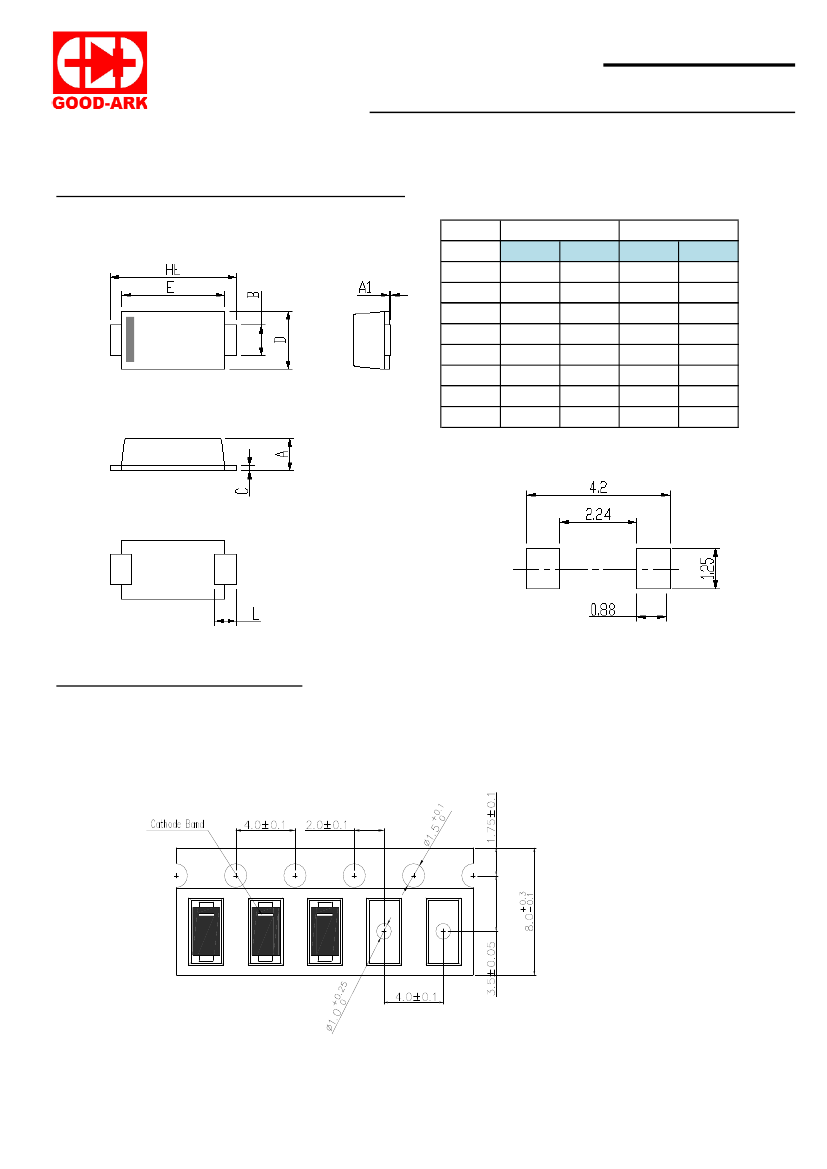

F1A thru F7A
Surface Mount Glass Passivated Standard Rectifier
Reverse Voltage 50~1000V Forward Current 1A
Disclaimers
These materials are intended as a reference to assist our customers in the selection of the Suzhou
Good-Ark product best suited to the customer’s application; they do not convey any license under
any intellectual property rights, or any other rights belonging to Suzhou Good Ark Electronics Co
rights
rights,
Good-Ark
Co.,
Ltd.or a third party.
Suzhou Good-Ark Electronics Co., Ltd. assumes no responsibility for any damage, or infringement
of any third-party’s rights, originating in the use of any product data, diagrams, charts, programs,
algorithms, or circuit application examples contained in these materials.
All information contained in these materials, including product data, diagrams, charts, programs
and algorithms represents information on products at the time of publication of these materials, and
are subject to change by Suzhou Good-Ark Electronics Co., Ltd. without notice due to product
improvements or other reasons. It is therefore recommended that customers contact Suzhou Good-
Ark Electronics Co., Ltd. or an authorized Suzhou Good-Ark Electronics Co., Ltd. for the latest
product information before purchasing a product listed herein. The information described here may
contain technical inacc racies or t pographical errors S ho Good Ark Electronics Co Ltd
inaccuracies
typographical errors. Suzhou Good-Ark
Co., Ltd.
assumes no responsibility for any damage, liability, or other loss rising from these inaccuracies or
errors. Please also pay attention to information published by Suzhou Good-Ark Electronics Co., Ltd.
by various means, including our website home page.
(http://www.goodark.com)
When using any or all of the information contained in these materials, including product data,
diagrams, charts, programs, and algorithms, Please be sure to evaluate all information as a total
system before making a final decision on the applicability of the information and products. Suzhou
Good-Ark Electronics Co., Ltd. assumes no responsibility for any damage, liability or other loss
resulting from the information contained herein.
The prior written approval of Suzhou Good-Ark Electronics Co., Ltd. is necessary to reprint or
reproduce in whole or in part these materials.
