FW216A-TL-2W

Description
N-Channel Power MOSFET
CategoryDiscrete semiconductor    The transistor
File Size261KB,5 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric Compare View All

FW216A-TL-2W Online Shopping

Suppliers Part Number Price MOQ In stock
FW216A-TL-2W - - View Buy Now

FW216A-TL-2W Overview

N-Channel Power MOSFET

FW216A-TL-2W Parametric

Parameter NameAttribute value
Brand NameON Semiconduc
Is it lead-free?Lead free
MakerON Semiconductor
package instructionSMALL OUTLINE, R-PDSO-G8
Contacts8
Manufacturer packaging code751CR
Reach Compliance Codecompli
ECCN codeEAR99
Factory Lead Time1 week
ConfigurationSEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage35 V
Maximum drain current (ID)4.5 A
Maximum drain-source on-resistance0.064 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeR-PDSO-G8
JESD-609 codee3
Humidity sensitivity level1
Number of components2
Number of terminals8
Operating modeENHANCEMENT MODE
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typeN-CHANNEL
Maximum pulsed drain current (IDM)18 A
surface mountYES
Terminal surfaceTin (Sn)
Terminal formGULL WING
Terminal locationDUAL
Transistor component materialsSILICON

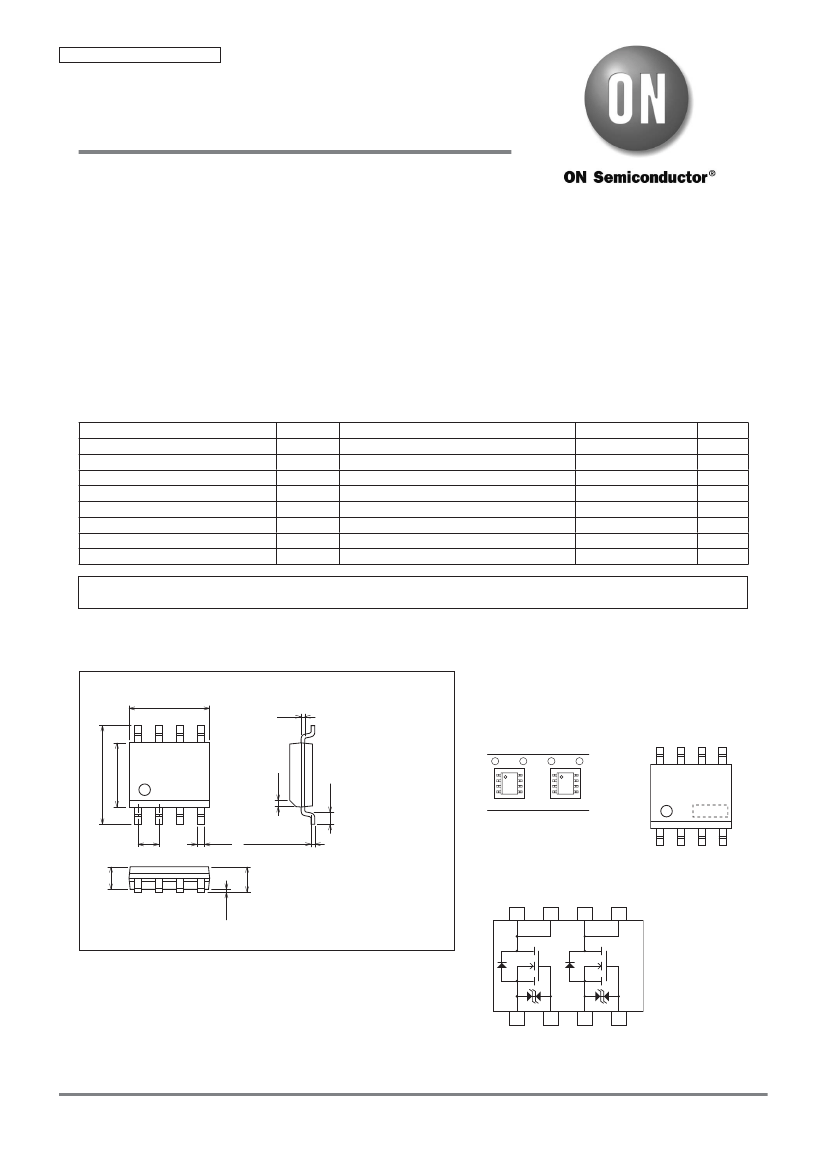

Ordering number : ENA0176C
FW216A
N-Channel Power MOSFET
35V, 4.5A, 64m
Ω
, Dual SOIC8
Features
http://onsemi.com
ON-resistance Nch : RDS(on)1=49m
Ω
(typ.)
4.0V drive
Halogen free compliance
Protection diode in
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Drain to Source Voltage
Gate to Source Voltage
Drain Current (DC)
Drain Current (PW≤10μs)
Allowable Power Dissipation
Total Dissipation
Channel Temperature
Storage Temperature
Symbol
VDSS
VGSS
ID
IDP
PD
PT
Tch
Tstg
Duty cycle≤1%
When mounted on ceramic substrate (2000mm
×0.8mm)
1unit, PW≤10s
When mounted on ceramic substrate (2000mm
×0.8mm),
PW≤10s
2
2
Conditions
Ratings
35
±20
4.5
18
1.6
2.2
150
-
-55 to +150
Unit
V
V
A
A
W
W
°C
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
Package Dimensions
unit : mm (typ)
7072-001
4.9
8
5
0.22
Product & Package Information
• Package
: SOIC8
• JEITA, JEDEC
: SC-87, SOT-96
• Minimum Packing Quantity : 2,500 pcs./reel
FW216A-TL-2W
Packing Type : TL
Marking
6.0
3.9
0.375
1
1.27
4
0.445
0.254
(GAGE PLANE)
1 : Source1
2 : Gate1
3 : Source2
4 : Gate2
5 : Drain2
6 : Drain2
7 : Drain1
8 : Drain1
SOIC8
0.715
FW216
TL
A
LOT No.
1.375
1.55
Electrical Connection
8
7
6
5
0.175
1
2
3
4
Semiconductor Components Industries, LLC, 2013
October, 2013
O1613 TKIM/61312 TKIM/31412 TKIM/20112PA TKIM TC-00002686 No. A0176-1/5
