K22X-E9P-NT30: DescriptionD Subminiature Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .125-.137, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size677KB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric Compare View All

K22X-E9P-NT30 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	K22X-E9P-NT30	-	-	View	Buy Now

K22X-E9P-NT30 Overview

D Subminiature Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .125-.137, Plug, ROHS COMPLIANT

K22X-E9P-NT30 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1598161393
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.494 inch
subject depth	0.488 inch
body length	1.213 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	K22X
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	HOLE .125-.137
Installation option 2	RIVET
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
Plating thickness	30u inch
reliability	COMMERCIAL
Housing size	1/E
Terminal length	0.125 inch
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

2D Drawing

Solder Profile

Certificate of Origin

IGES

CofC RoHS Compliant

Check Stock

STEP

CofC REACH Compliant

Request a Sample

3D PDF

UL Plastic File

Send Us An Email

Generated Part Number

K22X-E9P-N

Part Number Builder

LR78160

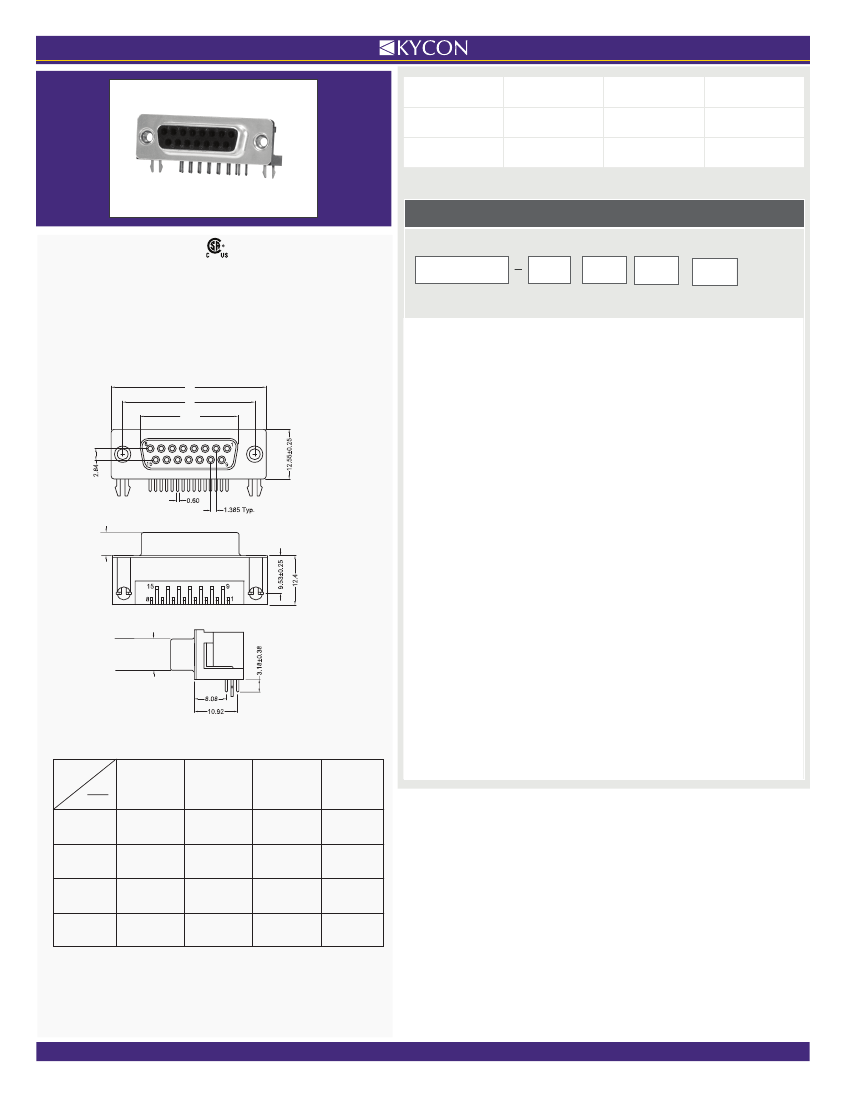

D-SUBMINIATURE CONNECTORS:

K22X

Series

K22X

Series Dimensions

Dimensions in mm

C

B

A, A1

K22X

Series

E9

Shell Size

Contact

P

Contact

Type

N

Mounting

Option

Plating

Option

Right Angle PCB Mount 0.318 “ Footprint

Series

K22X

-

D-Subminiature Connector, Right Angle

Shell Size-Contact Option

E

- 9 Contacts

A

- 15 Contacts

B

- 25 Contacts

C

- 37 Contacts

Contact Type

P

- Pin Contact (Plug)

S

- Socket Contact (Receptacle)

6.1 Plug,

5.8 Socket

Mounting Option

N

-

With Boardlocks and #4-40 UNC Threaded Inserts

NJ

-

With Boardlocks and # 4-40 Jackscrews Installed

NR -

With Boardlocks and #4-40 Round Jackscrews

NT -

With Boardlocks and Non-Threaded Inserts

NJM -

With Boardlocks and Metric Jackscrews Installed

Plating Option

Blank -

Gold Flash

15 -

15µ” Gold

30 -

30µ” Gold

8.36 Plug Interior,

7.90 Socket Exterior

Shell

Size

9

(E)

15

(A)

25

(B)

37

(C)

In

mm

A

±.010

±0.25

.643

16.33

.971

24.66

1.511

38.38

2.159

54.84

A1

±.010

±0.25

.666

16.92

.994

25.25

1.534

38.96

2.182

55.42

B

±.005

±0.13

.984

24.99

1.312

33.32

1.852

47.04

2.500

63.50

C

±.015

±0.38

1.213

30.81

1.541

39.14

2.088

53.04

2.729

69.32

Contact Kycon for Other Options

A = Exterior of Female Shell (S)

A1 = Interior of Male Shell (P)

Phone: +1.408.494.0330

l

Fax: +1.408.494.0325

l

WWW.KYCON.COM

l

2013
