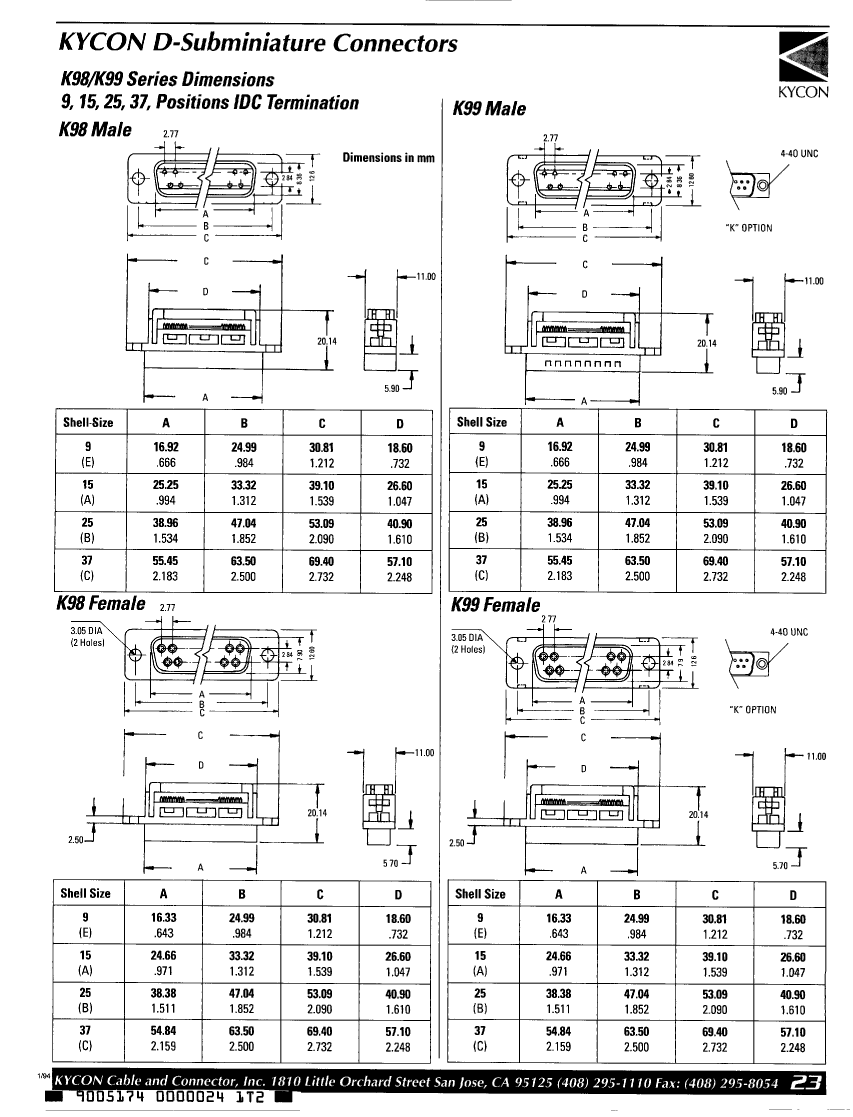

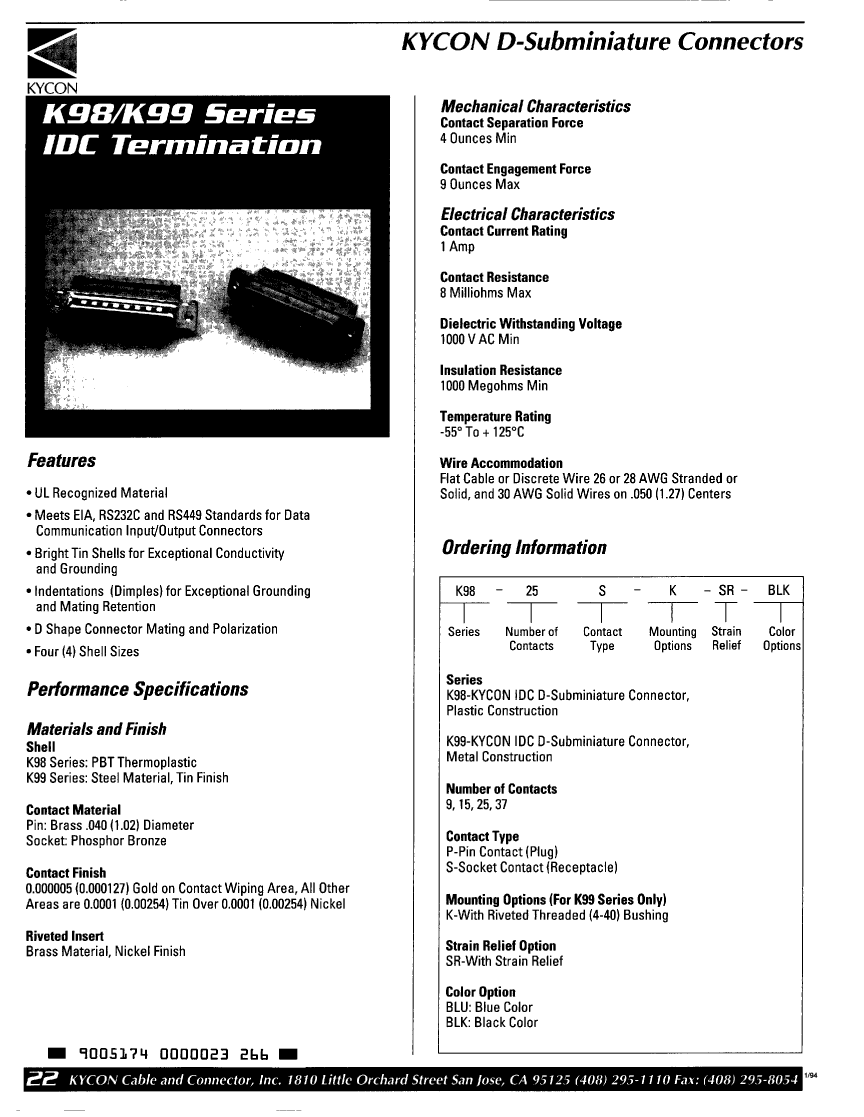

K98-15S-SR-BLK: DescriptionD Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, #4-40, Plug; CategoryThe connector The connector; File Size207KB，2 Pages; ManufacturerKycon

Download Datasheet Parametric Compare View All

K98-15S-SR-BLK Overview

D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, #4-40, Plug

K98-15S-SR-BLK Parametric

Parameter Name	Attribute value
Objectid	1177588455
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.496 inch
subject depth	0.323 inch
body length	1.539 inch
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	2.502 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	K98
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Plating thickness	5u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Total number of contacts	15
Maximum wire diameter	26 AWG
Minimum wire diameter	30 AWG
Evacuation force-minimum value	1.112 N

Preview

Download Datasheet

View All

K98-15S-SR-BLK Related Products

	K98-15S-SR-BLK	K98-15S-SR-BLU	K99-15S-K-SR-BLK	K99-15S-K-SR-BLU
Description	D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, #4-40, Plug	D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, #4-40, Plug	D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, #4-40, Plug,	D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, #4-40, Plug,
Objectid	1177588455	1177588456	1177588471	1177588472
Reach Compliance Code	unknown	unknown	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
body width	0.496 inch	0.496 inch	0.496 inch	0.496 inch
subject depth	0.323 inch	0.323 inch	0.323 inch	0.323 inch
body length	1.539 inch	1.539 inch	1.539 inch	1.539 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Contact to complete cooperation	AU	AU	AU	AU
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BRASS	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	8 mΩ	8 mΩ	8 mΩ	8 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V
maximum insertion force	2.502 N	2.502 N	2.502 N	2.502 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLUE	BLACK	BLUE
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Installation option 1	#4-40	#4-40	#4-40	#4-40
Number of rows loaded	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Plating thickness	5u inch	5u inch	5u inch	5u inch
Rated current (signal)	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL
Total number of contacts	15	15	15	15
Maximum wire diameter	26 AWG	26 AWG	26 AWG	26 AWG
Minimum wire diameter	30 AWG	30 AWG	30 AWG	30 AWG
Evacuation force-minimum value	1.112 N	1.112 N	1.112 N	1.112 N
