239.6 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 239.6

Preview

239.6: DescriptionElectric Fuse, TIME LAG BLOW ELECTRIC FUSE, 0.6A, 250VAC, 35A (IR), INLINE/HOLDER; CategoryCircuit protection Circuit protection; File Size173KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

239.6 Overview

Electric Fuse, TIME LAG BLOW ELECTRIC FUSE, 0.6A, 250VAC, 35A (IR), INLINE/HOLDER

239.6 Parametric

Parameter Name	Attribute value
Objectid	1664454919
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	TIME LAG
body height	20 mm
Body length or diameter	5.2 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	2 J
Installation features	INLINE/HOLDER
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BULK; TAPE AND REEL
physical size	5.2mm x 20mm
Rated breaking capacity	35 A
Rated current	0.6 A
Rated voltage (AC)	250 V
Guideline	CSA; KTL; PSE; UL
surface mount	NO
Terminal surface	Nickel (Ni)
Terminal shape	END CAP

Preview

Download Datasheet

View All

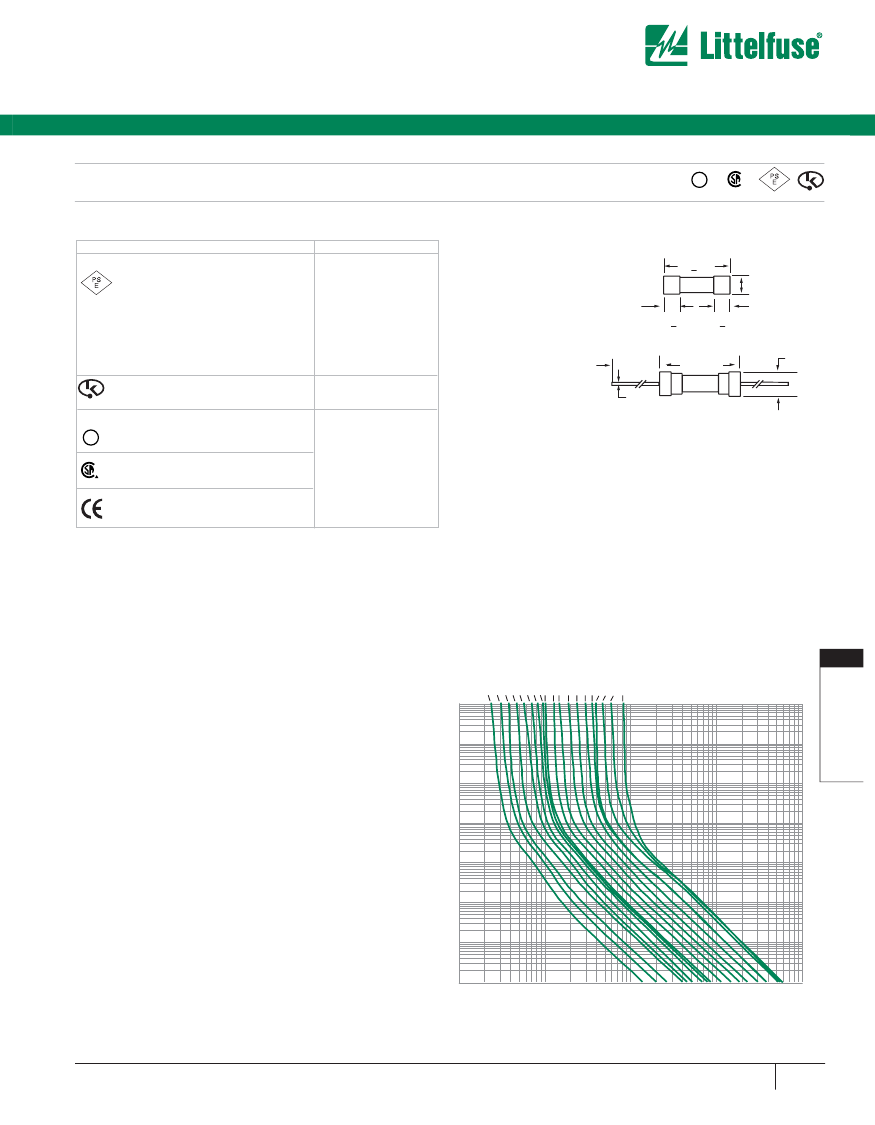

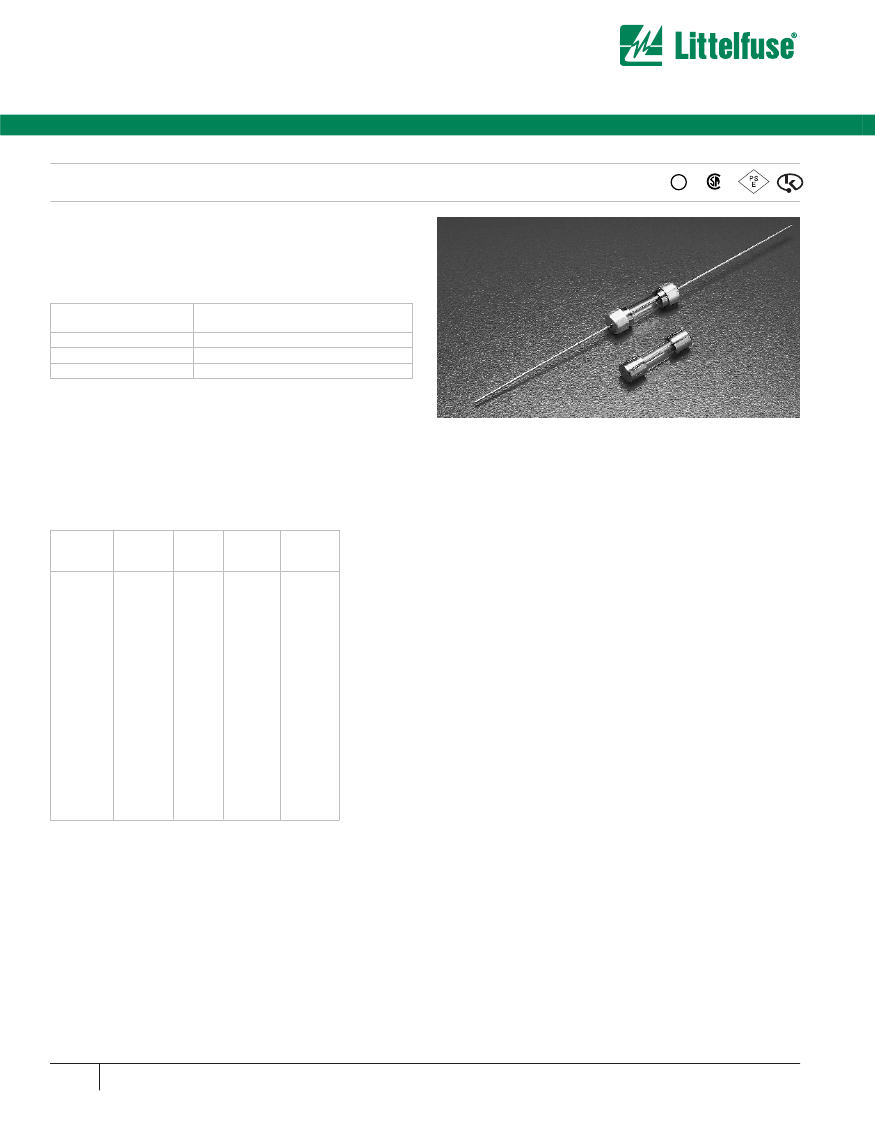

Axial Lead and Cartridge Fuses

Designed to UL/CSA Standards

5 x 20 mm

Time Lag Fuse (Slo-Blo ) Fuse 239 Series

®

UL

®

• Designed to UL/CSA/ANCE 248 Standard.

• Available in Cartridge and Axial Lead Format.

• Available in ratings of 0.200 to 7 amperes.

ELECTRICAL CHARACTERISTICS:

% of Ampere

Rating

100%

135%

200%

Opening

Time

4 hours,

Minimum

1 hour,

Maximum

5 seconds,

Min.;

2 min.,

Max.

INTERRUPTING RATING:

0.20-1A

10,000 amperes at 125 VAC, 0.7-0.8 power factor

35 amperes at 250 VAC, 0.7-0.8 power factor

1.25A-3.15A 10,000 amperes at 125 VAC, 0.7-0.8 power factor

100 amperes at 250 VAC, 0.7-0.8 power factor

4A-7A

10,000 amperes at 125 VAC, 0.7-0.8 power factor

ENVIRONMENTAL SPECIFICATIONS:

Operating temperature:

-55˚C to 125˚C

Thermal Shock:

MIL-STD-202F Method 107G, Test Condition B: (5

cycles –65°C to +125°C)

Vibration:

MIL-STD-202F Method 201A

Humidity:

MIL-STD-202F Method 103B, Test Condition A. high relative

humidity (95%) and elevated temperature (40°C) for 240 hours.

Salt Spray:

MIL-STD-202F Method 101D, Test Condition B

ORDERING INFORMATION:

Catalog

Number

239.200

239.250

239.300

239.400

239.500

239.600

239.700

239.750

239.800

239

001

239

1.25

239

01.6

239

002

239

02.5

239

003

239

3.15

239

004

239

005

239

007

Ampere

Rating

.200

.250

.300

.400

.500

.600

.700

.750

.800

1

1.25

1.60

2

2.50

3

3.15

4

5

7

Nominal

Voltage Resistance

Rating Cold Ohms

250

3.873

250

3.070

250

2.300

250

1.475

250

0.909

250

0.699

250

0.538

250

0.471

250

0.416

250

0.297

250

0.298

250

0.120

250

0.094

250

0.058

250

0.0480

250

0.0410

125

0.0310

125

0.0200

125

0.0110

Nominal

Melting I

2

t

A

2

Sec.

0.166

0.341

0.613

1.490

1.986

2.415

4.119

5.424

7.566

11.296

19.524

30.430

50.586

79.701

129.509

128.048

270.703

302.836

305.758

PHYSICAL SPECIFICATIONS:

Material:

Body: Glass

Cap: Nickel Plated Brass

Leads: Tin Plated Copper

Terminal Strength:

MIL-STD-202F Method 211A,

Test Condition A

Solderability:

Reference IEC 60127 Second Edition 2003-01 Annex A

Product Marking:

Cap 1: current and voltage rating.

Cap 2: Agency approval markings.

Packaging:

Available in Bulk (V=5, H=100, M=1000 pcs/pkg) or on

Tape/Reel (MRET1=1000 pcs/reel).

450

w w w. l i t t e l f u s e . c o m

239.6 Related Products

	239.6	0239007.M	239.75	239.4
Description	Electric Fuse, TIME LAG BLOW ELECTRIC FUSE, 0.6A, 250VAC, 35A (IR), INLINE/HOLDER	fuse glass 7A 125vac 5x20mm	Electric Fuse, TIME LAG BLOW ELECTRIC FUSE, 0.75A, 250VAC, 35A (IR), INLINE/HOLDER	Electric Fuse, TIME LAG BLOW ELECTRIC FUSE, 0.4A, 250VAC, 35A (IR), INLINE/HOLDER
Reach Compliance Code	unknown	-	unknown	unknow
ECCN code	EAR99	-	EAR99	EAR99
Fusing characteristics	TIME LAG	-	TIME LAG	TIME LAG
body height	20 mm	-	20 mm	20 mm
Body length or diameter	5.2 mm	-	5.2 mm	5.2 mm
Circuit protection type	ELECTRIC FUSE	-	ELECTRIC FUSE	ELECTRIC FUSE
Joule integral nominal	2 J	-	5 J	1 J
Installation features	INLINE/HOLDER	-	INLINE/HOLDER	INLINE/HOLDER
Maximum operating temperature	125 °C	-	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C
method of packing	BULK; TAPE AND REEL	-	BULK; TAPE AND REEL	BULK; TAPE AND REEL
physical size	5.2mm x 20mm	-	5.2mm x 20mm	5.2mm x 20mm
Rated breaking capacity	35 A	-	35 A	35 A
Rated current	0.6 A	-	0.75 A	0.4 A
Rated voltage (AC)	250 V	-	250 V	250 V
Guideline	CSA; KTL; PSE; UL	-	CSA; KTL; PSE; UL	CSA; KTL; PSE; UL
surface mount	NO	-	NO	NO
Terminal surface	Nickel (Ni)	-	Nickel (Ni)	Nickel (Ni)
Terminal shape	END CAP	-	END CAP	END CAP
