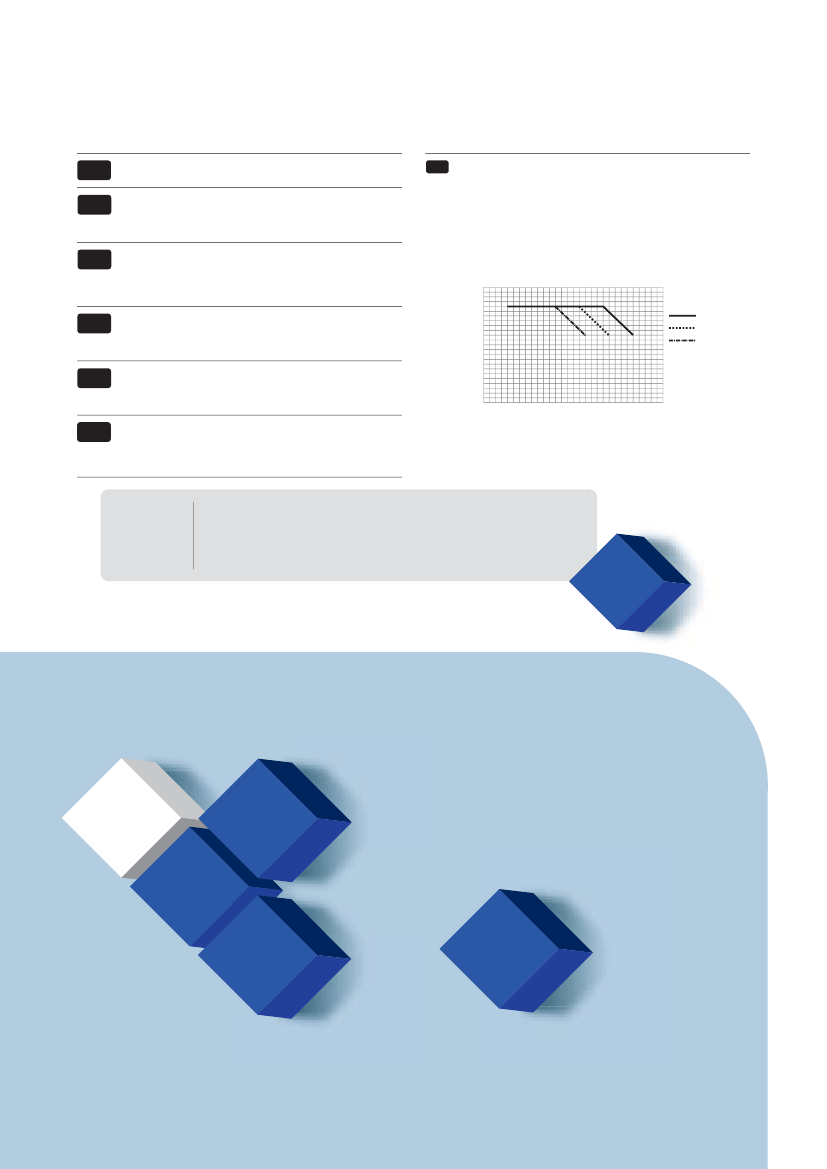

Explanation of Symbols in This Catalog
Ultra-
L x W dimension: products of 0.6 x 0.3 mm or less
compact
Derating
Voltage and temperature derating recommended product
HiQ
By devising ceramic materials and electrode materials,
low dissipation is achieved in frequency bands of VHF,
UHF and microwave or beyond.
Low
ESL
Low dissipation for high frequency
Operating Voltage/Rated Voltage (%)
Low inductance
This capacitor is designed so that
the parasitic inductance component (ESL)
that the capacitor has on the high frequency
side becomes lower.
This product is suitable when a voltage continuously applied
to a capacitor in an operating circuit, is used below (derated)
the rated voltage of the capacitor.
This model guarantees the test conditions in the endurance test,
at a rated voltage x 100% at the maximum operating temperature.
A reliability assurance level equivalent to a common product
can be secured, by using this product within the voltage and
temperature derated conditions recommended in the figure below.
Recommended Conditions of the Derating Operating Voltage and Temperature
120
100
Anti-
Product suitable for acoustic noise reduction and low distortion
noise
This product suppresses acoustic noise,
80
which occurs when a ceramic capacitor is used,
by devising the materials and configuration.
Deflecting
Product resistant to deflection cracking
crack
This capacitor is designed to prevent failures as much
60
40
125°C Type
105°C Type
85°C Type
20
as possible by short mode caused by cracking
when there is board deflection.
Soldering
Product with solder cracking suppression
crack
This capacitor is configured with metal terminals
0
0
25
50
75
100
125
150
Product Temperature (°C)
and leads connected to the chip.
The metal terminals and leads relieve the stress from expansion
and contraction of the solder, to suppress solder cracking.
EU RoHS
Compliant
All the products in this catalog comply with EU RoHS.
EU RoHS is "the European Directive 2011/65/EU on the Restriction of the Use
of Certain Hazardous Substances in Electrical and Electronic Equipment."
For more details, please refer to our website 'Murata's Approach for EU RoHS'
(http://www.murata.com/info/rohs.html).
For General Purpose GRM Series Capacitance Table
Pur ose
e
!Note
• Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
C02E.pdf
Sep.25,2013
Contents
Part Numbering
Selection Guide
C
Capacitance Table
p2
p5
p6
Ch
Chip Monolithic Ceramic Capacitors
Cap. Table
Fo
For General Purpose GRM Series
p16 separate volume
p83
p7
Product specifications are as of
e
August 2013
.
Compatible to Bonding / AuSn Soldering
GMD Series
High Frequency High Q Type
1608(in mm)/0603(in inch) Size Min. GQM Series
Resin External Electrode Type GRJ Series
p107
p9
p110
p119
p10
p11
High Effective Capacitance &
High Allowable Ripple Current GR3 Series
Metal Terminal Type For General Purpose
KRM Series
Metal Terminal Type High Effective Capacitance &
High Allowable Ripple Current KR3 Series
8-Terminal Low ESL Type LLA Series
p121
p11
KRM Series
!Caution/
Notice
LLR Series
LLM Series
LLL Series
LLA Series
KR3 Series
p123
p12
p126
p129
p13
p13
LW Reversed Low ESL Type LLL Series
p131
p14
10-Terminal Low ESL Type LLM Series
p133
p14
ESR Controlled Low ESL Type LLR Series
p135
p14
!Caution/Notice
Qualified Standards
Introduction of Website SimSurfing
EMICON-FUN!
Product Information
Please check the MURATA home page (http://www.murata.com/)
if you cannot find the part number in the catalog.
p137
p158
p160
p161
p162
GR3 Series
GRJ Series
GQM Series
To
Top & Bottom Electrode Type for Bonding
GMA
Series
p105
p8
GMD Series
Hig
High Frequency High Q Type
g
100
1005(in mm)/0402(in inch) Size Max. GJM Series
GMA Series
GJM Series
GRM Series
!Note
• Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
C02E.pdf
Sep.25,2013
o
Part Numbering
Chip Monolithic Ceramic Capacitors for General
(Part Number)
qProduct
ID
wSeries
Product ID
GJ
GM
GQ
Code
M
A
D
M
3
GR
J
M
KR
3
M
A
LL
L
M
R
eChip
Dimensions (LgW)
Code
02
03
05
08
0D
15
18
1U
21
22
31
32
42
43
55
Dimensions (LgW)
0.4g0.2mm
0.6g0.3mm
0.5g0.5mm
0.8g0.8mm
0.38g0.38mm
1.0g0.5mm
1.6g0.8mm
0.6g1.0mm
2.0g1.25mm
2.8g2.8mm
3.2g1.6mm
3.2g2.5mm
4.5g2.0mm
4.5g3.2mm
5.7g5.0mm
Size Code (in inch)
01005
0201
0202
0303
015015
0402
0603
02404
0805
1111
1206
1210
1808
1812
2220
Continued on the following page.
GR
q
M
w
18
e
8
B1 1H
y
102
u
K
i
A01 D
o
!0
rHeight
Dimension (T) (Except
KRp)
r t
Series
High frequency HiQ type
1005(in mm)/0402(in inch) size max.
Top & bottom electrode type for bonding
Product for bonding/AuSn soldering
High frequency HiQ type
1608(in mm)/0603(in inch) size min.
High effective capacitance &
High allowable ripple current
Resin external electrode type
General purpose products
Metal terminal type/High effective capacitance &
High allowable ripple current
Metal terminal type
8-terminal low ESL type
LW reversed low ESL type
10-terminal low ESL type
Controlled ESR low ESL type
Code
2
3
4
5
6
7
8
9
A
B
C
D
E
M
Q
R
S
X
Dimension (T)
0.2mm
0.3mm
0.4mm
0.5mm
0.6mm
0.7mm
0.8mm
0.85mm
1.0mm
1.25mm
1.6mm
2.0mm
2.5mm
1.15mm
1.5mm
1.8mm
2.8mm
Depends on individual standards.
rHeight
Dimension (T) (KRp Only)
Code
E
F
K
L
Q
T
W
Dimension (T)
1.8mm
1.9mm
2.7mm
2.8mm
3.7mm
4.8mm
6.4mm
Please check the MURATA home page (http://www.murata.com/) if you cannot find the part number in the catalog.
2
!Note
• Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
C02E.pdf
Sep.25,2013
(Part Number)
GR
q
M
w
18
e
8
B1 1H
y
102
u
K
i
A01 D
o
!0
r t
Continued from the preceding page.
tTemperature
Characteristics
Temperature
Characteristic Codes
Code
1X
2C
3C
3U
4C
5C
7U
B1
B3
C6
C7
C8
D7
D8
E7
R1
R6
R7
Public
STD Code
SL
CH
CJ
UJ
CK
C0G
U2J
B
*1
B
X5S
X7S
X6S
X7T
X6T
X7U
R
*1
X5R
X7R
JIS
JIS
JIS
JIS
JIS
EIA
EIA
JIS
JIS
EIA
EIA
EIA
EIA
EIA
EIA
JIS
EIA
EIA
Temperature Characteristics
Reference Temperature Capacitance Change
or Temperature
Temperature
Range
Coefficient
20°C
20°C
20°C
20°C
20°C
25°C
25°C
20°C
20°C
25°C
25°C
25°C
25°C
25°C
25°C
20°C
25°C
25°C
20 to 85°C
20 to 125°C
20 to 125°C
20 to 85°C
20 to 125°C
25 to 125°C
25 to 125°C *2
–25 to 85°C
–25 to 85°C
–55 to 85°C
–55 to 125°C
–55 to 105°C
–55 to 125°C
–55 to 105°C
–55 to 125°C
–55 to 125°C
–55 to 85°C
–55 to 125°C
+350 to –1000ppm/°C
0±60ppm/°C
0±120ppm/°C
–750±120ppm/°C
0±250ppm/°C
0±30ppm/°C
–750±120ppm/°C
±10%
±10%
±22%
±22%
±22%
+22%, –33%
+22%, –33%
+22%, –56%
±15%
±15%
±15%
Operating
Temperature
Range
–55 to 125°C
–55 to 125°C
–55 to 125°C
–25 to 85°C
–55 to 125°C
–55 to 125°C
–55 to 125°C
–25 to 85°C
–25 to 85°C
–55 to 85°C
–55 to 125°C
–55 to 105°C
–55 to 125°C
–55 to 105°C
–55 to 125°C
–55 to 125°C
–55 to 85°C
–55 to 125°C
Capacitance Change Each Temperature (%)
–55°C
Max.
-
0.82
1.37
-
2.56
0.58
8.78
-
-
-
-
-
-
-
-
-
-
-
Min.
-
–0.45
–0.9
-
–1.88
–0.24
5.04
-
-
-
-
-
-
-
-
-
-
-
Max.
-
0.49
0.82
4.94
1.54
0.4
6.04
-
-
-
-
-
-
-
-
-
-
-
*3
Min.
-
–0.27
–0.54
2.84
–1.13
–0.17
3.47
-
-
-
-
-
-
-
-
-
-
-
-
0.33
0.55
3.29
1.02
0.25
3.84
-
-
-
-
-
-
-
-
-
-
-
–10°C
Max.
Min.
-
–0.18
–0.36
1.89
–0.75
–0.11
2.21
-
-
-
-
-
-
-
-
-
-
-
*1 Capacitance change is specified with 50% rated voltage applied.
*2 Rated Voltage 100Vdc max: 25 to 85°C
*3 –25°C (Reference Temperature 20°C) / –30°C (Reference Temperature 25°C)
yRated
Voltage
Code
0E
0G
0J
1A
1C
1E
1H
1J
1K
2A
2D
2E
2W
2H
2J
3A
3D
3F
YA
Rated Voltage
DC2.5V
DC4V
DC6.3V
DC10V
DC16V
DC25V
DC50V
DC63V
DC80V
DC100V
DC200V
DC250V
DC450V
DC500V
DC630V
DC1kV
DC2kV
DC3.15kV
DC35V
uCapacitance
Expressed by three-digit alphanumerics. The unit is picofarad
(pF). The first and second figures are significant digits, and the
third figure expresses the number of zeros which follow the two
numbers. If there is a decimal point, it is expressed by the capital
letter "R." In this case, all figures are significant digits.
If any alphabet, other than "R", is included, this indicates the
specific part number is a non-standard part.
Ex.)
Code
R50
1R0
100
103
iCapacitance
Tolerance
Code
B
C
D
F
G
J
K
M
W
Capacitance Tolerance
±0.1pF
±0.25pF
±0.5pF (10pF and below)
±0.5% (10pF and over)
±1%
±2%
±5%
±10%
±20%
±0.05pF
Continued on the following page.
Capacitance
0.50pF
1.0pF
10pF
10000pF
Please check the MURATA home page (http://www.murata.com/) if you cannot find the part number in the catalog.
The courier called and said something had arrived. I thought it was the prize for the event. When I got it, it turned out to be a Bluetooth headset. The prize was a customized version of the Aigo Blue...
##**Table of Contents** [TOCM] ## 1. Treasure Hunting There are always many novel gadgets in the house of Lao Wang next door, which will be gone if you are not careful. This time I was lucky and caugh...
Entering the information age after the millennium, the huge demand for semiconductor chips has made China the world's largest semiconductor market. According to relevant data, the scale of my count...[Details]
International Solar Photovoltaic Network News: Chinese inverter company Sungrow announced that it will build a 3GW photovoltaic inverter manufacturing plant in Bangalore, the capital of Karnataka, ...[Details]
Designing for automotive LCD displays larger than 5" can be complex. The display source driver requires a supply rail called analog voltage device drain (AVDD) in the 10V to 15V range and two supply ...[Details]
On April 20, Alibaba Group announced that it would acquire
the
chip
company Zhongtian Microelectronics and invest in six
chip
companies. Yesterday, JD.com CEO Liu Qiangdong said in a...[Details]
In order to strengthen the management of new energy vehicle charging facilities in our city, prevent and reduce accidents, protect the lives and property of the people, and improve the public safet...[Details]
1. Test conditions Hardware: STM32L432KC Main frequency: 80MHz Compiler: IAR 8.20.1 Compiler options: High Speed no size constraints CRC generator polynomial: 0x782f 2. Test Method The softwar...[Details]
For STM32, there are two ways to reset the software: 1) Use the official software library The system reset function is directly provided in the stm32f10x_nvic.c file of the official software li...[Details]
After searching a lot of information, I finally understood the time base timer. I did not use any library functions but operated the registers directly. The following introduces the systick in STM32...[Details]
A few days ago, Hanergy Chairman Li held a grand launch of Hanwa new products, which once again attracted the attention of the mass media to the development of photovoltaics. The unique Hanergy has gr...[Details]
The application of millimeter wave technology in mobile communications also involves a series of technical problems, including the large propagation loss of millimeter waves and the susceptibility ...[Details]
According to foreign media reports, the 2018 GMC Terrain Denali is equipped with multiple collision detection systems, and a recent test verified the safety of the system. Even when driving in a bu...[Details]
This small program is still the use of timer, which is relatively simple. The specific parts are noted in the comments, please refer to the comments. /*********************************************...[Details]
1 Introduction Due to the special working environment of coal mine production, the production process is more dangerous and unsafe than the general industry. With the continuous increase in c...[Details]
Every era has anxiety that has nowhere to go. Let's follow the embedded editor to learn about the relevant content.
The anxiety of the post-Internet era is that if you don’t revolutionize ...[Details]
As shown in the figure, the author soldered a STM32F207VET6 board using a TQFP (32-100PIN) 0.55MM to direct plug adapter board. The board leads out the SWD debug interface (only PA13 and PA14 are occ...[Details]
MCU
京公网安备 11010802033920号
EEWORLD
