HIT-W121
11.6" Healthcare/Hospitality Infotainment Terminal
with Intel
®
Atom™ N450/D510 Processors
Features
Revolutionary & specialized design focused on healthcare applications and
terminal leasing market
43 mm thick slim design achieves balance between fanless & Atom dual-core
performance
Provides natural viewing experience with 16:9, 11.6" display
Easy to clean full-flat, front touch panel IP 65 compliant
VESA 75 mm standard mounting holes for varied mounting demands
Instant function key access via programmable touch hotkeys on front panel
Rich options - Handset/ RFID/ Smart card reader/ Barcode Scanner/ MSR
ITE & medical dual certificates provide complete application coverage
Introduction

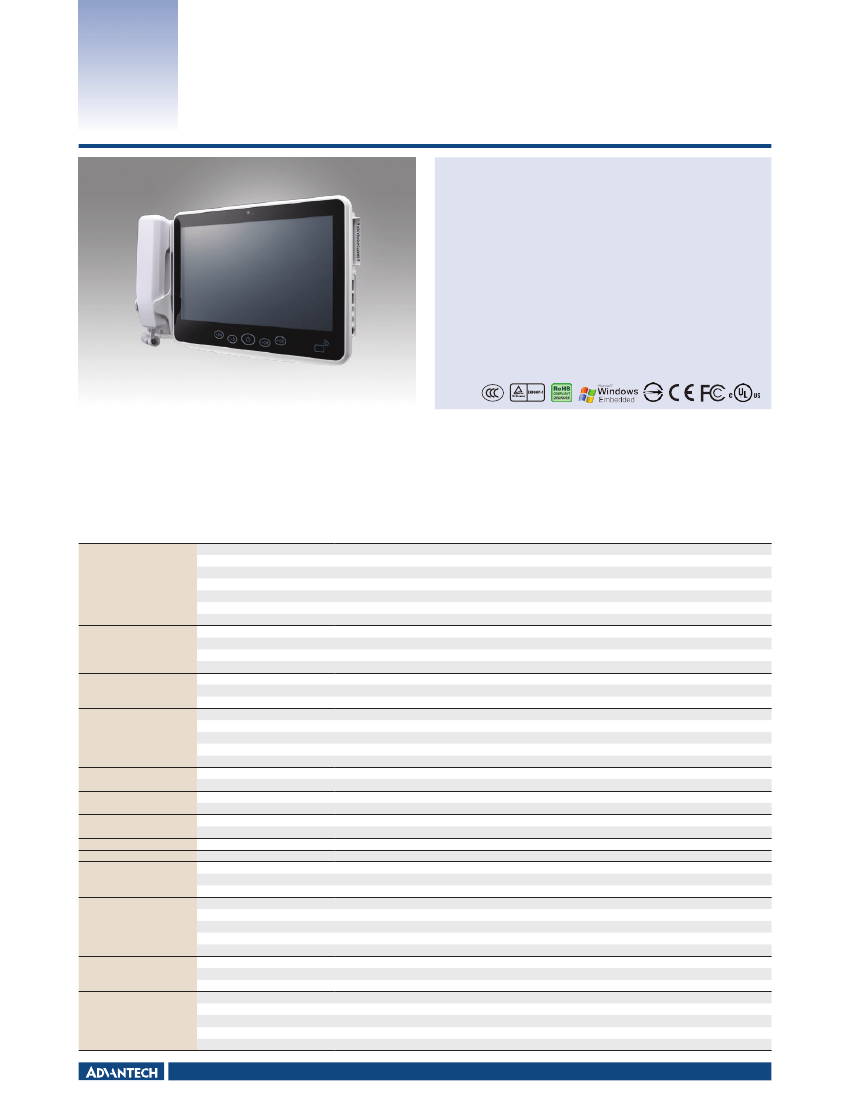

HIT-W121, an iService/Healthcare Infotainment Terminal, has an 11.6” single-surface touchscreen, is powered by an Intel® Atom™ D510 Processor, supports Windows, Android and
Linux operating systems, and is built with a compact, VESA mountable form factor. The medical-grade device works well not only in healthcare applications, but with its slim design,
it is an exceptional choice for applications in iServices such as retail shelf displays, banking, and RFID-based Smart Card applications.
Specifications
Hardware
CPU
Front Side Bus
System Chipset
Memory
Storage
Camera
Bus Expansion
Size
Max Resolution
Luminance
Contrast Ratio
Type
Light Transmission
Durability
USB Port
Smart Card Rearder
Line out
Microphone in
COM Port (Isolated)
Speaker
Microphone
LAN
WLAN
Hotkey
LED Light Indicator
mini-PCI Slot
Operating System
Mounting
Dimensions ( W x H x D)
Weight
TV Tuner
Handset
Barcode Scanner
Table Stand
RFID
AC/DC Adapter
Input Voltage
Output Voltage
Operating Temperature
IP Rating
Vibration
Shock
Certifications
Intel Atom (N450/D510) 1.6 GHz Processor
Supports FSB 667 MHz
Intel N450/D510 + ICH8M
up to 2 GB
CF or SATA HDD interface
2 megapixel CCD Module (Optional)
Mini PCIe x 2
11.6" W TFT
1366 x 768
200 cd/m
2
400:1
Analog Resistive
80%
30 million
3 (side x 2, rear x 1)
1 (Removeable with Insert sealed by plastic changecord)
1
1
1
2 watt x 2
1
10/100/1000 RJ-45 x 1
802.11 b/g/n
5 programmable touch buttons with 2 types of artwork
1
2 (1 for WLAN, 1 for tuner)
Support WES, WES7, Win7 / Linux: Fedora 13, Ubuntu, Android
VESA 75 x 75 mm
302.5 x 220.25 x 43 mm
2.3 kg
Yes, Optional
Yes, Optional
Yes, Optional. 2D type
Yes, Optional
Yes, Optional
100 ~ 240 V
AC
, 1.1 ~ 0.45 A @ 47~ 63 Hz
IT: 19 V
DC
, 3.95 A MAX; Medical: 16 ~ 21 V
DC
(SET UP 19V), 2.63 A MAX
0 ~ 40° C
Front Panel: IP65; IPX1 All around
1G
50 G
CE, FCC, CCC, CB, ITE UL, EN 60950 & EN 60601-1 approved
Display
Touchscreen
I/O Ports
Audio
Network
Emergency Alarm
Bus Expansion
Software
Mechanical
Options
Power Supply
Environment
Healthcare Infotainment Terminals
All product specifications are subject to change without notice
Last updated : 3-Sep-2012
HIT-W121

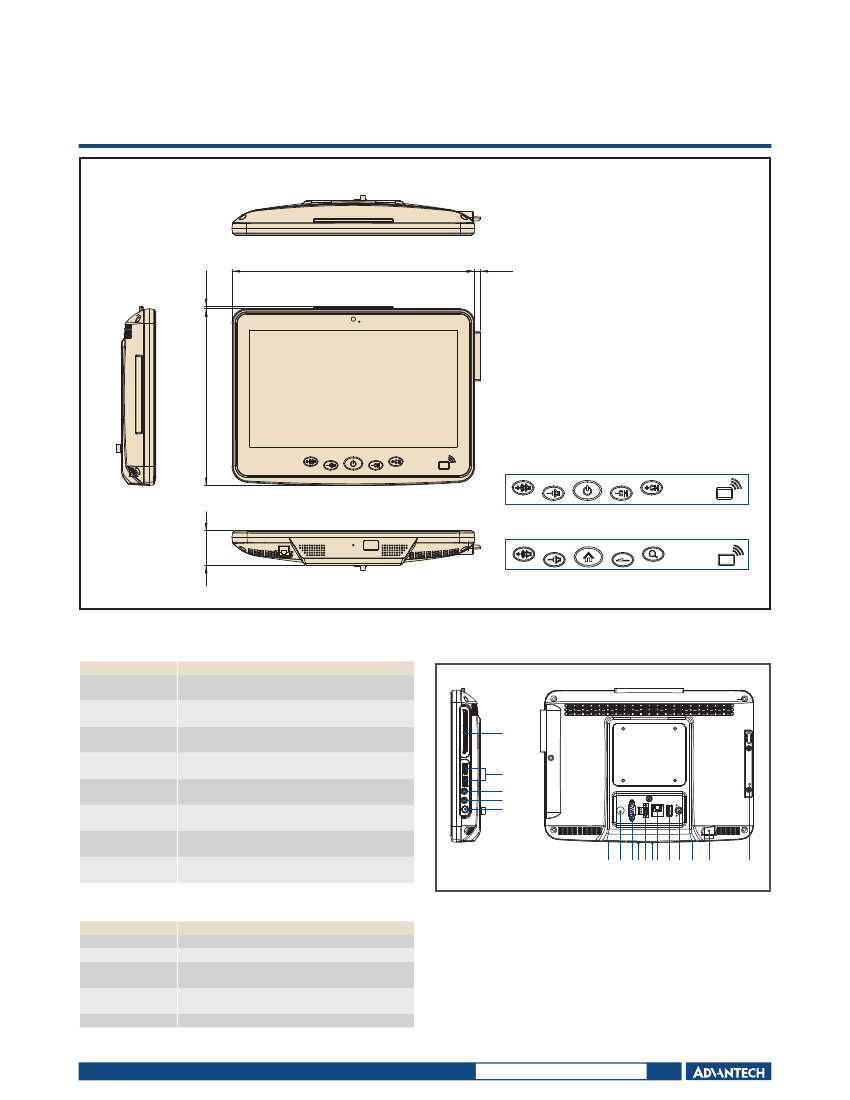

Dimensions
Unit: mm
302.50
2.75
6.75
220.25
Front Button Artwork for Healthcare
(5-key + 1 RFID Icon) :
Ordering Information
Part No.
HIT-W121-AST0E
HIT-W121-AST1E
HIT-W121-AIS0E
HIT-W121-AIS1E
HIT-W121-AWM0E
HIT-W121-AWM1E
HIT-W121-ABM0E
HIT-W121-ABM1E
Description
11.6" W Full-Flat Atom D510 iService Terminal in
Polished White, w/ Bare BOM & ITE adapter
11.6" W Full-Flat Atom D510 iService Terminal in
Polished White, w/ Full Config & ITE adapter
11.6" W Full-Flat Atom D510 iService Terminal in Matte
Black, w/ Bare BOM & ITE adapter
11.6" W Full-Flat Atom D510 iService Terminal in Matte
Black, w/ Full Config & ITE adapter
11.6" W Full-Flat Atom D510 Healthcare Terminal in
Polished White, w/ Bare BOM & Medical adapter
11.6" W Full-Flat Atom D510 Healthcare Terminal in
Polished White, w/ Full Config & Medical adapter
11.6" W Full-Flat Atom D510 Healthcare Terminal in
Matte Black, w/ Bare BOM & Medical adapter
11.6" W Full-Flat Atom D510 Healthcare Terminal in
Matte Black, w/ Full Config & Medical adapter
43.00
Front Button Artwork for iService
(5-key + 1 RFID Icon) :
Fully- Integrated I/O
A
B
C
D
E
F G HI J KL MN F
O
P
Accessories
Part Number
HIT-W121-HSKE
HIT-KITS-MSR0E
HIT-KITS-UST0E
HIT-KITS-EUT0E
HIT-KITS-TSD0E
Description
Handset Kit for HIT-W121
HIT series standard accessory: MSR Add-on Module
HIT series standard accessory: US ATSC/NTSC
Hybrid Tuner
HIT series standard accessory: EU DVB-T Analog/Digital
Hybrid Tuner
HIT series standard accessory: Table Stand Kit
A
B
C
D
E
Smart Card Insert Tray
USB 2.0 Port *2
MIC In
Line Out
Power Switch
F
G
H
I
J
K
1W Speaker x 2
Reserved port
Isolated COM Port
Barcode Scanner (optional)
2-PIN Connector
MIC
L RJ-45 LAN port
M USB 2.0 port
N DC Inlet
O RJ-12 Handset
Connector
P Handset/MSR Dock
