Soft Termination MLCC for Automotive (BODY & CHASSIS, INFOTAINMENT) / Industrial Applications
HMJ212BB7472KGHT
Features
Item Summary
4700pF±10%, 100V,
X7R, 0805/2012 (EIA/JIS)
Lifecycle Stage
Mass Production
AEC-Q200 qualified
Standard packaging quantity (minimum)
Taping Embossed 2000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
10 GΩ
Yes
Yes
Yes
Reflow
4700 pF ± 10 %
0805/2012
100 V
3.5 %
X7R
-55 to +125 ℃
200 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
2.0 +0.20/-0.00 mm
1.25 +0.20/-0.00 mm
1.25 +0.20/-0.00 mm
0.50 +0.35/-0.25 mm
2018.10.29
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

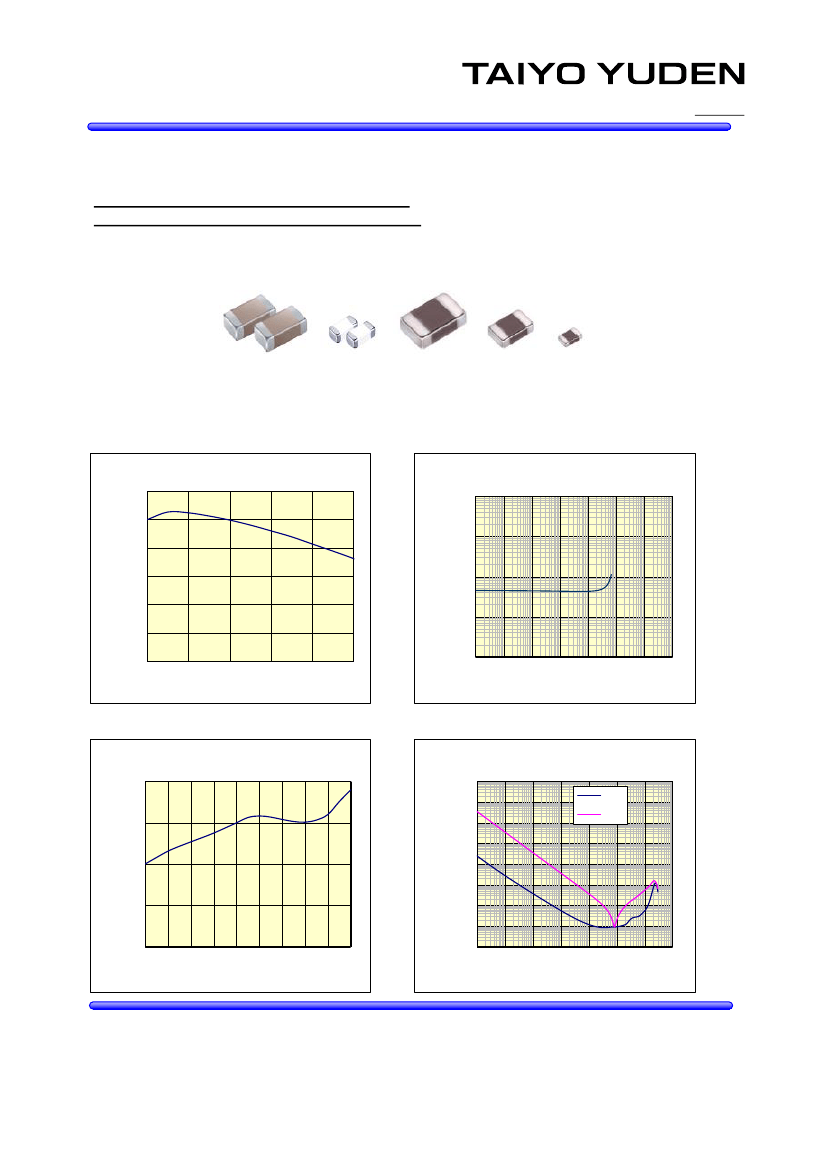

Multi Layer Ceramic Capacitor
○HMJ212BB7472KGHT
100V 2012 X7R 4700pF +/- 10% t=1.45mmMAX
100V 0805 X7R 4700pF +/- 10% t=0.057inchMAX
-Electrical Characteristics Data-
17QA07
RoHS compliance product
10
0
HMJ212BB7472KGHT
DC Bias Char.
1000000
HMJ212BB7472KGHT
Capacitance Freq.
100000
-20
Capacitance[pF]
-10
dC/C[%]
10000
-30
-40
1000
-50
0
20
40
60
80
DC Bias Voltage[V]
100
100
0.001 0.01 0.1
1
10
100 1000 10000
Frequency[MHz]
HMJ212BB7472KGHT
Capacitance Temp.
10
1000000
100000
0
10000
HMJ212BB7472KGHT
Impedance,ESR Freq.
ESR
Z
-10
Z,ESR[OHM]
-55 -35 -15 5 25 45 65 85 105 125
Temperature[degreeC]
dC/C[%]
1000
100
10
1
-20
0.1
-30
0.01
0.001 0.01 0.1
1
10 100 1000 10000
Frequency[MHz]
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
■
