HSMW-Cxxx
White ChipLEDs
Data Sheet
HSMW-C120, HSMW-C130, HSMW-C191, HSMW-C197,
HSMW-C265
Description

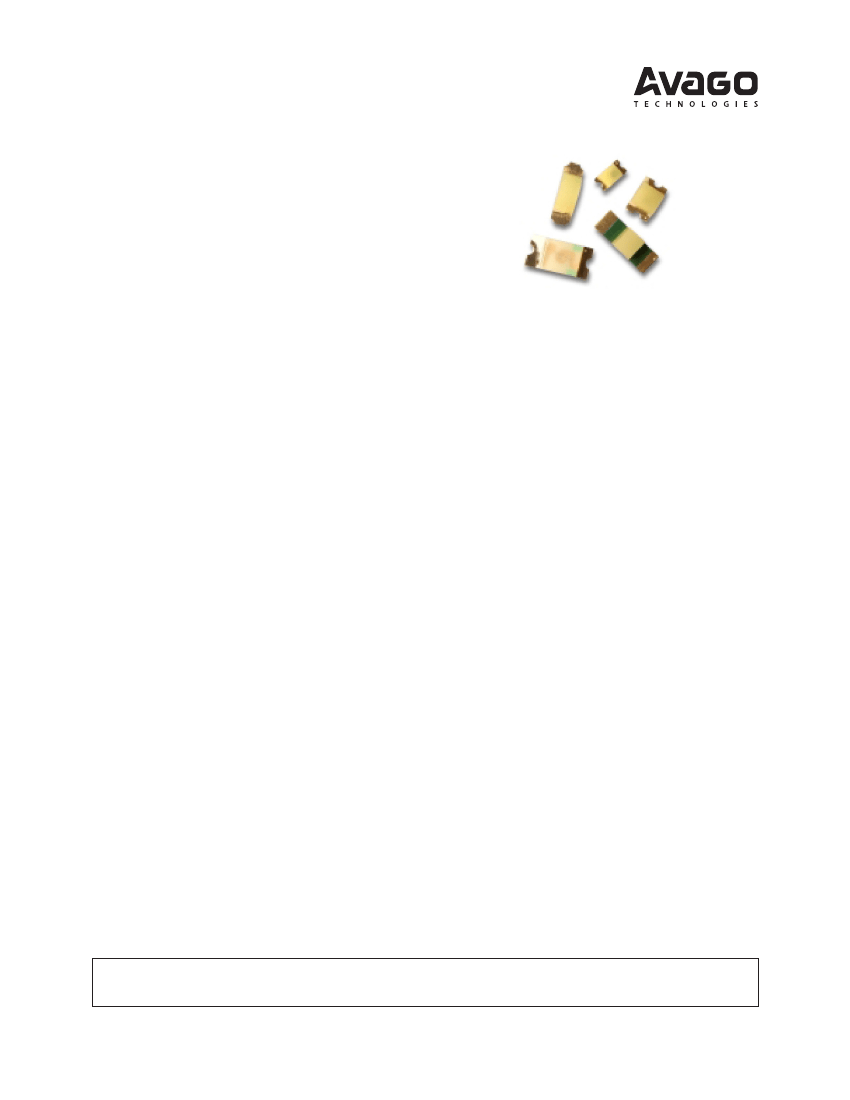

These white ChipLEDs come in unique shades of white
and provide product differentiation for backlighting ap-
plication. They are designed in industry standard package
for ease of handling and use.
These chipLEDs come in either a side emitting package
(HSMW-C120) or in top emitting packages (HSMW-C130,
C191, C197 and C265).
The packages all compatible with IR reflow soldering
process and come in 8 mm tape on 7" diameter reel. They
are compatible with automatic placement equipment.
In order to facilitate pick and place operation, these
chipLEDs are shipped in tape and reel with 4000 units per
reel for HSMW-C120, C130, C191 and C197 packages, and
3000 units per reel for HSMW-C265 package.
Features
•
White color
•
Small size
•
Industry standard footprint
•
Compatible with reflow soldering
•
Compatible with automatic placement equipment
•
Operating temperature range –30˚C to +85˚C
•
Come in 8 mm tape on 7" diameter reels
Applications
•
LCD backlighting
•
Keypad backlighting
•
Pushbutton backlighting
•
Symbol backlighting
CAUTION: HSMW-Cxxx LEDs are Class 1A ESD sensitive per JESD22-A114C.01. Please observe appropriate precautions
during handling and processing. Refer to Avago Technologies Application Note AN-1142 for additional details.
Package Dimensions
LED DIE
0.3 (0.012)
0.6 (0.024)
1.6 (0.063)
LED Die
Cathode
Mark
0.8
0.031
(0.80)
1.6
0.063
1.15
0.045
Polarity
POLARITY
DIFFUSED
EPOXY
PC BOARD
1.2 (0.047)
DIFFUSED EPOXY
PCB BOARD
0.23
0.009
0.35
0.014
1.0 (0.039)
0.12
0.005
0.5 (0.020)
0.3`0.15
0.012`.006
Cathode
Line
0.3`0.15
0.012`.006
CATHODE LINE
3 Ð 0.3 (0.012)
0.7 MIN.
0.028
SOLDERING
TERMINAL
Soldering
Terminal
HSMW-C120
HSMW-C130
LED DIE
CATHODE
MARK
LED DIE
0.8 (0.031)
0.4 (0.016)
1.6
(0.063 )
0.8 (0.031)
0.4 (0.016)
1.6
(0.063 )
1.0
(0.039)
0.3 (0.012)
DIFFUSED EPOXY
PC BOARD
CATHODE LINE
0.30 ± 0.15
(0.012 ± 0.006)
POLARITY
POLARITY
DIFFUSED
EPOXY
0.16 (0.006)
0.6 (0.023)
0.3 (0.012)
0.30 ± 0.15
(0.012 ± 0.006)
0.7 (0.028) MIN.
PC BOARD
0.4 (0.016)
CATHODE LINE
0.3 ± 0.15
(0.012 ± 0.006)
0.7 (0.028) MIN.
SOLDERING
TERMINAL
SOLDERING
TERMINAL
HSMW-C191
NOTES:
1. DIMENSIONS ARE IN MILLIMETERS (INCHES).
2. TOLERANCE ±0.1 mm UNLESS OTHERWISE NOTED.
HSMW-C197
2
Package Dimensions, continued
LED DIE
CATHODE
MARK
1.25 (0.049)
3.4 (0.134 )
POLARITY
DIFFUSED
EPOXY
1.1 (0.043)
PC BOARD
1.2
(0.047)
1.1 (0.043)
0.3 (0.012)
CATHODE LINE
0.50 ± 0.15
(0.020 ± 0.006)
0.50 ± 0.15
(0.020 ± 0.006)
SOLDERING
TERMINAL
HSMW-C265
NOTES:
1. DIMENSIONS ARE IN MILLIMETERS (INCHES).
2. TOLERANCE ±0.1 mm UNLESS OTHERWISE NOTED.
3
Device Selection Guide
Package Dimension (mm)
1.6 (L) x 0.6 (W) x 1.0 (H)
1.6 (L) x 0.8 (W) x 0.35 (H)
1.6 (L) x 0.8 (W) x 0.6 (H)
1.6 (L) x 0.8 (W) x 0.4 (H)
3.4 (L) x 1.25 (W) x 1.1 (H)
[2]
Notes:
1. Right angle package.
2. Reverse mount package.
White
HSMW-C120
HSMW-C130
HSMW-C191
HSMW-C197
HSMW-C265
Package Description
Untinted, Diffused
Untinted, Diffused
Untinted, Diffused
Untinted, Diffused
Untinted, Diffused
Absolute Maximum Ratings at T
A
= 25˚C
Parameter
DC Forward Current
[1]
Power Dissipation
Reverse Voltage (I
R
= 100 µA)
LED Junction Temperature
Operating Temperature Range
Storage Temperature Range
Soldering Temperature
Note:
1. Derate linearly as shown in Figure 4.
HSMW-Cxxx
20
78
5
95
–30 to +85
–40 to +85
Units
mA
mW
V
˚C
˚C
˚C
See reflow soldering profile (Figures 10 & 11)
Electrical Characteristics at T
A
= 25˚C
Forward Voltage
V
F
(Volts)
@ I
F
= 20 mA
[1]
Typ.
Max.
3.6
3.9
Reverse
Breakdown
V
R
(Volts)
@ I
R
= 100 µA
Min.
5
Capacitance C
(pF), V
F
= 0,
f = 1 MHz
Typ.
55
Thermal
Resistance
Rθ
J-PIN
(˚C/W)
Typ.
450
Part Number
HSMW-Cxxx
Note:
1. V
F
tolerance: ± 0.1 V.
4
Optical Characteristics at T
A
= 25˚C
Luminous
Intensity
I
v
(mcd)
@ 20 mA
[1, 4]
Min.
Typ.
45
45
71.5
45
71.5
160
150
200
160
180
Chromaticity
Coordinates
[2]
Typ.
x
y
0.29
0.29
0.29
0.29
0.29
0.27
0.27
0.27
0.27
0.27
Luminous
Viewing Angle
2
θ
1/2
Degrees
[3]
Typ.
155
145
140
130
150
Efficacy
η
v
(lm/w)
Typ.
240
240
240
240
240
Part Number
HSMW-C120
HSMW-C130
HSMW-C191
HSMW-C197
HSMW-C265
Notes:
1. The luminous intensity, I
v
, is measured at the peak of the spatial radiation pattern which may not be aligned with the mechanical axis of the
lamp package.
2. The dominant wavelength, λ
d
, is derived from the CIE Chromaticity Diagram and represents the perceived color of the device.
3. θ
1/2
is the off-axis angle where the luminous intensity is 1/2 the peak intensity.
4. Luminous intensity (I
v
) tolerance: ± 15%.
Light Intensity (Iv) Bin Limits
[1]
Intensity (mcd)
Bin ID
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
R
S
T
U
V
W
X
Y
Tolerance: ± 15%
Min.
0.11
0.18
0.29
0.45
0.72
1.10
1.80
2.80
4.50
7.20
11.20
18.00
28.50
45.00
71.50
112.50
180.00
285.00
450.00
715.00
1125.00
1800.00
2850.00
Max.
0.18
0.29
0.45
0.72
1.10
1.80
2.80
4.50
7.20
11.20
18.00
28.50
45.00
71.50
112.50
180.00
285.00
450.00
715.00
1125.00
1800.00
2850.00
4500.00
Note:
1. Bin categories are established for
classification of products. Products may
not be available in all categories. Please
contact your Avago representative for
information on currently available bins.
5
