ADMIRAL CLASS
- INTERNATIONAL PRINTED CIRCUIT MOUNT, POWER TRANSFORMER
1.
Electrical Specifications
A. Maximum Power: 5VA
B. Input Voltage and Frequency: 115V, 115/230V, 230V
50/60Hz
C. Voltage Regulation: 18% TYP @ full load to no load
Temperature Rise: 25 C TYP
Insulation Resistance: > 1 MEG ohm
Hi-Pot: 4000Vrms 1 minute @ Pri to Sec
4000Vrms 1 minute @ Pri to Core
4000Vrms 1 minute @ Sec to Core
Marking: Ensign Corp, part number (see table), date code
Safety:
UL/cUL 5085-2 Recognized Construction (File 47299)
UL 60950 Recognized (File E144070)
VDE 0805 Licensed (File 19019-3336-9002/A1C)
UL 1446 Recognized Insulation System (File 95662)
D.
E.
F.
2.
3.
Part Number
Primary Schematics
Secondary Schematics
115V
IP005-1-010X
IP005-1-012X
IP005-1-016X
IP005-1-020X
IP005-1-024X
115/230V
IP005-2-010X
IP005-2-012X
IP005-2-016X
IP005-2-020X
IP005-2-024X
IP005-2-028X
IP005-2-036X
230V
IP005-3-010X
IP005-3-012X
IP005-3-016X
IP005-3-020X
IP005-3-024X
IP005-3-028X
IP005-3-036X
Series Connection
10VCT @ 0.50A
12.6VCT @ 0.40A
16VCT @ 0.31A
20VCT @ 0.25A
24VCT @ 0.21A
28VCT @ 0.18A
36VCT @ 0.14A
Parallel Connection
5V @ 1.0A
6.3V @ 0.80A
8V @ 0.62A
10V @ 0.50A
12V @ 0.42A
14V @ 0.36A
18V @ 0.28A
Single Input
(Specify 115V,
120V, 230V or
240V)
Dual Input
(Specify
115/230V or
120/240V)
Single
Output
Center-Tapped
Output
Dual
Output
IP005-1-028X
IP005-1-036X

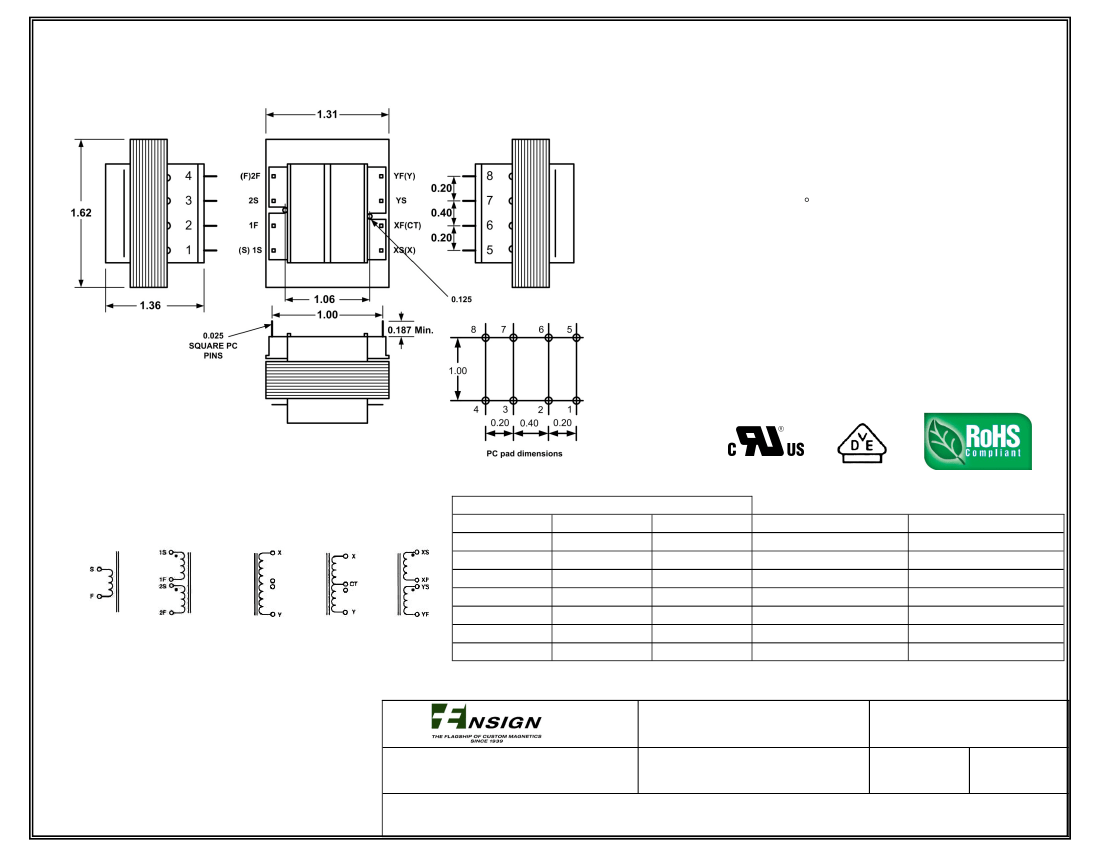

POWER TRANSFORMER
ADMIRAL CLASS
CONTENTS OF THIS DRAWING ARE SUBJECT TO
CHANGE WITHOUT PRIOR NOTICE
IP005-1-XXXX
IP005-2-XXXX
IP005-3-XXXX
Dim: Inches
Sheet 1 of 1
Ensign Corporation
201 ENSIGN RD., BELLEVUE, IA 52031
PROPRIETARY NOTICE: THIS DRAWING PRINT OR DOCUMENT AND SUBJECT MATTER DISCLOSED HEREIN ARE PROPRIETARY ITEMS TO WHICH ENSIGN RETAINS
THE EXCLUSIVE RIGHT OF DISSEMINATION, MANUFACTURE AND SALE. THIS DRAWING, PRINT OR DOCUMENT IS SUBMITTED IN CONFIDENCE FOR CONSIDERATION
BY THE RECIPIENT ALONE UNLESS PERMISSION FOR FURTHER DISCLOSURE IS EXPRESSLY GRANTED IN WRITING
