Ethernet connection system for harsh environment – Industrial Ethernet
RJF allows you to use an Ethernet Class D / Cat. 5e connection for 10
BaseT,100 BaseTX or 1000 BaseT networks in harsh environments.
With the patented RJStop®system you can use a standard RJ45 cordset in a
metallic
plug which will protect it from shocks, dust and fluids.
No hazardous on-field cabling and grounding!
Main characteristics
Compliant with IEC 60603-7 variante 11
Bayonet coupling
(“Audible & Visual” coupling signal )
Robust metallic shells based on MIL-DTL-26482 H - Shell size 18
RJ45 cordset retention in the plug: 100 N in the axis
Mating cycles: 500 min
Sealed against fluids and dust (IP68)
Shock, vibration and traction resistant
No cabling operation in field and no tools required
Mechanical coding / polarization (4 positions)
Compatible with cable diameter from 6 mm [0.236 in] to 13 mm [0.512 in]
For smaller diameters, please consult us.
Applications
Robotics
Industrial process control
CNC machines
Special machines
Oil & Gas
Motion control
Data acquisition and transmission in harsh
environment
Tele-maintenance
Environmental protection
Sealing: IP68
Salt spray: 48 h with nickel plating
> 96 h with black coating
< 500 h with olive drab cadmium
Fire retardant/Low smoke: UL94 V0 and NF F 16 101 & 16 102
Vibrations: 10-500Hz, 10g, 3 axes: no discontinuity >10 nano s
Shocks: IK06 weight of 250 g drop from 40cm
[15.75 in] onto connectors (mated pair)
Humidity: 21 days, 43°C, 98% humidity
Thermal shock: 5 cycles at -40°C / +100°C
Temperature range: -40°C / +85°C
Storage temperature:
Data transmission
10 BaseT, 100 BaseTX and 1000 BaseT networks
Cat 5e per TIA/EIA 568B and ClassD per ISO/
IEC 11801

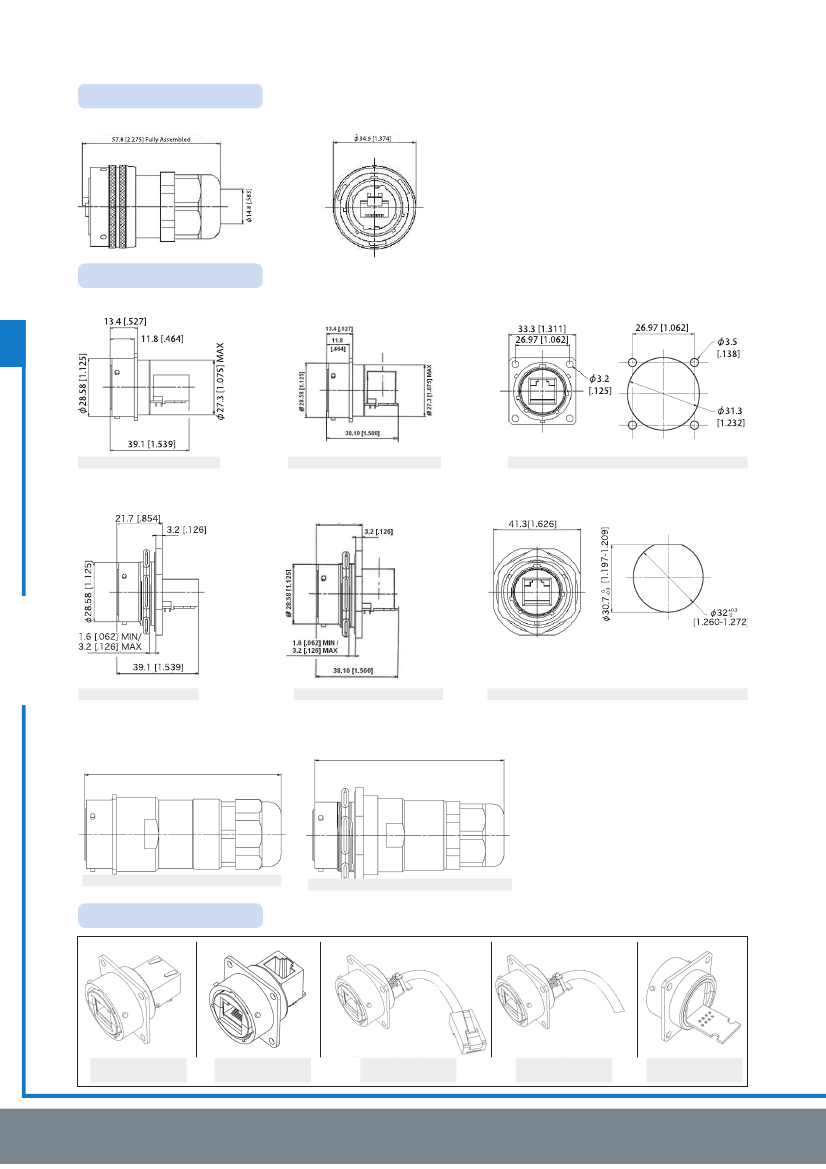

Part number code
RJF
Shell type
6:
plug, plastic gland
6M:
plug, metal gland
2:
square flange receptacle
2PE:
square flange receptacle, IP68 backshell, plastic gland
2PEM:
square flange receptacle, IP68 backshell, metal gland
7:
jam nut receptacle
7PE:
jam nut receptacle, IP68 backshell, plastic gland
7PEM:
jam nut receptacle, IP68 backshell, metal gland
Nota:
also available a transversally sealed receptacle (unmated) see page 22
Back terminations
(for receptacles only)
1:
female RJ45
1RA:
right angle female RJ45
2:
RJ45 cordset
Shell finishes
B:
black Coating -
ROHS compliant
N:
nickel
(note: with this version, the inserts are metallized) - ROHS compliant
G:
olive drab cadmium
(note: with this version, the inserts are metallized)
BZC:
aluminium shell - black zinc cobalt plating
ZC:
aluminium shell - green zinc cobalt plating -
ROHS compliant
Cordset length (for
receptacles with “2” back termination only) - Other lengths are available on demand
03 100 BTX:
0.3m
[11.81 inches]
00:
8 tinned holes at the rear of the PCB to solder the cable
05 100 BTX:
0.5m
[19.68 inches]
OPEN:
open cable - with no plug at the end
10 100 BTX:
1m
[39.37 inches]
15 100 BTX:
1.5m
[59.05 inches]
Remark: Cabling configuration
Examples:
100 BTX = 568B (Ethernet specification)
- Nickel plug: RJF 6 N
- Black square flange receptacle, female RJ45 back termination: RJF 2 1 B
- Olive drab cadmium jam nut receptacle, 1.5m [59.05”] 100 BTX cordset termination: RJF 7 2 G 15 100BTX
- Black in line square flange receptacle, 30cm [11.81”] 100BTX cordset termination: RJF 2PE 2 B 03 100BTX

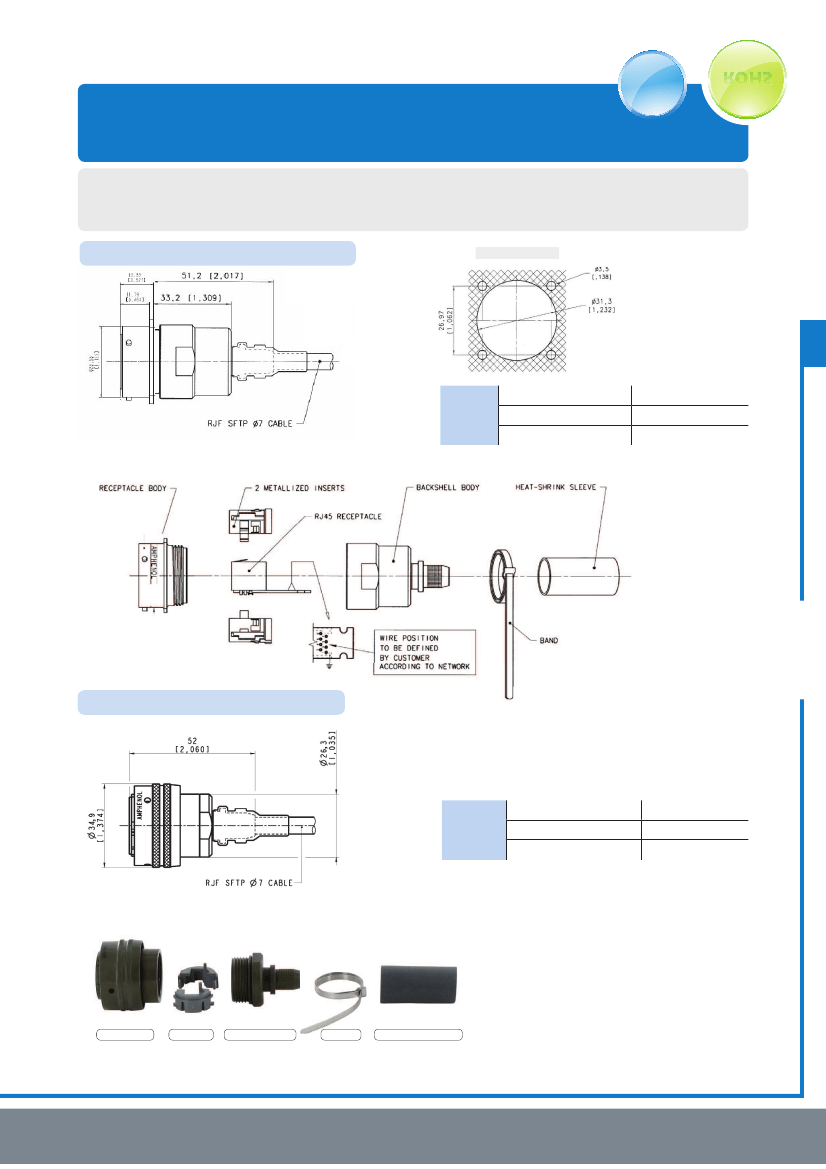

- Nickel jam nut receptacle, solder termination: RJF 72 N 00
2
2
B
03 100BTX
17
Amphenol
Universal: can be used with all standard RJ45 Cat.5e cordset brands.

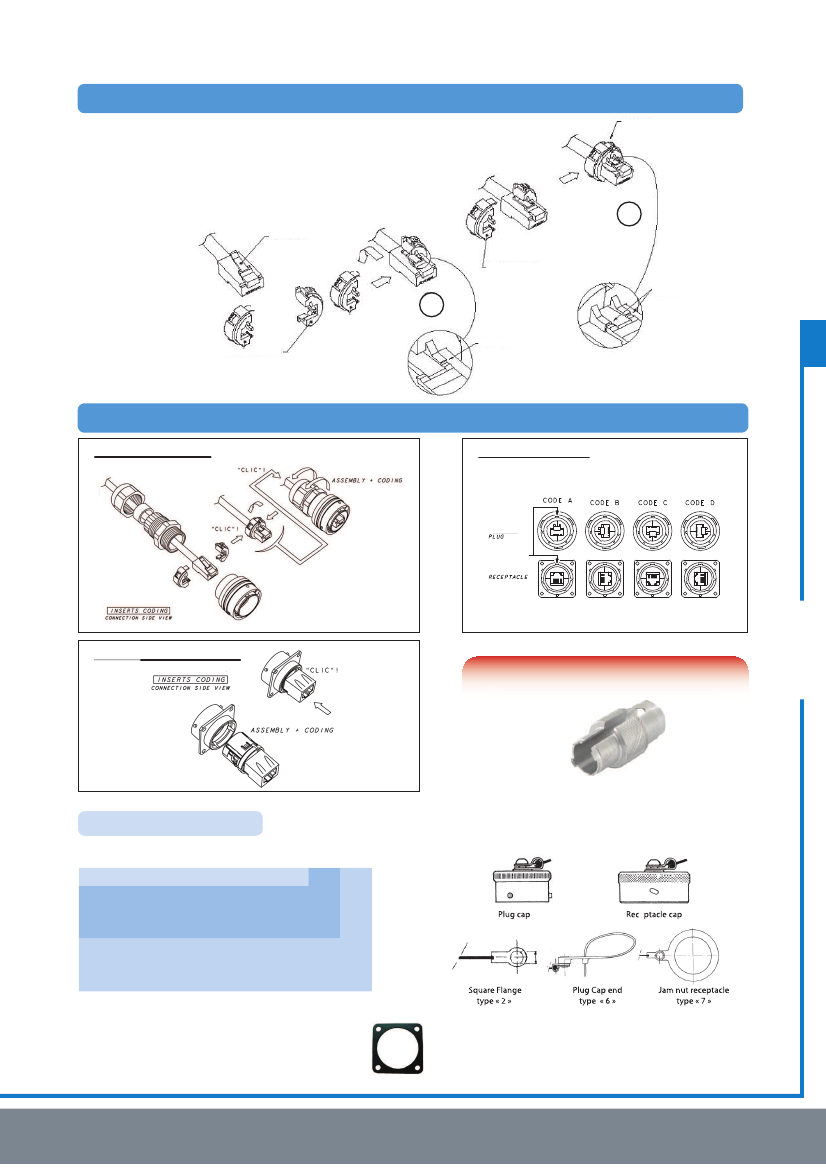

Assembly instructions of the
RJ Stop
1. Push down the RJ45 cordset latch, and fix it inside the insert
2. Press in and click the other part of the insert
3. Insert in the metallic housing
AUDIBLE
LOCKING
1
2
RJ45 PLUG
1
HALF INSULATOR
2
1
HALF INSULATOR
RJ STOP®
Patent
STOPPER
STOPPER
Easy and safe - No field cabling tools required for cabling

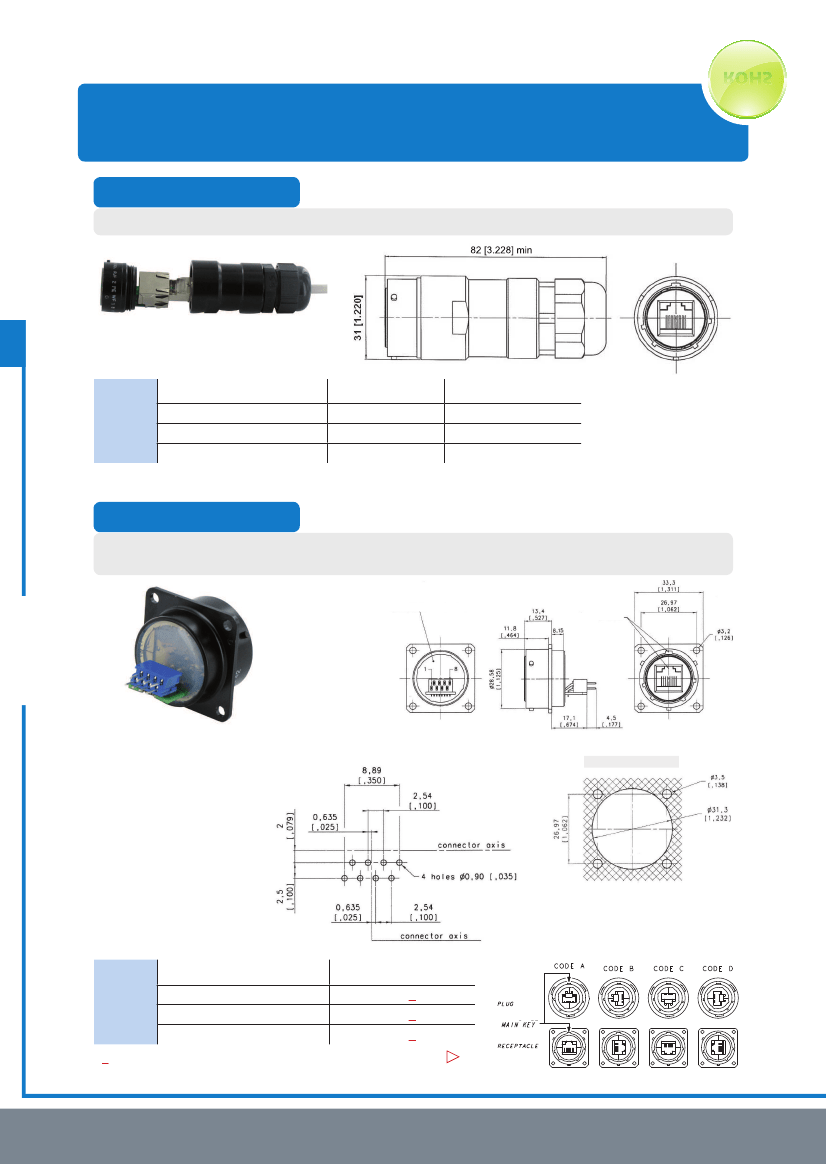

Assembling of the plug.
plug
4 codings possibilities
(defined by the customer during the assembling).
MAIN KEY
Assembling of the receptacle.
ling
receptacle
IMPORTANT NOTE:
to remove the insert, use the
Insert removal tool for receptacle and plug
In
rt
al
t
l
fo
recept
le nd
plu
ptacle
lug
P/N:
RJF ODE
