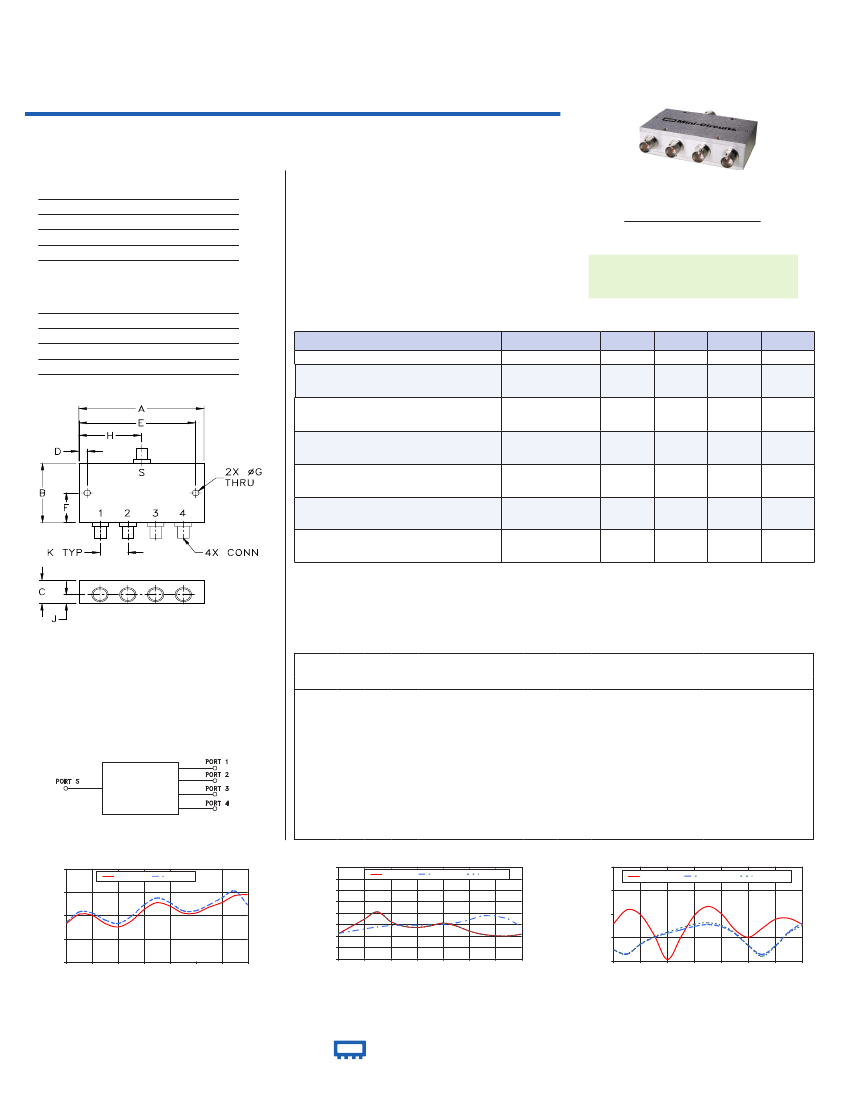

Power Splitter/Combiner
4 Way-0°
Operating Temperature
Storage Temperature
Power Input (as a splitter)
Internal Dissipation
DC Current (each port)
DC Pass
ZB4PD-222-75+
Generic photo used for illustration purposes only
BNC version shown
75Ω
950 to 2200 MHz
Features
wideband, 950 to 2200 MHz
high isolation, 25 dB typ.
rugged, shielded case
up to 10W power input as a splitter
•
DC pass from sum port to all output ports
•
•
•
•
Maximum Ratings
-55°C to 100°C
-55°C to 100°C
10W max.
1W max.
0.5A max.
CASE STYLE: UU188
Connectors Model
BNC
ZB4PD-222-75+
F-TYPE
ZB4PD-222-75-F+
Permanent damage may occur if any of these limits are exceeded.
Applications
Coaxial Connections
SUM PORT
PORT 1
PORT 2
PORT 3
PORT 4
S
1
2
3
4
• satellite communications
• GPS
• CATV
+RoHS Compliant
The +Suffix identifies RoHS Compliance. See our web site
for RoHS Compliance methodologies and qualifications
Electrical Specifications at 25°C
Parameter
Frequency Range
Insertion Loss
(above theoretical 6.0 dB)
950 - 2200
Frequency (MHz)
Min.
950
—
Typ.
Max.
2200
Unit
MHz
dB

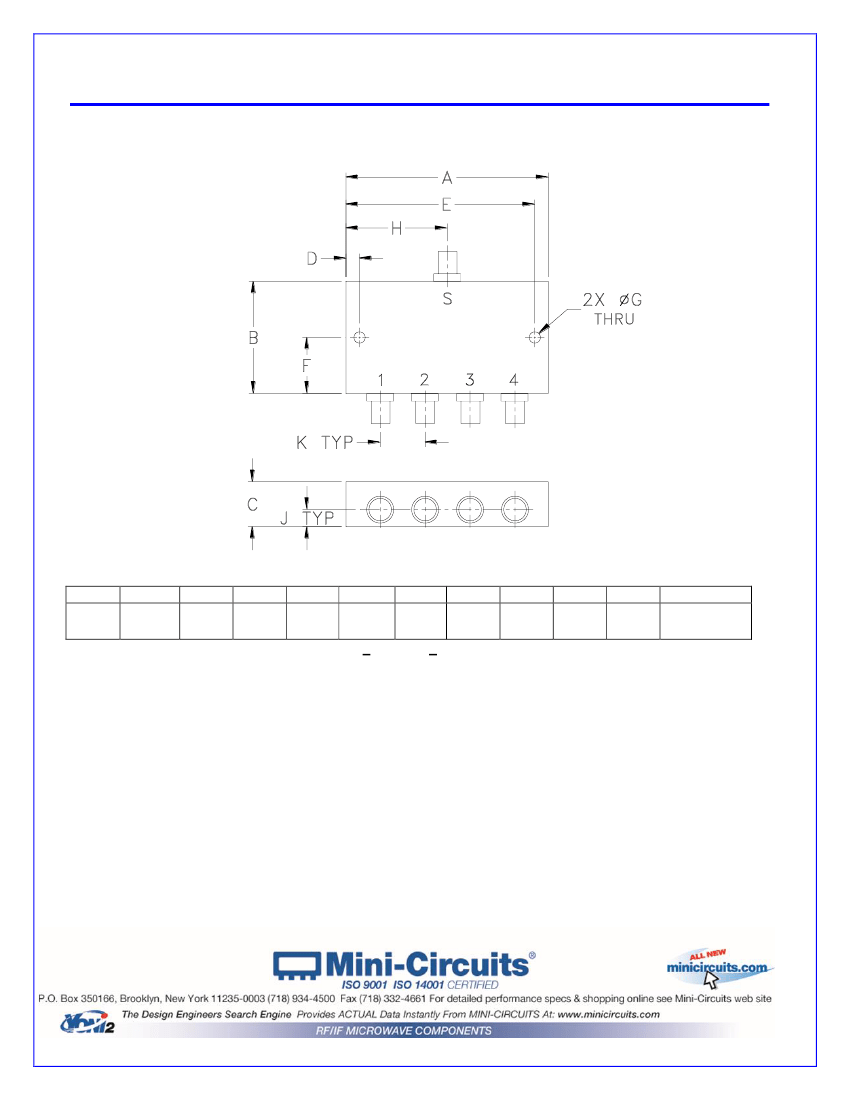

Outline Drawing
0.9
1.1
Isolation
Phase Unbalance
Amplitude Unbalance
VSWR (Port S)
VSWR (Port 1-4)
950 - 2200
20
23
—
dB
950 - 2200
—
2.7
7.0
Degree
950 - 2200
—
0.3
0.7
dB
950 - 2200
—
1.27
1.65
:1
950 - 2200
—
1.24
1.6
:1
A
3.50
88.90
G
.125
3.18
Outline Dimensions (
inch
)
mm
B
2.13
54.10
C
.88
22.35
D
.150
3.81
E
3.350
85.09
H
1.75
44.45
J
.44
11.18
K
.89
22.61
F
1.06
26.92

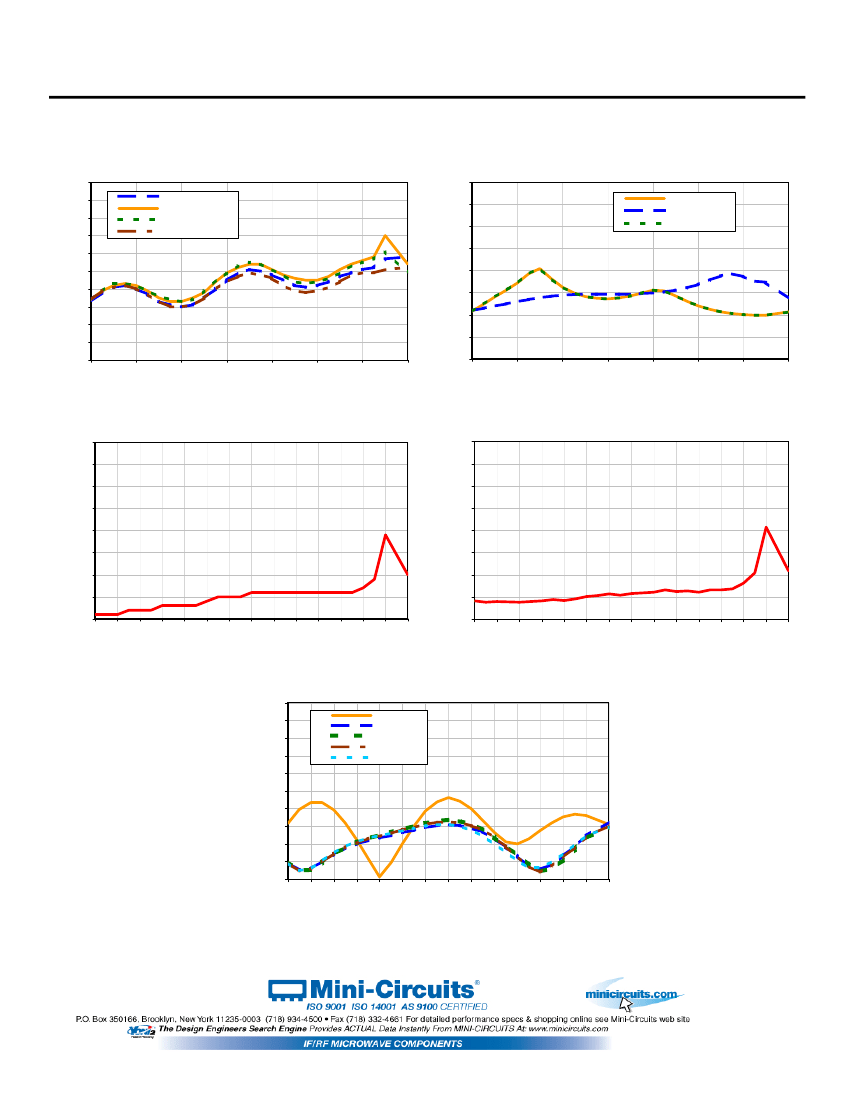

Typical Performance Data
Freq.
(MHz)
800.00
900.00
1000.00
1100.00
1200.00
1300.00
1400.00
1500.00
1600.00
1700.00
1800.00
1900.00
2000.00
2100.00
2200.00
wt
grams
260
Total Loss
1
(dB)
S-1
S-2
S-3 S-4
6.33
6.41
6.40
6.33
6.30
6.35
6.45
6.51
6.48
6.42
6.42
6.47
6.51
6.57
6.58
6.34
6.42
6.42
6.35
6.33
6.38
6.49
6.54
6.51
6.46
6.45
6.51
6.56
6.70
6.54
6.34
6.43
6.42
6.36
6.33
6.39
6.49
6.55
6.51
6.44
6.44
6.49
6.55
6.61
6.49
6.34
6.41
6.40
6.33
6.30
6.35
6.44
6.49
6.46
6.39
6.39
6.44
6.49
6.51
6.52
Amp.
Unb.
(dB)
0.01
0.01
0.02
0.03
0.03
0.04
0.05
0.06
0.06
0.06
0.06
0.06
0.07
0.19
0.10
Isolation
(dB)
1-2
2-3
3-4
21.64
28.07
34.44
40.89
32.43
28.24
27.17
28.46
31.02
28.57
24.07
21.24
20.01
19.76
21.25
21.93
23.89
25.95
27.73
28.85
29.29
29.29
29.35
29.84
31.13
33.71
37.62
37.32
34.75
27.54
21.64
28.07
34.44
40.89
32.43
28.24
27.17
28.46
31.02
28.57
24.07
21.24
20.01
19.76
21.25
Phase
Unb.
(deg.)
0.41
0.40
0.38
0.41
0.42
0.51
0.57
0.58
0.61
0.62
0.61
0.66
0.81
2.07
1.09
VSWR
S
1.32
1.43
1.39
1.22
1.01
1.20
1.39
1.46
1.40
1.26
1.20
1.28
1.35
1.36
1.31
VSWR
1
1.10
1.06
1.14
1.20
1.23
1.26
1.29
1.31
1.29
1.23
1.13
1.06
1.13
1.25
1.33
VSWR
2
1.10
1.05
1.14
1.21
1.25
1.28
1.32
1.34
1.31
1.24
1.14
1.04
1.11
1.23
1.30
VSWR
3
1.09
1.06
1.15
1.21
1.24
1.28
1.31
1.32
1.30
1.24
1.13
1.04
1.13
1.24
1.30
VSWR
4
1.09
1.06
1.15
1.21
1.25
1.28
1.30
1.31
1.28
1.20
1.11
1.07
1.15
1.24
1.30
Electrical Schematic
ZB4PD-222-75+
TOTAL LOSS
6.8
TOTAL LOSS (dB)
6.6
6.4
6.2
6.0
800
S-1(dB)
S-3(dB)
ZB4PD-222-75+
ISOLATION
80
70
ISOLATION (dB)
60
50
40
30
20
10
0
800
1-2(dB)
2-3(dB)
3-4(dB)
1.80
1.60
VSWR
1.40
1.20
1.00
800
ZB4PD-222-75+
VSWR
#S-VSWR
#1-VSWR
#3-VSWR
1000
1200
1400
1600
1800
2000
2200
1000
1200
1400
1600
1800
2000
2200
1000
1200
1400
1600
1800
2000
2200
FREQUENCY (MHz)
FREQUENCY (MHz)
FREQUENCY (MHz)
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Mini-Circuits
®
REV. A
M151107
ZB4PD-222-75+
ED-13815A
HY/CP/AM
200819
Page 2 of 2
Case Style
Outline Dimensions
UU
UU188
A
B
C
D
E
F
G
3.50
2.13
.88
.150
3.350
1.06
.125
UU188
(88.90) (54.10) (22.35) (3.81) (85.09) (26.92) (3.18)
Dimensions are in inches (mm). Tolerances: 2 Pl. + .03; 3 Pl. + .015
CASE#
H
J
K
WT. GRAMS
1.75
.44
.89
260
(44.45) (11.18) (22.61)
Notes:
1.
2.
3.
Case material: Aluminum alloy.
Case finish:
For RoHS Case Styles:
Clear chemical conversion coating, non-chrome or trivalent chrome based.
Refer to the individual model data sheet for the type of connectors available.
UU188 Rev.: AZ (02/25/19) M172688 File: UU188
This document and its contents are the property of Mini-Circuits
Sheet 1 of 1
Environmental Specifications
ENV02T3
All Mini-Circuits products are manufactured under exacting quality assurance and control standards, and are capable of meeting published specifications after being subjected to
any or all of the following physical and environmental test.
Specification
Test/Inspection Condition
Reference/Spec
Operating Temperature
Storage Temperature
Life (HTOL)
Humidity
Thermal Shock
Solder Reflow Heat
Solderability
Vibration (High Frequency)
Mechanical Shock
Marking Resistance to Solvents
ENV02T3 Rev: A
This document and its contents are the property of Mini-Circuits.
stiucriC-iniM
0° to 70° C
Ambient Environment
-55° to 100° C
Ambient Environment
1000 hours at max operating temperature
Individual Model Data Sheet
Individual Model Data Sheet
MIL-STD-202, Method 108, Condition D
90 to 95% RH, 240 hours, 50°C
MIL-STD-202, Method 103, Condition A, Except 50°C
and end-point electrical test done within 12 hours
-55° to 100°C, 100 cycles
MIL-STD-202, Method 107, Condition A-3, except
+100°C
Sn-Pb Eutectic Process: 225°C peak
Pb-Free Process, 245°C peak
10X Magnification
J-STD-020, Table 4-1, 4-2 and 5-2, Figure 5-1
J-STD-002, 95% Coverage
20g peak, 10-2000 Hz, 12 times in each of three
perpendicular directions (total 36)
MIL-STD-202, Method 204, Condition D
50g, 11 ms, 1/2-sine, 18 shocks: 3 each direction, each of 3
axes
MIL-STD-202, Method 213, Condition A
Isopropyl alcohol + mineral spirits at 25°C; terpene defluxer
at 25°C;
distilled water + proylene glycol monomethyl ether +
monoethanolamine at 63°C to 70°C
MIL-STD-202, Method 215
02/25/11
M130240
File: ENV02T3.pdf
Page: 1
