SUZHOU GOOD-ARK ELECTRONIC CO., LTD
苏州固锝电子股½有限公司
Product Specification
GOODARK Type
MBR860,MBRF860
Construction : : Schottky Barrier Rectifier
Application
: For General Purpose
（Manufacturer）:
Suzhou Goodark Electronics Co.,Ltd
Prepared on Sep. 17
th
, 2008
Prepared: R & D Department
Approval：QRA Deparment
Pin1
Pin2
Pin 2
Pin 1

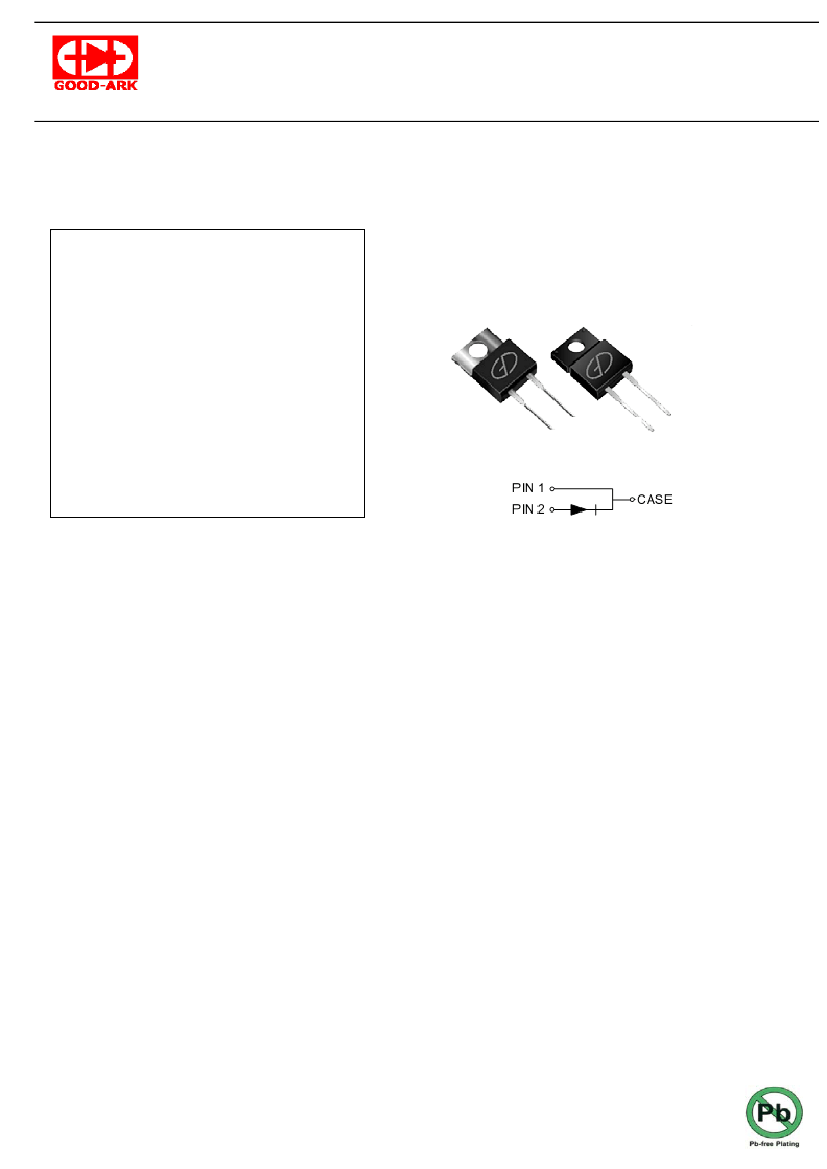

SCHOTTKY BARRIER RECTIFIER
8 AMPERES
60 VOLTS
CONTENTS
1.
2.
3.
4.
5.
6.
7.

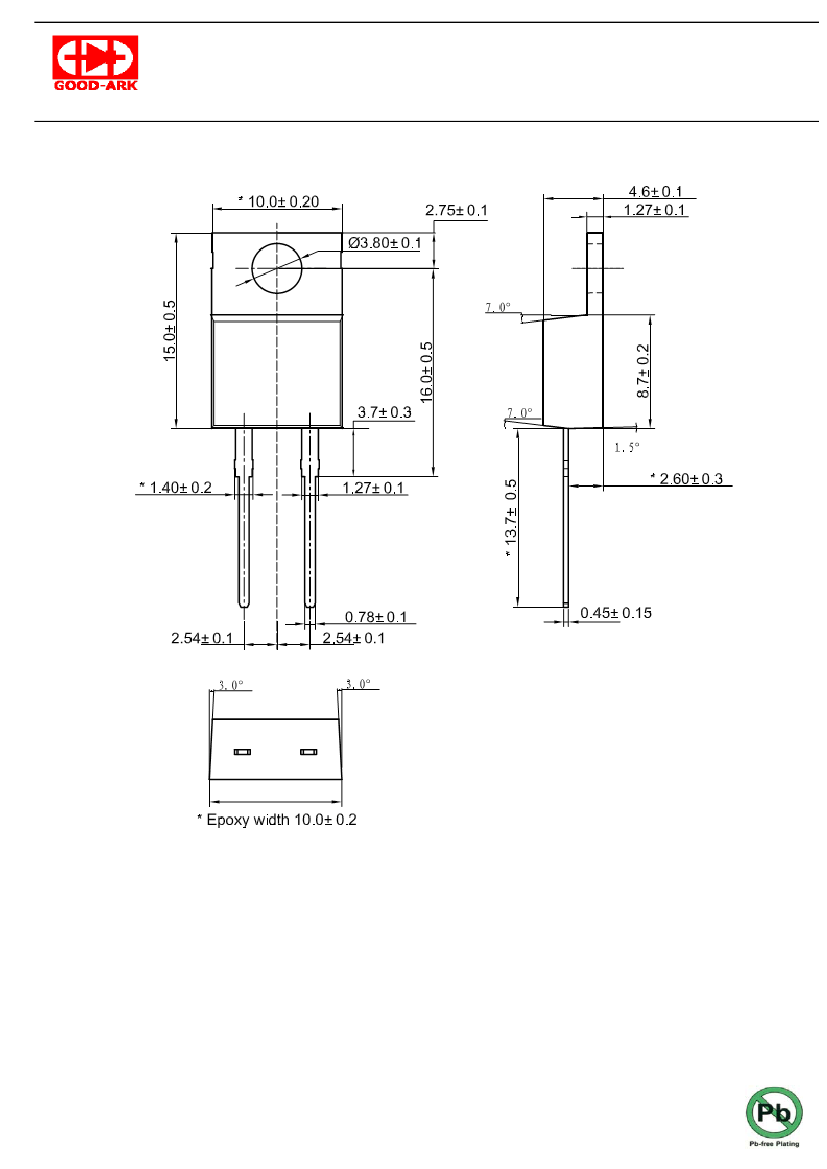

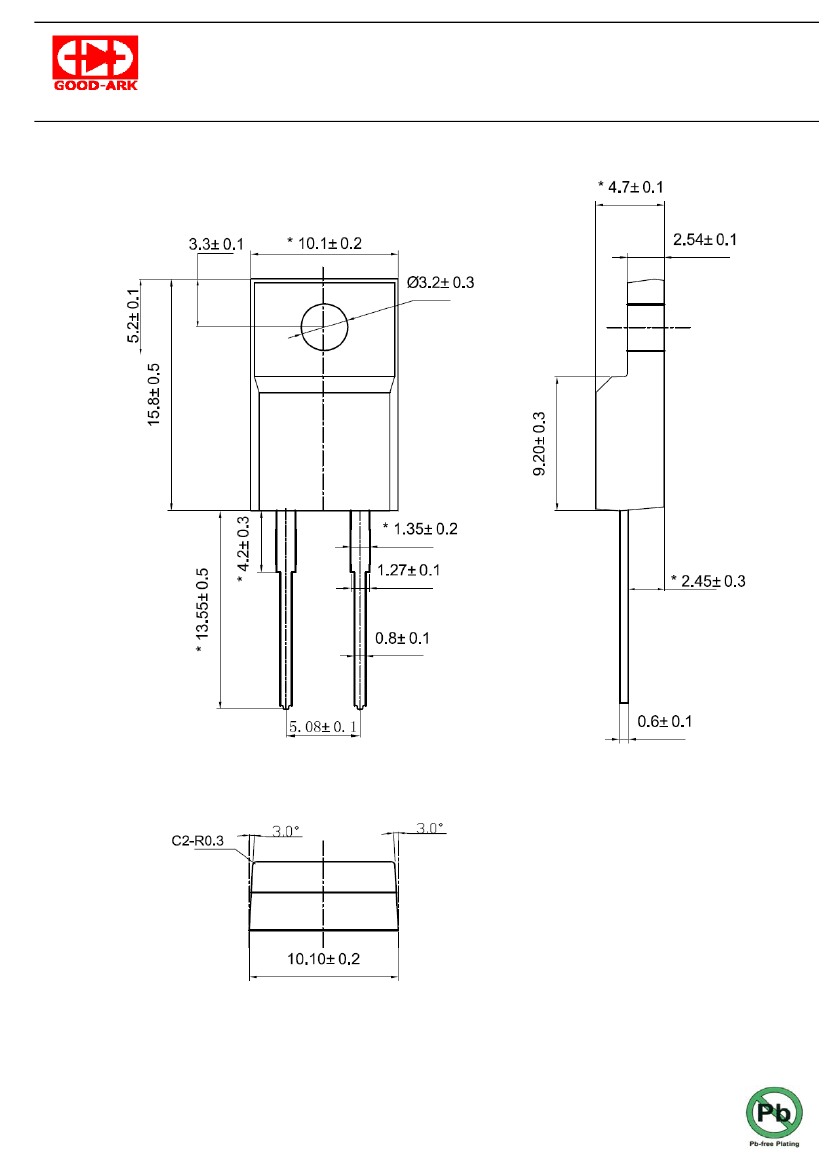

Package Outline
Marking
Features& Mechanical Characteristics
Maximum Ratings and Electrical Characteristics
Rating and characteristic Curves
Packing Specification PACKAGING SPECIFICATION
Description of Box Label
1/7
SUZHOU GOOD-ARK ELECTRONIC CO., LTD
苏州固锝电子股½有限公司
3. Features& Mechanical Characteristics
Features
●
Plastic package has underwriters Laboratory
Flammability Classification 94V-0
●
Dual rectifier construction，positive center tap
●
Metal of silicon rectifier，majority carrier conduction
●
Low forward voltage，high efficiency
●
Guarding for over voltage protection
●
For use in low voltage，high frequency inverters，
●
Free wheeling，and polarity protection applications
Mechanical Characteristics
●
Case：Epoxy，Molded
●
Weight: 1.9grams（approximately）
●
Finish：All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
●
Lead Temperature for Soldering Purposes：260
°C
Max.for10 sec
●
Shipped 50 units per plastic tube
4. Maximum Ratings and Electrical Characteristics
MAXIMUM RATINGS and ELECTRICAL CHARACTERISTICS(TC=25
°C
unless otherwise moted)
PARAMETER
TEST CONDITIONS
SYMBOL
MBR（F）860
Maximum repetitive peak reverse voltage
60
V
RRM
Working peak reverse voltage
60
V
RWM
Maximum DC blocking voltage
60
V
DC
Maximum average forward rectified current at
I
F
(AV)
8
Tc=100°C total device per diode
Peak forward surge current 8.3ms single half sine-wave
superimposed on rated load per diode
Peak repetitive reverse current per leg at tp=2.0us
，1KHz
Operating junction temperature range
Storage temperature range
Voltage rate of change（rated VR）
Isolation voltage (ITO220 only) from terminal to heatsink
t = 1 sec
Maximum instantaneous forward voltage per leg
IF=8A
IF=8A
T
C
=25℃
T
C
=125℃
T
J
=25℃
T
J
=100°C
UNIT
V
V
V
A
A
A
°C
°C
V/us
V
V
uA
mA
I
FSM
I
RRM
T
J
T
STG
DV/dt
150
1
―55
to+150
―55
to+150
10000
1500
0.80
0.70
200
15
VAC
VF
I
R
Maximum reverse current per leg at working peak
Reverse voltage
Thermal Characteristics Ta=
25
℃
unless otherwise noted
Symbol
R
θJC
R
θJA
Note：
Parameter
Thermal Resistance，Junction to Case per Leg
Thermal Resistance，Junction to Ambient per Leg
Max
（TO220AC）
2.0
62.5
Max
（TO220F-AC）
4.0
62.5
Unit
°C /W
°C /W
1. Screw mounting with 4-40 screw，where washer diameteris≤4.9mm(0.19〃)
2. Pulse test:300us pulse width,1% duty cycle
5/7
