MHS233K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > unclassified> MHS233K

MHS233K: DescriptionSLIDE SWITCH, DP3T, LATCHED, 0.3A, 30VDC, THROUGH HOLE-STRAIGHT; Categoryunclassified; File Size264KB，5 Pages; ManufacturerETC2

Download Datasheet Parametric Compare View All

MHS233K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MHS233K	-	-	View	Buy Now

MHS233K Overview

SLIDE SWITCH, DP3T, LATCHED, 0.3A, 30VDC, THROUGH HOLE-STRAIGHT

MHS233K Parametric

Parameter Name	Attribute value
Maximum DC contact current	0.3000 A
Maximum DC contact voltage	30 V
Minimum operating temperature	-20 Cel
Maximum operating temperature	85 Cel
each_compli	Yes
state	Active
Switch type	SLIDE SWITCH
width	6.8 mm
high	7.5 mm
length or diameter	16 mm
contact_dc_max_rating_r_load	.3A@30VDC
Electrical life	10000 Cycle(s)
jesd_609_code	e4
Manufacturer Series	MHS
Installation features	THROUGH HOLE-STRAIGHT
maximum control	3.92 N
seal	EPOXY TERMINAL SEALED
Switch action	LATCHED
switch function	DP3T
terminal coating	SILVER
Terminal type	SOLDER

Preview

Download Datasheet

View All

MHS Series

Miniature Slide Switches

with aluminum actuator

SPECIFICATIONS

Contact rating:

300 mA at 30 VDC

Initial contact resistance:

20 milliohms max.

Insulation resistance:

100 megohms min. at 500 VDC

Dielectric strength:

500 VAC for 1 minute

Electrical life:

10,000 cycles min.

Operating temperature range:

-20°C to +85°C

Solder heat resistance:

260°C max. for 3 seconds

Actuation force:

250 ±150 grams

Solvent washing permissible

FEATURES

Miniature compact size.

Positive spring loaded ball detent mechanism.

Epoxy sealed terminals.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Wash-through open frame construction.

MATERIALS

Contacts & terminals:

Silver plated brass

Housing:

Tin plated steel

Actuator:

Aluminum alloy

Base:

Phenolic laminated sheet

.157 (4.0) TRAVEL/THROW

Terminal seal:

Epoxy

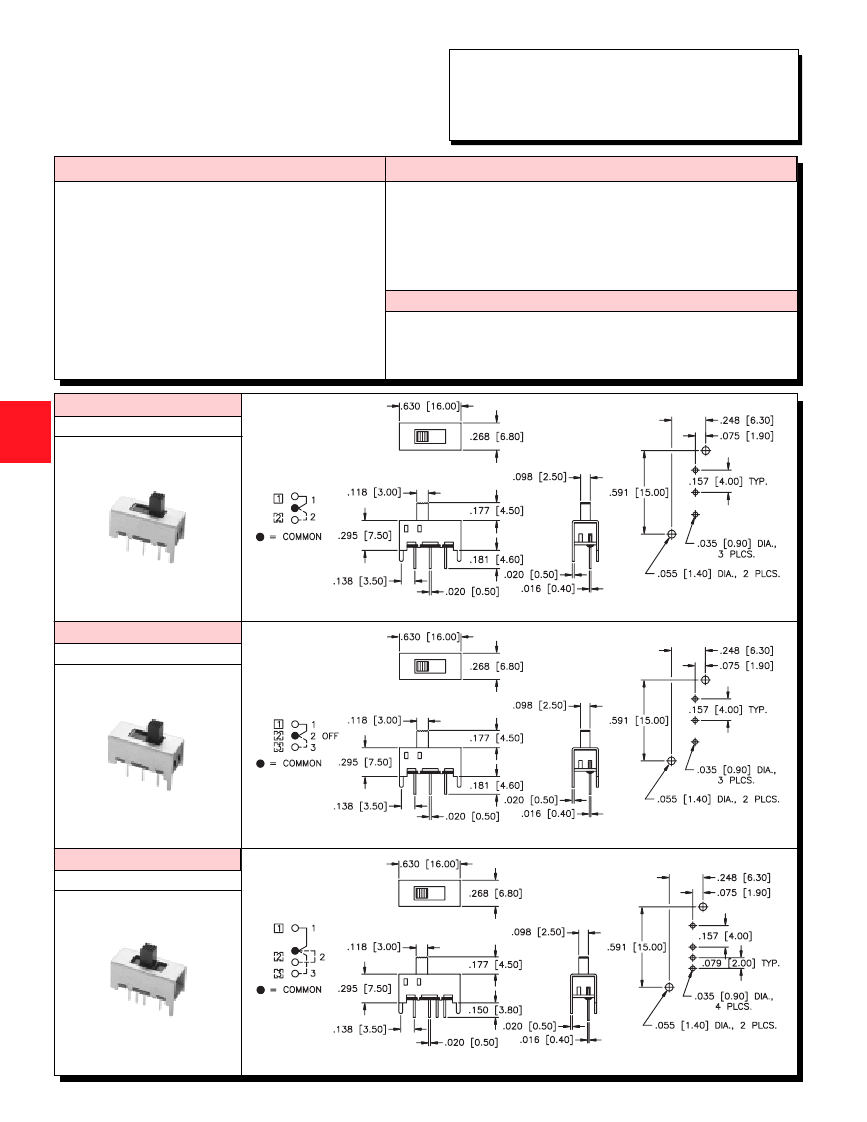

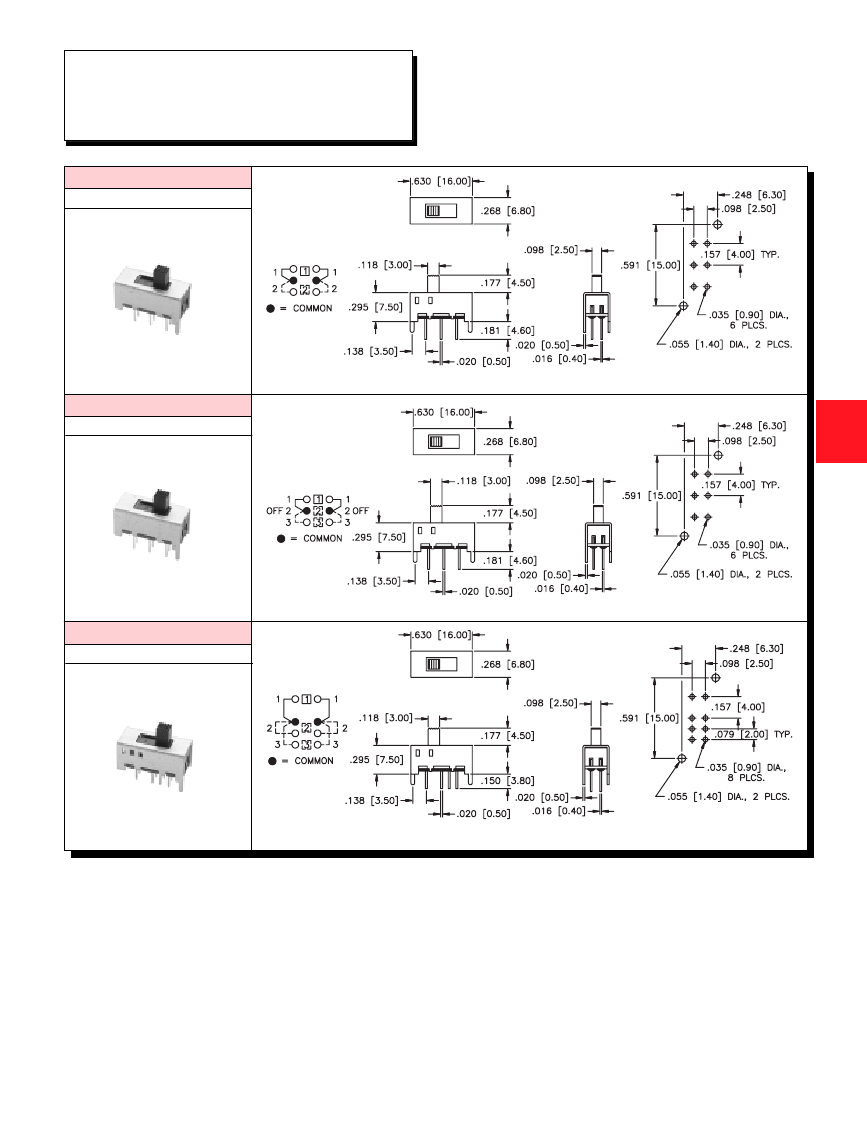

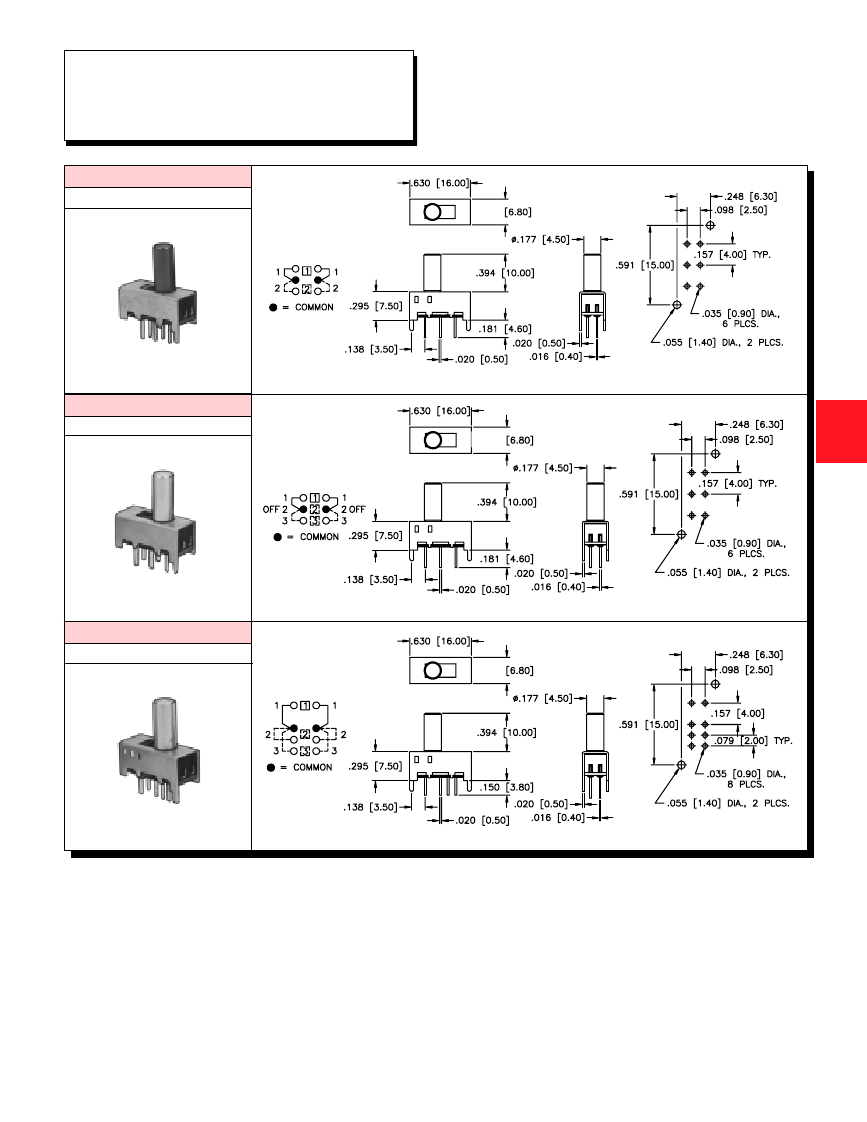

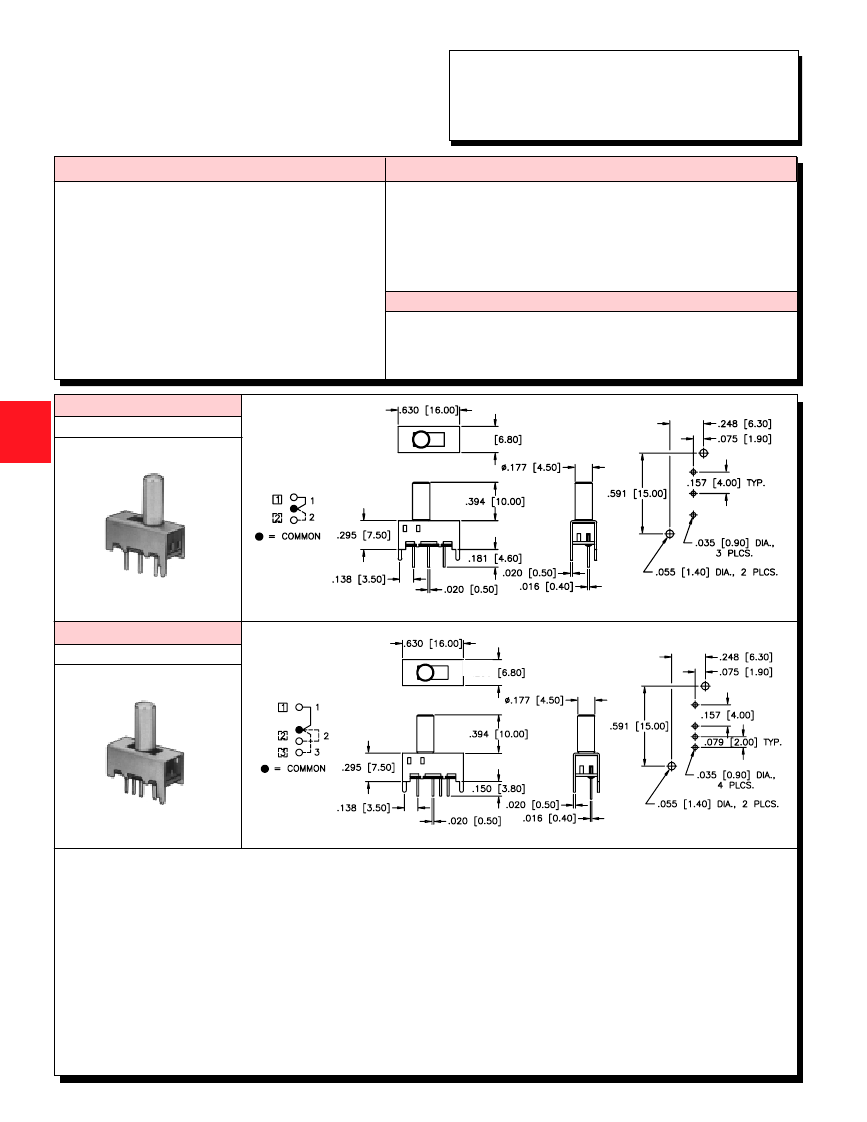

MODEL NO.

MHS122K

1P2T

.268

VERTICAL ACTUATOR

MODEL NO.

MHS133K

SCHEMATIC

MECHANICAL OUTLINE

P.C. BOARD LAYOUT

1P3T

.268

.079 (2.00) TRAVEL/THROW

VERTICAL ACTUATOR

SCHEMATIC

MECHANICAL OUTLINE

P.C. BOARD LAYOUT

O14

APEM

, PO BOX 8288, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
