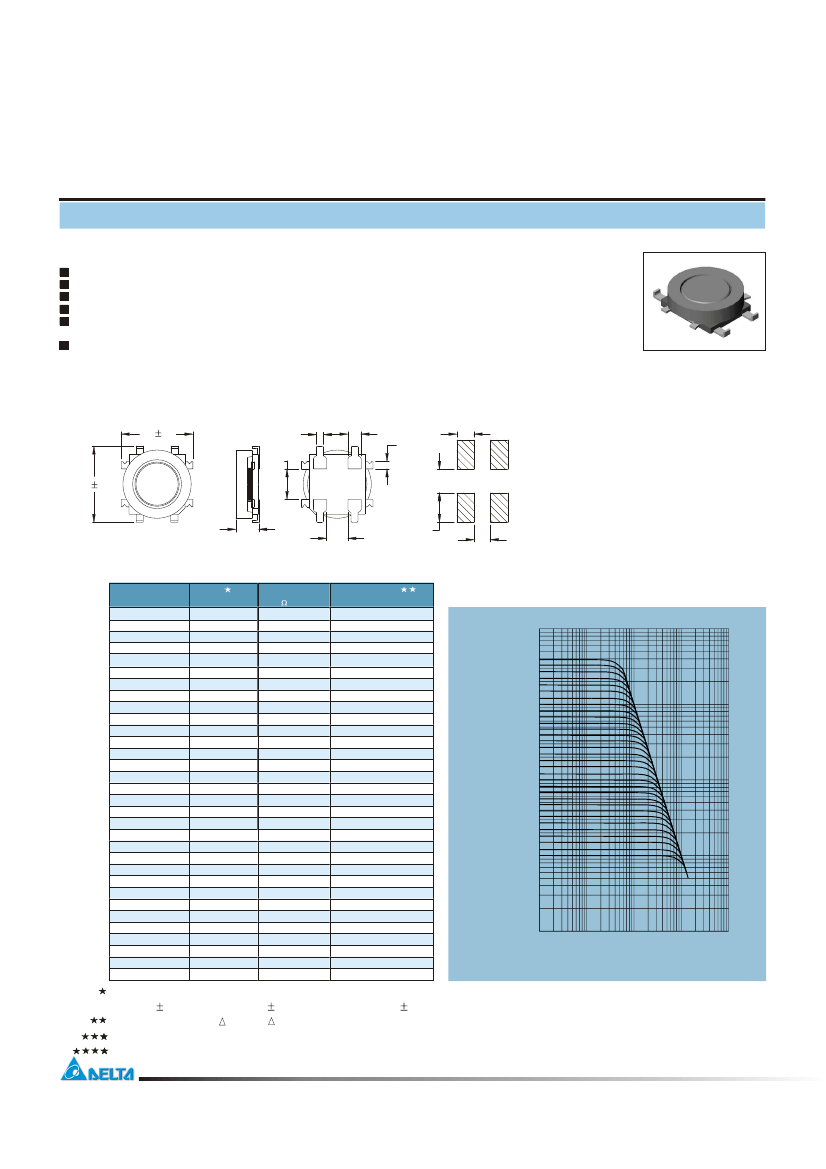

SMT Power Inductor

SIC73 Type

Features

Low profile (2.5mm max. height) SMD type.

Magnetically shielded,suitable for high density mounting.

High energy storage and low DCR.

Provided with embossed carrier tape packing.

Ideal for power source circuits, DC-DC converter,

DC-AC inverters inductor application.

In addition to the standard versions shown here,

custom inductors are available to meet your exact requirements.

Mechanical Dimension:

Unit: mm

6.8 0.5

2.8

7.5 0.5

Recommended Pad

0.7

1.2

0.7

1.7

2.3

2.5 Max.

2.0

2.9

1.6

Electrical Characteristics:

PART NO.

SIC73-100

SIC73-120

SIC73-150

SIC73-180

SIC73-220

SIC73-270

SIC73-330

SIC73-390

SIC73-470

SIC73-560

SIC73-680

SIC73-820

SIC73-101

SIC73-121

SIC73-151

SIC73-181

SIC73-221

SIC73-271

SIC73-331

SIC73-391

SIC73-471

SIC73-561

SIC73-681

SIC73-821

SIC73-102

SIC73-122

SIC73-152

SIC73-182

SIC73-222

SIC73-272

SIC73-332

SIC73-392

(UH)

100

120

150

180

220

270

330

390

470

560

680

820

1000

1200

1500

1800

2200

2700

3300

3900

DCR

( ) MAX

0.200

0.220

0.291

0.307

0.355

0.412

0.456

0.580

0.671

0.735

0.981

1.110

1.250

1.400

1.850

2.110

2.540

4.130

4.350

4.860

6.640

7.250

8.180

9.680

15.400

18.100

18.800

20.600

32.300

36.800

40.900

48.800

RATED

(Adc)

0.700

0.616

0.572

0.524

0.468

0.432

0.392

0.372

0.340

0.284

0.276

0.256

0.228

0.208

0.188

0.168

0.160

0.144

0.128

0.120

0.104

0.096

0.088

0.080

0.072

0.070

0.064

0.055

0.050

0.046

0.040

0.037

10000.00

392

332

272

222

182

152

122

102

821

681

561

471

391

331

271

221

181

151

121

101

820

680

560

470

390

330

270

220

180

150

120

100

1000.00

INDUCTANCE (uH)

100.00

10.00

1.00

0.00

0.01

0.10

CURRENT (A)

1.00

10.00

Tolerance of inductance

10~82uH 30%

100~820uH 20%

1000~3900uH 10%

RATED

: rated current. L<10%, T<45 C at I

RATED

Operating temperature: -20

C to 105

C (including self-temperature rise)

Test condition at 25

C: 1KHz, 1V

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com
