NTB15N40

Description
N−Channel Power MOSFET
CategoryDiscrete semiconductor    The transistor
File Size153KB,5 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric Compare View All

NTB15N40 Overview

N−Channel Power MOSFET

NTB15N40 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerON Semiconductor
package instructionD2PAK-3
Contacts3
Reach Compliance Code_compli
ECCN codeEAR99
Avalanche Energy Efficiency Rating (Eas)675 mJ
Shell connectionDRAIN
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage400 V
Maximum drain current (Abs) (ID)15 A
Maximum drain current (ID)15 A
Maximum drain-source on-resistance0.26 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeR-PSSO-G2
JESD-609 codee0
Number of components1
Number of terminals2
Operating modeENHANCEMENT MODE
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeN-CHANNEL
Maximum power dissipation(Abs)202 W
Maximum pulsed drain current (IDM)53 A
Certification statusNot Qualified
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON

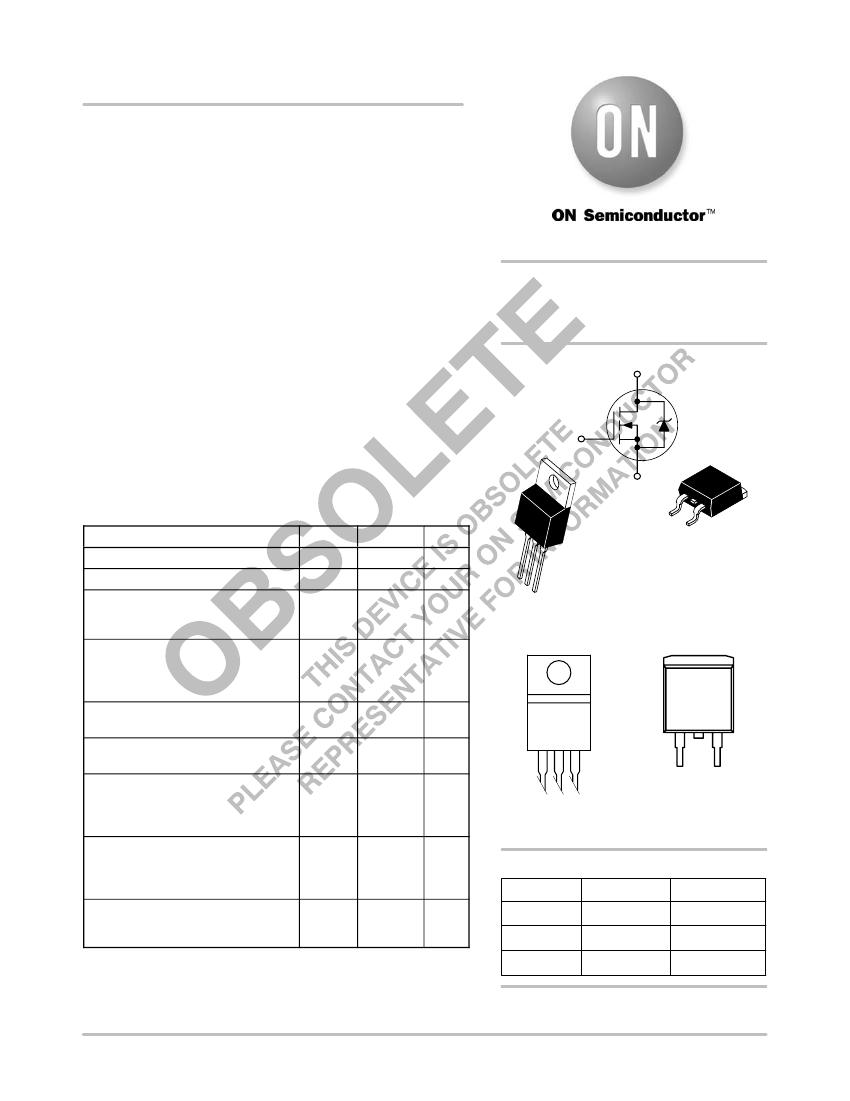

NTP15N40, NTB15N40
Preferred Device
Advance Information
Power MOSFET
15 Amps, 400 Volts
N−Channel TO−220 and D
2
PAK
Designed for high voltage, high speed switching applications in
power supplies, converters, power motor controls and bridge circuits.
Features
http://onsemi.com
Higher Current Rating
Lower R
DS(on)
Lower Capacitances
Lower Total Gate Charge
Tighter V
SD
Specifications
Avalanche Energy Specified
Switch Mode Power Supplies
PWM Motor Controls
Converters
Bridge Circuits
15 AMPERES
400 VOLTS
R
DS(on)
= 260 mΩ
N−Channel
D
Typical Applications
G
4
S
1
Unit
Vdc
Vdc
Vdc
V
GS
V
GSM
I
D
I
D
"20
"40
Adc
Continuous
Continuous @ 100°C
Single Pulse (t
p
v10
μs)
Total Power Dissipation
Derate above 25°C
Operating and Storage Temperature
Range
Single Drain−to−Source Avalanche
Energy
Starting T
J
= 25°C
(V
DD
= 100 V, V
GS
= 10 Vdc,
I
L
= 15 A, L = 6 mH, R
G
= 25
Ω)
Thermal Resistance
Junction−to−Case
Junction−to−Ambient
Junction−to−Ambient (Note 1.)
Maximum Lead Temperature for
Soldering Purposes, 1/8″ from case
for 10 seconds
15
12
53
202
1.61
−55
to 150
675
Watts
W/°C
°C
mJ
Drain
NTP15N40
LLYWW
Gate
Source
Gate
Drain
Source
1
2

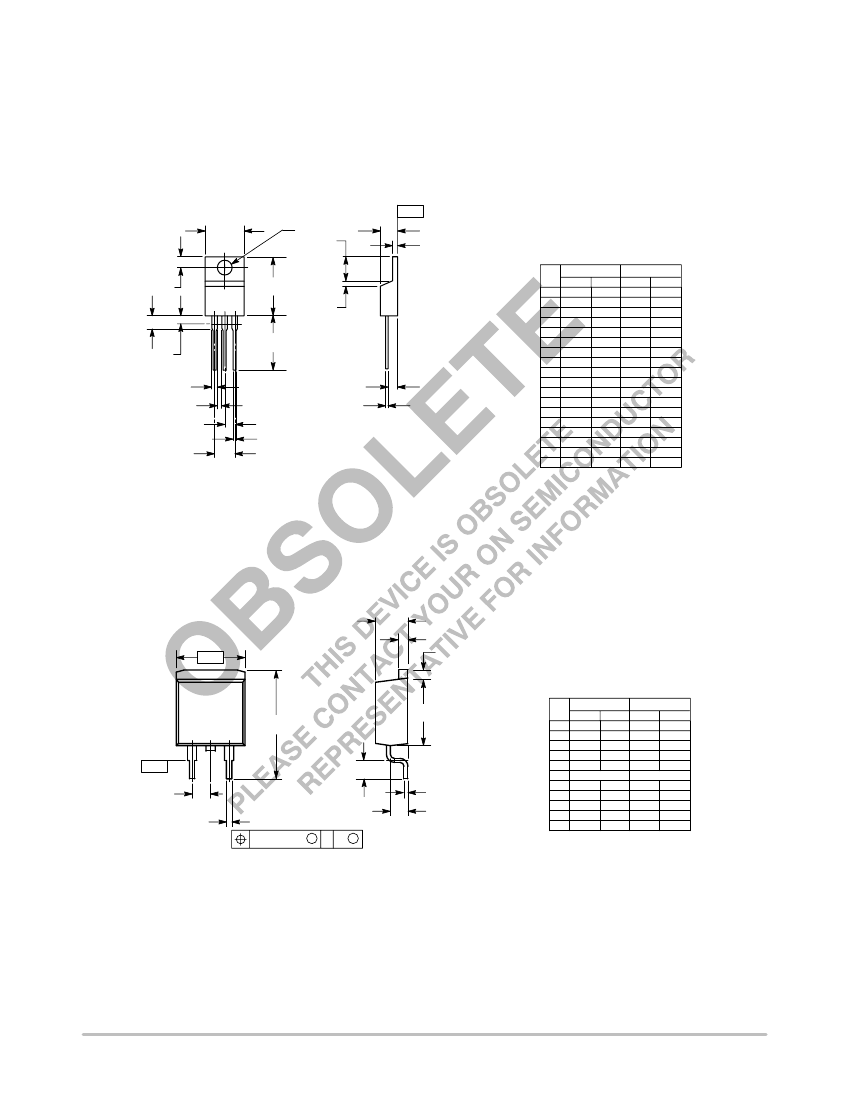

TO−220AB
CASE 221A
STYLE 5
3
2
3
D
2
PAK
CASE 418B
STYLE 2
4
MAXIMUM RATINGS
(T
C
= 25°C unless otherwise noted)
Rating
Drain−Source Voltage
Drain−Gate Voltage (R
GS
= 1.0 MΩ)
Gate−Source Voltage
Continuous
Non−Repetitive (t
p
v10
ms)
Drain
Symbol
V
DSS
V
DGR
Value
400
400
MARKING DIAGRAMS
AND PIN ASSIGNMENTS
Drain
Drain
I
DM
P
D
T
J
, T
stg
E
AS
NTB15N40
LLYWW
NTx15N40
LL
Y
WW
= Device Code
= Location Code
= Year
= Work Week
R
θJC
R
θJA
R
θJA
T
L
0.62
62.5
50
260
°C/W
ORDERING INFORMATION
Device
°C
NTP15N40
NTB15N40
NTB15N40T4
Package
TO−220AB
D
2
PAK
D
2
PAK
Shipping
50 Units/Rail
50 Units/Rail
800/Tape & Reel
1. When surface mounted to an FR4 board using the minimum recommended
pad size.
This document contains information on a new product. Specifications and information
herein are subject to change without notice.
Preferred
devices are recommended choices for future use
and best overall value.
©
Semiconductor Components Industries, LLC, 2006
August, 2006
Rev. 2
1
Publication Order Number:
NTP15N40/D
