PBB20C Series
A C / D C S I N G L E O U T P U T S U P P LY
FEATURES
•
•
•
•
•
•
•
•
10 - 1500W
AC/DC Power Supply
Small size and light weight
Fan alarm (300W-1500W)
Remote ON/OFF (300W-1500W)
Parallel operation and current sharing (300W - 1500W)
Short circuit and over current protected
Conformal coating option for wet areas
SPECIFICATIONS
INPUT
Voltage
Frequency
Inrush current
OUTPUT
Output Voltage
Voltage Adjustment
Output Current
Minimum Load
Output Ripple
Line regulation
Load regulation
Temperature drift
Remote sense
Remote inhibit
Rise time
Holdup time
Efficiency
PROTECTION
Over Current Protection
Over Voltage Protection
Isolation
Works at approximately 105% of rated current
with auto recovery
Model dependent 115%-140% Vout typical
Input - Output 3000Vac
Input - Case 2000Vac
Output - Case 500Vac
300W - 1500W - Unit shuts down when
temperature exceeds de-rating curve when FAN
stops or when air flow is interrupted
300W - 1500W: Open Collector "Low DC OK"
0.5V "High DC not OK" 5V LED for V output
Dimensions and Weight
See Selection Table.
See Selection Table.
See Selection Table.
Unit will operate with zero load.
3.3Vdc - 24Vdc < 150mVp-p
48Vdc < 250mVp-p
Typically 0.4%
Typically 0.8%
1% over 0°C to 50°C
Provided on PBB20C-T to V model
Provided on PBB20C-T to V model
Model dependent 600ms max
20ms typical
Typ. 82%
EMI compliances
CE marking
MECHANICAL
Connector
Screw Termination

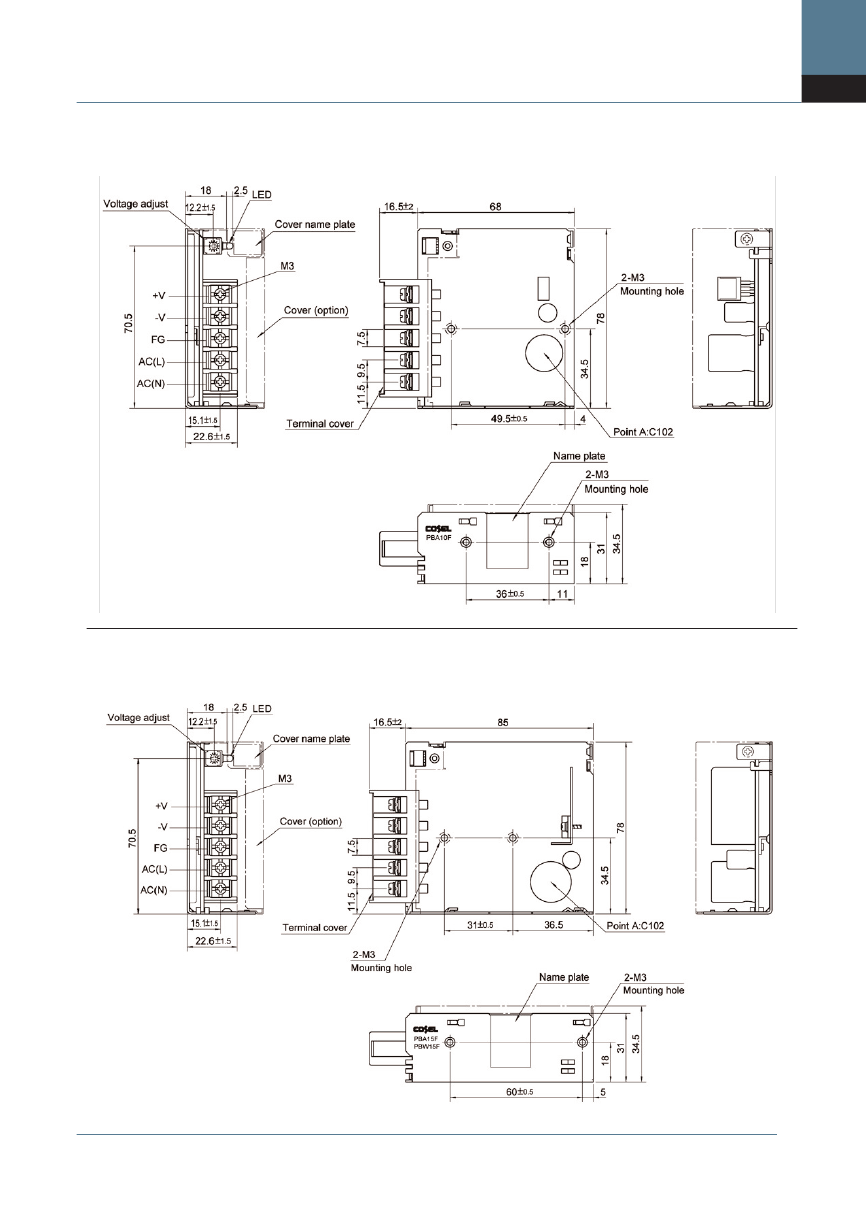

PBB20C-D, 10W : 31 x 78 x 68mm, 150g
PBB20C-F, 15W : 31 x 78 x 85mm, 200g

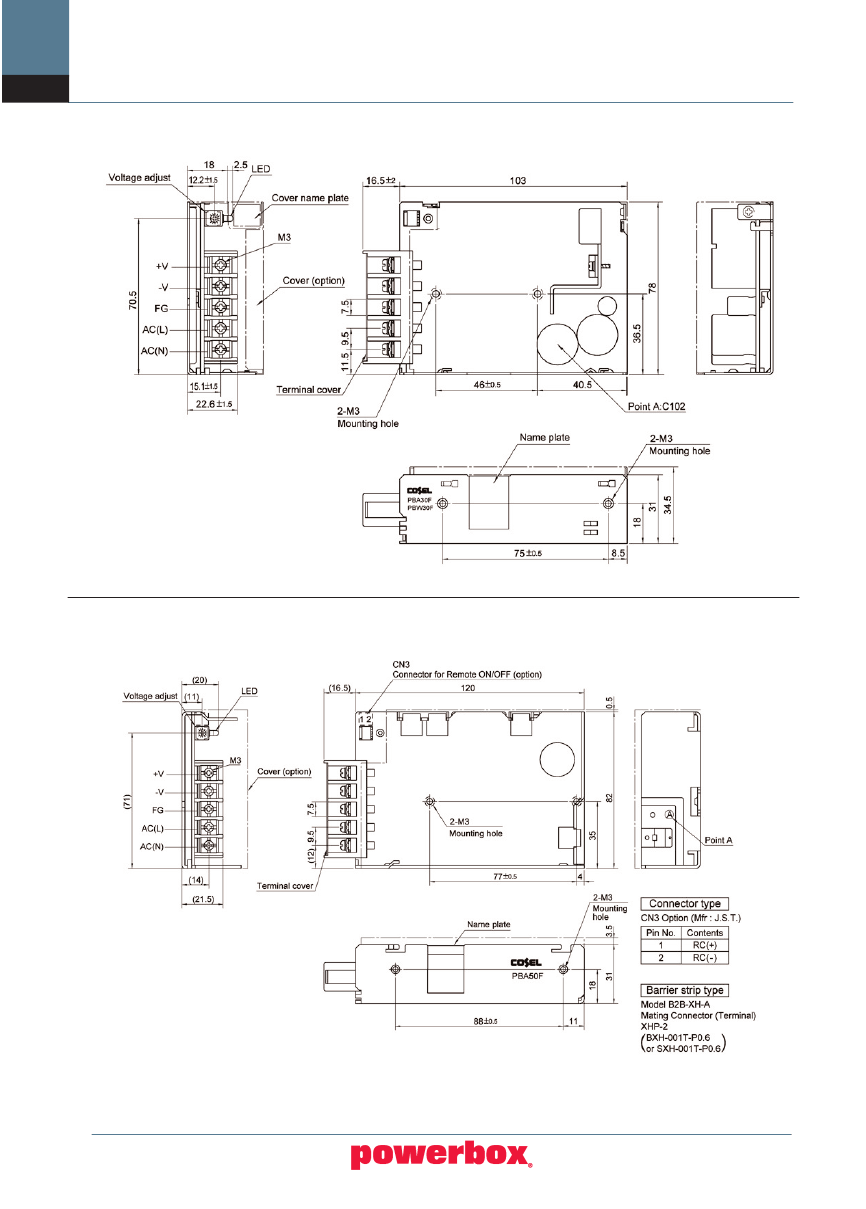

PBB20C-H, 30W: 31 x 78 x 103mm, 270g
PBB20C-J, 50W: 31 x 82 x 120mm, 280g
PBB20C-L, 75W: 32 x 82 x 135mm, 350g
PBB20C-M, 100W : 32 x 93 x 147mm, 440g
PBB20C-R, 150W : 34 x 93 x 168mm, 560g
PBB20C-T, 300W : 102 x 42 x 170mm, 1.0kg
PBB20C-X, 600W : 120 x 61 x 190mm, 1.6kg
PBB20C-W, 1000W : 150 x 61 x 240mm, 2.2kg
PBB20C-V, 1500W : 178 x 61 x 268mm, 3.4kg
PBB20C Chassis Mounting
Humidity
Vibration
Shock
STANDARDS & APPROVALS
Safety
C-Tick
EMC compliances
UL60950-1, C-UL(CSA60950-1), EN60950-
1,EN50178, Complies with DEN-AN.
AS/NZS CISPR11 Group 1 Class A.
EN61204-3, EN61000-6-2
EN61000-4-2,-3,-4,-5,-6,-8,-11
Complies with FCC-B, CISPR22-B, EN55011-B,
EN55022-B, VCCI-B
Complies with LVD and EMC Directives
Cooling
85~264Vac / 120~370Vdc.
47-63Hz.
PBB20C-D, F, H, J, L 30A typical
PBB20C-M, R, T, X, W, V 40A typical.
Operating Temperature
ENVIRONMENTAL
10W-150W convection 10°C to 71°C
Derate from 40°C to 71°C with cover
Derate from 60°C to 71°C without cover
300W-1500W convection -20°C to 71°C
Derate from 50°C to 71°C at 50% power
10W-150W models convection cooled.
300W-1500W models internal fan cooling.
20%-90% non-condensing.
10Hz-55Hz at 2G
20G 11ms X, Y, Z axis
Thermal protection
DC OK / FAN alarm
Chassis Plate Mounting
1
Doc. No. PBB20C Rev.E 25-11-15
