RM062PJ363CS: DescriptionArray/Network Resistor, Isolated, Metal Glaze/thick Film, 0.0313W, 36000ohm, 12.5V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0203, CHIP; CategoryPassive components The resistor; File Size406KB，8 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/; Environmental Compliance

Download Datasheet Parametric Compare View All

RM062PJ363CS Overview

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.0313W, 36000ohm, 12.5V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0203, CHIP

RM062PJ363CS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7180798747
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	45 weeks
structure	Chip
The first element resistor	36000 Ω
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	2
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.23 mm
Package length	0.8 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	0.6 mm
method of packing	TR, PUNCHED PAPER, 7 INCH
Rated power dissipation(P)	0.0313 W
Rated temperature	70 °C
resistance	36000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
size code	0203
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	12.5 V

Preview

Download Datasheet

View All

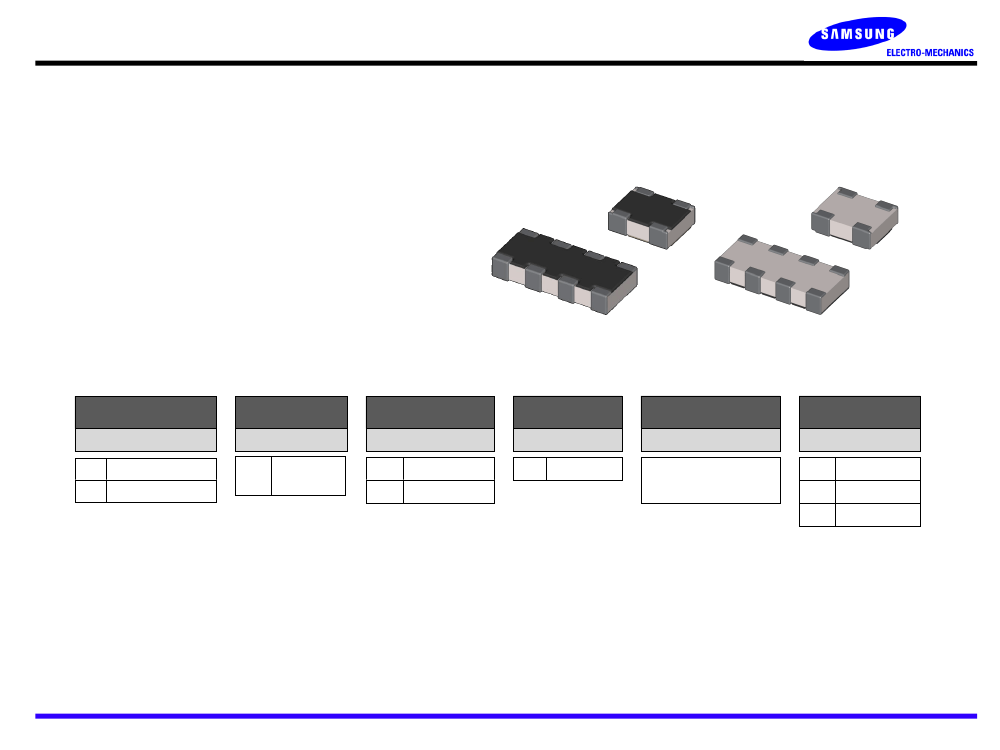

Flat Type Array Resistors (RF, RM)

Flat Type Chip Array Resistors

(RF, RM series)

■ Features

●

Save SMD surface area

Save SMD cost

Inverted Type (Reduce the open circuit)

Flat Terminal Type

RoHS Compliant.

■ Part Number System

Type

Flat Array

Inverted Array

Size

# of Resistors

2 pieces

4 pieces

Tolerance

150

Resistance Value

Packing Type

7” reel

10” reel

13” reel

0603

(0201)

±5%

* Jumper :

‘J’

3-digit coding

(E-24 series)

* Jumper :

‘000’
