2.2 dB NF, 20 mW, 8 GHz to 12 GHz, Low
Noise Amplifier, 38 dB Gain, SMA
TECHNICAL DATA SHEET
PE15A1003
PE151003 is a X-band coaxial low noise amplifier operating in the 8 to 12 GHz frequency range. The amplifier offers 2.2 dB
noise figure, 13 dBm minimum of saturated power and high 38 dB minimal small signal gain with the excellent gain flatness
of ±1.0dB max. This exceptional technical performance is achieved through the use of hybrid MIC design and advanced
GaAs PHEMT devices. The low noise amplifier requires typically a +12V DC power supply. The connectorized SMA module
is unconditionally stable and includes built-in voltage regulation, bias sequencing, and reverse bias protection for added
reliability. The amplifier operates over the temperature range of -40°C and +85°C.
Features
•
•
•
•
•
•
8 GHz to 12 GHz Frequency Range
Psat: 13 dBm min
High Small Signal Gain: 38 dB
Gain Flatness: ±1.0 dB max
Noise Figure: 2.2 dB
50 Ohms Input and Output Matched
•
•
•
•
•
-40 to 85°C Operating Temperature
Unconditionally Stable
Regulated Supply & Bias Sequencing
Hermetically Sealed Module
Overvoltage External Protection
Applications
•
•
•
•
Laboratory Applications
R&D Labs
Radar Systems
Telecom Infrastructure
•
•
•
•
Test Instrumentation
Military & Space
Communication Systems
Microwave Radio Systems
•
•
•
•
Satellite Communications
Low Noise Amplifier
General Purpose Amplification
Gain Block
Electrical Specifications
(TA = +25°C, DC Voltage = 12Volts, DC Current = 250mA)
Description
Frequency Range
Small Signal Gain
Minimum Psat
Noise Figure
Input VSWR
Output VSWR
Operating DC Voltage
Operating DC Current
Operating Temperature Range
..
-40
11
12
Minimum
8
38
+13
Typical
Maximum
12
Units
GHz
dB
dBm
2.2
2:1
2:1
13
250
+85
dB
Volts
mA
°C
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
2.2 dB NF, 20 mW, 8 GHz to 12 GHz, Low Noise Amplifier, 38 dB Gain, SMA PE15A1003
PE15A1003 REV 1.0
1
2.2 dB NF, 20 mW, 8 GHz to 12 GHz, Low
Noise Amplifier, 38 dB Gain, SMA
TECHNICAL DATA SHEET
Absolute Maximum Rating
Parameter
Source Voltage
RF input Power
Operating Temperature (base-plate)
Storage Temperature
PE15A1003
Rating
+15
+17
-40 to +85
-55 to +85
Units
Volts
dBm
°C
°C
ESD Sensitive Material,
Transport material in
Approved ESD bags.
Handle only in approved
ESD Workstation.
.
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Plotted and Other Data
Notes:
•
Values at +25 °C, sea level
•
ESD Sensitive Material, Transport material in Approved ESD bags. Handle only in approved ESD Workstation.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
2.2 dB NF, 20 mW, 8 GHz to 12 GHz, Low Noise Amplifier, 38 dB Gain, SMA PE15A1003
PE15A1003 REV 1.0
2
2.2 dB NF, 20 mW, 8 GHz to 12 GHz, Low
Noise Amplifier, 38 dB Gain, SMA
TECHNICAL DATA SHEET
Power Data
PE15A1003
dB
50
40
30
20
10
0
-10
-20
-30
8

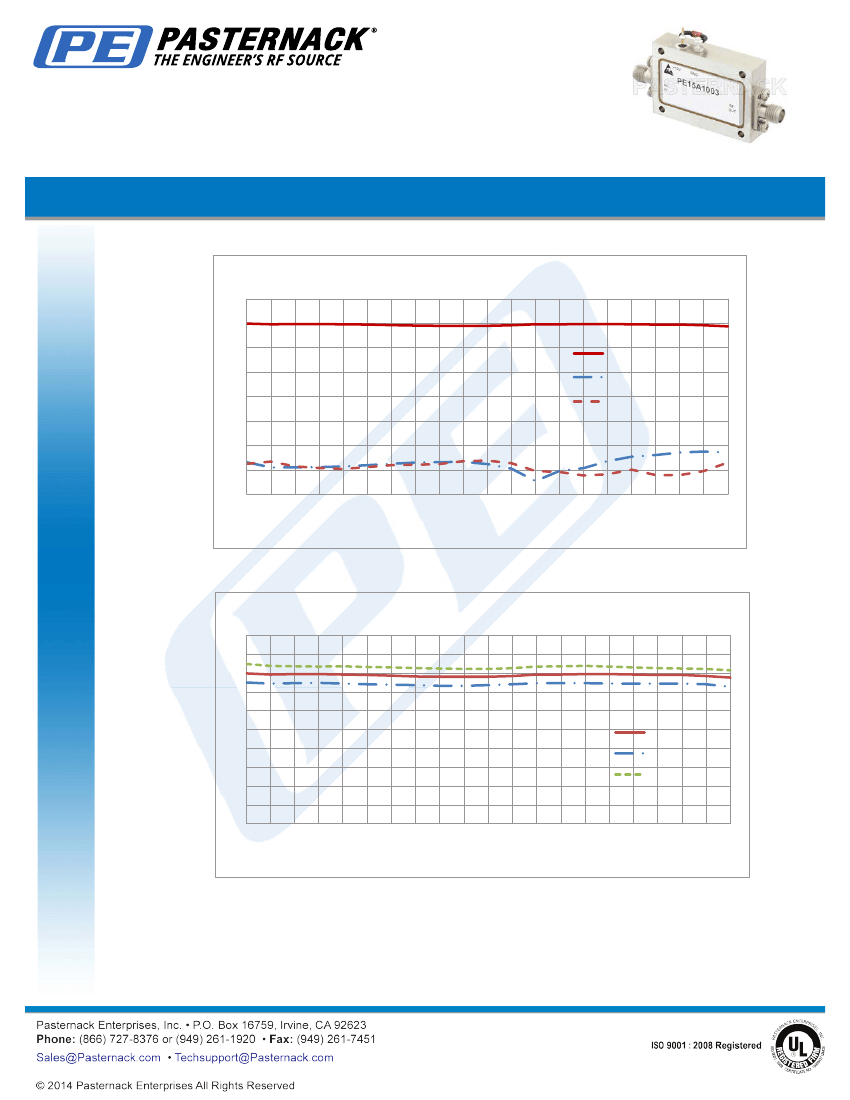

Gain, Input Return Loss and Output Return Loss
Gain(dB) 25 C
IN_Return Loss(dB)
OUT_Return Loss(dB)
8.2 8.5 8.6 8.8
9
9.2 9.4 9.5 9.8 10 10.2 10.5 10.6 10.8 11 11.2 11.4 11.5 11.8 12
Freq.(GHz)
dB
50
45
40
35
30
25
20
15
10
5
0
8
8.2 8.5 8.6 8.8
9
Gain vs Temperature
Gain(dB) 25 C
Gain(dB) 85 C
Gain(dB) -40 C
9.2 9.4 9.5 9.8 10 10.2 10.5 10.6 10.8 11 11.2 11.4 11.5 11.8 12
Freq.(GHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
2.2 dB NF, 20 mW, 8 GHz to 12 GHz, Low Noise Amplifier, 38 dB Gain, SMA PE15A1003
PE15A1003 REV 1.0
3
2.2 dB NF, 20 mW, 8 GHz to 12 GHz, Low
Noise Amplifier, 38 dB Gain, SMA
TECHNICAL DATA SHEET

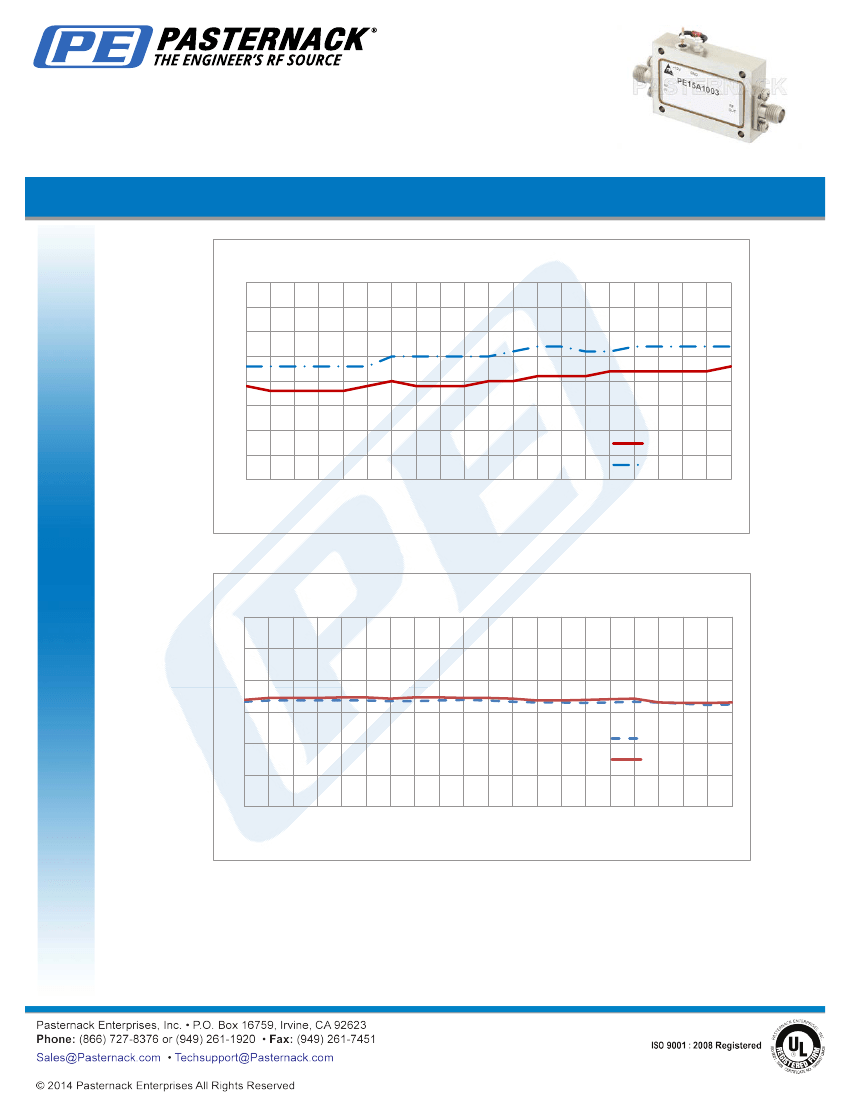

NF vs Temperature
PE15A1003
dB
4
3.5
3
2.5
2
1.5
1
0.5
0
8
8.2 8.5 8.6 8.8
9
NF(dB) 25 C
NF(dB) 85 C
9.2 9.4 9.5 9.8 10 10.2 10.5 10.6 10.8 11 11.2 11.4 11.5 11.8 12
Freq.(GHz)
dBm
30
25
20
15
10
5
0
8
8.2 8.5 8.6 8.8
9
Psat vs Temperature
Psat 85 C
Psat 25 C
9.2 9.4 9.5 9.8 10 10.2 10.5 10.6 10.8 11 11.2 11.4 11.5 11.8 12
Freq.(GHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
2.2 dB NF, 20 mW, 8 GHz to 12 GHz, Low Noise Amplifier, 38 dB Gain, SMA PE15A1003
PE15A1003 REV 1.0
4
2.2 dB NF, 20 mW, 8 GHz to 12 GHz, Low
Noise Amplifier, 38 dB Gain, SMA
TECHNICAL DATA SHEET
PE15A1003
2.2 dB NF, 20 mW, 8 GHz to 12 GHz, Low Noise Amplifier, 38 dB Gain, SMA from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
2.2 dB NF, 20 mW, 8 GHz to 12 GHz, Low Noise Amplifier, 38 dB Gain, SMA PE15A1003
URL:
http://www.pasternack.com/2.2-db-12-ghz-low-noise-amplifier-38-db-gain-sma-pe15a1003-p.aspx
PE15A1003 REV 1.0
5
