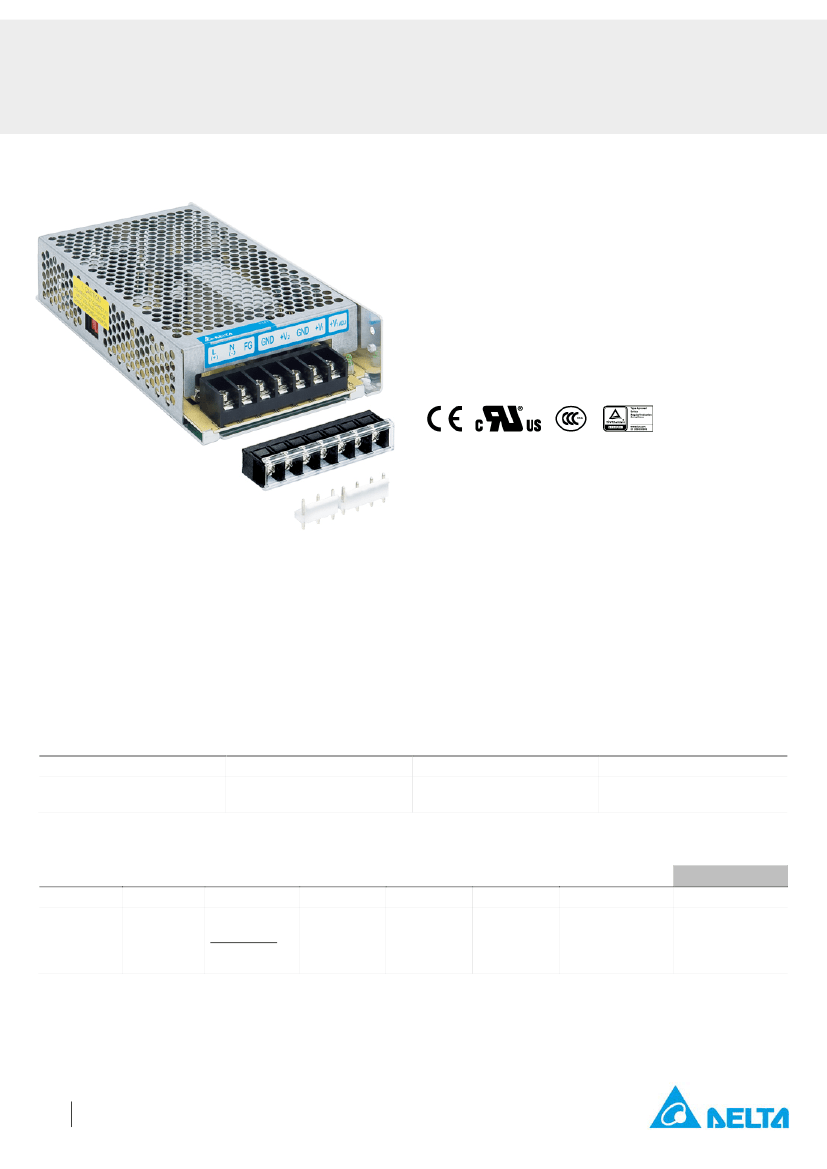

TECHNICAL DATASHEET
PMT Panel Mount Power Supply
12V / 5V 100W Dual Output / PMT-D1V100W1A
□□
PMT
Highlights & Features
–
–
–
–
–
Conforms to harmonic current IEC/EN 61000-3-2, Class A
Selectable AC Switch (85-132Vac, 170-264Vac)
High MTBF > 700,000 hrs. as per Telcordia SR-332
Versatile configuration options (Enclosed, L Frame)
Versatile connector options (Terminal Block, Front Face,
Harness)
Safety Standards
CB Certified for worldwide use
Model Number:
PMT-D1V100W1A☐☐
Unit Weight:
0.45 kg
Dimensions (L x W x D):
178 x 97 x 38 mm
General Description
The new PMT series of panel mount power supplies is the latest offering from one of the world’s largest power supply manufacturers
and solution providers - Delta. The product offers a wide operating temperature range from -10°C to +70°C and can withstand shock
and vibration requirements (in accordance to IEC 60068-2-27 and IEC 60068-2-6 respectively). In addition to features like overvoltage
and overload protections, Delta’s PMT series of panel mount power supplies is unlike many other brands in the same price level. The
PMT series is designed for cost competitive markets without compromising the quality of the components and product specifications.
The series of products has an expected life time of 10 years. This versatile series has three different connector options (Terminal Block,
Front Face and Harness) and can also be converted into L Frame (PML) type of power supplies to satisfy different application needs.
Model Information
PMT Panel Mount Power Supply
Model Number
PMT-D1V100W1A☐☐
Input Voltage Range
85-132Vac, 170-264Vac
(Selectable by Switch)
Output Voltage
V1: 12Vdc
V2: 5Vdc
Output Current
V1: 7.00A
V2: 3.00A
Model Numbering
CC Code
PM
□
–
D1V
100W
1
A
No PFC
□
Connector Type
A – Terminal Block
G – Front Face*
H – Harness*
□
Blank – Without
connector cover
A – With connector
cover
Panel Mount Product Type Output Voltage Output Power Single Phase
T – Enclosed Dual Output
L – L Frame* D1 – 12V / 5V
*Options
1
All parameters are specified at 25°C ambient unless otherwise indicated.
www.DeltaPSU.com (October 2013, Rev. 00)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
12V / 5V 100W Dual Output / PMT-D1V100W1A
□□
Specifications
Input Ratings / Characteristics
Nominal Input Voltage
Input Voltage Range
Nominal Input Frequency
Input Frequency Range
Input Current
Efficiency at 100% Load
Max Inrush Current
Leakage Current
100-120Vac, 200-240Vac (Selectable by Switch)
85-132Vac, 170-264Vac (Selectable by Switch)
50-60Hz
47-63Hz
< 2.00A @ 115Vac, < 1.20A @ 230Vac
> 82.0% typ. @ 230Vac
< 45A typ. @ 230Vac
< 0.4mA @ 240Vac
Output Ratings / Characteristics
Nominal Output Voltage
Output Voltage Tolerance
Output Voltage Adjustment Range
Output Current
Output Power
Line Regulation
Load Regulation
PARD (20MHz)
Rise Time
Start-up Time
Hold-up Time
Dynamic Response (Overshoot & Undershoot O/P Voltage)
Start-up with Capacitive Loads
V1: 12Vdc, V2: 5Vdc
± 1% (initial set point tolerance from factory)
V1: 10.8-13.2Vdc
V1: 7.00A, V2: 3.00A
99W
± 0.5% typ. (@ 100-132Vac & 200-264Vac)
V1: ± 1% typ. (@ 100-132Vac & 200-264Vac )
V2: ± 2% typ. (@ 100-132Vac & 200-264Vac )
V1: < 120mVpp, V2: < 80mVpp
< 30ms @ 115Vac & 230Vac (100% load)
< 1200ms @ 115Vac,
< 2000ms @ 230Vac (100% load
)
> 20ms @ 115Vac, > 25ms @ 230Vac
± 5% @ 0-100% load
8,000µF Max
Mechanical
Case Chassis
Case Cover
Dimensions (L x W x D)
Unit Weight
Indicator
Cooling System
Terminal
PM☐-D1V100W1AA☐
PM☐-D1V100W1AG☐
PM☐-D1V100W1AH☐
Wire
PM☐-D1V100W1AA☐ / PM☐-D1V100W1AG☐
PM☐-D1V100W1AH☐
Aluminium
SGCC
178 x 97 x 38 mm
0.45 kg
Green LED (DC OK)
Convection
M3.5 x 7 Pins (Rated 300V/15A)
M3.5 x 7 Pins (Rated 300V/20A)
I/P (JWT): A3963WV2-5P-A
O/P (JWT): A3963WV2-7P-U
AWG 18-12
AWG 18 (For the recommended Housing and Terminal,
please refer to the Table on Page 7)
2
All parameters are specified at 25°C ambient unless otherwise indicated.
www.DeltaPSU.com (October 2013, Rev. 00)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
12V / 5V 100W Dual Output / PMT-D1V100W1A
□□
Environment
Surrounding Air Temperature
Power De-rating
Operating Humidity
Operating Altitude
Shock Test (Non-Operating)
Vibration (Non-Operating)
Pollution Degree
Operating
Storage
-10°C to +70°C
-25°C to +85°C
> 50°C de-rate power by 2.5% / °C
< 100Vac de-rate power by 0.8% / 1V
5 to 95% RH (Non-Condensing)
0 to 5,000 Meters
IEC 60068-2-27, Half Sine: 50G for a duration of 11ms,
3 times per direction, 18 times in total
IEC 60068-2-6, Random: 5Hz to 500Hz (2.09Grms);
20 min per axis for all X, Y, Z direction
2
Protections
Overvoltage
Overload / Overcurrent
Over Temperature
Short Circuit
Protection Against Shock
*PE: Primary Earth
V1: 115-135%, Hicc-up Mode, Non-Latching
(Auto-Recovery)
V1: 110-150%, Hicc-up Mode, Non-Latching
(Auto-Recovery)
Hicc-up Mode, Non-Latching
(Auto-Recovery when the fault is removed)
Hicc-up Mode, Non-Latching
(Auto-Recovery when the fault is removed)
Class I with PE* connection
Reliability Data
MTBF
Expected Cap Life Time
> 700,000 hrs. as per Telcordia SR-332
10 years (115Vac & 230Vac, 50% load @ 40°C)
Safety Standards / Directives
Electrical Safety
TUV Bauart to EN 60950-1, UL/cUL recognized to
UL 60950-1 and CSA C22.2 No. 60950-1, CB scheme
to IEC 60950-1, CCC to GB4943
In conformance with EMC Directive 2004/108/EC and
Low Voltage Directive 2006/95/EC
RoHS Directive 2011/65/EU Compliant
Input to Output
Input to Ground
Output to Ground
3.0KVac
1.5KVac
0.5KVac
CE
Material and Parts
Galvanic Isolation
3
All parameters are specified at 25°C ambient unless otherwise indicated.
www.DeltaPSU.com (October 2013, Rev. 00)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
12V / 5V 100W Dual Output / PMT-D1V100W1A
□□
EMC
EMC / Emissions
Immunity to
Electrostatic Discharge
IEC 61000-4-2
Level 4 Criteria A
1)
Air Discharge: 15kV
Contact Discharge: 8kV
Level 2 Criteria A
1)
80MHz-1GHz, 3V/M with 1kHz tone / 80% modulation
Level 2 Criteria A
1)
2kV
Level 3 Criteria A
1)
Common Mode
2)
: 2kV
Differential Mode
3)
: 1kV
Level 2 Criteria A
1)
150kHz-80MHz, 3Vrms
Criteria A
1)
Magnetic field strength 30A/Meter
100% dip; 1 cycle (20ms); Self Recoverable
Level 3 Criteria
1)
Common Mode
2)
: 2kV
3)
Differential Mode : 1kV
IEC/EN 61000-3-2, Class A
IEC/EN 61000-3-3
CISPR 22, EN 55022, FCC Title 47: Class B
Radiated Field
Electrical Fast Transient / Burst
Surge
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
Conducted
Power Frequency Magnetic Fields
Voltage Dips
Low Energy Pulse Test (Ring Wave)
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
IEC 61000-4-12
Harmonic Current Emission
Voltage Fluctuation and Flicker
1) Criteria A: Normal performance within the specification limits
2) Asymmetrical: Common mode (Line to earth)
3) Symmetrical: Differential mode (Line to line)
4
All parameters are specified at 25°C ambient unless otherwise indicated.
www.DeltaPSU.com (October 2013, Rev. 00)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
12V / 5V 100W Dual Output / PMT-D1V100W1A
□□

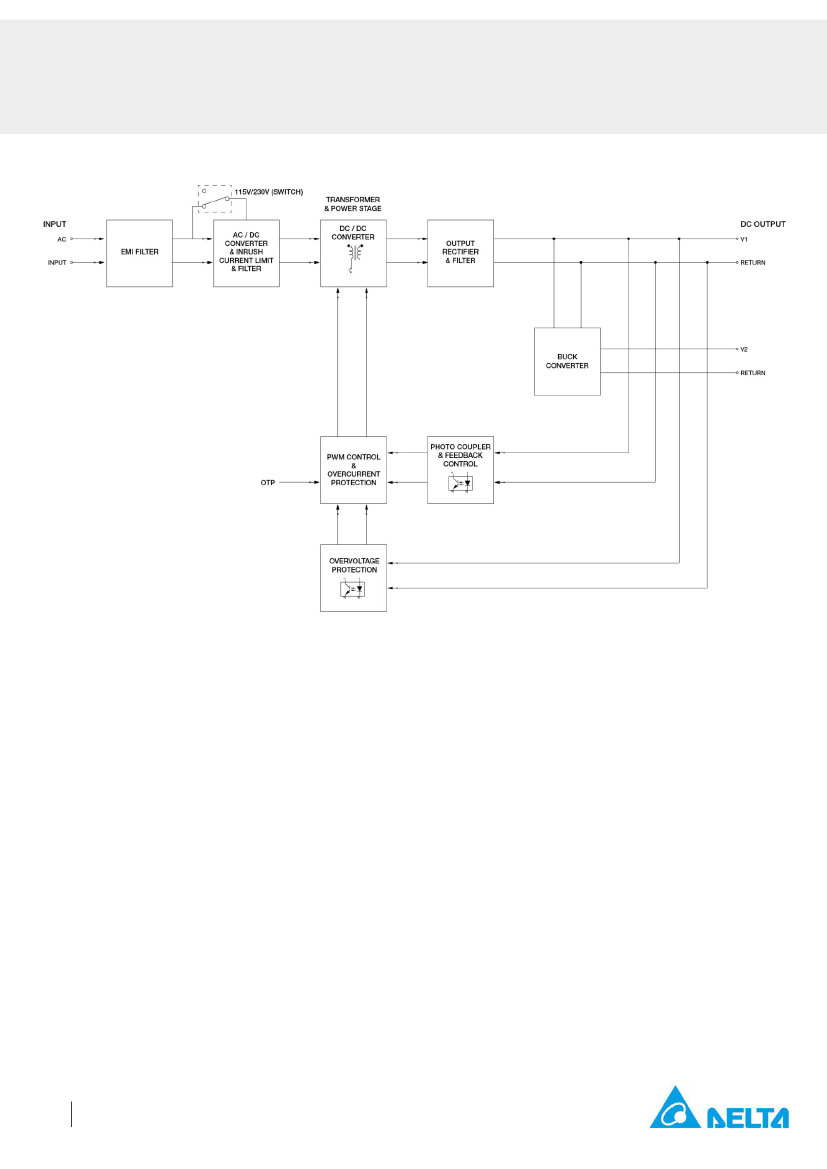

Block Diagram
5
All parameters are specified at 25°C ambient unless otherwise indicated.
www.DeltaPSU.com (October 2013, Rev. 00)
