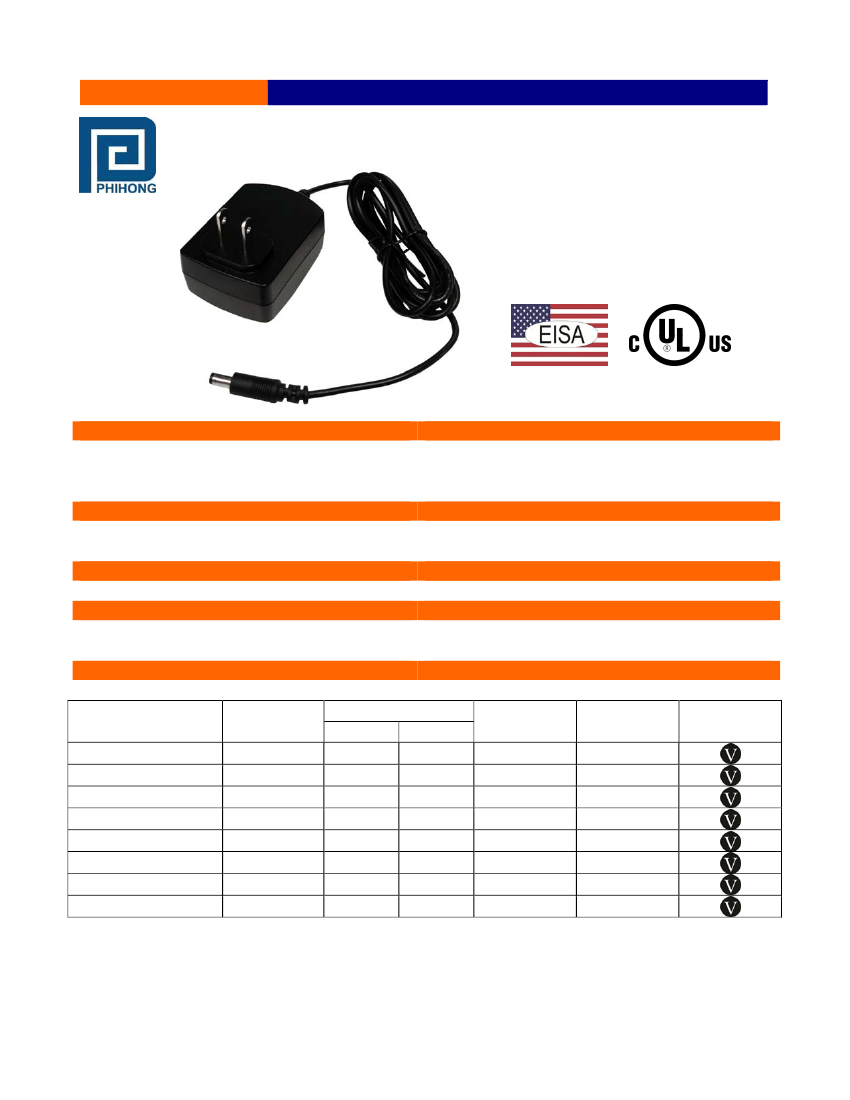

15 Watt Fixed Wall Plug Series
PSA15A-PV Adapter Meets Level V Requirements
Features
Limited Power Source
Class B EMI
Level V Compliant
Applications
Wireless Communications
Peripherals
Safety Approvals
cUL/UL
Mechanical Characteristics
Length: 71.7mm (2.82in)
Width: 50mm (1.97in)
Output Specifications
Model
PSA15A-050PV
PSA15A-060PV
(2)
PSA15A-075PV
(2)
PSA15A-090PV
(2)
PSA15A-120PV
(2)
PSA15A-150PV
(2)
PSA15A-240PV
(2)
PSA15A-480PV
(2)
(2)
Class II Double Insulated
High Efficiency
Low Cost
Portable Equipment
PDA
Height: 33.2mm (1.31in)
Weight: 145g (5.12oz)
Ripple
(1)
P-P (max.)
50mV
60mV
75mV
90mV
120mV
150mV
240mV
480mV
DC Output
Voltage
5V
6V
7.5V
9V
12V
15V
24V
48V
Load
Min.
0A
0A
0A
0A
0A
0A
0A
0A
Max.
3.0A
2.5A
2.14A
1.66A
1.25A
1.0A
0.62A
0.31A
Regulation
Line & Load
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
Efficiency
Level
(1)
Measured after 30 minutes with by-pass capacitors o.1uF/10uF at output connector terminal and oscilloscope set at 20Mhz.
(2)
Special order item. Minimum order quantity required. Please consult Phihong USA Sales.
Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website at www.phihong.com for the
most up-to-date specifications and contact information.
Revision 11/30/2011
PSA15A-PV Characteristics
Input:
AC Input Voltage Rating
100 to 240V AC
WWW.PHIHONG.COM
Emissions
FCC Class B
EN55022 Class B
AC Input Voltage Range
90 to 264V AC
Immunity
IEC61000-4-2
IEC61000-4-3
IEC61000-4-4
IEC61000-4-5
IEC61000-4-6
IEC61000-4-8
IEC61000-4-11
EN61000-3-2
AC Input Frequency
47 to 63Hz
Input Current
0.5A (RMS) maximum at 120V AC
0.25A (RMS) maximum at 240V AC
Leakage Current
0.25mA maximum at all line conditions
Hold-up Time
10mS minimum at 120V AC and maximum load
Inrush Current
<30A for 120V AC at maximum load
<60A for 240V AC at maximum load
(Cold start at ambient 25°C)
Over-Voltage Protection
Zener clamping if voltage exceeds 120% of limit
Over-Current Protection
Output equipped with short circuit protection – auto-
restart
Input Power Saving
0.5W maximum at no load
Short-Circuit Protection
Output can be shorted without damage
Output:
Efficiency
Meets Requirements for Level V Marking
Dielectric Withstand (Hi-pot) Test
Primary to Secondary: 3000V AC for 1 min., 10mA
Primary to F.G.: 1500V AC for 1 min., 10mA
Environmental:
Temperature
Operation
Non-operation
Humidity
0 to +40°C
-25 to +75°C
20 to 90%
DC Output Connector
2.1 x 5.5mm Center Positive Barrel

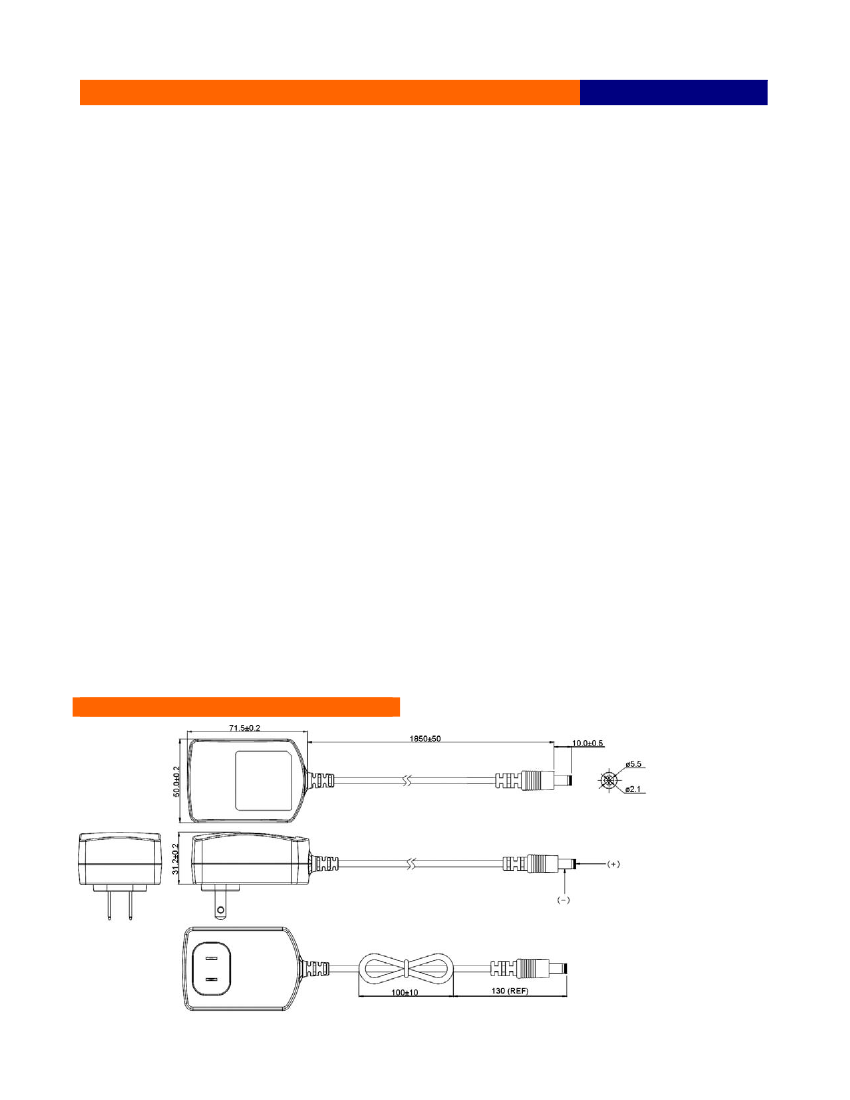

Dimension Diagram Unit: mm (inch)
