8D7-11Z22BC

Description
MIL Series Connector,
CategoryThe connector    The connector
File Size337KB,2 Pages
ManufacturerSOURIAU
Download Datasheet Parametric Compare View All

8D7-11Z22BC Overview

MIL Series Connector,

8D7-11Z22BC Parametric

Parameter NameAttribute value
Objectid4021685357
Reach Compliance Codeunknown
ECCN codeEAR99
LAYOUT SHOWN AS EXAMPLE
Keying Shown as example
CHARACTERISTICS
-Standard : Based on MIL-DTL-38999 Series III
-Shell Material
-Shell Plating
-Insulator
-Contacts
-Seals & Grommet
-Contact Plating
-Durability
: Aluminium
: Black Zinc Nickel
: Thermoplastic
: Copper Alloy
: Silicon Elastomer
: Gold over copper Alloy 0.8µm minimum
: 500 Mating cycles
Connector dimension
Dim
Nominal
A
34.9±0.3
B
19.07+0.1/-0.15
R
32.5Max
S
31.8±0.4
W
2.2+0.9/-0.1
VV THREAD
M15x1-6g
SOURIAU shall not be liable for any non-conformity or damage
due to a use of the Products which does not comply with
the Specifications issued by either of the Parties or by a third party
(professional recommendation, technical notice.)
Country
FR
Jurisdiction & Control List
Not Listed
-Delivered with Souriau contacts and Accessories
-Temperature Range
-Salt Spray
-Mass
: -65°C to +175°C
: 500 hours
: 20.08 g ± 10%
PN: 8D711Z22BC
A
ISS
01-10-2016 First Release
DATE
Latest modification - by
Date:
MOD N°
CUSTOMER DRAWING
Designed By:
TITLE
BASIC SERIES:

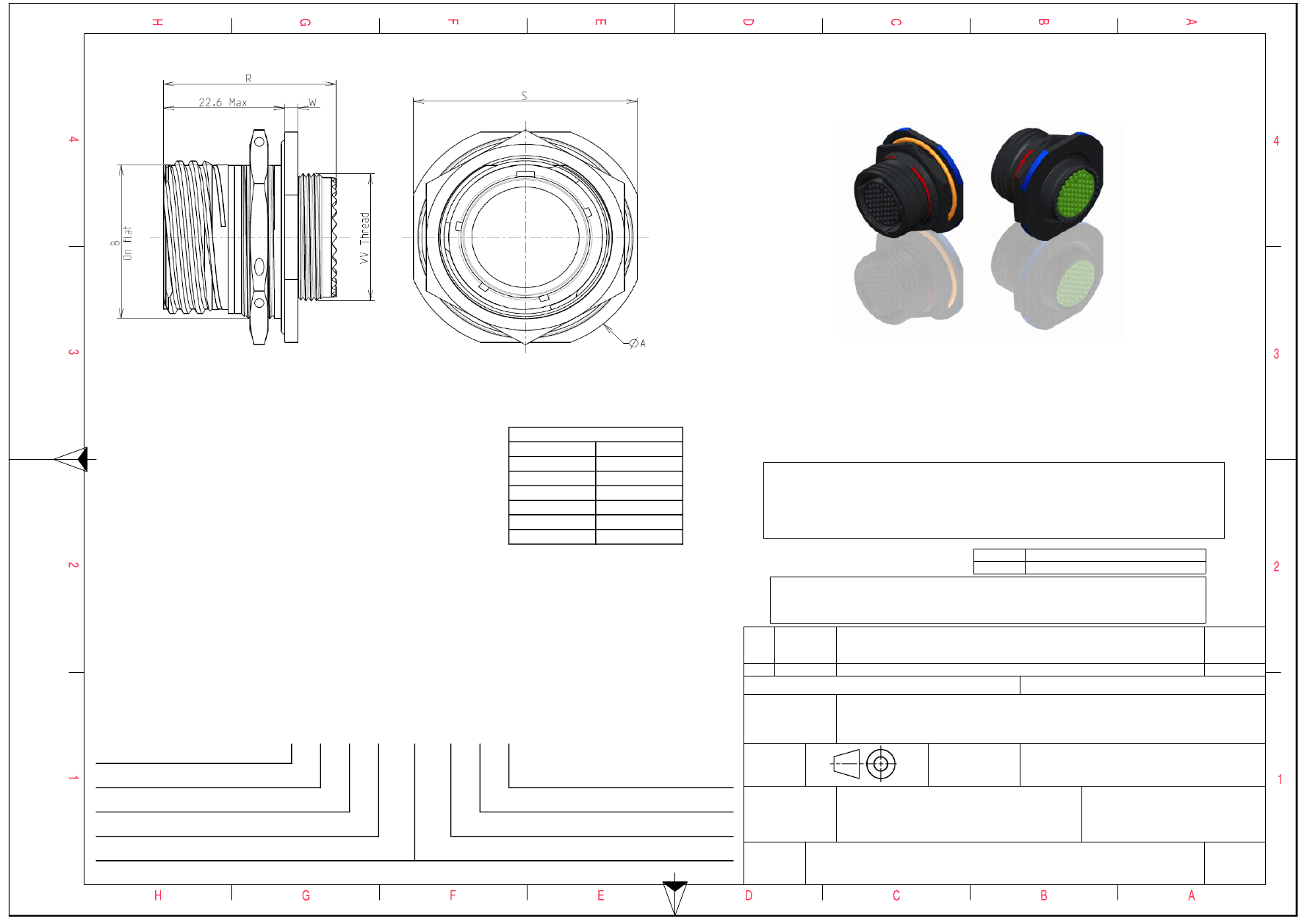

SHELL TYPE : Jam nut Receptacle
CONTACT TYPE
SHELL SIZE : 11
PLATING
:
Z =
Black Zinc Nickel
: Standard Crimp Contact
ORIENTATION : C
CONTACT TYPE : SOCKET(500 Matings)

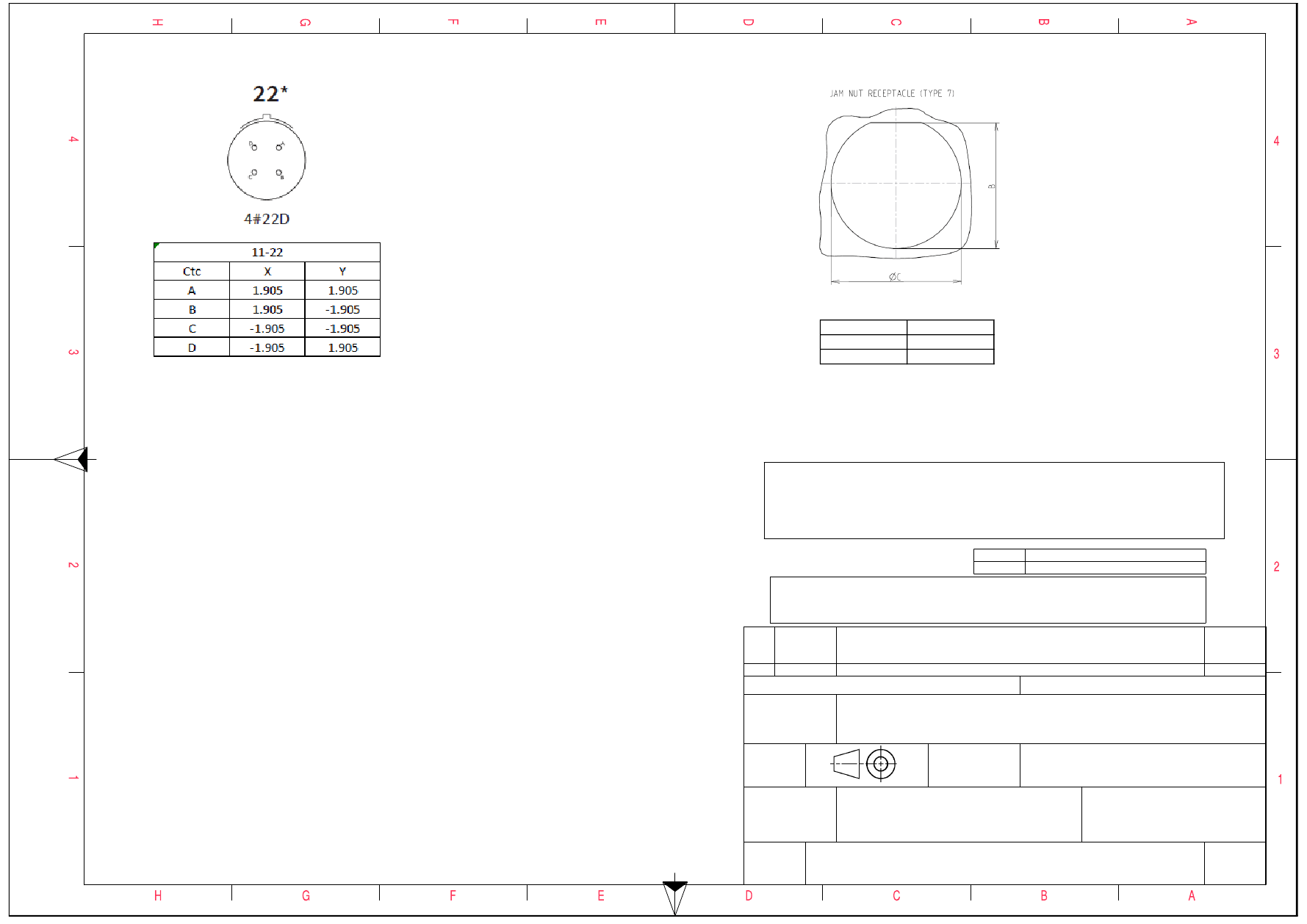

CONTACT LAYOUT : 11-22
FORMAT
Aluminium Receptacle 8D series
General linear
Tolerances:
±--
8D
7
-
11
Z
22
B
C
SCALE
NPRDS / PROJECT
NA
859
This document is the property of
SOURIAU
it must not be reproduced or
communicated without permission
SOURIAU
A3
WWW.SOURIAU.COM
SOURIAU DRG N°
8D711Z22BC-C
SHEET
1/2

8D7-11Z22BC Related Products

8D7-11Z22BC 8D711Z22BC
Description MIL Series Connector, MIL Series Connector,
Objectid 4021685357 4021685357
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
