800E1R2CMN7200XC datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 800E1R2CMN7200XC

800E1R2CMN7200XC: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 7200V, C0G, 0.0000012uF, SURFACE MOUNT, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size352KB，4 Pages; ManufacturerATC [American Technical Ceramics]; Environmental Compliance

Download Datasheet Parametric Compare View All

800E1R2CMN7200XC Overview

CAPACITOR, CERAMIC, MULTILAYER, 7200V, C0G, 0.0000012uF, SURFACE MOUNT, CHIP, ROHS COMPLIANT

800E1R2CMN7200XC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2131969516
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARDS: MIL-PRF-123, MIL-PRF-55681
capacitance	0.0000012 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e4
Manufacturer's serial number	ATC800E
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20.83%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TRAY
positive tolerance	20.83%
Rated (DC) voltage (URdc)	7200 V
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Silver (Ag)
Terminal shape	FLAT

Preview

Download Datasheet

View All

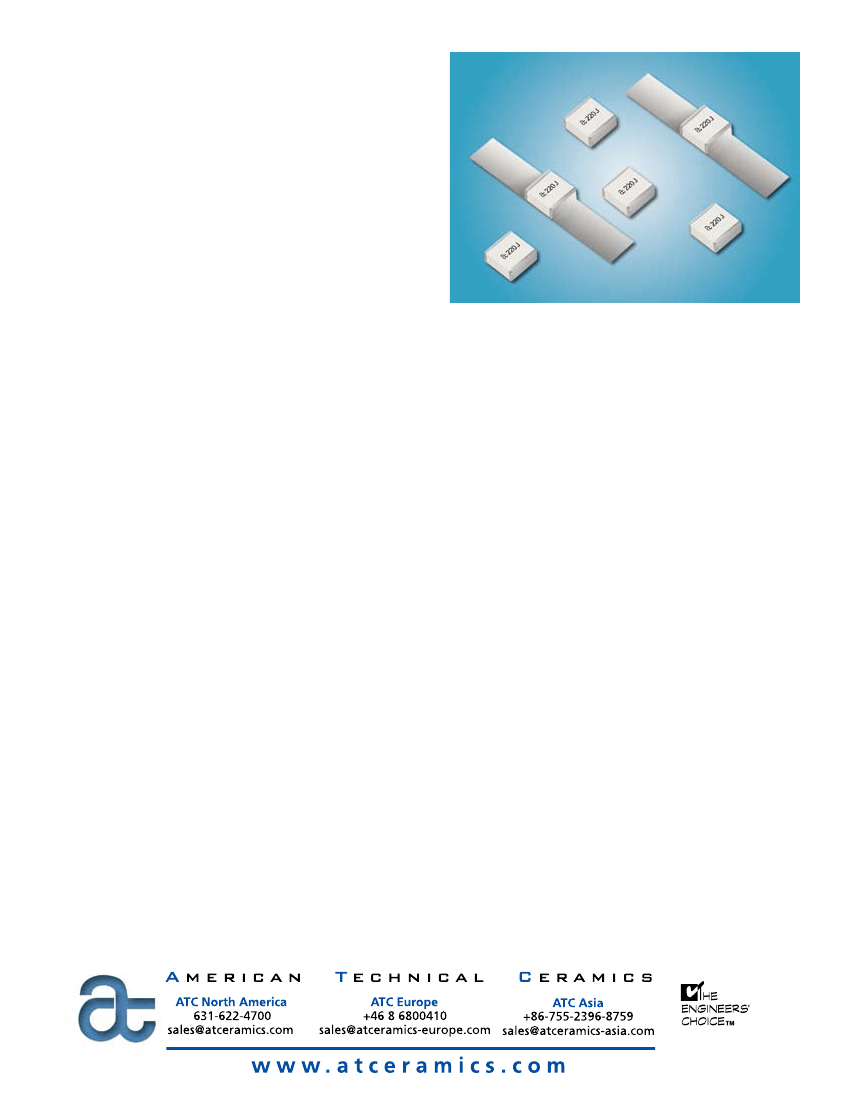

ATC 800 E Series

NPO Ceramic

High RF Power Multilayer

Capacitors

• Case E Size

(.380" x .380")

• High Q

• Ultra Low ESR

• High RF Power

• 7200 WVDC

• Capacitance Range: 1 pF to 330 pF

and 2700 pF to 5100 pF

• Ultra-Stable Performance

• High RF Current/Voltage

• High Reliability

• RoHS Compliant, Pb free

ATC’s 800 E Series offers superb performance in demanding high RF

power applications requiring consistent and reliable operation. The

combination of highly conductive metal electrode systems, optimized case

geometries, and proprietary dielectrics, yields the lowest ESR. ATC’s new

NPO low loss rugged dielectrics are designed to provide superior heat

transfer in high RF power applications. Ultra-low ESR and superior thermal

performance insure that the 800 E Series products are your best choice for

high RF power applications from VHF through microwave frequencies.

Typical functional applications: Bypass, Coupling, Tuning, Impedance

Matching and DC Blocking

Typical circuit applications: HF/RF Power Amplifiers, Transmitters, Antenna

Tuning, Plasma Chambers and Medical (MRI coils).

ELECTRICAL AND MECHANICAL

SPECIFICATIONS

QUALITY FACTOR (Q):

Greater than 5,000 (1 pF to 1000 pF) @ 1 MHz.

Greater than 5,000 (1100 pF to 5100 pF) @ 1 KHz.

TEMPERATURE COEFFICIENT OF CAPACITANCE (TCC):

0 ±30 PPM/°C (-55°C to +125°C)

INSULATION RESISTANCE (IR):

Megohms min. @ +25°C at rated WVDC

Megohms min. @ +125°C at rated WVDC

WORKING VOLTAGE (WVDC):

See Capacitance Values Table, page 2

DIELECTRIC WITHSTANDING VOLTAGE (DWV):

150% of WVDC for capacitors rated above 500 volts DC and

≤1250

volts

DC for 5 seconds.

120% of WVDC for capacitors rated above 1250 volts DC for 5 seconds..

ENVIRONMENTAL TESTS

ATC 800 E Series Capacitors are designed and manufactured to

meet and exceed the requirements of EIA-198, MIL-PRF-55681 and

MIL-PRF-123.

THERMAL SHOCK:

MIL-STD-202, Method 107, Condition A

MOISTURE RESISTANCE:

MIL-STD-202, Method 106

LOW VOLTAGE HUMIDITY:

MIL-STD-202, Method 103, Condition A, with 1.5 Volts DC applied while

subjected to an environment of 85°C with 85% relative humidity for 240

hours min.

LIFE TEST:

RETRACE:

Less than ±(0.02% or 0.02 pF), whichever is greater

AGING EFFECTS:

None

PIEzOELECTRIC EFFECTS:

None

(No capacitance variation with voltage or pressure)

CAPACITANCE DRIFT:

±(0.02% or 0.02 pF), whichever is greater

OPERATING TEMPERATURE RANGE:

From -55°C to +125°C

TERMINATION STYLE:

See Mechanical Configurations, page 3

TERMINAL STRENGTH:

Terminations for chips withstand a pull of 10 lbs.

min., 25 lbs. typical, for 5 seconds in direction perpendicular to the

termination surface of the capacitor. Test per MIL-STD-202, method 211.

MIL-STD-202, Method 108, for 2000 hours, at 125°C.

Voltage applied.

120% of WVDC for capacitors rated at 1250 volts DC or less.

100% of WVDC for capacitors rated above 1250 volts DC

ISO 9001

REGISTERED

COMPANY

ATC # 001-1077 Rev. E, 2/11

800E1R2CMN7200XC Related Products

	800E1R2CMN7200XC	800E1R2CAN7200XC	800E1R2CAR7200XC	800E1R2CMS7200XC	ATC800E1R2CAN7200XC	ATC800E1R2CAR7200XC	ATC800E1R2CMN7200XC	ATC800E1R2CMS7200XC
Description	CAPACITOR, CERAMIC, MULTILAYER, 7200V, C0G, 0.0000012uF, SURFACE MOUNT, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 7200V, 20.83% +Tol, 20.83% -Tol, C0G, 30ppm/Cel TC, 0.0000012uF, Surface Mount, AXIAL LEADED, ROHS COMPLIANT	CAPACITOR, CERAMIC, MULTILAYER, 7200V, C0G, 0.0000012uF, SURFACE MOUNT, AXIAL LEADED, ROHS COMPLIANT	CAPACITOR, CERAMIC, MULTILAYER, 7200V, C0G, 0.0000012uF, SURFACE MOUNT, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 7200V, 20.83% +Tol, 20.83% -Tol, C0G, 30ppm/Cel TC, 0.0000012uF, Surface Mount, AXIAL LEADED, ROHS COMPLIANT	CAPACITOR, CERAMIC, MULTILAYER, 7200V, C0G, 0.0000012uF, SURFACE MOUNT, AXIAL LEADED, ROHS COMPLIANT	CAPACITOR, CERAMIC, MULTILAYER, 7200V, C0G, 0.0000012uF, SURFACE MOUNT, CHIP, ROHS COMPLIANT	CAPACITOR, CERAMIC, MULTILAYER, 7200V, C0G, 0.0000012uF, SURFACE MOUNT, CHIP, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Objectid	2131969516	2131969510	2131969513	2131969519	2131972393	2131972396	2131972399	2131972402
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARDS: MIL-PRF-123, MIL-PRF-55681	STANDARDS: MIL-PRF-123, MIL-PRF-55681	STANDARDS: MIL-PRF-123, MIL-PRF-55681	STANDARDS: MIL-PRF-123, MIL-PRF-55681	STANDARDS: MIL-PRF-123, MIL-PRF-55681	STANDARDS: MIL-PRF-123, MIL-PRF-55681	STANDARDS: MIL-PRF-123, MIL-PRF-55681	STANDARDS: MIL-PRF-123, MIL-PRF-55681
capacitance	0.0000012 µF	0.0000012 µF	0.0000012 µF	0.0000012 µF	0.0000012 µF	0.0000012 µF	0.0000012 µF	0.0000012 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
Manufacturer's serial number	ATC800E	ATC800E	ATC800E	ATC800E	ATC800E	ATC800E	ATC800E	ATC800E
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
multi-layer	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
negative tolerance	20.83%	20.83%	20.83%	20.83%	20.83%	20.83%	20.83%	20.83%
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TRAY	TRAY	TRAY	TRAY	TRAY	TRAY	TRAY	TRAY
positive tolerance	20.83%	20.83%	20.83%	20.83%	20.83%	20.83%	20.83%	20.83%
Rated (DC) voltage (URdc)	7200 V	7200 V	7200 V	7200 V	7200 V	7200 V	7200 V	7200 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Temperature characteristic code	C0G	C0G	C0G	C0G	C0G	C0G	C0G	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C
Terminal surface	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)
Terminal shape	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
