1-2842303-6

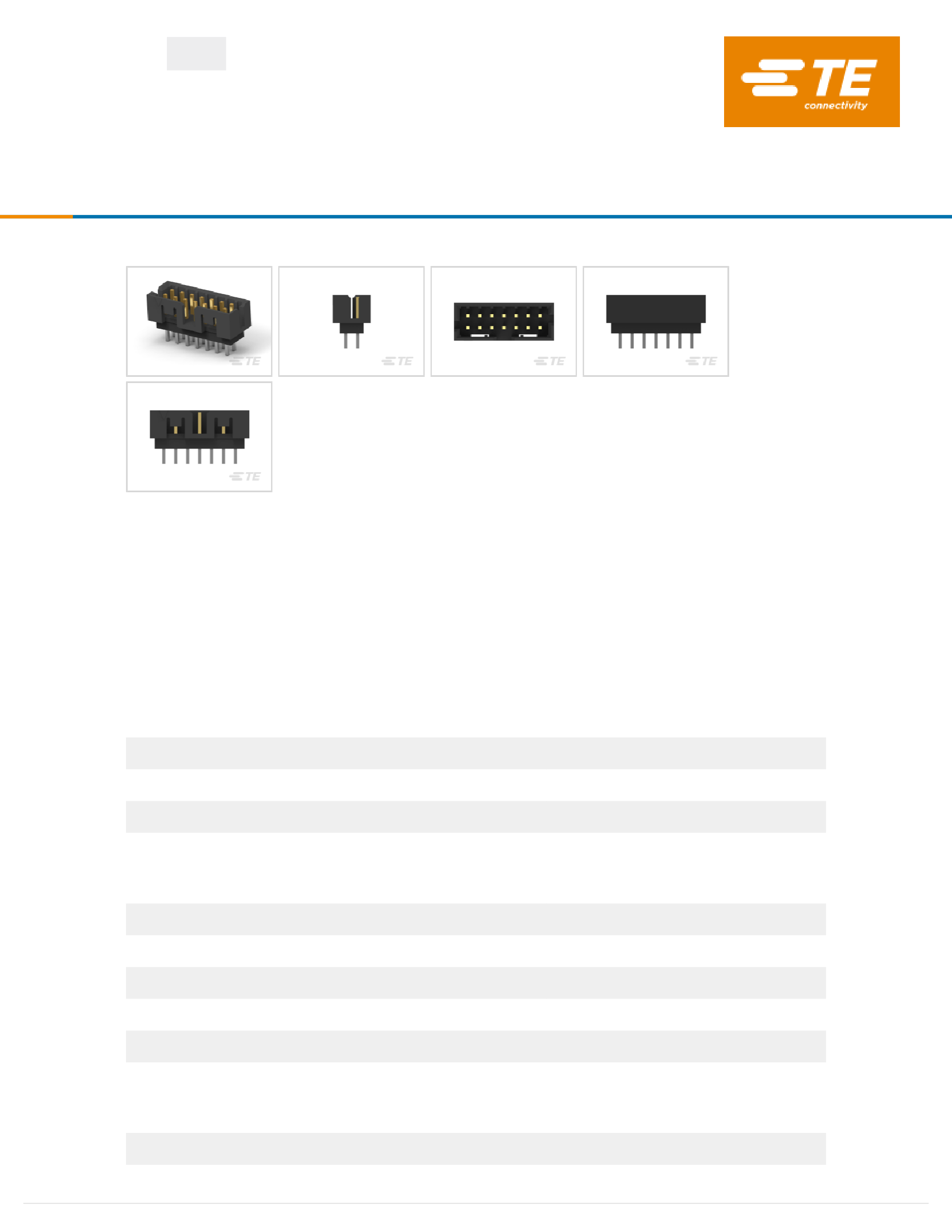

AMPMODU 2 mm, PCB Mount Header, Vertical, Board-to-Board, 16 Position, .079 in
[2 mm] Centerline, Fully Shrouded, Gold, Through Hole - Solder, Signal
1-2842303-6
ACTIVE
AMPMODU
|
AMPMODU 2 mm
TE Internal #: 1-2842303-6
AMPMODU 2 mm, PCB Mount Header, Vertical, Board-to-Board,
16 Position, .079 in [2 mm] Centerline, Fully Shrouded, Gold,
Through Hole - Solder, Signal
View on TE.com >
Connectors
>
PCB Connectors
>
PCB Headers & Receptacles
PCB Connector Assembly Type:
PCB Mount Header
PCB Mount Orientation:
Vertical
Connector System:
Board-to-Board
Number of Positions:
16
Number of Rows:
2
Features
Product Type Features
PCB Connector Assembly Type
Connector System
Header Type
Connector & Contact Terminates To
Configuration Features
Stackable
Connector Contact Load Condition
Number of Signal Positions
PCB Mount Orientation
Number of Positions
Number of Rows
Electrical Characteristics
Dielectric Withstanding Voltage (Max)
Operating Voltage
PCB Mount Header
Board-to-Board
Fully Shrouded
Printed Circuit Board
No
Fully Loaded
16
Vertical
16
2
500 VAC
125 VAC
06/09/2022 12:54AM | Page 1
Body Features
For support call+1 800 522 6752
1-2842303-6
AMPMODU 2 mm, PCB Mount Header, Vertical, Board-to-Board, 16 Position, .079 in
[2 mm] Centerline, Fully Shrouded, Gold, Through Hole - Solder, Signal
Operating Voltage
Body Features
Connector Profile
Primary Product Color
Contact Features
Contact Layout
Contact Mating Area Length
Mating Square Post Dimension
PCB Contact Termination Area Plating Material Thickness
Contact Underplating Material Thickness
PCB Contact Termination Area Plating Material Finish
Contact Shape & Form
Contact Underplating Material
PCB Contact Termination Area Plating Material
Contact Base Material
Contact Mating Area Plating Material
Contact Mating Area Plating Material Thickness
Contact Type
Contact Current Rating (Max)
Termination Features
Square Termination Post & Tail Dimension
Termination Post & Tail Length
Termination Method to Printed Circuit Board
Mechanical Attachment
Mating Retention
Mating Retention Type
Mating Alignment
Mating Alignment Type
Connector Mounting Type
Housing Features
Centerline (Pitch)
Housing Material
Dimensions
For support call+1 800 522 6752
125 VAC
Standard
Black
Inline
3.6 mm[.142 in]
.5 mm[.02 in]
2 µm[78.74 µin]
.5 µm[19.69 µin]
Bright
Square
Nickel
Tin
Brass
Gold
.38 µm[14.96 µin]
Pin
2A
.5 mm[.02 in]
2.5 mm[.098 in]
Through Hole - Solder
With
Locking Ramp
With
Polarizing Slot
Board Mount
2 mm[.079 in]
PA9T GF
Connector Length
18.65 mm[.734 in]
06/09/2022 12:54AM | Page 2
1-2842303-6
AMPMODU 2 mm, PCB Mount Header, Vertical, Board-to-Board, 16 Position, .079 in
[2 mm] Centerline, Fully Shrouded, Gold, Through Hole - Solder, Signal
Connector Length
Connector Height
Connector Width
Row-to-Row Spacing
PCB Thickness (Recommended)
Usage Conditions
Housing Temperature Rating
Operating Temperature Range
Operation/Application
Assembly Process Feature
Circuit Application
Industry Standards
UL Rating
Agency/Standard
Approved Standards
UL Flammability Rating
Packaging Features
Packaging Type
18.65 mm[.734 in]
6.4 mm[.252 in]
6.3 mm[.248 in]
2 mm[.079 in]
1.6 mm[.063 in]
High
-40 – 125 °C[-40 – 257 °F]
Pick and Place Cover
Signal
Recognized
UL
UL E28476
UL 94V-0
Tube
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant
Not Yet Reviewed
No Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JAN 2020
(205)
SVHC > Threshold:
Not Yet Reviewed
Not Low Halogen - contains Br or Cl > 900
ppm.
Reflow solder capable to 260°C
Halogen Content
Solder Process Capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
For support call+1 800 522 6752
06/09/2022 12:54AM | Page 3
1-2842303-6
AMPMODU 2 mm, PCB Mount Header, Vertical, Board-to-Board, 16 Position, .079 in
[2 mm] Centerline, Fully Shrouded, Gold, Through Hole - Solder, Signal
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach

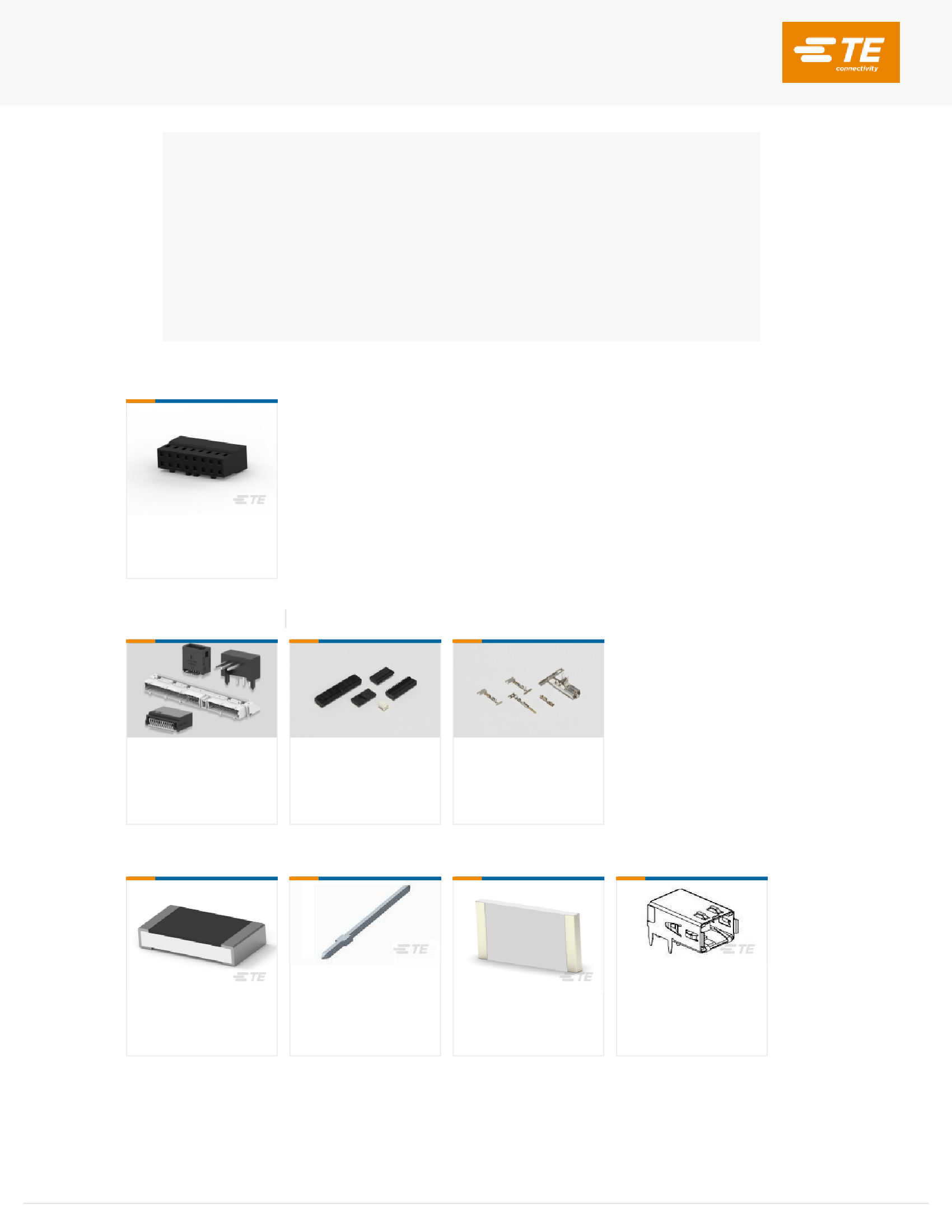

Compatible Parts
TE Part # 1-2316109-6
16P,2MM,REC,HSG,DR,CRIMP,LCK
RAMP,BOX
Also in the Series
AMPMODU 2 mm
PCB Headers & Receptacles(7248)
Wire-to-Board Connector Assemblies
& Housings(109)
Wire-to-Board Connector Contacts(27)
Customers Also Bought
TE Part #4-2176391-7
RQ 1206 37K4 0.1% 10PPM 5K RL
TE Part #1-928836-2
MOD2 PIN WITH A-PIN L/P
TE Part #7-2176246-6
CRGS2512 5% 1M8
TE Part #1761072-3
RECPT,HSSDC2,FIBRE,TRAY PKG
For support call+1 800 522 6752
06/09/2022 12:54AM | Page 4
1-2842303-6
AMPMODU 2 mm, PCB Mount Header, Vertical, Board-to-Board, 16 Position, .079 in
[2 mm] Centerline, Fully Shrouded, Gold, Through Hole - Solder, Signal
TE Part #3-1415020-1
PT570N20
TE Part #1-1437581-1
ASE22RL=AUTOSLIDE DP
TE Part #2176314-4
MELF SMA_A 180R 0.1% 15PPM 0102
0.3W
Documents
Product Drawings
16P,2MM,SHRD HDR,DRVT,0.38AU,TB W/CP
English
CAD Files
3D PDF
3D
Customer View Model
ENG_CVM_CVM_1-2842303-6_A.2d_dxf.zip
English
Customer View Model
ENG_CVM_CVM_1-2842303-6_A.3d_igs.zip
English
Customer View Model
ENG_CVM_CVM_1-2842303-6_A.3d_stp.zip
English
By downloading the CAD file I accept and agree to the
Terms and Conditions
of use.
Datasheets & Catalog Pages
Flyer - AMPMODU 2mm Shrouded Header
English
Flyer - AMPMODU 2mm W-t-B Crimp Receptacles
English
Product Specifications
