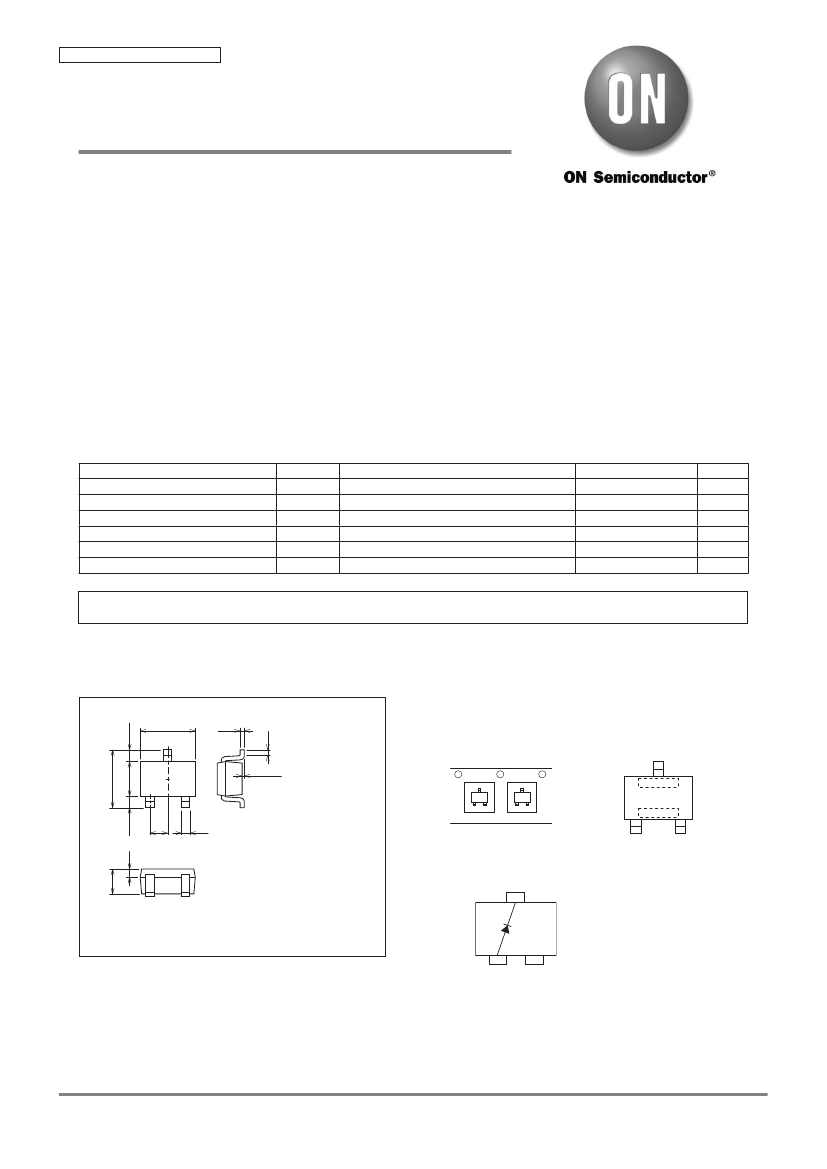

Ordering number : EN3867B
SB05-03Q
Schottky Barrier Diode
30V, 0.5A, Low IR, Single MCP
Applications
•
http://onsemi.com
High frequency rectification (switching regulators, converters, choppers)
Features
•
•
•
•
•
Fast reverse recovery time (trr max=10ns)
Low forward voltage (VF max=0.55V)
Low switching noise
Low leakage current and high reliability due to highly reliable planar structure
Small-sized package, permitting SB05-03Q-applied sets to be compact and slim
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Repetitive Peak Reverse Voltage
Nonrepetitive Peak Reverse Surge Voltage
Average Output Current
Surge Forward Current
Junction Temperature
Storage Temperature
Symbol
VRRM
VRSM
I
O
I
FSM
Tj
Tstg
50Hz sine wave, 1 cycle
Conditions
Ratings
30
35
500
3
-
-55 to +125
-
-55 to +125
Unit
V
V
mA
A
°C
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
Package Dimensions
unit : mm (typ)
7023A-005
2.0
3
Product & Package Information
• Package
: MCP
• JEITA, JEDEC
: SC-70, SOT-323
• Minimum Packing Quantity : 3,000 pcs./reel
0.2
0.425
0.15
SB05-03Q-TL-E
Packing Type: TL
Marking
LOT No.
1.25
2.1
0 to 0.08
Q
0.425
1
0.65
2
0.3
TL
LOT No.
Electrical Connection
1 : Anode
2 : No Contact
3 : Cathode
MCP
1
2
3
Semiconductor Components Industries, LLC, 2013
September, 2013
0.9
0.3
71812 TKIM/61197GI/41894YK (KOTO) 8-7188 No.3867-1/5
SB05-03Q
Electrical Characteristics
at Ta=25°C
Parameter
Reverse Voltage
Forward Voltage
Reverse Current
Interterminal Capacitance
Reverse Recovery Time
Thermal Resistance
Symbol
VR
VF
IR
C
trr
Rth(j-a)
IR=150μA
IF=500mA
VR=15V
VR=10V, f=1MHz
IF=IR=100mA, See specified Test Circuit.
600
Conditions
Ratings
min
30
0.55
30
16
10
typ
max
Unit
V
V
μA
pF
ns
°C / W
trr Test Circuit
100mA 100mA
Duty
≤
10%
10Ω
10mA
trr
50Ω
10μs
5V
100Ω
Ordering Information
Device
SB05-03Q-TL-E
Package
MCP
Shipping
3,000pcs./reel
memo
Pb Free
2
1.0
7
5

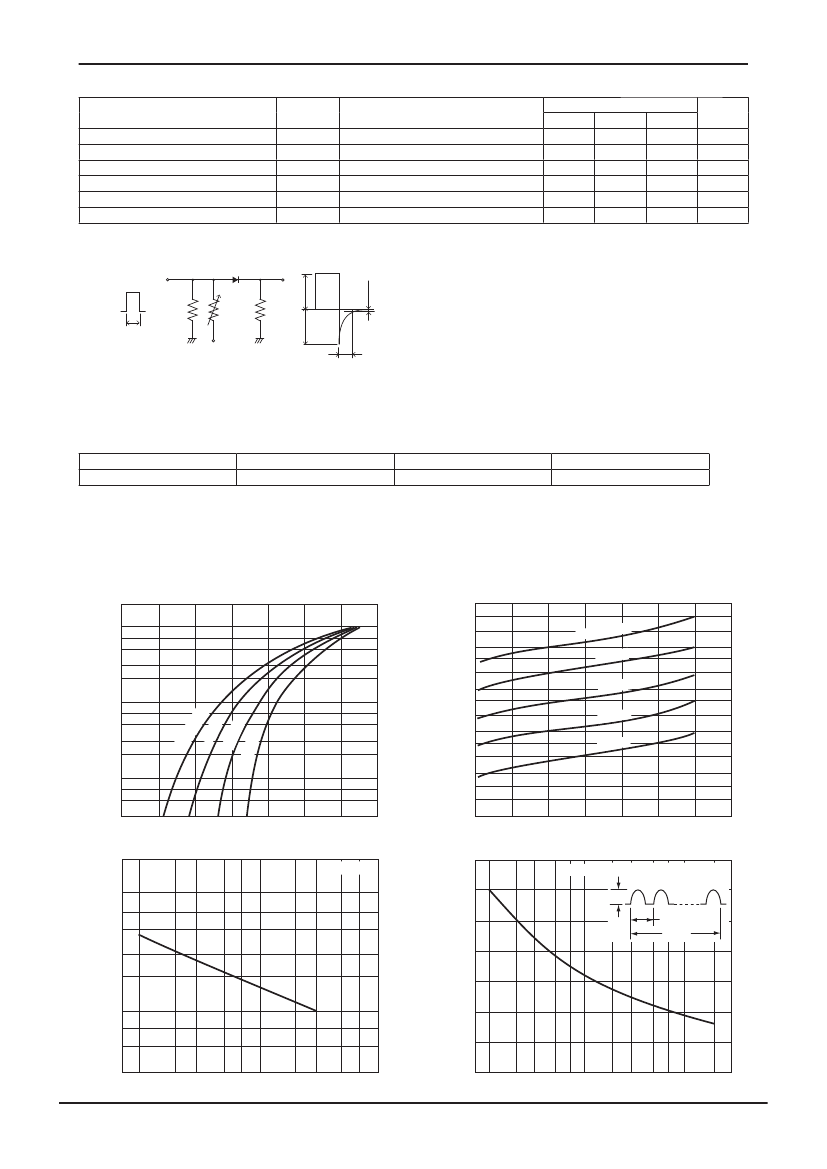

IF -- VF
2
1000
5
IR -- VR
Ta=125
°
C
3
2
0.1
7
5
3
2
0.01
7
5
3
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
ID00335
Reverse Current, IR --
μA
Forward Current, IF -- A
2
100
5
2
10
5
2
1.0
5
2
0.1
5
2
0
5
10
15
100
°
C
75
°
C
50
°
C
5
°
C
75
°
C
12
C
25
°
Ta
=
C
--25
°
25
°
C
20
25
30
35
ID00336
Forward Voltage, VF -- V
2
Reverse Voltage, VR -- V
3.5
C -- VR
Surge Forward Current, IFSM(Peak) -- A
f=1MHz
IS -- t
Current waveform 50Hz sine wave
I
S
20ms
t
Interterminal Capacitance, C -- pF
100
7
5
3
2
3.0
2.5
2.0
1.5
10
7
5
3
7
1.0
2
3
5
7
10
2
3
5
1.0
0.5
0
Reverse Voltage, VR -- V
100
ID00337
7
7 0.01
2
3
5
7 0.1
2
3
5
7
1.0
2
3
Time, t -- s
ID00338
No.3867-2/5
SB05-03Q
