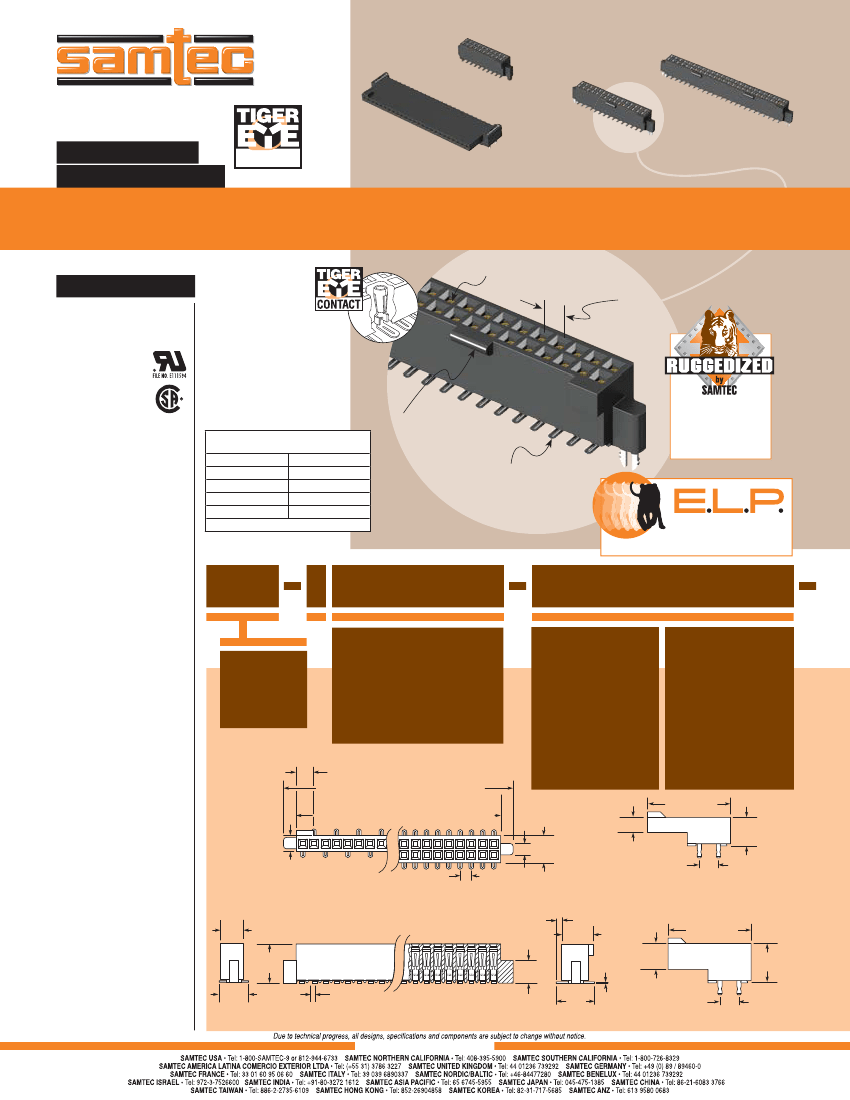

F-213
SFM–110–02–L–D–A
SFML–125–T2–L–D–LC
™
(1,27 mm) .050"
SFM, SFML SERIES
SFML–115–T2–L–D–LC
SYSTEM
SFM–125–02–L–SH
SMT & THROUGH-HOLE TIGER EYE SOCKET
SPECIFICATIONS
For complete specifications and
recommended PCB layouts
see www.samtec.com?SFM or
www.samtec.com?SFML
Insulator Material:
Black Liquid
Crystal Polymer
Contact Material:
Tiger Eye™= BeCu
Tiger Eye™ LITE=
Phosphor Bronze
Plating:
Au or Sn over 50µ" (1,27 µm) Ni
Voltage Rating:
350 VAC mated with TFM
Operating Temp Range:
-55°C to +125°C
Contact Resistance:
15 mΩ
Insertion Depth:
(3,05 mm) .120" to
(4,06 mm) .160"
Wiping Distance:
(0,38 mm) .015"
Normal Force:
Standard= 132 g (1,29 N) avg.;
LIF= 90 g (0,88 N) avg.
Insertion Force (SFM):
(Single contact only)
Standard= 2.5 oz (0,69 N) avg.;
LITE= 2.0 oz (0,56 N) avg.;
LIF= 1.4 oz (0,39 N) avg.
Withdrawal Force (SFM):
(Single contact only)
Standard= 2.0 oz (0,56 N) avg.;
LITE= 1.5 oz (0,42 N) avg.;
LIF= 1.0 oz (0,28 N) avg.
Insertion Force (SFML):
(Single contact only)
2.5 oz (0,69 N) avg.
Unmating Force (SFML):
Withdrawal force per contact
(Single contact only)= 1.5 oz
(0,42 N) average; Incremental
unmating force with friction
locks: 10-20 pins/row (One
Lock) increases withdrawal
force by 4 x average; 25 & 30
pins/row (Two Locks) increases
withdrawal force by 3 x average;
35-50 pins/row (Three Locks)
increases withdrawal force by
1.7 x average
Max Cycles:
10,000 with 30µ" (0,76 µm) Au
(Call Samtec for E.L.P.
plating option)
RoHS Compliant:
Yes
™
SFM Mates with:
TFM, TFSD, TFSS,
FTS, FW, FTSH
SFML Mates with:
TFML, TFSD (–XL option),
TFSDT (–XL option)
™
Low insertion force
Tiger Eye
™
contacts available
(1,27 mm x 1,27 mm)
.050" x .050" micro pitch
• Passes 10 Year MFG
CURRENT RATING
(PER CONTACT)
AMBIENT TEMP
TFM/SFM
20°C
5A
40°C
4.5A
60°C
3.9A
95°C
2.6A
6 POSITIONS (2x3) POWERED
Locking feature
increases unmating
force (SFML)
Choice of SMT or
through-hole tails
• Locking option
• Locking clip option
• Screw Down option
TM
EXTENDED LIFE PRODUCT
10 year Mixed Flowing Gas with 30µ" Gold
1,000 cycles when mated with TFM
TYPE
STRIP
1
NO. PINS
PER ROW
LEAD STYLE
04
SFM
= Standard
(SFM only)
(Surface Mount)
(Through-hole)
–02
= Tiger Eye
™
Contact
–01, –03
= Tiger Eye
™
Contact
SFML
= Locking
05, 07, 10, 15, 20, 25,
30, 35, 40, 45, 50
(Call Samtec or see
SFMC Series for more sizes)
–L2
= Low Insertion Force
Tiger Eye
™
Contact
–L1, –L3
= Low Insertion Force
Tiger Eye
™
Contact
–T2
(2,03) .080
(1,27) .050 x No. of Positions + (3,94) .155
except for alignment pin option:
(1,27) .050 x No. of Positions + (3,17) .125
(1,27) .050 x No. of Positions + (0,38) .015
–T1
= Tiger Eye
™
LITE Contact
(Phosphor Bronze)
(9,78) .385
= Tiger Eye
™
LITE Contact
(Phosphor Bronze)
(1,27)
.050
(3,05)
.120
(3,12)
.123
(2,26)
.089
(3,37)
.133
(1,78)
.070
(1,27) .050 TYP
Processing:
–SH
(–02 only)
Lead-Free Solderable:
Yes
SMT Lead Coplanarity:
(0,10 mm) .004" max (05-25)
(0,15 mm) .006" max (30-50)
SINGLE ROW
(SURFACE MOUNT)
(2,41)
.095
(4,70)
.185
(3,18)
.125
(0,51)
.020
DOUBLE ROW
(SURFACE MOUNT)
(0,58)
.023
(3,68)
.145
(0,13)
.005
TYP
(4,19)
.165
(4,39)
.173
(9,78) .385
(4,64)
.183
(2,26)
.089
(2,79)
.110
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
–DH
(–02 only)
WWW.SAMTEC.COM

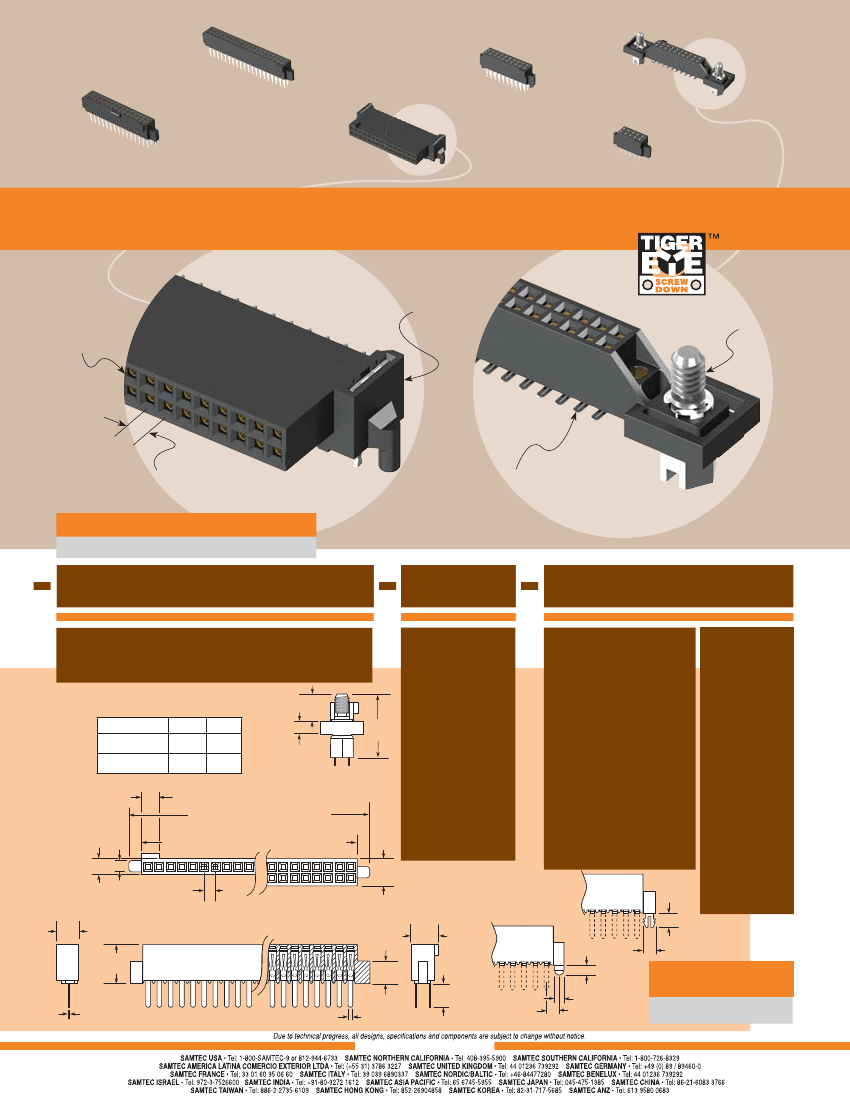

SFM–120–L3–L–D
SFM–110–01–L–D–A
SFM–110–02–L–D–DS
SFML–115–T1–L–D–LC
SFM–115–02–L–DH
SFM–105–L3–L–D
Mates with TFM
for coplanar and
perpendicular mating
High reliability
Tiger Eye
™
contacts
Screw down
option
(1,27 mm x 1,27 mm)
.050" x .050" micro pitch
Surface mount or
Through-hole tails
COST-SAVING APPLICATIONS
See SFC Series for lower cost plating options.
PLATING OPTION
ROW
OPTION
OPTION
–L
= 10µ" (0,25 µm) Gold on contact, Matte Tin on tail
(Call Samtec for E.L.P. plating option)
Note:
Other Gold plating options available.
Contact Samtec.
LEAD STYLE
–01, –L1, –T1
–03, –L3
(2,03)
.080
(1,78)
.070
–S
= Single Row
(SFM only)
Specify only –A, –LC or –DS
(Not available with –DH, –SH)
–A
= Alignment Pin
(Available with all Lead Styles)
Specify only
–K or –P
(Lead styles –02,
–L2, –T2 only)
(3,68)
.145
(8,50)
.335
(1,78)
.070
–D
= Double Row
–K
= Polyimide film
Pick & Place Pad
(Not available
with –DH, –SH)
A
(3,05)
.120
(1,91)
.075
B
(0,51)
.020
(0,41)
.016
–SH
= Single Horizontal
(05 thru 30 positions only)
(SFM only)
(Lead style –02 only)
–LC
= Locking Clip
(Available with all lead styles)
(Manual placement required)
–DS
(–D, –01 –02 & –03 ONLY)
–P
= Plastic Pick &
Place Pad
(Not available
with –DH, –SH)
Specify –TR last
(Lead styles –02,
–L2, –T2 only)
–DS
= Dual Screw Down for
(1,60mm) .062" PCB
(05 thru 40 positions only)
(Lead styles –01, –02 & –03 only)
(Requires –D row option)
(Not available with SFML)
(Mates with TFM-DS option)
(1,65)
.065
(1,27) .050 x No. of Positions + (3,94) .155
except for alignment pin option:
(1,27) .050 x No. of Positions + (3,17) .125
(1,27) .050 x No. of Positions + (0,38) .015
(3,05)
.120
–DH
= Double Horizontal
(05 thru 30 positions only)
(SFM only)
(Lead style –02 only)
–TR
= Tape & Reel
(Required callout
for –DH, –SH)
(1,27)
.050
(2,41)
.095
(4,57)
.180
(0,13)
.005
TYP
(1,27)
.050 TYP
SINGLE ROW
(THROUGH-HOLE)
DOUBLE ROW
(THROUGH-HOLE)
(3,68)
.145
(2,79)
.110
–LC
(1,41 x 0,25)
.056 x .010
A
B
(1,27) .050 DIA
(1,59) .063
–A
(1,27)
.050
APPLICATION
SPECIFIC OPTION
Solder nail option available.
Call Samtec.
WWW.SAMTEC.COM
